Banana Pi BPI-CM4 Amlogic A311D system-on-module launched for $95

Banana Pi BPI-CM4 system-on-module powered by an Amlogic A311D hexa-core Cortex-A73/A53 processor and compatible with the Raspberry Pi CM4  module has now been launched for $95 and up.

Banana Pi introduced the Raspberry Pi CM4 compatible module with Amlogic A311D CPU last May with some 3D renders and specifications, and we expected a launch in Q4 2022 or Q1 2023 at the time. The Banana Pi BPI-CM4 is now available together with a carrier board so let’s have another look.

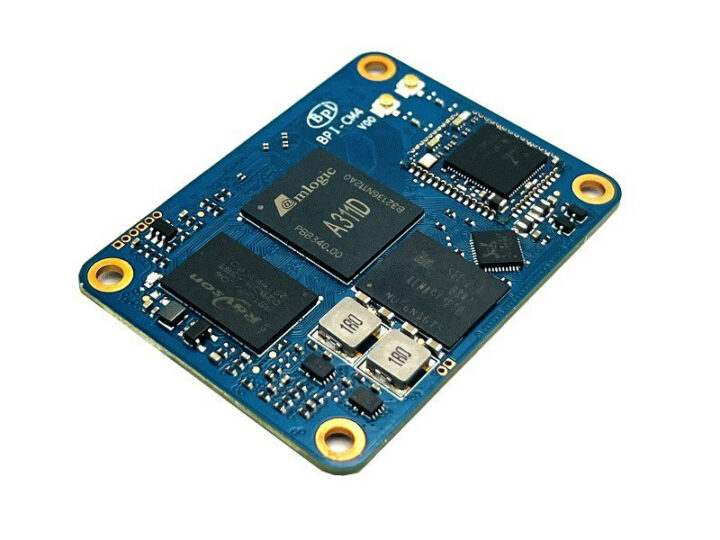

Banana Pi BPI CM4

Banana Pi BPI-CM4 specifications:

  • SoC – Amlogic A311D hexa-core processor with 4x Arm Cortex-A73 @ 2.0 GHz and 2x Arm Cortex-A53, Arm Mali-G52 MP4 (6EE) GPU, 5 TOPS NPU
  • System Memory – 4GB LPDDR4 RAM
  • Storage – 16GB eMMC flash (up to 128GB)
  • Networking
    • Realtek RTL8211F Gigabit Ethernet PHY on-module
    • Dual-band WiFi 5 up to 867Mbps and Bluetooth 5.2 via Realtek RTL8822CS module and 2x u.FL antenna connectors
  • 2x 100-pin high-density board-to-board connectors (mostly) compatible with Raspberry Pi CM4 with 1x HDMI, 1x MIPI DSI, 1x MIPI CSI, PCIe, Gigabit Ethernet, 26x GPIO, etc…
  • Supply Voltage – 5V
  • Dimensions – 55 x 40 mm with 4x M2.5 mounting holes

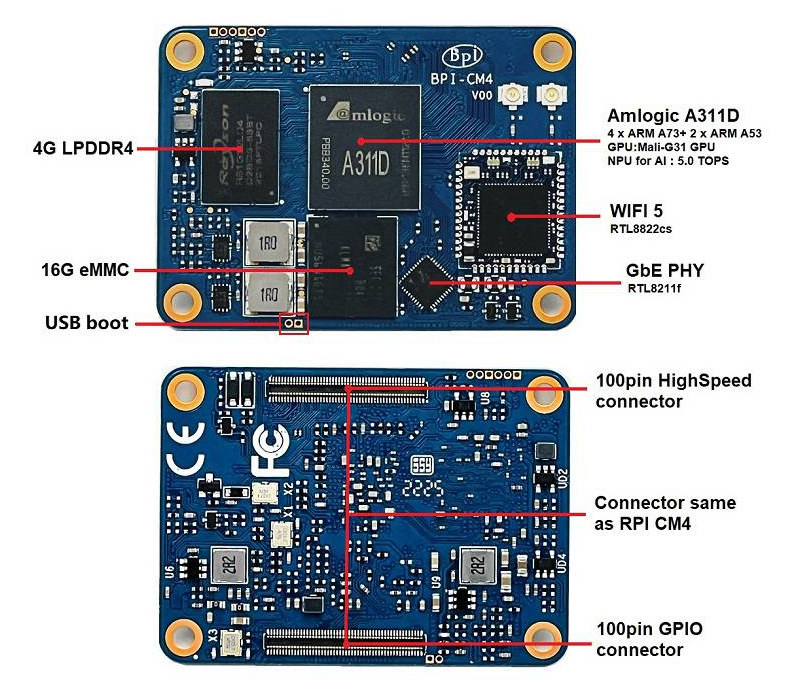

Raspberry Pi CM4 Amlogic A311DThe Banana Pi BPI-CM4 module supports the same operating systems as the company’s BPI-M2S SBC with Amlogic A311D SoC, namely Android 9, Ubuntu 20.04, and Debian 10 OS, and the Wiki and getting started instructions points to the OS image for the Banana Pi BPI M2S board. The low-level source code shared on GitHub shows the use of u-boot 2015.1 and Linux 4.9.241, so as usual with Banana Pi, the module is only suitable for people that are fine with using outdated bootloader and Linux kernel… Alternatively, you could always check out Khadas VIM3 images with the same processor and more up-to-date software support.

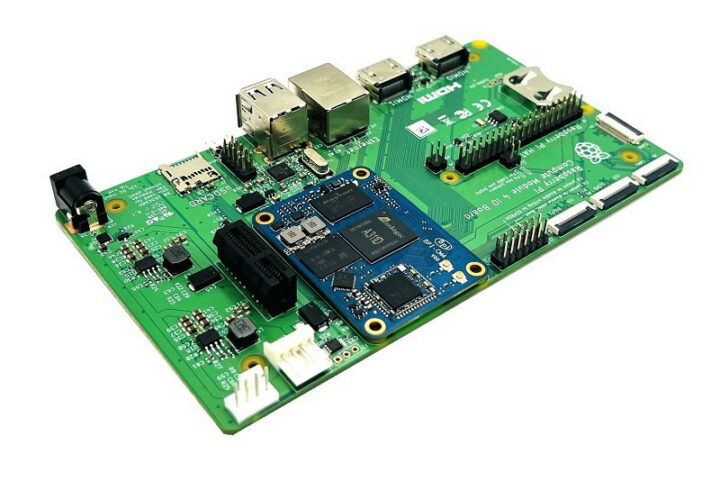

Banana Pi BPI-CM4 on Raspberry Pi CM4 IO board

Since the module is compatible with the Raspberry Pi CM4, it works with existing carrier boards such as of Raspberry Pi Compute Module 4 IO board, albeit some features like dual HDMI output and dual camera input won’t work. But Banana Pi also designed its own baseboard with the following interfaces:

  • Supported SoM – Banana Pi BPI-CM4 described, and other Raspberry Pi CM4 compatible modules
  • Storage – MicroSD card
  • Video Output – 1x HDMI port, 1x MIPI DSI interface
  • Camera I/F – 1x MIPI CSI
  • USB – 2x USB 2.0 ports, 1x USB Type-C OTG port
  • Expansion
    • 26-pin GPIO header
    • mini PCIe socket with PCIe and USB 2.0
    • MicroSIM for mPCIe cellular modem
  • Debugging – 3-pin debug UART header
  • Power Supply – 5V via USB-C OTG port
  • Dimensions – TBD

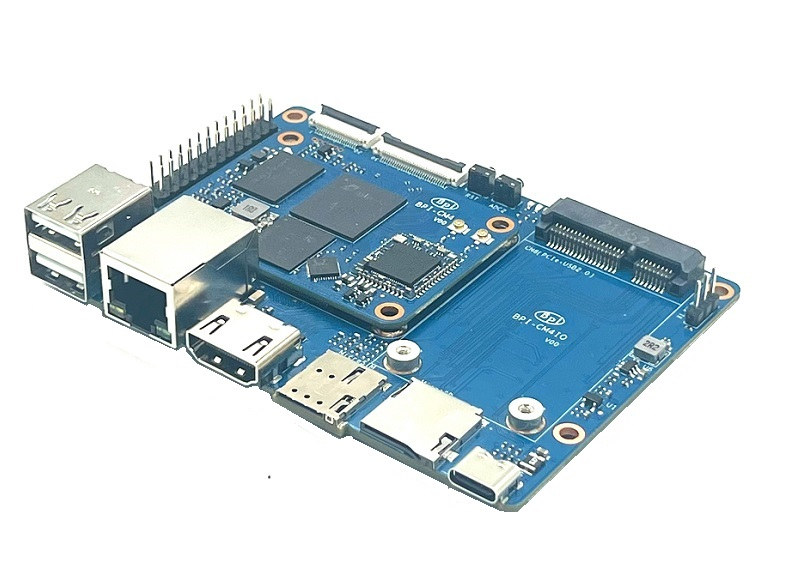

Banana Pi BPI-CM4 carrier board
Banana Pi BPI-CM4 carrier board

As noted last year, the Amlogic A311D hexa-core Cortex-A73/A53 processor delivers quite better CPU performance than the Broadcom BCM2711 quad-core Cortex-A72 processor, even when the Raspberry Pi 4 is overclocked to 2.0 GHz.

Khadas VIM3 Fan vs Raspberry Pi 4

The integrated 5 TOPS NPU is also an advantage since users do not need to add an AI accelerator like Google Coral or Myriad X board for machine learning workloads.

Availability should also be better than for the Raspberry Pi CM4, at least for H1 2023, since Eben Upton expects supply shortage issues to be fully resolved by H2 2023. While the Banana Pi BPI-CM4 is sold for $95, the complete kit with the baseboard goes for about $110.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

5 Replies to “Banana Pi BPI-CM4 Amlogic A311D system-on-module launched for $95”

  1. > people that are fine with using outdated bootloader and Linux kernel

    Link goes to 4.19 but the Bananaware shipped with this board is 4.9 that went EOL few days ago (they ship with 4.9.241 from 29 Oct 2020, as such missing 2 years of fixes which isn’t that important since it’s an Amlogic forward ported BSP/Android kernel anyway containing lots of unfixed vulnerarbilities collected over the years)
