ultraArm P340 Arduino-based robotic arm draws, engraves, and grabs

Elephant Robotics ultraArm P340 is a robot arm with an Arduino-compatible ATMega2560 control board with a 340mm working radius whose arm can be attached with different accessories for drawing, laser engraving, and grabbing objects.

We’ve previously written and reviewed the myCobot 280 Pi robotic arm with a built-in Raspberry Pi 4 SBC, but the lower-cost ultraArm P340 works a little differently since it only contains the electronics for controlling the servos and attachments, and needs to be connected to a host computer running Windows or a Raspberry Pi over USB.

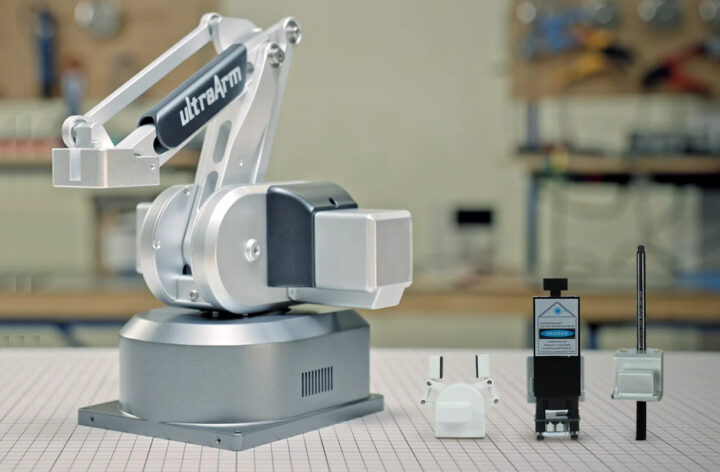

ultraArm P340 robotic arm draw engrave grabber

ultraArm P340 specifications:

  • Control board based on Microchip ATMega2560 8-bit AVR microcontroller @ 16MHz with 256KB flash, 4Kb EEPROM, 8KB SRAM
  • DOF – 3 to 4 axis depending on accessories
  • Working radius – 340mm
  • Positioning Accuracy – ±0.1 mm
  • Payload – Up to 650 grams
  • High-performance stepper motor
  • Maximum speed – 100mm/s
  • Communication interfaces – RS485 and USB serial
  • Attachment interfaces – PWM laser connector, gripper connector, and switch connector for the suction pump
  • Misc – Burn button for flashing the firmware
  • Power Supply
    • Input – AC100-240V / 50-60Hz to 12V/5A (60W)
    • Output voltages – 12V, 8.4V, 5V
  • Dimensions – It’s complicated (see below)
  • Weight – 2.9kg
  • Material – Aluminum alloy, SLA

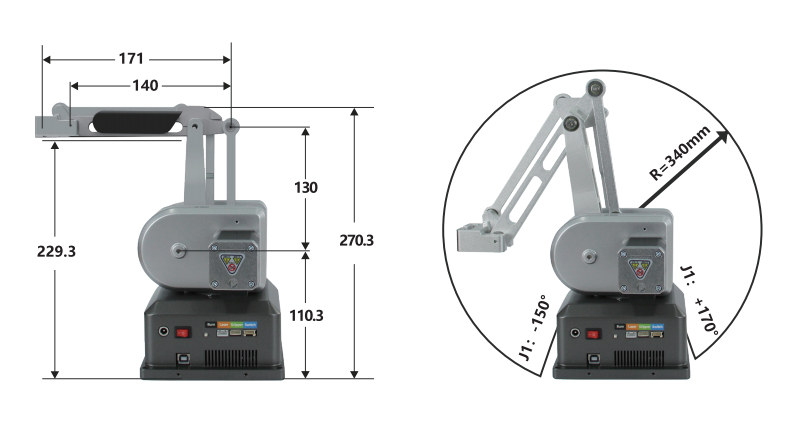

ultraArm P340 dimensions

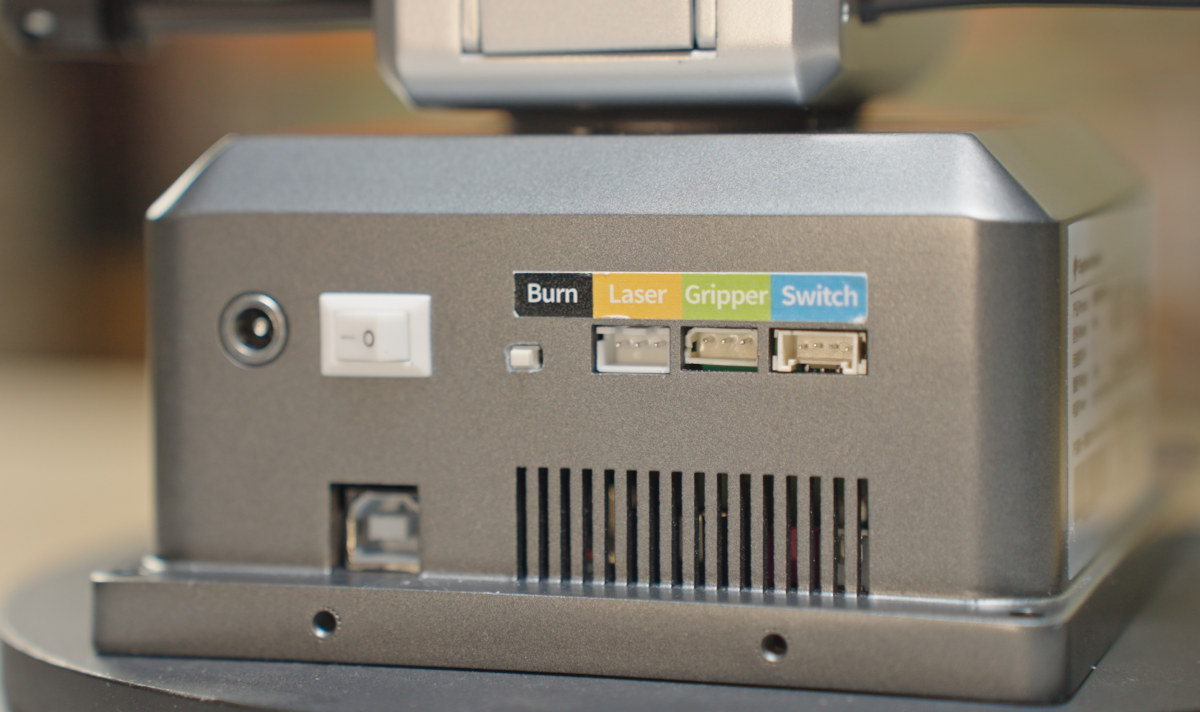

Robotic Arm Laser Gripper Switch

The ultraArm P340 is offered as a standard kit with all basic accessories, as well as a drawing kit with a pen holder, a laser engraving kit, and several vision kits with a camera, clamping claw or suction pump, conveyor belt, etc… It’s also possible to purchase the extension kits separately and switch between them as your see fit.

The robot relies on several programs and software

  • myStudio software available for Windows, macOS, and Linux can be used to upgrade the firmware and access user manuals, tutorials, and so on.
  • Luban G-Code generator is useful for the writing, painting, and laser engraving functions
  • myBlockly is a drag-and-drop visual programming interface that generates Python code
  • The robot can be controlled with Python scripts directly
  • ROS2 robot operating system is also apparently running in a Ubuntu 20.04 virtual machine

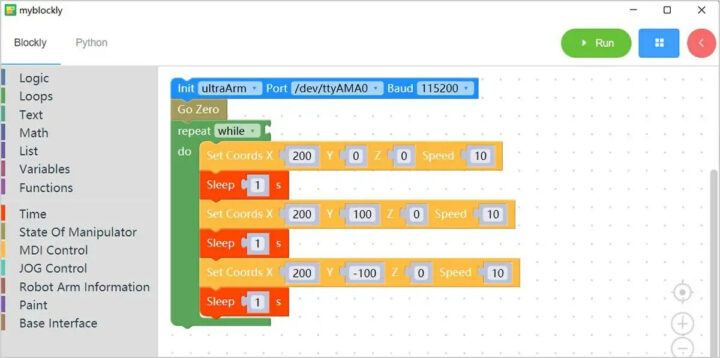

myBlockly screenshot ultraArm

You’ll find more details and instructions to get started on the documentation website.

Elephant Robotics has started to take pre-orders for the ultraArm P340 robotic arm for $649 for the standard kit with shipping scheduled to start on February 1 [Update: coupon ULTRA20 should cut the price by 20%]. For reference, the Raspberry Pi-based 6 DoF  myCobot 280 Pi robotic arm currently goes for $799.
