Teledyne e2v releases Hydra3+ high-resolution ToF sensor with 832 x 600 resolution

Teledyne e2v Hydra3D+ is a high-resolution Time-of-Flight (ToF) CMOS image sensor with 832 x 600 resolution, designed for real-time 3D detection and measurement without motion artifacts.

The first ToF sensor I used was an STMicro VL53L0X ranging sensor that could measure distances accurately and quickly up to 2 meters away, then the company started to launch multi-zone ToF ranging sensors such as the VL53 that enabled new features such as touch-to-focus, multiple-target identification, flash dimming, or video tracking assistance, and one variant used for human detection. But the 832×600 resolution of Hyrdra3D+ brings even more interesting use cases with the ability to create 3D maps in real time.

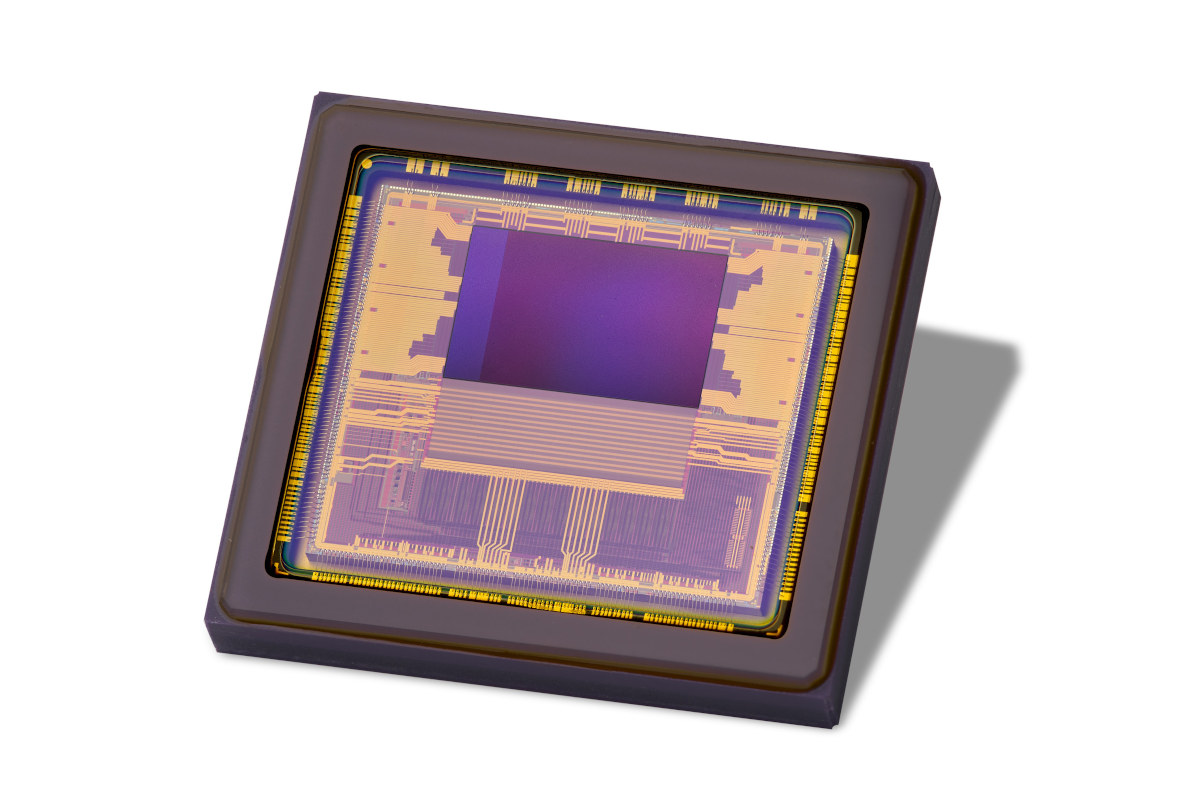

Hydra3D+ high-resolution ToF sensor

Hydra3D+ ToF sensor specifications:

  • Sensor
    • Resolution – 832 x 600 pixels
    • Aspect Ratio – 4 : 3
    • Size type – 2/3″ (10.3 mm diagonal)
    • Pixel type/size – square – Three-tap global shutter – gated global shutter / 10 μm
    • Maximum frame rate @ 12 bits – 416.7 fps considering only readout
    • FFxQE – 41% @ 850, 31% @ 940 nm in 2D greyscale mode (FF stands for Fill Factor, QE for Quantum Efficiency. See DrPi comment for an explanation)
    • Transfer time –  Down to 10ns
    • Readout noise – 2.5 e- RMS
    • Linearity – -1 / +1%
  • Scalable LVDS outputs (13, 7 or 4 channels)
  • Host interface – SPI
  • Acquisition modes – Distance measurement and greyscale
  • High Dynamic Range support
  • Programmable exposure time
  • Region of interests (ROI)
    • Row-wise ROI: up to 4x for distance measurement, 1x for 2D greyscale image
    • Column-wise ROI with 64 columns granularity
  • Power consumption – 2.6 W with the following conditions: full array, 100 ns gating cycle duration (three phases), 10% duty cycle, 50% gating time
  • Package – Ceramic LGA
  • Temperature Range – -40°C to 105°C

Teledyne e2v lists pick and place, logistics, factory automation, and factory safety as some of the target applications. The company further explains the Hydra3D+ high-resolution ToF sensor is ideal for mid to long-range distances and/or outdoor applications such as automated guided vehicles, industrial robots, surveillance, and building construction.

Documentation, samples, and development tools are available but only upon request after contacting the company. Teledyne e2v also provides proprietary modeling tools for the evaluation of the Hydra3D+ sensor. Further details may be found on the product page and the press release.

Thanks to TLS for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies or become a Patron on Patreon

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
8 Comments
oldest
newest
B Webb
8 days ago

I’m not sure about the FFx part, but my guess would be “Full Frame”. QE is almost surely Quantum Efficiency.

Willy
8 days ago

Found FFxQE here:https://www.researchgate.net/figure/I-ntra-pixel-response-of-STAR-1000-and-HAS-obtained-by-knife-edge-method-An-improved_fig4_234454680

It stands for “fill factor and quantum efficiency”. Still no idea 😉

B Webb
8 days ago

That makes sense. Fill factor is the percentage of the surface area of the of the detector that is active (detects photons). Quantum efficiency is a measure of the probability that a photon hitting a detector is actually detected, so FFxQE is a total measure of how much of the returned light that is focused on the detector array will actually be detected.

Willy
8 days ago

Thanks for the explanation, it makes sense indeed.

DrPi
8 days ago

Fill Factor : ratio of the pixel sensitive area / the full pixel area.
100% means the sensitive area covers the pixel area (only with back side illuminated sensors). Front side illuminated sensors have transistors, metallic traces, isolation barriers… nearby the sensitive area.

Quantum Efficiency : ratio of photons converted to electrons.
With black and white sensors, QE is quite high. With color sensors there are 3 (quite low) QEs, one per color (with RGB pixels).

kcg
kcg
8 days ago

ST is working on something similar too: https://www.st.com/en/imaging-and-photonics-solutions/vd55h1.html
Pricing is unknown but man may wonder if this is to replace 3d cameras in cheap robots.

Ghent The Slicer
7 days ago

Looks very interesting but i fear the price would put it out of reach for a hobby enthusiasts.

Looks like there is a lot of new designs when it comes to 2d ToF sensors, so there is hope.
