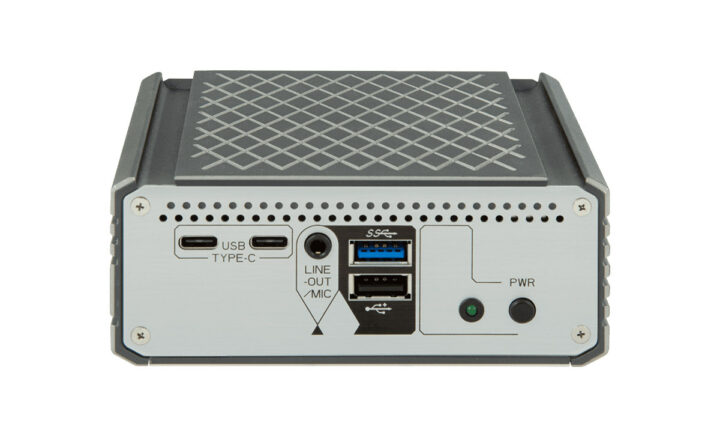

ARBOR ELIT-1060 compact, fanless Celeron N6210 terminal supports up to three 4K displays

ARBOR’s ELIT-1060 triple display terminal is a rugged fanless mini PC powered by an Intel Celeron N6210 dual-core Elkhart Lake processor with two HDMI 2.0 ports and one DisplayPort connector each supporting up to 4Kp60 resolution.

The system comes with a 4GB DDR4 SO-DIMM, 32GB eMMC flash, two 2.5GbE Ethernet ports, an M.2 socket for wireless expansion, several USB 3.0/2.0 ports, and one RS232/422/485 serial port. While the company markets it for “high-intensity digital signage applications”, I could also see it being used in various other applications thanks to its networking capabilities and expansion ports.

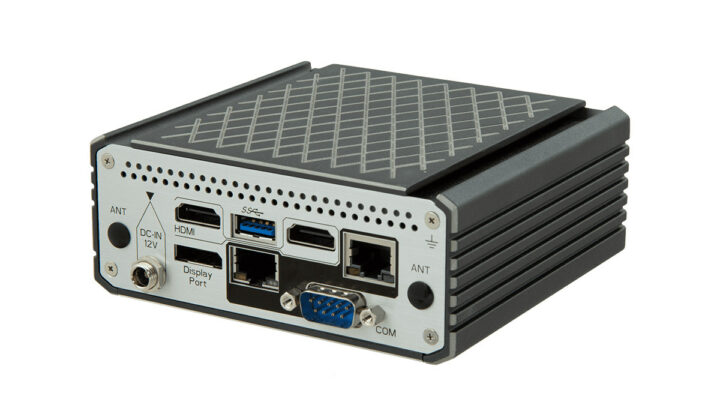

Compact Intel Celeron N6210 fanless display terminal

ARBOR ELIT-1060 specifications:

  • SoC – Intel Celeron N6210 dual-core Elkhart Lake processor up to 2.6 GHz with Intel UHD graphics
  • System Memory – 4GB DDR4 SO-DIMM memory expandable to up to 32GB RAM
  • Storage
    • 32GB eMMC flash
    • M.2 M-key socket (2260/2280, PCIe Gen.3 x2/SATA interface) for an NVMe or SATA SSD
  • Video Output
    • 2x HDMI 2.0 up to 4Kp60 (4096×2160 @ 60Hz)
    • 1x DisplayPort up to 4Kp60 (4096×2160 @ 60Hz)
  • Audio – 3.5mm Line-out / MIC-in combo jack, digital audio output via HDMI or DisplayPort
  • Networking
    • 2x 2.5GbE RJ45 ports
    • Optional WiFi and/or Bluetooth via M.2 module (See Expansion section)
  • USB
    • 2x USB 3.2 Gen 2 Type-A ports
    • 2x USB 3.2 Gen 2 Type-C ports
    • 1x USB 2.0 Type-A port
  • Serial – DB-9 connector for RS232(Default)/RS422/RS485 (RI/5V/12V)
  • Expansion – 1x M.2 E-key socket (2230, PCIe Gen.3 x1/ USB2.0 interface) for wireless module
  • Security – TPM 2.0
  • Misc – Watchdog Timer
  • Power Supply – 12V DC input via lockable jack
  • Power consumption – 24W typ. without I/O cards
  • Dimensions – 118 x 108 x 48mm (fanless aluminum alloy enclosure)
  • Weight – 660 grams
  • Temperature Range – Operating: -20 ~ 60°C; storage: -20 ~ 60 °C
  • Humidity – 10% ~ 95% RH @ 60°C (non-condensing)
  • Vibration – 3 Grms / 5~500Hz / random operation
  • Shock – Operating 50G (11ms) with eMMC flash
  • Certifications – CE, FCC Class A


The fairly wide temperature range, vibration and shock certifications, and 12V DC input might make it suitable for on-vehicle digital signage applications, for example driving multiple displays in a bus. The company ships the display terminal as a desktop device by default but also offers wall-mount and DIN-Rail mounting options.

ARBOR only supports Windows 10 /Windows 11 for the ELIT-1060 triple display terminal, but Linux might work too, barring any issue with the driver, as the UP Squared 2 SBC based on the same CPU supports Linux (Ubuntu and Yocto Project support).

ARBOR did not provide pricing and availability information. Further details, including a datasheet and a user manual with BIOS settings, can be found on the product page.
