MessengerPi – A LoRa messenger and walkie-talkie based on Raspberry Pi RP2040 (Crowdfunding)

SB Components MessengerPi is a DIY messenger and walkie-talkie based on a Raspberry Pi RP2040 that relies on LoRa communication for P2P messaging over distances of up to 5 kilometers and calls up to 300 meters away.

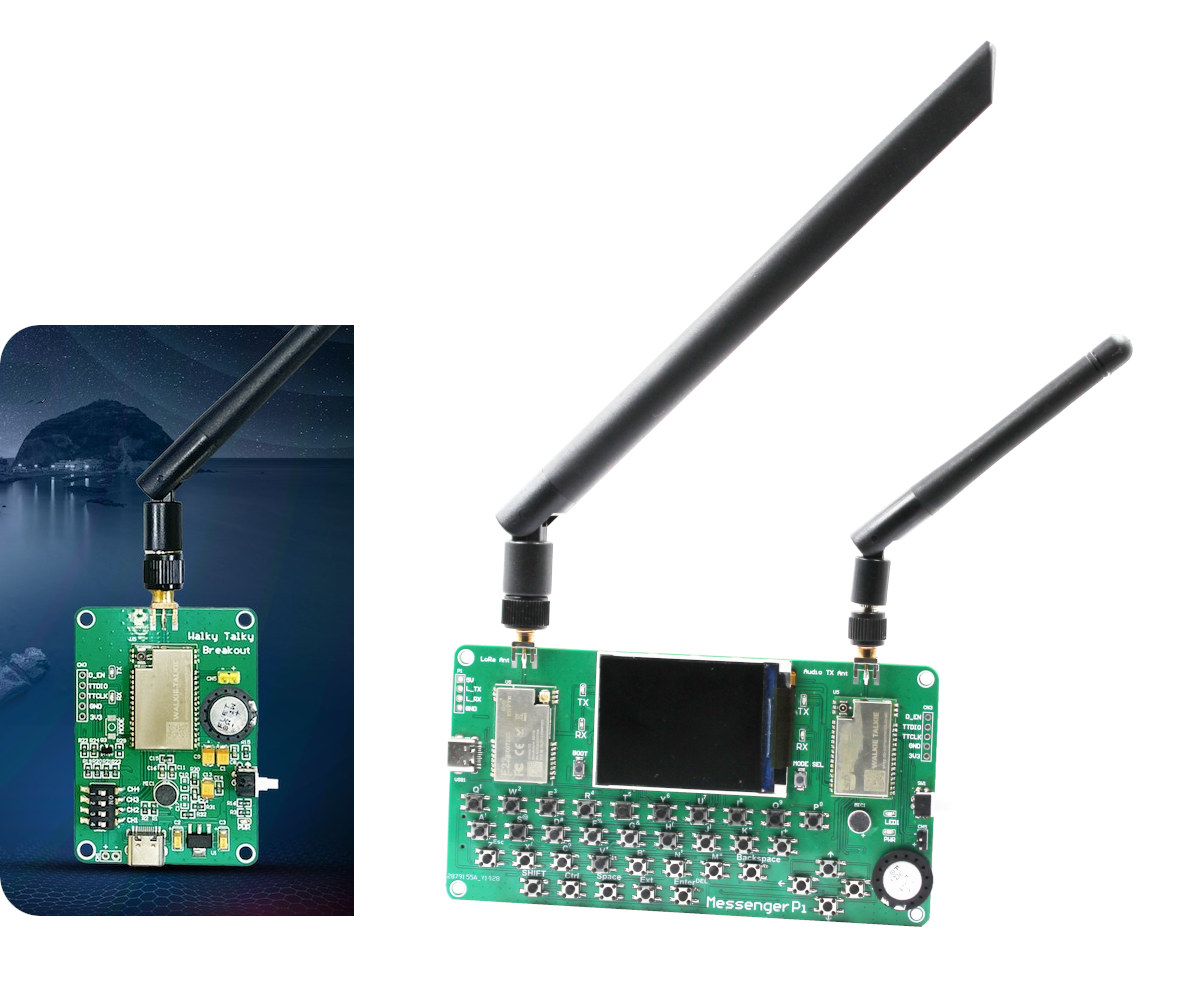

The company actually provides two boards: the MessengerPi itself for both calls and messaging with a keyboard, and the smaller “Walky Talky” board for audio communication only and without a LoRa module.

MessengerPi Walky Talky

Messenger Pi specifications:

  • MCU – Raspberry Pi RP2040 dual-core Cortex-M0+ microcontroller @ 133 MHz with 264KB SRAM
  • Storage – MicroSD card slot
  • Wireless
    • Ebyte E22-900T22S LoRa module (also used in the company’s LoRa HAT for Raspberry Pi)
      • Based on the Semtech SX1262 transceiver
      • Operates in the 850 MHz to 930 MHz band
      • Up to 5km LoRa text messaging
    • SB Components marked Walkie-Talkie module
      • 16 FRS channels
      • Tx Power – Up to 17 dBm
      • Rx sensitivity – Up to -98dBm
      • Audio communication up to a 300-meter range
      • One-to-one & one-to-many broadcasting support
    • Two SMA antennas for LoRa and Audio transmission
  • Display – 2-inch display
  • Audio – Built-in microphone and speaker, 3.5mm jack for optional external speaker attached to board (see video below).
  • User input
    • QWERTY keypad
    • Push to Talk button for walkie-talkie function
    • Boot button for programming the RP2040 MCU
  • USB – USB Type-C port for power and programming
  • Misc – DIP switches for configuration
  • Power Supply – 2-pin connector for 3.7V LiPo battery, USB-C port for charging.

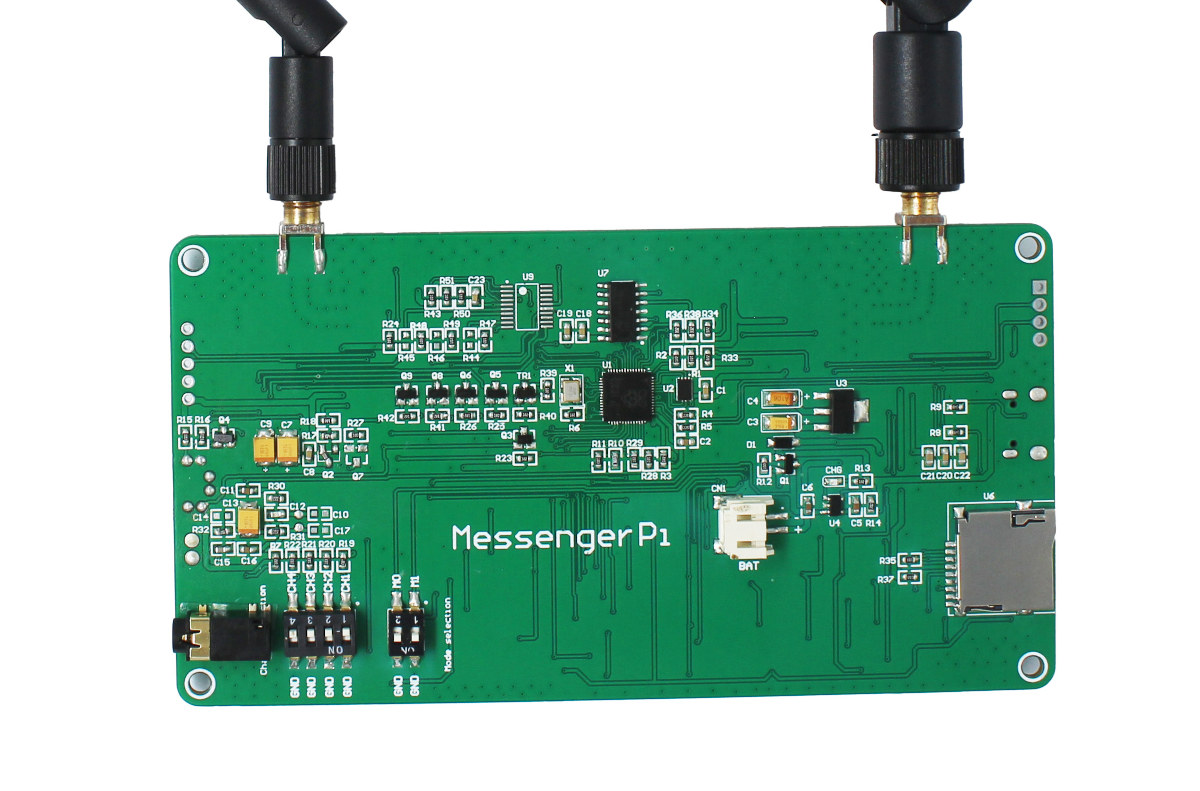

Raspberry Pi RP2040 LoRa Messaging boardThe DIY Walky Talky board is basically the same minus all parts related to LoRa messaging (LoRa module, keyboard, and display).  The MessengerPi and DIY Walky Talky boards would mostly be useful for outdoor communications when hiking, farming, boating, etc… outside the range of any cellular networks, but SB Components won’t provide an enclosure, so you’d better hope it won’t rain, or keep the board in your RV, tractor, or boat…

As usual, the company does not provide any details or source code about the firmware during the crowdfunding campaign, so you have to trust them and cannot evaluate the software support before pledging your hard-earned money. They typically release libraries and sample code on their GitHub account but only have funding received. In the meantime, you can still watch a promotion and demo video below.

YouTube video player



The Messenger Pi and Walky Takly boards have recently been launched on Kickstarter with a lowly 500 GBP funding target (about $620). Rewards start at $49 US for a pair of DIY “Walky Talky” boards and $138 for two MessengerPi boards. Shipping adds 7 GBP to the UK and about $19 to the rest of the world, and backers should expect their rewards to ship by March 2024 if everything goes according to plan.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard

3 Replies to “MessengerPi – A LoRa messenger and walkie-talkie based on Raspberry Pi RP2040 (Crowdfunding)”

  1. I’m surprised that someone thinks that there is value in a device that comes with two antennas to send audio and slow text separately, but I’m even more surprised that it’s backed that well. Also, given how slow typing seems to be on this device, they should send each letter instantly, not wait for the sender to press enter, that would allow the other end to understand before the end of the message and say “ok” to interrupt it (like we used to do with the talk utility).

    1. If they’re not meshtastic compatable, what’s the point of them? I do find the FRS/voice board very confusing. Is it type approved? Because that’s the big concern in that market.

  2. mesh, it working in mesh mode?
    mesh with wifi, with lora and meybe with cc1101 433MHz

    meshtastic, reticulum or other mesh network system.
