myAGV 2023 four-wheel mobile robot ships with Raspberry Pi 4 or Jetson Nano

Elephant Robotics myAGV 2023 is a 4-wheel mobile robot available with either Raspberry Pi 4 Model B SBC or NVIDIA Jetson Nano B01 developer kit, and it supports five different types of robotic arms to cater to various use cases.

Compared to the previous generation myAGV robot, the 2023 model is fitted with high-performance planetary brushless DC motors, supports vacuum placement control, can take a backup battery, handles large payloads up to 5 kg, and integrates customizable LED lighting at the rear.

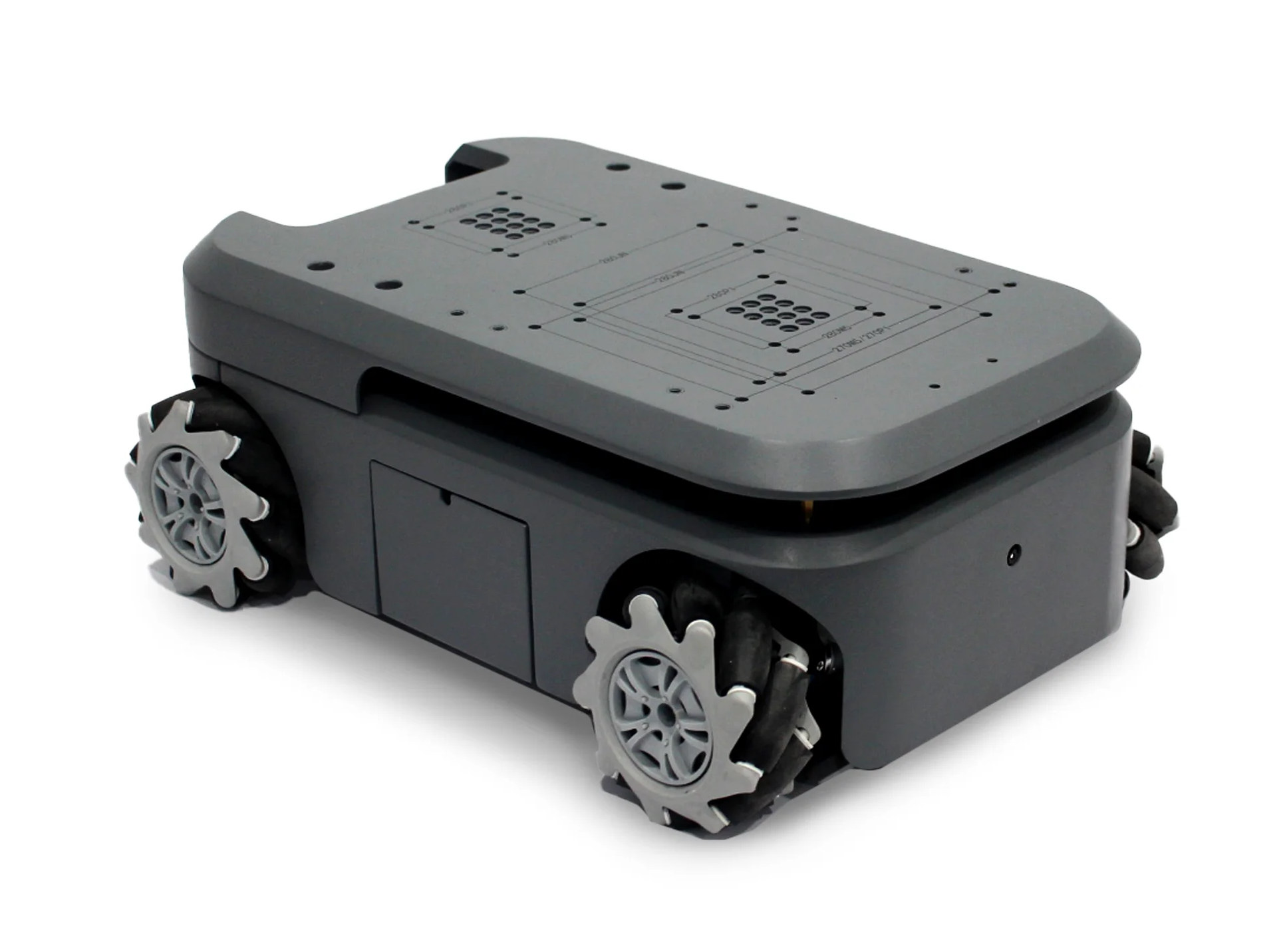

myAGV 2023
myAGV 2023 autonomous guided vehicle

myAGV 2023 specifications:

  • Control board
    • Pi model – Raspberry Pi 4B with 2GB RAM
    • Jetson Nano model – NVIDIA Jetson Nano B01 with 4GB RAM
  • Wheels – 4x Mecanuum wheels
  • Motor – Planetary brushless DC motor
  • Maximum linear speed – 0.9m/s
  • Maximum Payload – 5 kg
  • Video Output
    • Pi model – 2x micro HDMI ports
    • Jetson Nano model – HDMI and DisplayPort video outputs
  • Camera
    • Pi model – 5 MP resolution, 65° field of view
    • Jetson Nano model – 8 MP resolution, 77° field of view
  • Lidar – 360° scanning, range from 0.12 to 8 meters
  • Networking – Gigabit Ethernet RJ45 port; Pi model only: WiFi 5 and Bluetooth 5.0
  • USB
    • Pi model – 2x USB 2.0 ports
    • Jetson Nano model – 2x USB 3.0 ports
  • Expansion – 12x GPIOs
  • Power Supply – 12.6V/2A
  • Battery life
    • Navigation – 181 minutes
    • Standby – 328 minutes
  • Dimensions – 331.15 x 230 x 190 mm
  • Weight – 4.16 kg
  • Temperature Range – -5°C to +45°C
four wheel automous guided vehicle raspberry pi 4
myAGV 2023 fitted with a robotic arm

Both myAGV 2023 models run Ubuntu 22.04 with ROS, support online firmware updates via myStudio, programming using either myBlockly visual programming or a Python API, a visualization software, and mapping and navigation, but the Raspberry Pi robot only supports 2D SLAM, while the Jetson Nano model can handle both 2D and 3D SLAM. None of those features were supported in the earlier myAGV robot.  More details about the software may be found on the documentation website.

Besides robotic arms, other optional accessories include a 7-inch HD IPS touchscreen display and a backup battery, and the Jetson Nano robot also supports ORBBEC Astra Pro 2 and Intel Realsense D435i 3D depth cameras which explains its 3D SLAM mapping and navigation capabilities.

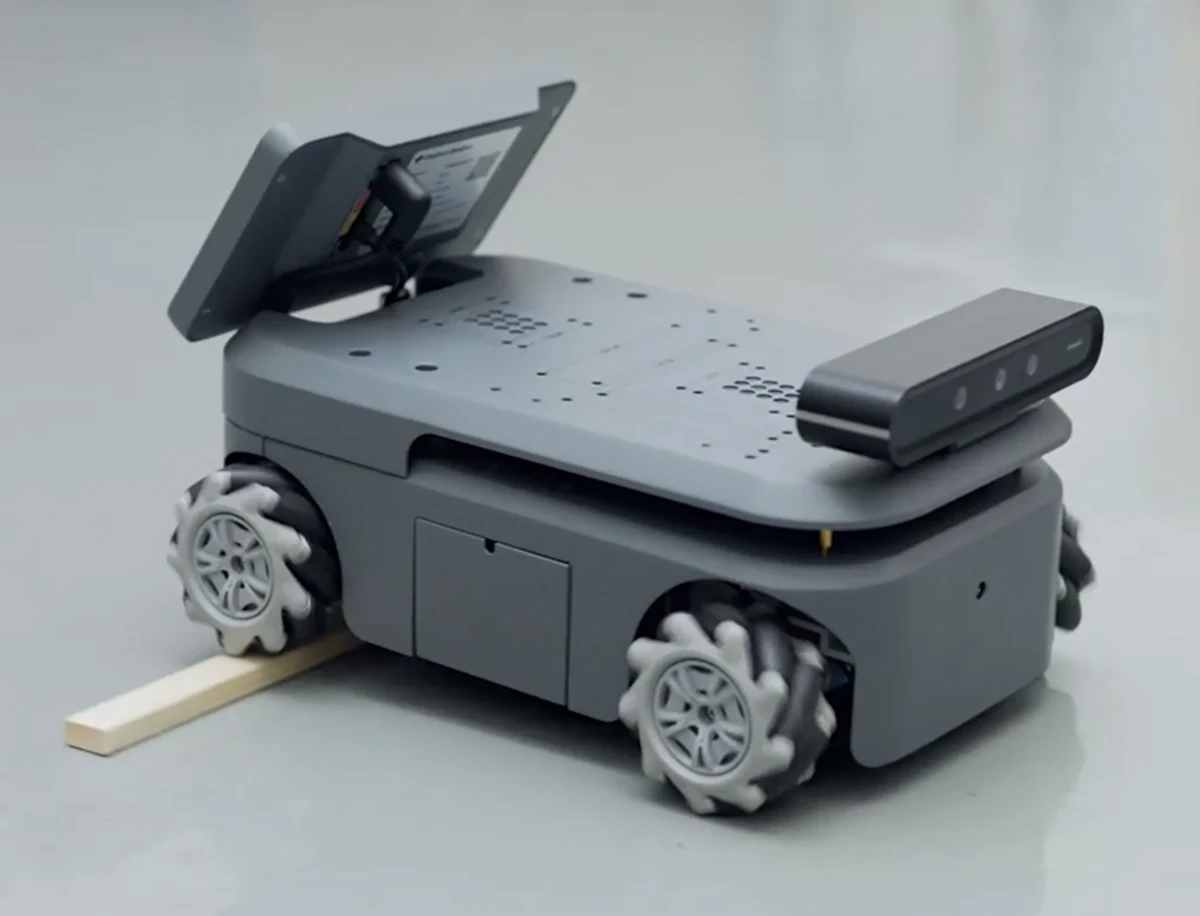

myAVG Jetson Nano robot display 3D depth camera
myAGV 2023 Jetson Nano mobile robot with 7-inch touchscreen display and 3D depth camera

Elephants Robotics sells both models on Aliexpress with the myAGV 2023 Pi going for $1,045 plus shipping and the myAGV 2023 Jetson Nano for $1,430. But if you also need some accessories you’d need to order the mobile robot from the company’s own store instead, as kits with a 7-inch display and/or a spare battery. The 3D depth cameras need to be purchased separately as the company does not sell those.
