QNAP unveils TS-432X and TS-632X Arm-based NAS with 10GbE networking, up to six SATA bays

QNAP has unveiled TS-432X 4-bay and TS-632X 6-bay Tower NAS systems that feature not only 2.5GbE ports but also one or two 10GbE SFP+ cages, as well as one PCIe Gen 3 x4 slot and are powered by an Annapurna Labs Alpine AL524 4-core 64-bit Arm processor.

We had seen NAS with 10GbE networking before such as the QNAP HS-453DX and ASUSTOR FLASHSTOR, but those were powered by Intel processors. The new TS-432X and TS-632X NAS systems combine a 64-bit Arm processor and 10GbE networking in a way similar to the earlier QNAP TS-431X-2G-USARM powered by a dual-core 32-bit Arm CPU.



QNAP TS-432X 10GbE NAS 4-Bay
QNAP TS-432X

QNAP TS-432X/TS-632X specifications:

  • SoC –  Annapurna Labs Alpine AL524 4-core 64-bit Arm processor @ up to 2.0 GHz
  • System Memory – 4GB DDR4 (non-ECC), upgradeable up to 16GB DDR4 (ECC memory supported) via SO-DIMM socket
  • Storage
    • 512 MB flash with dual boot OS protection
    • Drive bays
      • TS-432X – 4x 3.5-inch SATA 6Gb/s, 3Gb/s; supports JBOD, Single, RAID 0, 1, 5, 6, 10
      • TS-632X – 6x 3.5-inch SATA 6Gb/s, 3Gb/s; supports JBOD, Single, RAID 0, 1, 5, 6, 10, 50
      • Compatible with 3.5-inch SATA HDD, 2.5-inch SATA HDD and SSD
      • Hot-swappable
    • SSD cache acceleration support
  • Networking
    • 2x 2.5GbE RJ45 ports
    • TS-432X – 1x 10GbE SFP+ cage
    • TS-632X – 2x 10GbE SFP+ cages
    • Wake on LAN (WOL) and Jumbo Frame support
  • USB – 2x USB 3.2 Gen 1 ports
  • Expansion – PCIe Gen 3 x4 slot for cards up to 190 x 68.9 x 18.76 mm
  • Misc
    • LED Indicators – Power, Status, LAN, USB, HDD LEDs
    • Buttons – Power, Reset, USB Auto Copy
    • 1x (TS-432X) or 2x (TS-632X) 90mm 12VDC fans
    • Buzzer
    • Kensington Security Slot
  • Power Supply
    • TS-432X – 12V DC (90W)
    • TS-632X – 12V DC (120W)
  • Dimensions and Weight
    • TS-432X – 226.5 × 170 × 165 mm | 1.99 kg
    • TS-632X – 226.5 × 235 × 165 mm | 2.5 kg
  • Temperature Range – Operating: 0 – +40°C; storage: -20 to +70°C
  • Relative Humidity – 5-95% RH non-condensing, wet bulb: 27

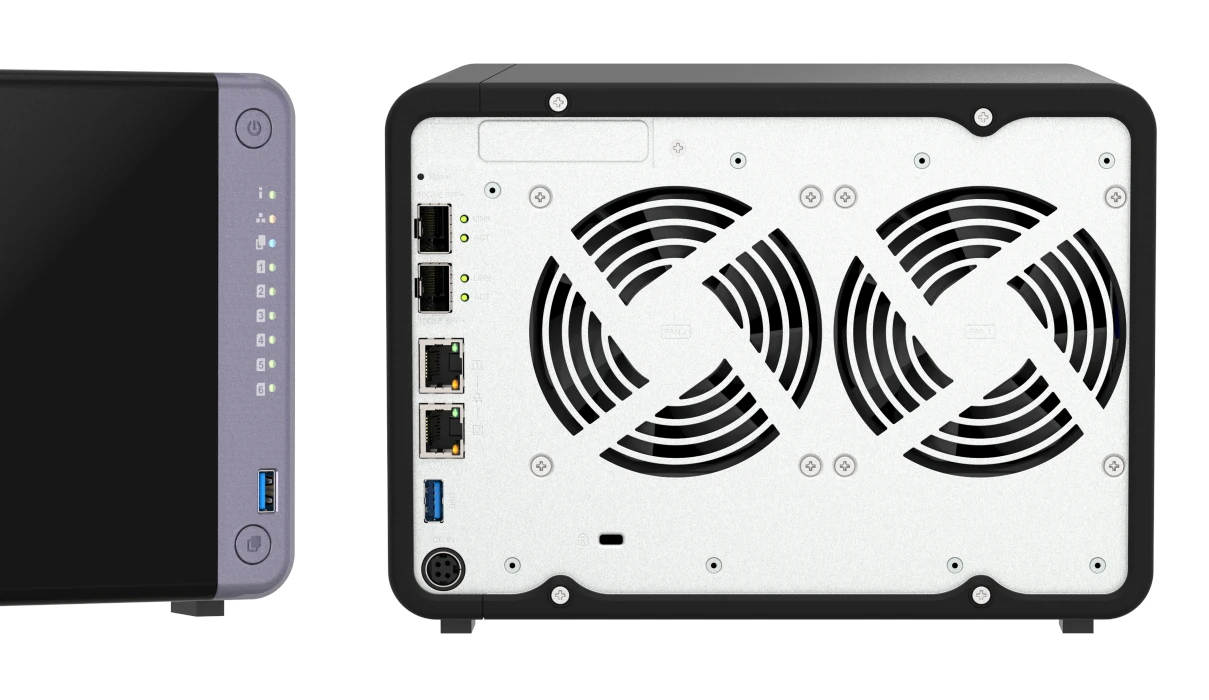

    QNAP TS-624X 6 bay NAS 2x 10GbE SFP+ cages
    QNAP TS-624X 6-bay NAS

The TS-432X and TS-632X run QTS 5.1.7 Linux-based operating system with support for VPN and firewall security features, QVR Surveillance Solution to transform the NAS into a video surveillance system, Container Station for Docker applications, an App Center to install various applications, and more.

The press release says the new 64-bit Arm NAS are cost-effective entry-level business NAS models”, but I was unable to find any price information, and the TS-432X and TS-632X are yet to be listed on QNAP’s Amazon store. More information may be found on the product pages for the 4-bay and 6-bay NAS.

Thanks to TLS for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
16 Comments
oldest
newest
Willy
Willy
4 months ago

The specs look pretty decent. At least they understood that customers don’t want to be constrained to very little DRAM, and with the upgradability option that’s perfect. However I’m surprised they still use AL524 because such chips are getting quite old (7-8 years) and I’m wondering how many there are left in stock. I would have guessed marvell chips instead, which are pretty good in that task, such as the CN913X family (a refreshed armada 8040 in fact).

TLS
TLS
4 months ago

Still? You sure you’re not confusing it with the AL514? The AL524 appears to be a new part, although I can’t find any specs for it.

hrr
hrr
4 months ago

Assume 4x A72 since the A7 and A15 seem to be 32-bit.
Still, if you want a modern cpu to run some local tasks you are probably better of with a rk3588 with 4x sata. Different customer target, different product.

Willy
Willy
4 months ago

Honestly, I/O-specific chips can be extremely good, and maybe this one is, I don’t know. RK3588 is more of a generic chip with quite a bit of horsepower but nothing exceptional on the I/O front beyond PCIe Gen3 x4. Other chips can bring accelerators, efficient controllers connected at the optimal place on internal busses, DMA offloaders that can perform some operations (crypto, xor etc) and lots of small stuff that can easily make a huge difference. I mentioned Marvel Armada 8K/CN9K but I could have suggested NXP’s Layerscape product range as well as extremely efficient chips for I/Os. I’m not… Read more »

hrr
hrr
4 months ago

I do believe the 524 is better than an rpi4, but still there is a whole gap between rpi4 and rk3588. I doubt the 524 is better than the rk3588. And never forget the price impact.
There is probably no need to make the product more power efficiënt as an A72 since it will be used with just a bunch of hard drives.

Willy
Willy
4 months ago

Again I’m not dismissing the RK3588, it’s just a modern generic chip. I managed to make it reach 26 Gbps of HTTP traffic and serve 10 Gbps of NFS from SATA to a 10GE NIC (on the Rock 5 ITX). So it’s definitely not bad at all. But it’s just not made for that task. There may be corner cases where it will suffer (e.g under an interrupt storm). For example an old Armada 8040 has no problem doing the same from SATA to 10GE without even touching PCIe, just using integrated parts that communicate very efficiently. And I’m not… Read more »

udif
udif
4 months ago

Given that Annapurna Labs have been acquired in 2015 by Amazon to develop their Gravitron series of datacenter CPUs, I would be surprised if there were any new CPUs from them.

Here is a datasheet for a Buffalo tech NAS using the AL524. It is copyrighted 2017.
buffalotech.com/images/uploads/TS5020_Datasheet_V7.3.pdf

TLS
TLS
4 months ago

Right, that was the only other company I could find that was using that SoC, but I couldn’t figure out when they release that NAS initially. There’s almost no data anywhere about the AL524 though, which is kind of bizarre.
That said, copyright doesn’t mean a document was produced that year and in fact, the TeraStation 5020 series was only launched in early 2023.
https://www.buffalotech.com/news/buffalo-launches-new-terastation-5020-family-of-high-performance-nas
Also, if you read the QNAP press release, it mentions “AnnapurnaLabs, an Amazon company Alpine AL524 quad-core 2.00 GHz processor”.

Willy
Willy
4 months ago

Maybe they’ve kept some important customers after their acquisition and are still able to sell a SoCs to a few of them. We can imagine that it could have been some of the conditions AL put on the deal with Amazon, that’s something that commonly happens.

tooru
tooru
4 months ago

I guess AL524 should be based on Cortex-A57. I had tried to understand how Annapurna Labs’ part number is defined before. Of course it’s not written in a official dcoument though: AL … prefix 2/3/5/7 … Grade (like Core i3/i5/i7). e.g. AL212 was dual Cortex-A15 1.4 GHz, AL314 was quad Cortex-A15 1.4 GHz, AL514 was quad Cortex-A15 1.7 GHz. Graviton 1 was AL73400 1/2/3 … Generatiom, like Alpine v1/v2/v3 platform. Alpine v1 (Cortex-A15) was AL-x1x, Alpine v2 (Cortex-A57) was AL-x2x, Alpine v3 (Cortex-A72) was AL-x3x e.g. Graviton AL73400 was Alpine v3 platform https://lore.kernel.org/linux-arm-kernel/[email protected]/t/ Alpine v1 device tree https://github.com/torvalds/linux/blob/master/arch/arm/boot/dts/amazon/alpine.dtsi Alpine v2… Read more »

TLS
TLS
4 months ago

Actually, they used Cortex-A17 cores, which are an improved Cortex-A15. I guess they looks the same to the OS though, but they’re not identical.
A Cortex-A57 in say 2022 (a year before the Buffalo NAS launch) would’ve been a really odd choice, but hopefully I will know in a few weeks time, as I’ve requested a review sample for a different publication that I do some content for.

tkaiser
tkaiser
4 months ago

Would be great if you could submit /proc/cpuinfo then over at https://github.com/ThomasKaiser/sbc-bench/issues

TLS
TLS
4 months ago

Will do, but I can already confirm it really still is a Cortex-A57 design, so it will most likely not have particularly great performance.

Willy
Willy
4 months ago

For compensation it will have a great power consumption 🙂
