Posted on by Jean-Luc Aufranc (CNXSoft) - 1 Comment on UltraZed-EV Starter Kit Support Simultaneous 4K Encoding and Decoding with Xilinx Zynq UltraScale+ EV MPSoC

UltraZed-EV Starter Kit Support Simultaneous 4K Encoding and Decoding with Xilinx Zynq UltraScale+ EV MPSoC

UltraZed EV Starter Kit

Xilinx unveiled Zynq UltraScale+ MPSoC‘s combining Arm Cortex A53/R5 cores with FPGA fabric back in 2015. and we started to see development boards and products based on the solution starting in 2017 with offerings such as AXIOM Board, TRENZ TE0808 SoM, or more recently 96Boards compliant Ultra96 development board. All last three boards have one thing in common: they all use an Zynq UltraScale+ GC MPSoC that adds a Mali-400MP2 GPU to CG MPSoC family. But there’s also a third EV family which standards for “Embedded Vision”, and adds support for 4K H.264 / H.265 hardware video codec capable of simultaneous encode and decode. The platform targets multimedia, automotive ADAS, surveillance, and other embedded vision applications. So far, I don’t think I had seen any boards based on Ultrascale+ EV MPSoC, but AVNet  – following up on their UltraZed-EG starter kit – has now launched an UltraZed-EV starter kit powered by UltraScale+ MPSoC XCZU7EV-1FBVB900E. The kit is comprised of a […]

Support CNX Software – Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Posted on by Jean-Luc Aufranc (CNXSoft) - 1 Comment on UltraZed-EG SoM and Starter Kit Feature Xilinx Zynq UltraScale+ ZU3EG MPSoC

UltraZed-EG SoM and Starter Kit Feature Xilinx Zynq UltraScale+ ZU3EG MPSoC

Xilinx Zynq UltraScale+ Arm Cortex A53 + FPGA MPSoCs were announced in 2015, with actual products launched in early 2017 such as AXIOM development board or Trenz Electronic TE0808 UltraSOM+ system-on-module which are based on the ZU9EG model, and cost several thousand dollars. Recently, I wrote about Mycroft Mark II smart speaker based on a “quad core Xilinx processor”, and initially I assumed it was an Zynq UltraScale+ MPSoCs since those are the only Xilinx “quad core processors” I know of, but now I think it must be an unannounced part, since the company can’t provide the exact part number, and the price would be too low. Nevertheless, this lead me to check out if there was any lower cost boards based Xilinx Zynq UltraScale+ MPSoC with four Arm Cortex A53 cores, and ZU2EG is the entry-level part that matches this description. I could not find a ZU2EG development board, but ZedBoard community, which previously launched platforms such as MicroZed […]

Support CNX Software – Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Posted on by Jean-Luc Aufranc (CNXSoft) - 6 Comments on $89 MiniZed Development Board based on Xilinx Zynq Z-7007S SoC Includes WiFi, Bluetooth, Arduino Headers

$89 MiniZed Development Board based on Xilinx Zynq Z-7007S SoC Includes WiFi, Bluetooth, Arduino Headers

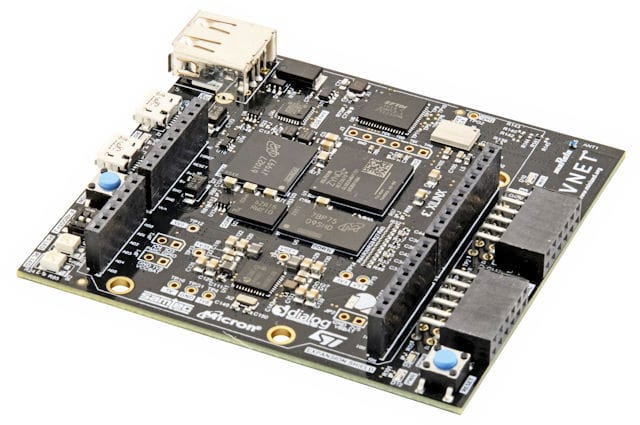

Avnet has unveiled MiniZed development board – part of ZedBoard family – powered by a Xilinx Zynq Z-7007s SoC with an ARM Cortex A9 processor and FPGA fabric,  supporting WiFi and Bluetooth connectivity, and equipped with Arduino and PMOD headers. MiniZed board (AES-MINIZED-7Z007-G) specifications: SoC – Xilinx Zynq-7007S single ARM Cortex A9 processor up to 677 MHz + FPGA with 23K logic cells, 1.8 Mb block RAM, 60 DSP slices System Memory – 512 MB DDR3L Storage –  8 GB eMMC flash, 128 Mbit QSPI flash Connectivity –  Wi-Fi 802.11b/g/n and Bluetooth 4.1 plus EDR and BLE  via Murata “Type 1DX” wireless module USB – 1x USB 2.0 host port Sensors – 3-axis accelerator and temperature sensor (LIS2DS12);  Digital Microphone (MP34DT05) Expansion Interfaces: 2x Pmod compatible connectors with 16x GPIOs Arduino UNO R3 compatible header with 22x GPIOs Debugging –  JTAG and serial console via micro USB port Misc – 2x bi-element user LEDs, user & reset push buttons; user switch […]

Support CNX Software – Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Posted on by Jean-Luc Aufranc (CNXSoft) - 5 Comments on PULPino Open Source RISC-V MCU is Designed for IoT and Wearables

PULPino Open Source RISC-V MCU is Designed for IoT and Wearables

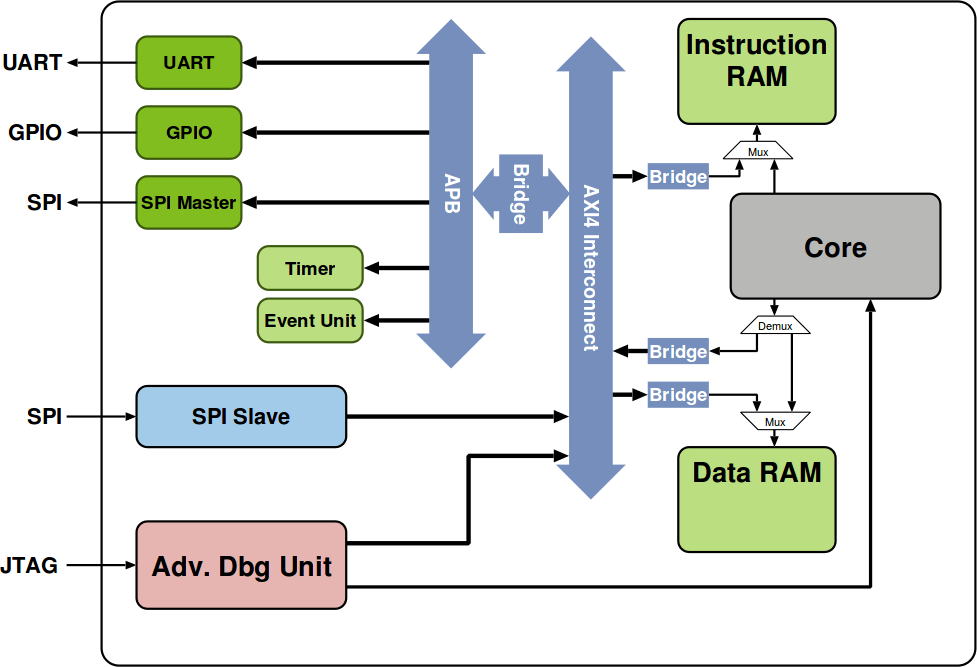

lowRISC is not the only open source processor project based on RISC-V instructions, as researchers at ETH Zurich university and the University of Bologna have developed PULPino open-source processor based on RISC-V instructions set, optimized for low power consumption, and targeting wearables and the IoT applications. PULPino is a single core processor derived from the PULP project (Parallel Ultra-Low-Power Platform) featuring a quad core RISC-V SoC with new RI5CY Signal Processing ISA extensions designed by the universities. The core has an IPC (instructions per cycle) close to 1, full support for the base integer instruction set (RV32I), compressed instructions (RV32C) and partial support for the multiplication instruction set extension (RV32M). PULPino also features peripherals such as I2S, I2C, SPI and UART. PULPino has already been taped out as an ASIC in UMC 65nm at the beginning of the year, but the RTL code be run on Xilinx Zynq-7010 powered Zedboard, and all source files, test programs, and tools have been […]

Support CNX Software – Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Posted on by Jean-Luc Aufranc (CNXSoft) - 4 Comments on lowRISC Open Source SoC Project Announces its First Release with Tutorials for Simulators and Zedboard

lowRISC Open Source SoC Project Announces its First Release with Tutorials for Simulators and Zedboard

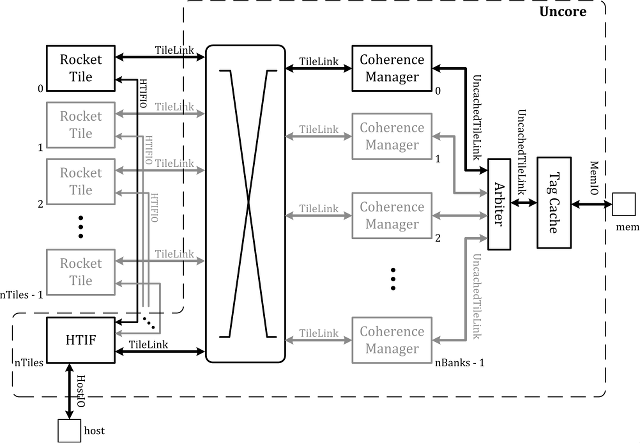

lowRISC project aims to produce a completely open-source SoC (System-on-Chip) based on the 64-bit RISC-V instruction set architecture, as well as a corresponding development board, thus eventually producing a fully open hardware systems. The project has now announced its first release “tagged memory preview release” with a tutorial explaining how this has all been designed, and how to run simulations with software tools, or FPGA boards such as Zedboard.   The project is based on Rocket core, written in Chisel language by the RISC-V team at UC Berkeley. Chisel can generate code to produce a cycle-accurate C++ emulator, Verilog optimised for FPGAs or Verilog for use in an ASIC flow.If you want to try it out, you’ll need a Linux machine, preferably running Ubuntu 14.04 64-bit, with GNU GCC 4.8 installed, and follow the tutorial in order to get the source code, and build tools such as riscv64-unknown-elf-gcc compiler, and Spike simulator, as well as a RISC-V Linux kernel. Finally, […]

Support CNX Software – Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Posted on by Jean-Luc Aufranc (CNXSoft) - 1 Comment on Xilinx Zynq-7000 All Programmable SoC Mini-ITX Development Board

Xilinx Zynq-7000 All Programmable SoC Mini-ITX Development Board

Avnet has recently introduced Xilinx Zynq-7000 All Programmable SoC Mini-ITX Development Board powered by the top of the range Xilinx Zynq-7045 or Zynq-7100 dual ARM Cortex A9 + FPGA SoC with 2 GB DDR3 SDRAM, PCIe Gen2 x16 Root Complex slot (x4 electrical), SATA-III interface, 10/100/1000 Ethernet PHY, and more. Target applications include PCI Express, embedded controllers, general-purpose prototyping, networking and communications, storage and servers and video applications. Here are the motherboard specifications: SoC – Xilinx XC7Z045/XC7Z100-2FFG900 dual core ARM Cortex A9 @ 800 MHz + Kintex-7 FPGA with respectively 350K Logic Cells (~5.2M gates) and 444K Logic Cells (~6.6M gates). System Memory – 1 GB PS DDR3 SDRAM, 1 GB PL DDR3 SDRAM Storage – 32 MB of QSPI Flash, 8 KB of I2C EEPROM, SATA-III Interface, and microSD Card Interface Real-Time Clock Connectivity – 10/100/1000 Ethernet Interface Video – LVDS Touch Panel Interface, HDMI Interface Audio – Audio input and output, audio Codec USB – 4x USB 2.0 hub […]

Support CNX Software – Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Posted on by Jean-Luc Aufranc (CNXSoft) - 13 Comments on $199 MicroZed is a Low Cost Version of Zedboard ARM+FPGA Linux Development Board

$199 MicroZed is a Low Cost Version of Zedboard ARM+FPGA Linux Development Board

ZedBoard is a low cost development board based on Xilinx Zynq-7020 SoC featuring two Cortex A9 cores and FPGA fabric, together with lots of ports and expansion I/Os, and running Linux. The problem is that “low cost” for this type of board still means $395 (or around $300 for academia), and you only get to this price because it’s been subsidized, and the normal price is actually $495… That’s why Avnet has just come with a new version of the evaluation kit called microZed that sells for $199 and targets applications such as general Zynq-7000 AP SoC evaluation and prototyping, embedded system-on-module (SOM) applications, embedded vision, test & measurement, motor control and software-defined radio. MicroZed technical specifications: SoC – Xilinx XC7Z010-1CLG400C (Zynq-7010) System Memory – 1 GB of DDR3 SDRAM Storage – 128 Mb of QSPI Flash + Micro SD card interface Connectivity 10/100/1000M Ethernet USB 2.0 USB-UART User I/O (via dual board-to-board connectors) – 100 User I/O (50 per […]

Support CNX Software – Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Posted on by Jean-Luc Aufranc (CNXSoft) - 2 Comments on EnSilica eSi-ZM1 System-on-Module Features Xilinx Zynq XC7Z020 SoC

EnSilica eSi-ZM1 System-on-Module Features Xilinx Zynq XC7Z020 SoC

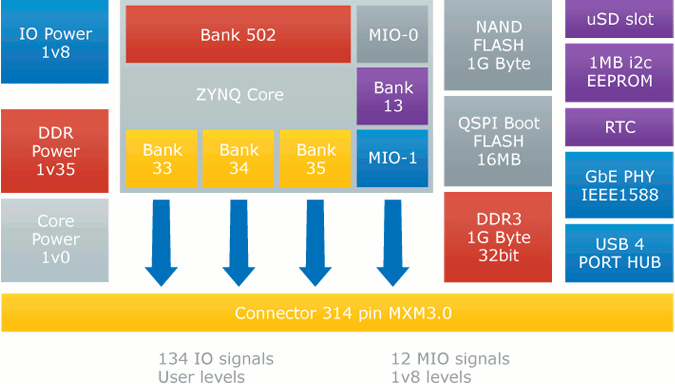

EnSilica has introduced the eSi-ZM1 SoM powered by Zynq ZC7Z020 SoC featuring 2 ARM Cortex A9 core, and an Artix-7 FPGA with 85K logic cells. The module also comes with 1GB RAM, 1GB NAND flash, and 16MB QSPI Boot Flash. ZC7Z020 SoC is notably used in ZedBoard development board, so if you have developed an application around this board, and want to commercialize it, using eSi-ZM1 module with your own custom baseboard could be an option. eSi-ZM1 system-on-module specifications: SoC – Xilinx Zynq XC7Z020 dual-core Cortex A9 processor @ 666 MHz, 85 K logic cells, 560 KB block RAM, and 220 DSP Slices. CLG484 package type System Memory – 1 GB, 1.35 V, 32-bit wide DDR3 SDRAM @ 533 MHz Storage: 1 GB, 1.8 V, 8-bit wide NAND FLASH 16 MB QSPI flash 1 or 2 Kb I2C EEPROM (and not 1MB as mentioned in the block diagram ) uSD card slot Connectivity – RGMII Gigabit Ethernet PHY with 1588 time […]

Support CNX Software – Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples
