UltraZed-EG SoM and Starter Kit Feature Xilinx Zynq UltraScale+ ZU3EG MPSoC

Xilinx Zynq UltraScale+ Arm Cortex A53 + FPGA MPSoCs were announced in 2015, with actual products launched in early 2017 such as AXIOM development board or Trenz Electronic TE0808 UltraSOM+ system-on-module which are based on the ZU9EG model, and cost several thousand dollars.

Recently, I wrote about Mycroft Mark II smart speaker based on a “quad core Xilinx processor”, and initially I assumed it was an Zynq UltraScale+ MPSoCs since those are the only Xilinx “quad core processors” I know of, but now I think it must be an unannounced part, since the company can’t provide the exact part number, and the price would be too low. Nevertheless, this lead me to check out if there was any lower cost boards based Xilinx Zynq UltraScale+ MPSoC with four Arm Cortex A53 cores, and ZU2EG is the entry-level part that matches this description. I could not find a ZU2EG development board, but ZedBoard community, which previously launched platforms such as MicroZed and MiniZed, lists UltraZed-EG system-on-module powered by Zynq UltraScale+ ZU3EG MPSoC, as well as a starter kit with a carrier board.

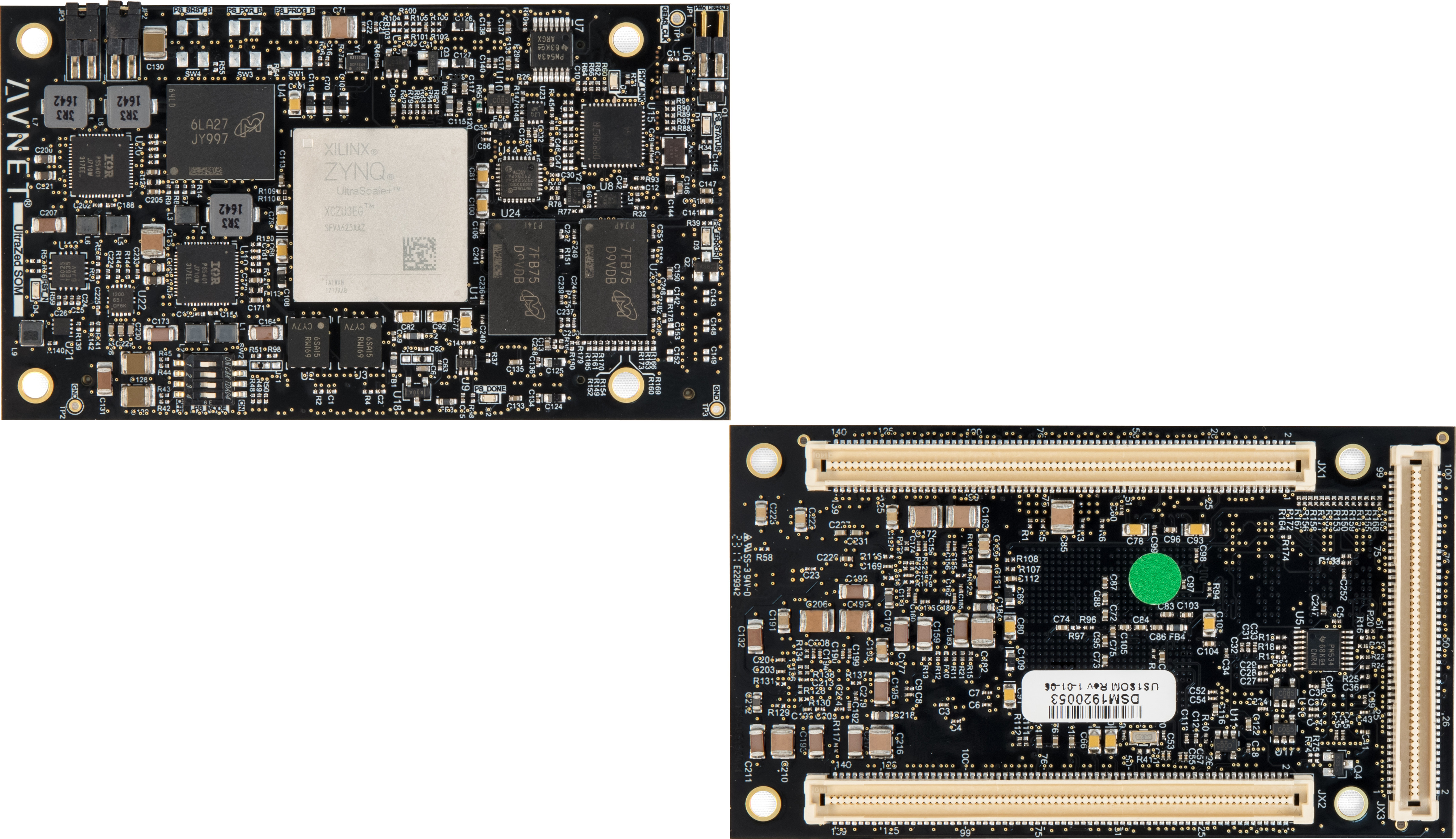

UltraZed-EG SoM

Click to Enlarge

UltraZed-EG SoM key features and specifications:

  • SoC – Xilinx XCZU3EG-1SFVA625 MPSoC with four Arm Cortex A53 cores, two Cortex R5 cores, a Mali-400 MP2 GPU, and FPGA fabric with 154K logic cells
  • System Memory – 2GB (x32) DDR4 SDRAM
  • Storage – Dual QSPI Flash (64MB),  eMMC Flash (8GB, x8), I2C EEPROM (2Kb)
  • Connectivity – Gigabit Ethernet PHY on-module
  • USB – USB 2.0 ULPI PHY  on-module
  • Interfaces
    • 1x 100-pin JX Micro Header connected to PS (Processing System) side with 26 user MIO pins, 2x 4 GTR transceivers, JTAG interface, USB 2.0, and Ethernet
    • 2x 140-pin JX Micro Headers connected to PL (Programmable Logic) side with 180 user I/O pins, SYSMON interface, PMBus, etc…
    • I2C I/O Expander
    • Two Channel I2C Switch/MUX
  • PS Reference Clock Input – 33.333 MHz OSC
  • Power
    • On-Board 5-Output Voltage Regulators
    • Full Power Sequencing Pre-Programmed
    • Support for Zynq UltraScale+ PS Low Power Mode
    • Bank I/O Voltage Rails and GTR Transceiver Voltage Rails are powered from End User Carrier Card via JX Micro Headers
  • Dimensions – 88.90 x 50.80 mm

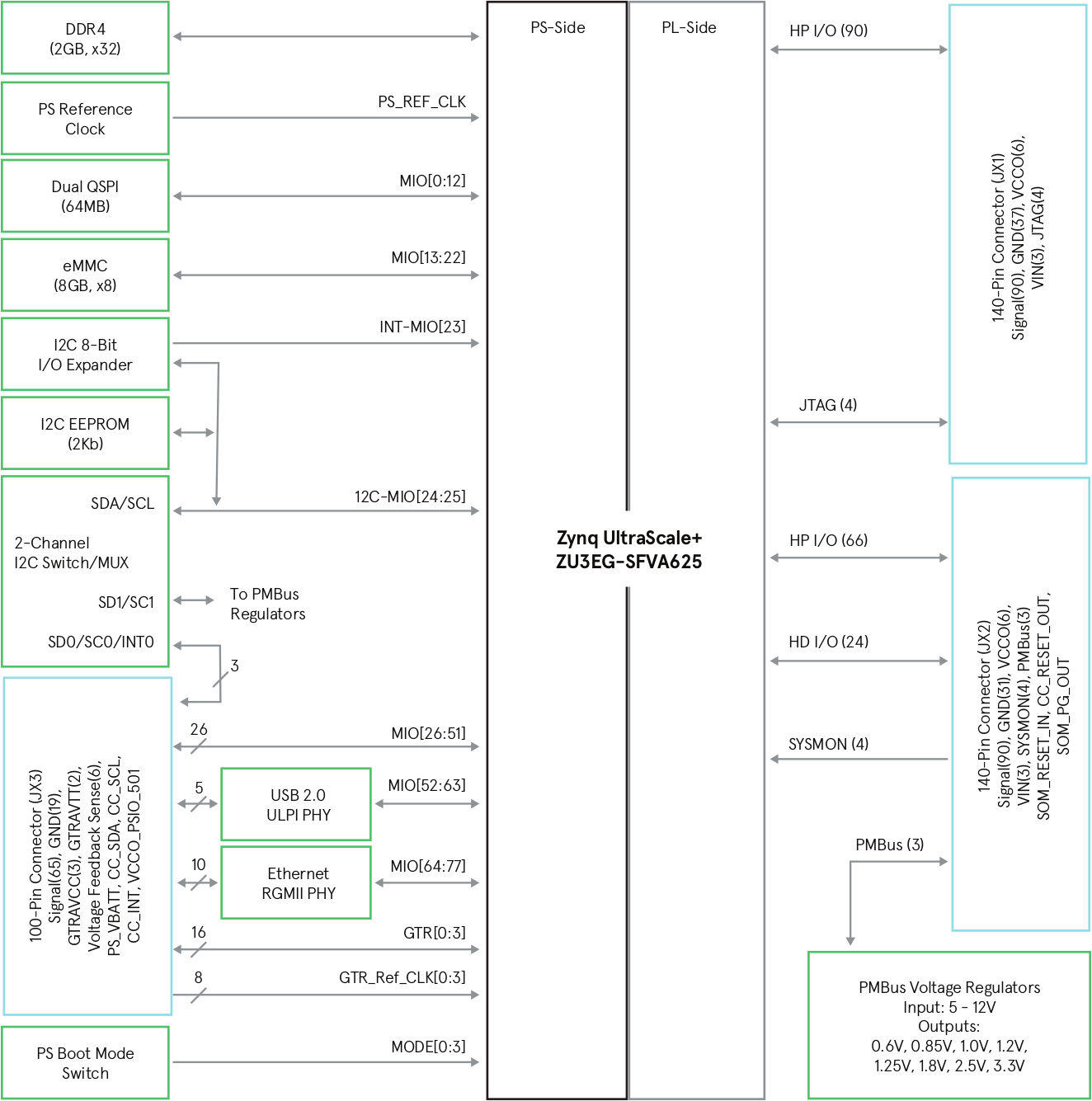

Click to Enlarge

A Linux BSP and a hardware reference design are available for the module, as well as documentation on the product page. Two version of the module are available AES-ZU3EG-1-SOM-G with extended temperature range for $485, and AES-ZU3EG-1-SOM-I-G with industrial temperature range for $535. The specifications also indicate that XCZU3EG-1SFVA625 MPSoC is pin-to-pin compatible with with the ZU2EG, ZU2CG, and ZU3CG MPSoC devices in the same package, so maybe lower-end (and cheaper) versions of the module will be offered later one.

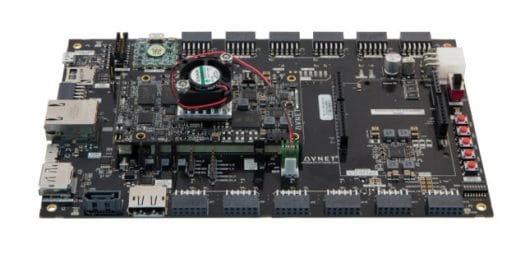

UltraZed-EG Starter Kit

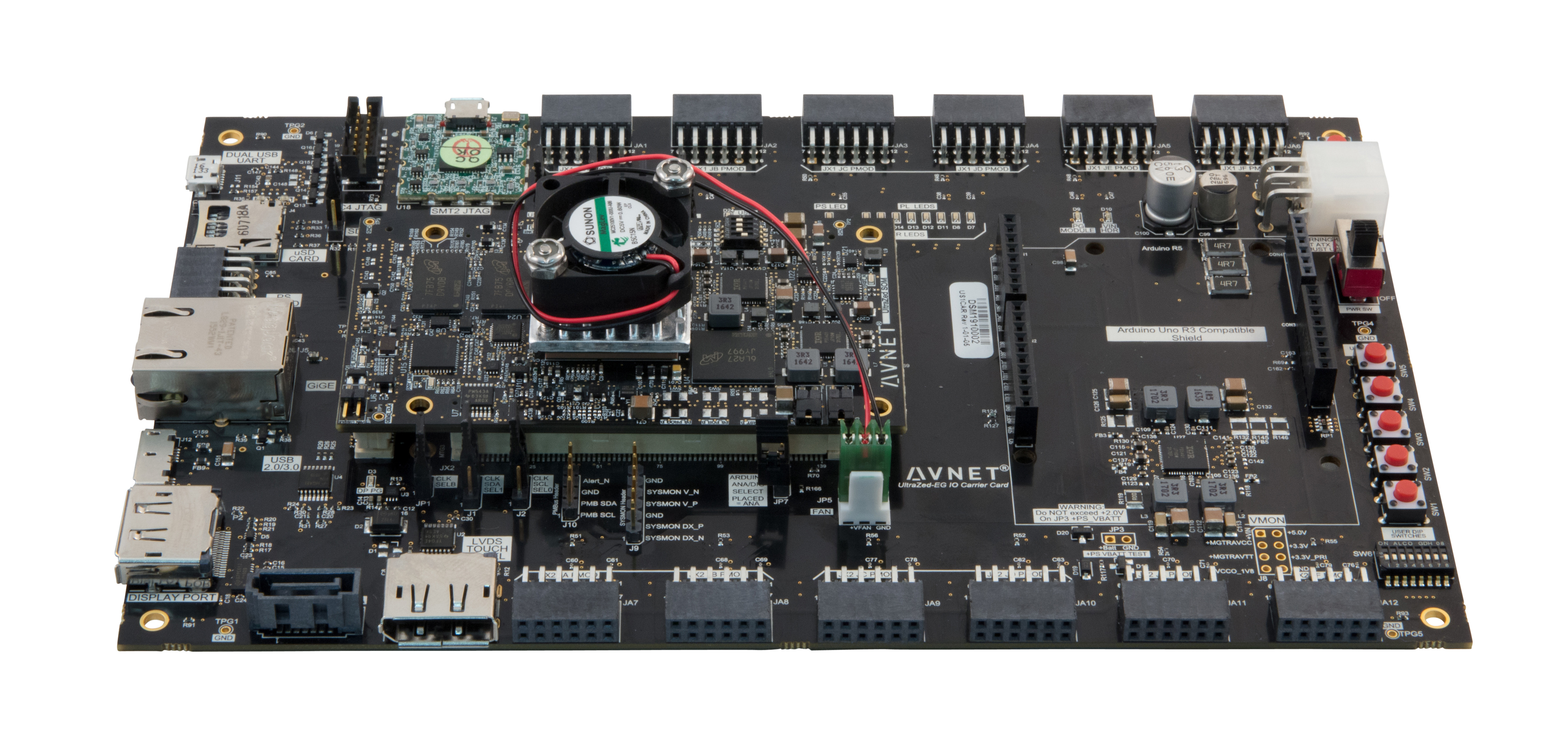

Click to Enlarge

If you’re going to use the SoM for your project/product, you’ll likely want to get the starter kit with includes the UltraZed-EG module, and UltraZed IO Carrier Card which exposes the following:

  • Single UltraZed-EG SOM slot
  • Storage – microSD card connector, SATA host interface
  • Display – 2x DisplayPort connectors, LVDS Touch Panel interface
  • Connectivity – RJ45 connector
  • USB – 1x USB 2.0/3.0 connector
  • Debugging
    • Dual USB-UART with one USB connector
    • Digilent USB-JTAG module
    • PC4 JTAG header
    • SYSMON header
  • Expansion
    • PS PMOD header
    • 12x PL PMOD headers
    • Arduino Uno R3 connectors
  • Misc
    • PL user DIP and Push switches
    • 8x PL user LEDs
    • PS user LED and push switch
    • PMBus header
    • PS VBATT battery
    • SOM reset switch
    • Differential clock generator
    • I2C MAC Address device

The kit also includes a 12V AC/DC power supply, a Quick Getting Started Card, a microUSB Cable, an UltraZed-EG SOM Mounting Hardware, an 8GB microSD Card, and an RJ45 Cable for Ethernet. Software-wide you’ll find a voucher for Vivado Design Edition with ES1 License (device locked to the ZU3EG) for SOMs with ES1 silicon, and Webpack for SOMs with production silicon in the kit. General UltraZed-EG evaluation and prototyping, test & measurement, motor control, and industrial automation are some of the potential applications for the kit.

The carrier board only is sold for $499, but you’ll find the complete UltraZed-EG starter kit on AVnet for $895. Visit the starter kit page for further information. Alternatively, you’ll also find a UltraZed PCIe Carrier Card on the product page.
