$99 MarS Board Features Freescale i.MX6 Dual, 4GB eMMC

Embest, a subsidiary of Element14, has just announced the MarS Board, a development board powered by Freescale i.MX6 Dual (2x Cortex A9) with 1 GB RAM and 4GB eMMC flash. This is not related to the Marsboard based on AllWinner A10, and designed & manufactured by another company.

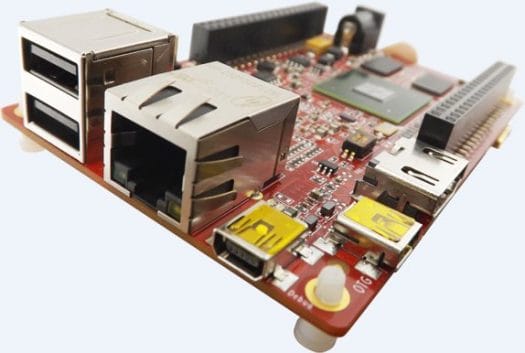

MarS_Board_i.MX6

Here are the key features of the MarS Board:

  • SoC – Freescale i.MX6 DualĀ  2xCortex-A9 Processor @ 1GHz + Vivante GC2000 GPU.
  • System Memory – 1GB RAM (4*256MB DDR3 SDRAM)
  • Storage – 4GB eMMC + micro SD card slot (up to 32GByte)
  • Video Output – 1xHDMI interface, 1x LVDS interface and 1x LCD interface
  • USB – 4x USB Host ports (2x USB connector, 2x via headers), 1x mini USB OTG port, and 1x mini USB for debug
  • Connectivity – 10/100M/1Gbps RJ45 Ethernet interface
  • 2 Expansion Hearders – 2x CAN, 2x IIC, Audio & SPDIF, 8bit IPU1(Camera), SPI, USDHC1(SD card), 4x UART, 2x PWM, GPMI, 6x GPIO
  • Power Supply – 5V/4A
  • Dimension – 65mm x 102mm

MarS_Board_Description

The company will provide support for Linux 3.0.15, Android 4.0.4 & uCOS-II RTOS.

That means we now have low cost (<$100) platforms for most i.MX6 processors (expect Solo Lite) with GK802 (i.MX6 Quad), Wandboard Solo (i.MX6 Solo), Wanboard Dual (i.MX6 Dual Lite) and the MarS Board featuring i.MX6 Dual. The closest competitor to the MarS Board is the Wandboard Dual, and both sell for $99. Thanks to the Dual version, MarS supports 1080p60 video decoding (vs. 1080p30), and features Vivante GC2000 GPU (vs. Vivante GC880) compared to the Wandboard Dual. It also comes LVDS and LCD connectors, and an eMMC that should provide better performance than the micro SD used in the Wandboard. The Wandboard, however, has more audio I/O including S/PDIF, comes with built-in Wi-Fi and Bluetooth, and its baseboard / SoM makes upgrading possible.

A big disappointment with the MarS Board is that although SATA-II support is integrated into i.MX6 Dual, the company apparently did not feel necessary to add a SATA connector *facepalm*, and I’ve been confirmed SATA signals are not available via the expansion headers either.

The board will be available in May 2013 for $99. You can find more information and register your interest on MarS Board page.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. April 2nd, 2013 at 11:40 | #1

    They should consider quad core instead of dual core…

  2. April 2nd, 2013 at 15:40 | #2

    @ezyclie
    They already have the Sabrelite for $179.

  3. Marius
    April 2nd, 2013 at 15:49 | #3

    @cnxsoft
    Yeah but for 100$ I can get a quad core A9 board so …. with Exynos which I do prefer to a Freescale.
    A bit too expensive maybe ? It’s a free market though, if there’s interest in it then sure $100 is OK.

  4. armerJ
    April 2nd, 2013 at 16:02 | #4

    I need Quadcore with 2GB memory too.
    Where is it?

  5. April 2nd, 2013 at 16:05 | #5

    @armerJ
    Boundary Devices must have Nitrogen6X boards with 2GB RAM. The price is probably around $200 though.

  6. Pepe
  7. April 2nd, 2013 at 18:35 | #7

    @Pepe
    How could I forget about the Exynos ODROID-U2/X2 boards? :) I suppose my mind was focused on Freescale boards.

  8. Smurf
    April 2nd, 2013 at 20:31 | #8

    These prices are nice until you start ordering.
    For Wandboard I went from 79 euros to a final price of 170 euros, at which point I simply didn’t order.
    At first there is a need for a case and power adapter. Then you need to ship it, VAT, credit card processing fee and whatnot. And voila, you have a product in the category of used laptops with sata, screen, audio out and video out.

  9. April 2nd, 2013 at 21:06 | #9

    @cnxsoft

    SabreLite is too expensive, hope the price compete with RasPi or next-gen Beaglebone

  10. April 2nd, 2013 at 22:09 | #10

    @Smurf
    I went through the same issue a few years ago, I wanted to order a Beagleboard-XM or a Pandaboard, but I just gave up because I did not want to spend $300 to $400 for a hobby.

    @ezyclie
    The ODROID-U / U2 boards could be an option for quad core. $69 for the first, $89 for the other with 2GB. You also need to add $30 shipping, buy some accessories, and pay taxes…

  11. Marius
    April 2nd, 2013 at 23:03 | #11

    @cnxsoft
    I vote for the Odroid stuff too, unless of course you have a very good Reason you want a Freescale or something else. It’s got a very good price and it has a common, well supported in Linux SOC. It’s also got MALI-400 HW which will work with LIMA.
    It’s interesting though that you can get many SOCs for very good prices these days. If you’re willing to do some hacking a lot more, even Tegra 3 can be bought in the Ouya console for $100 and you can probably sell the controller to get some $ back. Of course if you need expansion boards and headers and stuff you’ll need a real dev. board.

  12. bohocmasni
    April 3rd, 2013 at 02:00 | #12

    @Marius
    Ouya has only one USB port, these boards have usually ethernet/wifi/many usb/whatever

  13. April 3rd, 2013 at 10:03 | #13

    @Marius
    The only problem with the ODROID boards is that, AFAIK, you can’t play videos via the VPU in Linux (yet).

  14. Andy
    April 11th, 2013 at 21:23 | #14

    @Smurf
    Exactly. I never hear anyone speak of the shipping costs. Most of the official distributors will only ship using FedEx or UPS and they both charge atrociously high rates for International shipments, so much so that a $100 board ends up costing $180. Then you are slapped with an additional $60 customs duty after the product arrives. It’s pointless making such cheap boards if the distributors won’t offer any economical shipping options.

    Chinese distributors like DX can manage to ship for free worldwide but try to ship anything from US or UK and the shipping charge itself kills the deal. I have no qualms about waiting 2 weeks if can be shipped cheaply.

  15. Andy
    April 11th, 2013 at 21:31 | #15

    @Marius
    None of the ODROID boards have Gigabit Ethernet. That itself is a deal breaker for me. 10/100 just doesn’t cut it anymore these days.

  16. Andy
    April 11th, 2013 at 21:37 | #16

    @ezyclie
    Yeah Sabrelite is extremely overpriced. The difference between the dual core and quad core chip is only $15. $120 would have been fair price for that board but they inflated it to high heaven.

  17. June 16th, 2013 at 14:39 | #17

    In the comments above I can read about high shipping costs and so on. I agree what initially looks a bargain ends up in not so cheap DIY board but do consider that distributors have to make some profits, they have to add VAT/TAX and shipping costs are in most cases 1:1. Futhermore distributors also have to pay import and custom duties.

  18. Jeffery Bahr
    July 24th, 2013 at 21:58 | #18

    @Andy What are you going to do at 1 Gig that you can’t do at 100 Mb/s? Just curious. We have a gig LAN and switches, but that’s because we move a lot of data around among servers.
