Resources for Telechips TCC890x: TCC8900 & TCC8902

telechips_8900_logoTelechips TCC 890x is now widely used in low cost Android Tablets among other applications (automotive, portable media player..).

Here’s the description provided by Telechips:

The TCC890x is a system LSI for digital multimedia applications based on ARM1176JZF-S, an ARM’s proprietary RISC CPU core. It is designed for high-end multimedia entertainment devices such as car AVN, portable multimedia player and home entertainment. The TCC890x supports decoding and encoding various types of video and audio standards with software and dedicated hardware codecs including JPEG / MPEG1 / MPEG2 / MPEG4 / H.264 / VC-1 up to Full HD (1080p) and MP3 / WMA / EAAC+ / AC3, etc. In addition, TCC890x offers a hardwired 3D graphic accelerator to enrich next generation GUI and other graphical applications.

Although, Telechips claims to support WinCE, Embedded Linux and Android, they now fully focus on Android development giving other OSes a lower priority. However, the development board and BSP must be obtained from Telechips and BSP is not (legally) available for download on the internet, so you’ll need to contact Telechips at [email protected].

However, as often, it seems a version of the Linux and WinCE BSP has been leaked on the internet:

See http://www.mp4nation.net/forum/viewtopic.php?f=20&t=16030

where they found a torrent with the following files:

Telechips TCC8900
LINUX_APP_v1.300_2009_11_04.tar 123.96 MB
LINUX_DOC_091104-R0150B2265.zip 5.54 MB
Linux89&92XX_openGLES1.1_2.0_openVG_Sample.zip 5.23 MB
Magellan v1.5 build 2266.zip 10.42 MB
TCC89_92xx_ALL_3D_0.50E – Linux.pdf 507.93 KB
TCC89_92xx_ALL_3D_0.50E – QnA.pdf 81.04 KB
TCC89_92xx_ALL_3D_0.50E – WinCE.pdf 620.62 KB
TCC89xx 91xx 92xx Linux BSP Documents v1.5.zip 5.89 MB
TWS89x_600.zip 21.91 MB

with source, schematics and documentation.

The guys at XDA forum have also started to hack Augen Gentouch 78 a tablet using TCC8902 platform. I’ve already blogged  a video review for this Android tablet. The reviewer did not like the device, but this was not directly related to the performance of Telechips device.

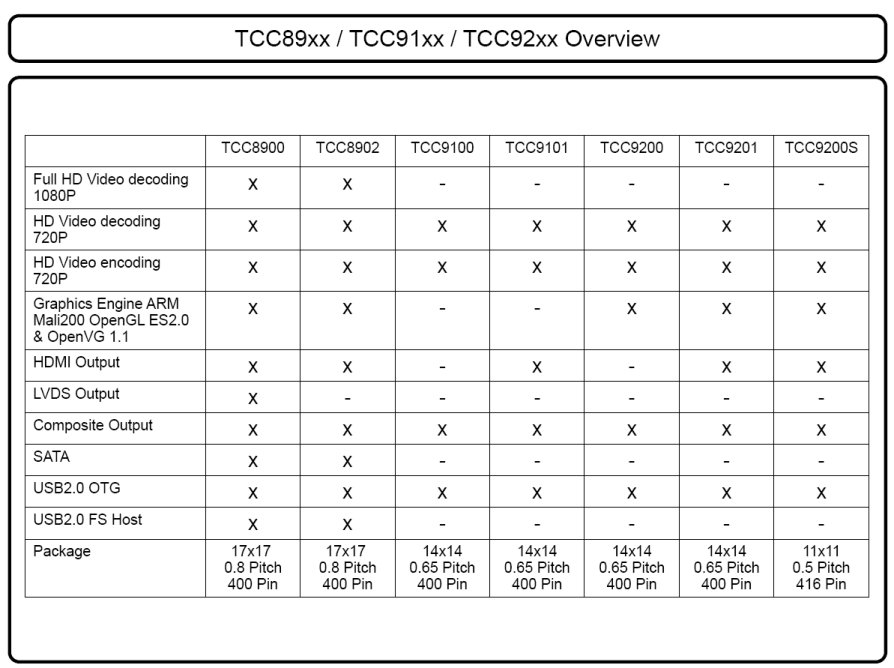

Here’s also comparison between TCC8900 TCC8902 chips (and some other telechips series namely TCC91xx and tcc92xx)

Telechips TCC8900 TCC8902 Comparison

where the only difference is LVDS support which you may or may not need depending on the interface used by your monitor/screen.
