Advantech RSB-4210: Freescale i.MX53 Single Board Computer

Advantech has just launched the RSB-4210, a fanless and heatsink-less RISC Single Board (RSB) powered by Freescale i.MX53 (Cortex A8) with 512 MB DDR3 and 2 GB NAND Flash. This board can operate in industrial temperature range (-40 to 85° C) and targets industrial control, digital signage, HMI/kiosk, medical, and portable applications.

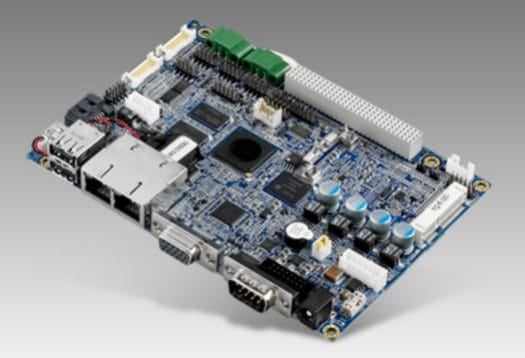

Advantech RSB-4210
Here are the key features of this board:
  • Freescale ARMCortex-A8 i.MX536 @ 800MHz
  • Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators
  • Supports full HD 1080p video decode and HD 720p hardware video encode
  • Video Output
    • LCD support with resolution up to 1920×1080 (default 800×480) via LVDS connector
    • HDMI
    • VGA
  • Touch, UART, I2C, I2S, SPI, GPIO, USB
  • Supports SATA storage interface and CAN-bus for vehicle applications
  • Dimensions – 146 x 102 x 20 mm
  • Power – 9 ~ 24 V DC with 3-watt power consumption
  • Operating temperature – -40 ~ 85° C

If you don’t mind about the industrial grade temperature range, you can use Freescale i.MX535 clocked at 1 GHz instead.

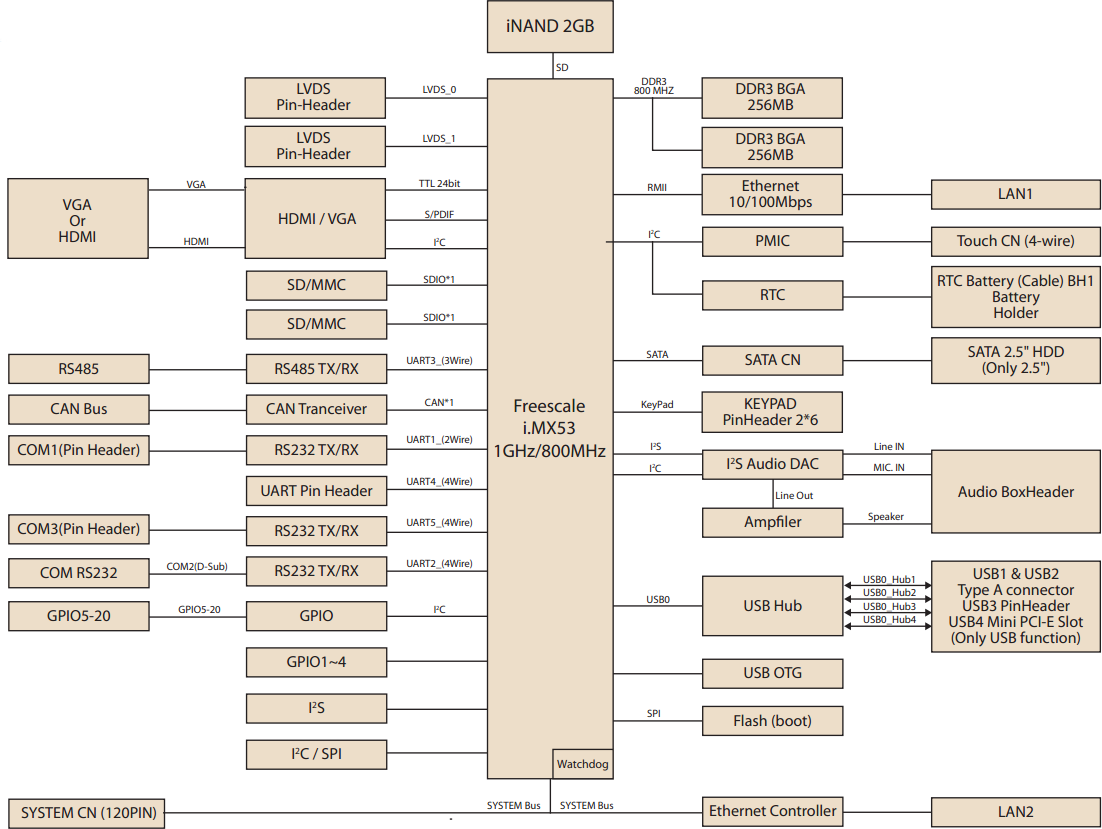

Freescale i.MX53 SBC Block Diagram
Advantech RSB-4210 Block Diagram (Click to Enlarge)

Advantech provides BSP for Android, embedded Linux 2.6 and Windows Embedded Compact 7, as well as application-oriented support package, complete with testing and evaluation capabilities. An off-the-shelf evaluation kit is also available and includes:

  • RSB-4210
  • LCD kit (including touchscreen)
  • Test cables
  • Power adapter and accessory package
  • DVD-ROM with system upgrade/maintenance utilities, SDK, system test utility, user manual, and COM design guide.
RSB-4210 and RSB-4210 evaluation kits are available now. For further information, you can visit Advantech  RSB-4210 page.
