$149 Inforce Computing IFC6410 Board Features Qualcomm APQ8064 Quad Core SoC

I’ve only seen Qualcomm SoC in smartphones and tablets, as well as their own development boards, but Inforce Computing has just changed that thanks to IFC6410 single-board computer powered by Qualcomm Snapdragon S4 Pro APQ8064 quad core krait processor @ 1.7GHz. This Pico-ITX SBC comes with 2GB RAM and 4GB eMMC flash, HDMI out, Gigabit Ethernet, Wi-Fi and more.

IFC6410 Single Board Computer (Click to Enlarge)
IFC6410 Single Board Computer (Click to Enlarge)

Here are the specifications of this board:

  • SoC – Qualcomm Snapdragon S4 Pro APQ8064 Quad Core Processor (1.7GHz) + Adreno 320 GPU
  • System Memory – 2GB on-board PCDDR3, up to 533MHz
  • Storage – 4GB eMMC + μSD card connector + SATA interface
  • Connectivity:
    • 802.11 b/g/n WiFi (Atheros QCA6234)
    • Bluetooth 4.0 (Atheros QCA6234)
    • 10/100/1000bps Ethernet (Atheros 8151)
  • Video and Audio Interfaces:
    • μHDMI (1080p)
    • LVDS
    • MIPI-CSI2 (4-lane, up to 20MP camera)
    • HD Audio and Mic-in
  • USB – 2x USB 2.0, 1x USB OTG
  • Misc I/O – 1x I2C, 1x SPI, 1x UART, UIM, 8x GPIO
  • Debugging – via serial console on 3-pin header
  • Power – 5V/5A
  • Dimensions – 10cm x 7cm (Pico-ITX)
  • Temperature Range – Operating: 0 to 70 C | Storage: -20 to 80 C
  • Relative Humidity – 5 to 95% non-condensing

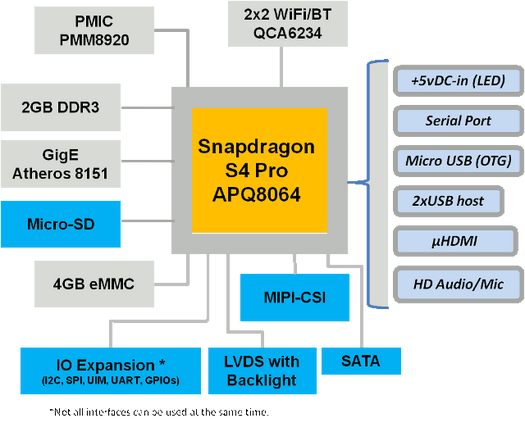

IFC6410 SBC Block Diagram
IFC6410 SBC Block Diagram

The company will provide board support packages for both Linux and Android. You may want to watch the board introduction video below for an overview of the board.

IFC6410 is a production-ready board with compliant with RoHS and WEE standard. It will be available in May, but you can pre-order it now, or rather register your interest, for just $149 (+shipping) via IFC6410 page. With the cancellation of OPENBRIX Zero board, this is the cheapest “Cortex A15 class” board that I know of (Even though technically speaking Krait is not Cortex A15, but the performance is about the same), and with 4 cores it will even more powerful than the Arndale board.

Via Linuxgizmos

Support CNX Software - Donate via PayPal or become a Patron on Patreon

29
Leave a Reply

avatar
29 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
11 Comment authors
Inforce 6410Plus Single Board Computer with Snapdragon 600 SoC Sells for $98 (Promo)JibrilDaniel MathewsInforce 6410Plus Qualcomm Development Board Adds GPS, MIPI CSI and DSI ConnectorsCompulab Utilite2 is a Snapdragon 600 Powered mini PC Running Android 4.4 or Ubuntu 14.04 Recent comment authors
  Subscribe
newest oldest most voted
Notify of
kcg
Guest
kcg

Hi,
please change the title and text. Basically speaking APQ8064 is not Cortex-A15. Qualcomm licenses just ARMv7 ISA and develops its own chips (Marvell does the same too) which is in contrast with majority of others ARM SoC manufacturers which are using ARM developed cores (like A9/A7/A8/A15). So, this is definitely not Cortex-A15!
Well, don’t be confused by Inforce Computing marketing speech “A15 class processing powered”. 🙂
Thanks!
Karel

kcg
Guest
kcg

@cnxsoft
You are welcome! And thanks for really nice post. It would be interesting to see for example some compilation benchmarks between real A15 (Arndale) and this APQ8064…

Andrew
Guest
Andrew

I couldn’t find any info on QCA6264. Does anyone know if this has been released yet (is it available to buy) ?

Michael Brush
Guest
Michael Brush

What about case for this board,and power supply.thanks

hairil
Guest
hairil

FYI:
Marvell Feroceon = 1.2DMIPS/MHz
ARMv6 ARM11(Raspberry Pi) = 1.25DMIPS/MHz
ARMv7 Cortex-A5 = 1.57DMIPS/MHz,
ARMv7 Cortex-A7 = 1.9DMIPS/MHz,
Qualcomm Scorpion = 2.1MIPS/MHz
ARMv7 Cortex-A9 = 2.5DMIPS/MHz,
Qualcomm Kraits = 3.3DMIPS/MHz,
ARMv7 Cortex-A15 = 3.5->4.1DMIPS/MHz
ARMv8Cortex-A53 = 2.3DMIPS/MHz
ARMv8 Cortex-A57 = 4.1-476DMIPS/MHz

http://en.wikipedia.org/wiki/List_of_ARM_microprocessor_cores

Adi
Guest
Adi

It’s pity there’s no JTAG adapter. Then it would be one hell of a board 🙂

Andrew
Guest
Andrew

@cnxsoft
I’m sorry. I did mean QCA6234. Still can’t find any information on it.

Marcell
Guest
Marcell

@Adi
It does have JTAG connectors, download the board’s datasheet, there’s a picture there of the board itself, on the left side you can clearly see the connector pins with the sign “JTAG” next to them 🙂

freethinker
Guest
freethinker

Do they plan to publicly release the source code?

trackback

[…] on the IFC6410 and read more about the announcement in the Wall Street Journal, EE Times and the CNXSoft blog. Also, you can pre-order the IFC 6410 from Inforce Computing right […]

adem
Guest
adem

when i click preorder avast kicks in and warns me about a virus i clicked on a couple of them and got the same result

http://www.inforcecomputing.com/product/moreinfo/ifc6410.html

iam no developer but i want one to connect to my tv and use as a media player i think it would be better then any tv dongle
thats out right now i think the best dongle would be one based on rk3188 and this s4 pro would eat it alive

adem
Guest
adem

could i just put anything as a company how would they know do they really care maybe they just want to sell ether way i will try and i will let you guys know @cnxsoft

adem
Guest
adem

i put in a pre order and they will start dispatching some time in September i think i have wait for email to make payment its a couple of weeks away i cannot wait for it i wish they had the adreno 330 instead of the 320

trackback

[…] around Qualcomm Snapdragon processor, and only a few low cost development boards. One of them is Inforce Computing IF6410 pico-ITX board powered by Qualcomm Snapdragon 600 (APQ8064) quad core processor with 2GB RAM, 4GB […]

trackback

[…] Computing has been working the successor of their IF6410 development board based on Snapdragon S4 Pro SoC with IFC6540, another tiny board for Linux and Android, yet with […]

trackback

[…] usual Linaro has worked on member hardware such as Qualcomm based IFC6410 and ARM Juno &Vexpress boards. They’ve also committed changes for LLVM, big Endian, and […]

trackback

[…] sent the October Newsletter by email, and they had some news specific to Ubuntu / Linux support on IFC6410 development board powered by a Snapdragon 600 processor. Firs they link to a guest blog post on Qualcomm website […]

trackback

[…] Kit Kat with Google Play, and Ubuntu Linux images Since Utilite2 is based on the same processor as IFC6410 development board, that is officially supported by Linaro, you should expect pretty good support. […]

trackback

[…] Inforce IFC6410 board is one of the few low cost Qualcomm Snapdragon development boards available on the market. Released in 2013, it features a Snapdragon 600 processor (APQ8064) coupled with 2GB RAM, 4GB eMMC, and various connectors. Inforce Computing has now introduced an upgraded version of the board, simply called Inforce 6410Plus, which adds GPS, one extra MIPI CSI connector, two MIPI DSI connectors, and a few other changes, while keeping the same $143 price tag. […]

Daniel Mathews
Guest

Guys , just wanted to let you know that Inforce has launched a new version of the 6410 called as 6410Plus at the same price as earlier. You can check the specs of the new one at http://www.inforcecomputing.com/products/single-board-computers/6410-plus-single-board-computer-sbc

Jibril
Guest
Jibril

@Daniel Mathews
when a version with hirose u-fl connector for external wifi antenna and 4 GB Ram ?

trackback

[…] 6410Plus SBC is the successor of Inforce 6410 board, also based on Qualcomm Snapdragon 600 processor (APQ8064), but compared to the first version of […]
