ITEAD Core AW204X AllWinner A20 SoM and Core EVB Baseboard

ITEAD Studio has been making systems-on-module based on Allwinner processors for a little while which are found in the company’s IBOX mini PC, MOD Duo guitar pedal, and more. They’ve now launched a new system-on-module with a 204-pin SO-DIMM connector instead of the headers used in the earlier modules.

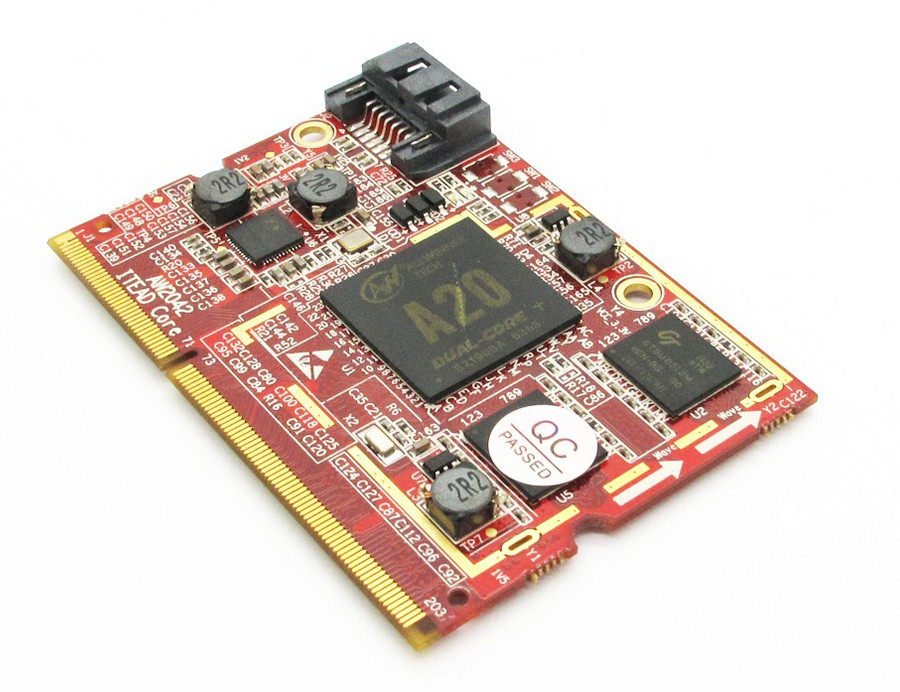

AW2042 SoM (Click to Enlarge)

ITEAD Core AW2041 / AW2042  SoM specifications:

  • SoC- AllWinner A20 dual core ARM Cortex-A7 @ 1 GHz + ARM Mali 400 MP2
  • System Memory – 1 or 2 GB DDR3 RAM (AW2014: 1GB, AW2042: 2GB).
  • Storage – 4GB NAND Flash, micro SD card slot (on the back), SATA connector.
  • Connector – 204-pin SO-DIMM edge connector with UART, I2C, SPI, LCD, I2S, LVDS, GPIO, etc.. signals
  • Misc – Built-in RTC, reset, FEL and power buttons.
  • Power – 5V supply, 3.3V I/Os. AXP209 PMIC.
  • Dimensions – 67.60 x 48.25 x 1.6 mm
  • Weight – 35 grams
  • Temperature Range – Commercial

To facilitate development, the company is also providing an open source hardware baseboard (Kicad) simply called “EVB Core”.

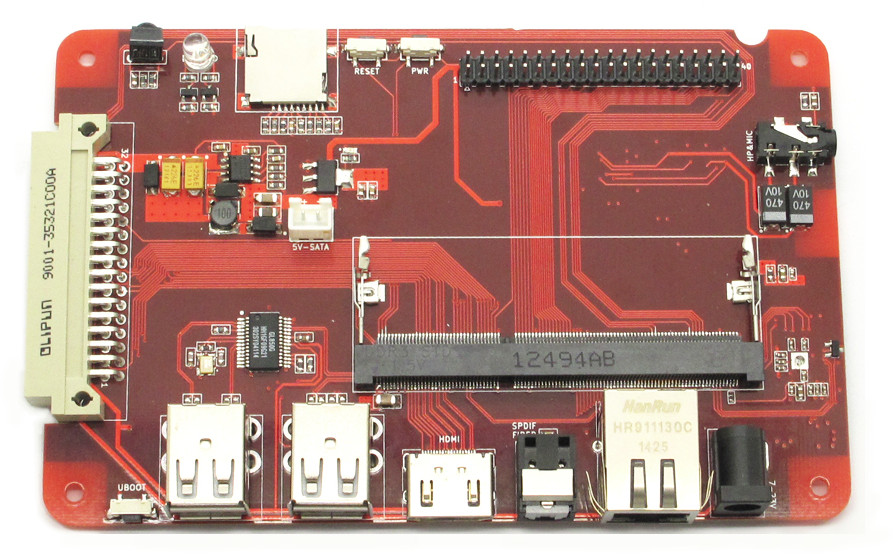

EVB Core (Click to Enlarge)
EVB Core (Click to Enlarge)

Baseboard specifications:

  • SoC / Memory / Storage – Via AW204x modules.
  • Eternal Storage – SATA port on module, 5V SATA power on EVB, 1x micro SD slot on EVB, 1x micro SD slot on module.
  • Video Output – HDMI 1.4, 18/24-bit single or dual channel LVDS
  • Audio – HDMI, optical S/PDIF, 3.5mm audio jack supporting 8 Ohm speakers @ 3W via included amplifier.
  • Connectivity – 10/100/1000M Ethernet
  • USB – 3x USB 2.0 OTG ports, 1x USB OTG port (full size)
  • Expansions Headers:
    • 32-pin connector (beige) with access to UART, I2C, SPI, I2S, and GPIO signals, that can be used with some add-on boards made by ITEAD Studio.
    • 40-pin headers compatible with Raspberry Pi Model B+ (UART/I2C/SPI/GPIO)
  • Misc – IR receiver, bicolor LED, power, reset, FEL buttons,
  • Power – 7-23V DC via 2.5mm power jack
  • Power Consumption – 200mA typical, 300mA max. @ 5V? (without devices attached to EVB)
  • Dimensions – 140.2 x 90 mm
  • Weight – 82 grams
  • Temperature Range – Operating: 0 to 60℃; storage: -40 to 80℃

The evaluation board can be fitted into IBOX metallic enclosure. The company provide supports for ITEAD OS based on Debian 7.0 (Link to SDK), and Android 4.2 for their modules. Some documentation, mostly the pinout diagrams. can be found on the Wiki for AW204x modules, and EVB Core.

Both the modules and baseboard appear to be available now. AW2041 SoM (1GB RAM) sells for $45, AW2042 (2GB RAM) for $60, and EVB Core for $29.99, so a complete development kit would start at $75.
