Iocean M6752 Octa-core Cortex A53 Android Smartphone Unboxing, First Boot, and Benchmarks

I’m quite interested in testing 64-bit ARM platform, but since mini PCs and development boards are not quite there yet, GearBest give me the opportunity to check out Iocean M6752 smartphone based on Mediatek MT6752 Octa core ARM Cortex 53 processor with 3GB RAM, 16GB flash, but running Antutu 4.4.4 (32-bit). Today, I’ll provide the complete specifications of the phone, take a few pictures, and run CPU-Z and Antutu benchmark, before writing a full review in one week or so.

Iocean M6752 specifications

The smartphone may have multiple versions with up 16 or 32GB storage, and 1, 2 or 3 GB RAM, but the one I received has the following specifications:

  • SoC – Mediatek MT6752 Octa-core 64-bit ARM Cortex A53 processor @ 1.7 GHz, with ARM Mali-T760 MP2 GPU and H.265 UHD capable video processing unit.
  • System Memory – 3GB RAM
  • Storage – 16 GB eMMC + micro SD slot up to 64GB (internal)
  • Display – 5.5” capacitive touch screen “retina LTPS”; 1920×1080 resolution (Full HD)
  • Connectivity – 802.11 b/g/n Wi-Fi , Bluetooth 4.0, GPS / A-GPS, FM Radio
  • Cellular Network
    • 2G GSM – 850/900/1800/1900MHz
    • 3G – UMTS/WCDMA 900/2100 MHz
    • 4G – 800/1800/2100MHz (FDD LTE, TDD LTE, and TS-SCDMA)
    • Two micro SIM slots; Dual SIM, dual standby (DSDS) support.
  • Audio – Speaker and microphone, 3.5 mm audio jack for headphones
  • USB – 1x micro USB 2.0 OTG port
  • Camera
    • 14.0MP rear-facing with flash light and auto-focus
    • 5.0MP front-facing camera
  • Sensors – Gravity sensor, Ambient Light sensor, Proximity sensor, Gyroscope, and Compass
  • Battery – 2,300 mAh Lithium battery.
  • Dimensions – 154.7 x 76.90 x 8.2 mm
  • Weight – 158 grams

The device runs Android 4.4.4.

Iocean M6752 Pictures

I’ve received the phone within a few days as it was shipped with DHL.

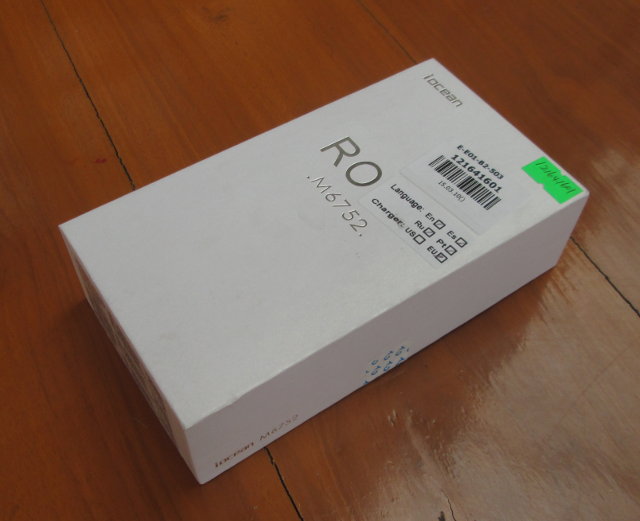

Iocean_M6752_PackageThe package contains a power adapter, a warranty card, the phone, a blue 2,300 mAh battery, a plastic case, a screen protector, and a micro USB to USB cable for charging. GearBest also included a EU to US plug adapter separately.

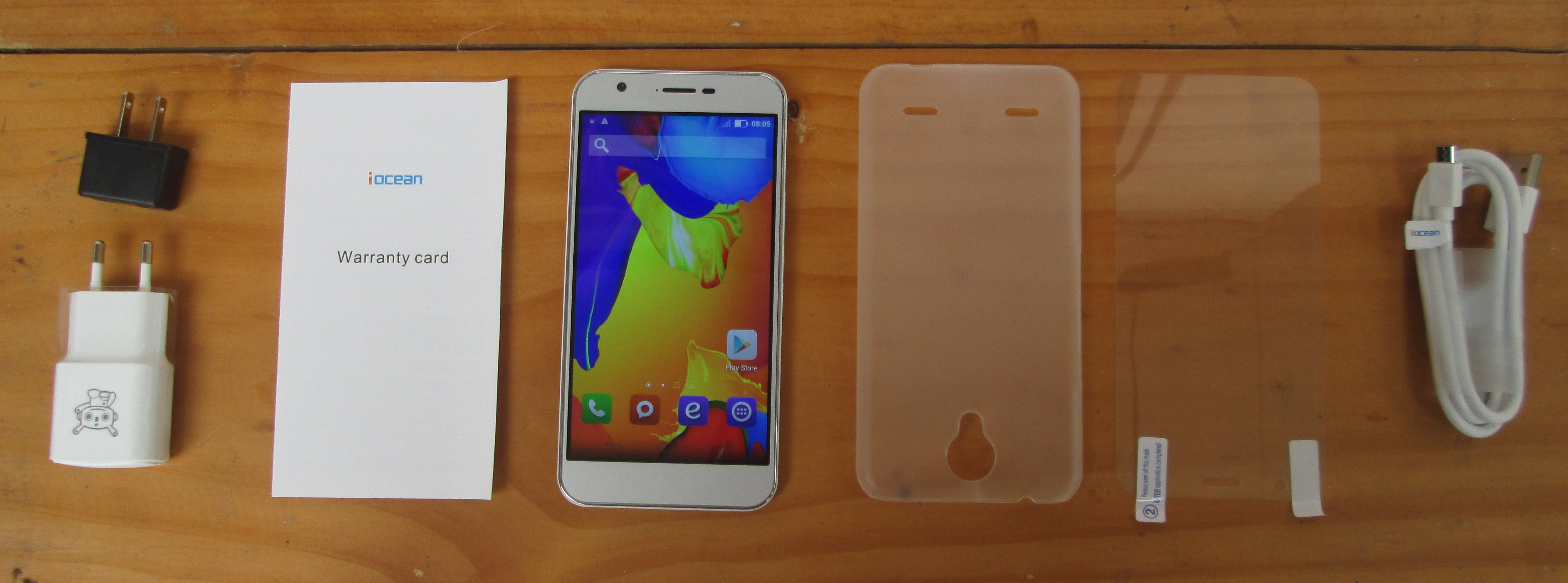

Iocean M6752 Smartphone and Accessories (Click to Enlarge)
Iocean M6752 Smartphone and Accessories (Click to Enlarge)

The battery is not placed in the phone, and I also had to insert the micro SD card and SIM card, so I first had to take out the back over.

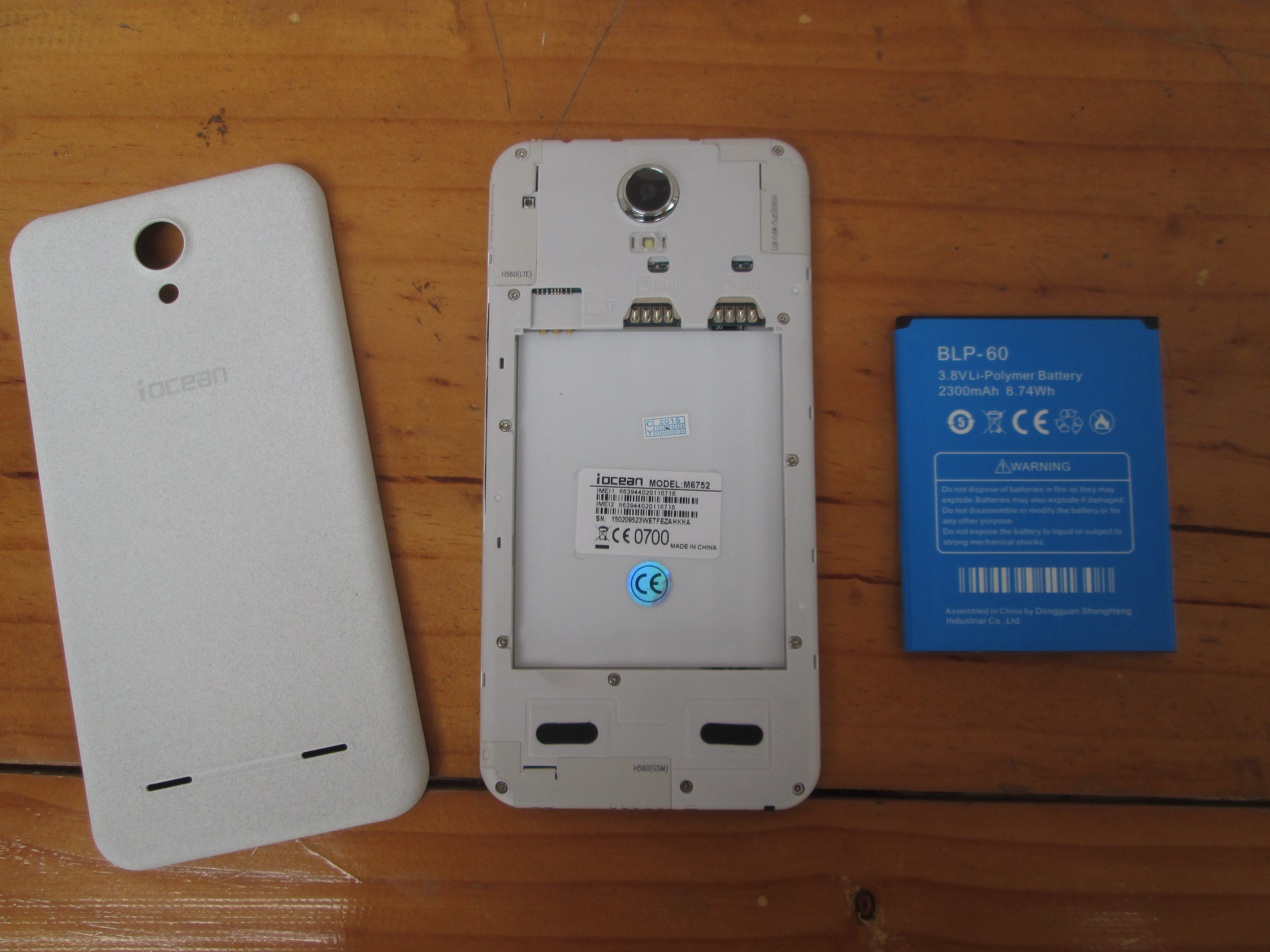

Iocean M6752 micro SIM slots and Battery (Click to Enlarge)
Iocean M6752 micro SIM slots and Battery (Click to Enlarge)

The micro SD slot in on the left, and the phone has two micro SIM slot, so I had to cut my full-sized SIM card to insert it in one of the slots. The battery still had about 50% charge I could boot the phone.

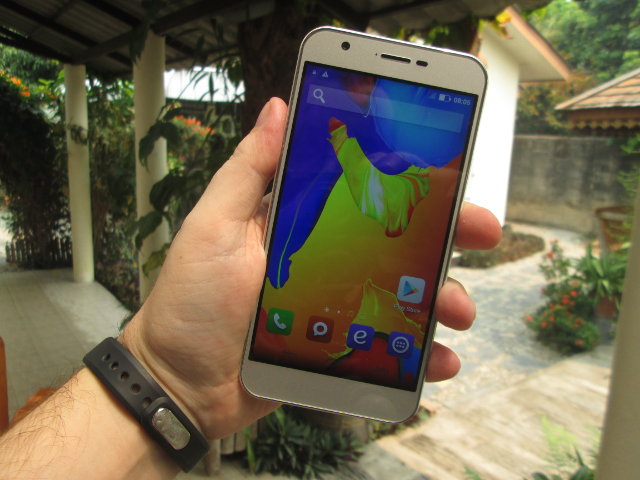

Iocean_M6752The headphone jack is on the top of the phone, the micro USB on the bottom, and power and volume buttons on the right side, and that’s all there is in terms of buttons or connectors. The phone feels really light in the hand, although it’s not particularly thin.

First Boot

If you want a better look at the phone, you can watch the video below, where I also boot the phone and quickly flick through the user interface.

Boot time is quite impressive compared to my older phone (about 10 to 15 seconds).

The phone was set to English, and Google Play was pre-installed.

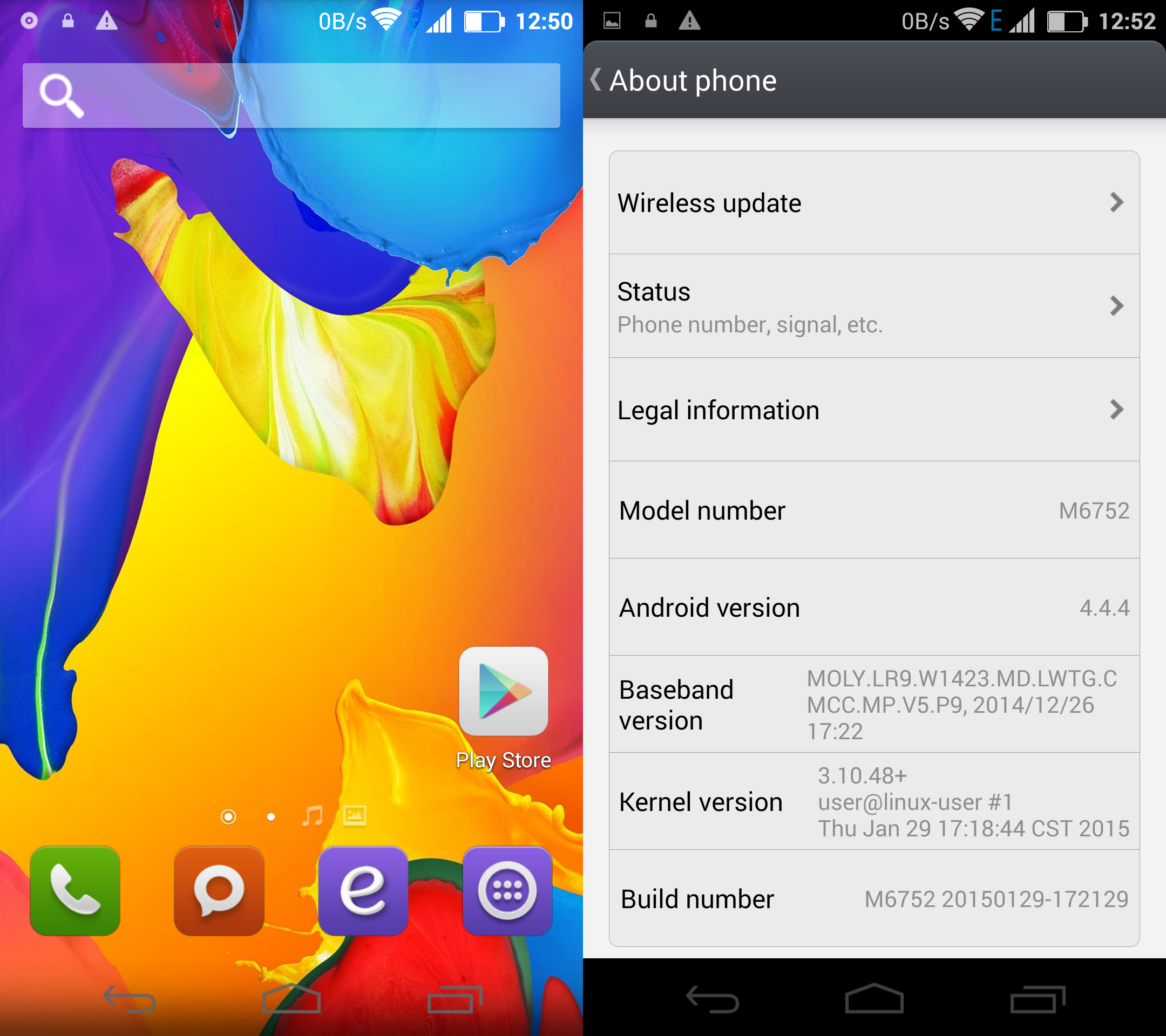

Home Screen and "About Phone: (Click for Original Size)
Home Screen and “About Phone: (Click for Original Size)

The model number is indeed M6752, and it runs Android 4.4.4 on top of Linux 3.10.48+

Pre-installed Apps (Click to Enlarge)
Pre-installed Apps (Click for Original Size)

I’ve instaall Antutu, CPU-Z and Dropbox myself, but all other apps were pre-installed. SammyDress is a junk app trying to sell you woman clothes, and Z-DeviceTest just an application to get system details.

So far I haven’t found any issues with the phone, and the full HD display is sharp, and bright.

Iocean M6752 (Mediatek MT6752) CPU-Z and Antutu Benchmark

I have never tried a device with MTK6752 processor, or even a Cortex A53 based device before, so let’s extract some technical informations with CPU-Z first.

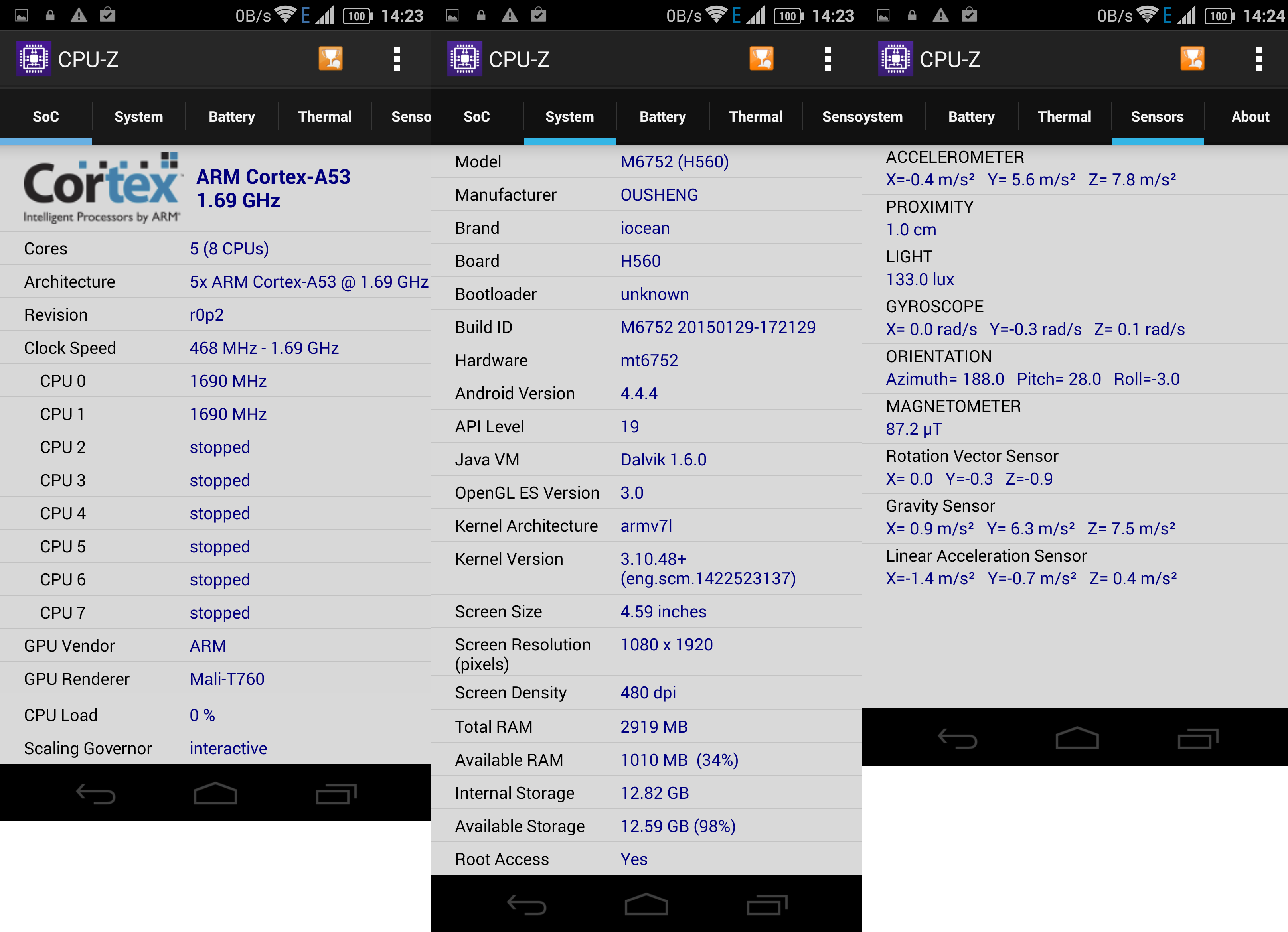

Iocean M6752 CPU-Z Data (Click to Enlarge)
Iocean M6752 CPU-Z Data (Click to Enlarge)

CPU-Z does list 8 CPUs, but somehow only reports 5 ARM Cortex A53 cores @ 468 MHZ to 1.69 GHz. It correctly detects a Mali-T760 GPU, 3GB RAM, 12.82GB internal storage (out of the 16GB eMMC flash). The model is M6752 with H560 board, and is said to be manufactured by OUSHENG. I found a company called Ningbo Ousheng Electric Appliances, but they don’t seem to be in the smartphone business at all, so they must be unrelated. All sensors appear to have been detected properly. The kernel is armv7l, so that confirm this 64-bit ARM platform runs a 32-bit Linux kernel.

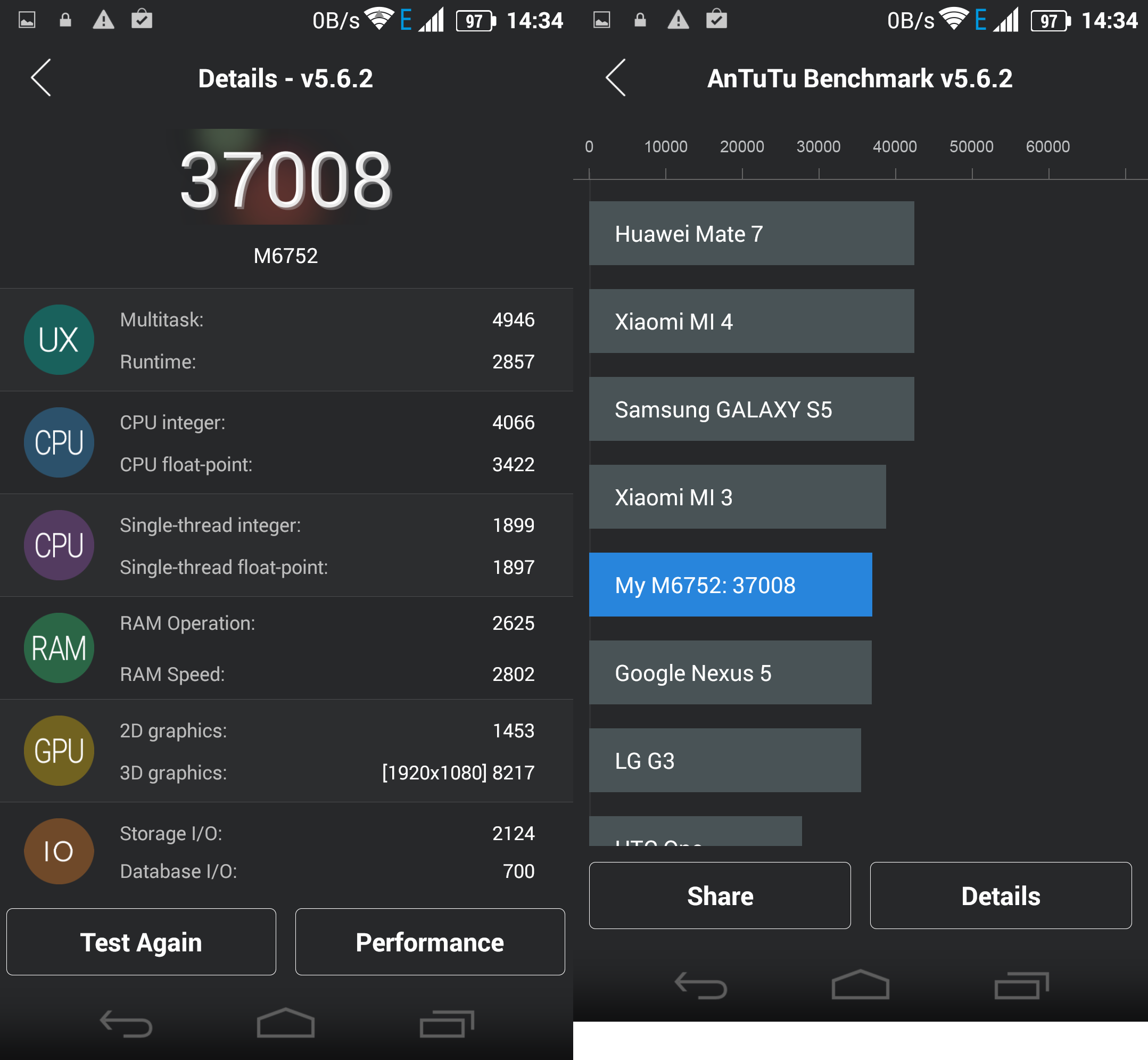

The phone gets 37,008 points in Antutu 5.6.2.

Antutu 5.6.2 Results (Click to Enlarge)
Antutu 5.6.2 Results (Click to Enlarge)

That’s a pretty good score for a so-called mid range smartphone, just between Google Nexus 5 and Samsung Galaxy S5, especially Antutu does not complain about an unverified score.

I’ll have to run a few more benchmarks to confirm this good performance in the full review. I’ll use the phone mainly for browsing the web, checking email, watching YouTube videos, and playing casual games, but the rear and front camera will also be tested in bright and low light conditions, as well as battery life, video decoding capabilities, GPS performance with Running+ app. I’ll also report on potential issues I expericne with the phone, and you can let me know if you want me to test something in particular. The review should be similar to what I did for Infocus C2107 tablet, and I will only test Wi-Fi, not 3G or LTE connectivity.

I’d like to thanks GearBest for sending the smartphone for review, and if you interested you could consider purchasing the phone for $219.99 including shipping with Coupon “Iocean” via their online store. Other sellers include Tinydeal, Geekbuying, and Coolicool with price starting at $222.99.
