Canonical Introduces SoDeRa Software Defined Radio Solution for Base Stations and IoT Gateways

Canonical and Lime Micro have jointly announced SoDeRa low-cost software defined radio (SDR) which can be programmed to support any type of wireless standard including UMTS, LTE, LoRa, Bluetooth, Zigbee, RFID, Digital Broadcasting, and more, and aiming at helping operators reducing costs & complexity, while speeding up time to market and providing greater flexibility.

SoDeRaThe kit will include a board with the following specifications:

  • FPGA – Altera Cyclone IV EP4CE40F23 Altera FPGA (compatible with EP4CE30F23)
  • System Memory – 256 MB DDR2 SDRAM
  • RF
    • Lime Microsystems LMS7002M Transceiver with continuous Frequency range of 100 kHz – 3.8 GHz
    • 4 x TxOut and 6 x RxIn U.FL connectors for RF cables
    • Power Output (CW): up to 6.5 dBm
    • Wi-Fi, 2G, 3G, LTE, any other air interfaces
  • USB – 1x micro USB3 via CYUSB3014-BZXC Cypress Microcontroller  for control, data transfer and power
  • Misc – Status LEDs, RGB LEDs, 4x switches
  • Dimensions –  100 mm x 60 mm

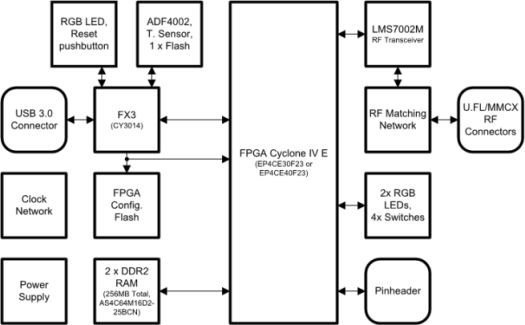

SoDeRa Block Diagram
SoDeRa Block Diagram

Canonical (Ubuntu) will provide a framework for open source developers to develop apps supporting current and next generation wireless standards including 2G to 4G radio, TV broadcast, satellite communication, RFID, Bluetooth, WiFi, ZigBee, zwave, lorawan, ibeacon and radar. The Telecom operators will then have the flexibility to add additional standards to the base station or IoT gateway by simply uploading apps, removing the (over) reliance on Telecom hardware vendors.

SoDeRa is currently showcased at Mobile World Congress 2016 in Canonical and Lime Micro booth, and SoDeRa will soon be launched on Indiegogo. Interested telecom operators, or anybody who wants to received updated, are invited register their interest on SoDeRa.org website.
