Karl here and I will be reviewing the Morefine M1+. It is an Intel based stick PC with an Intel Atom x5-Z8300 processor with 2GB RAM and 64 GB of storage. It dual boots Windows 10 Home 32 bit and Android 5.1. In this review, I won’t be doing many benchmarks because they have been done a lot in the past.

Be careful when researching this product because there are 2 devices with same name with different specs. The other one has an Intel Atom z3735 and only 32GB storage and Android 4.4.

The box came expertly wrapped and I have never seen a package delivered and protected so well.

Click to Enlarge
Click to Enlarge

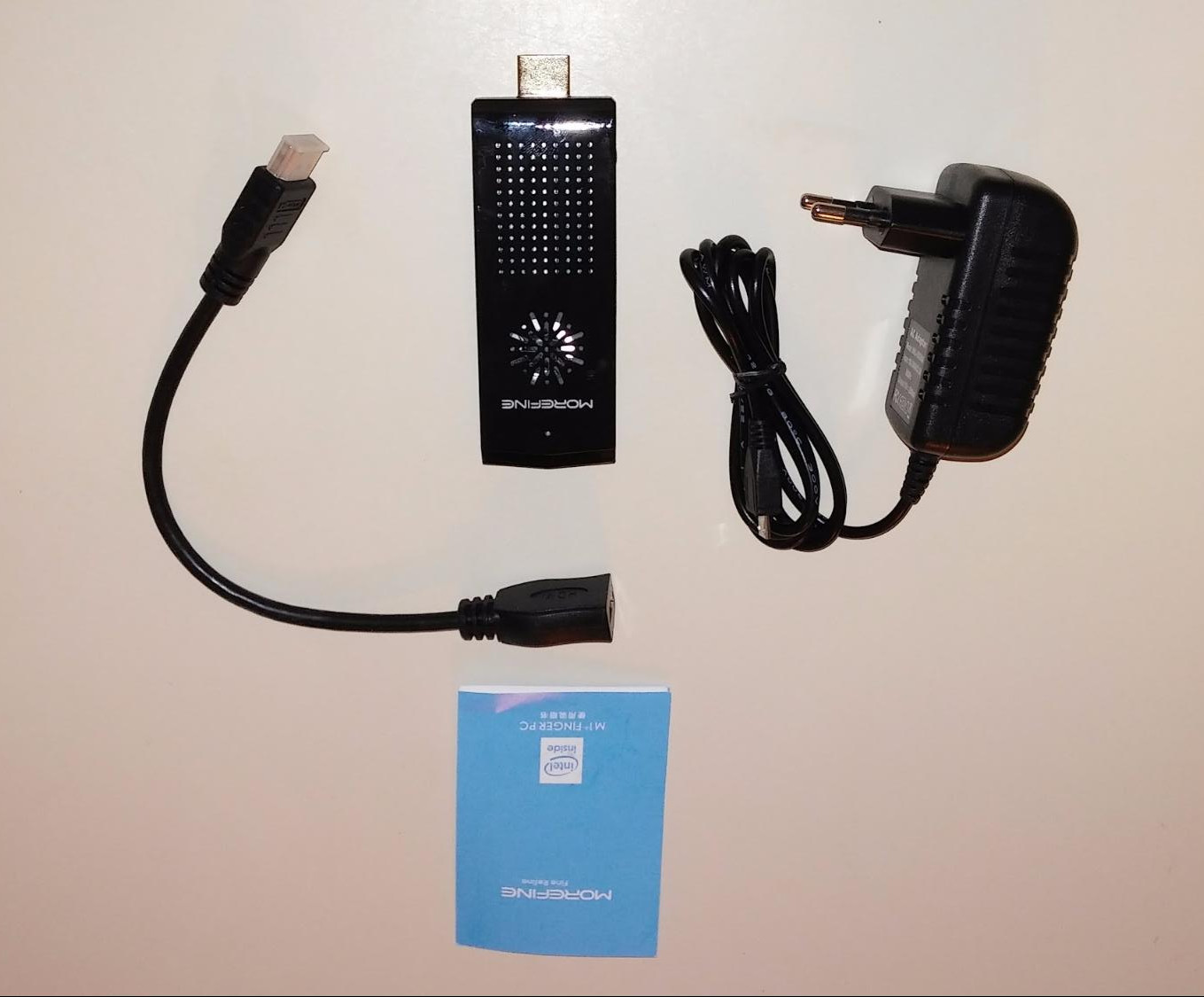

In the box was the stick, short HDMI extension, power cable, and instruction manual. No micro USB OTG cable is included. I didn’t find this an issue because I had several already.

Click to Enlarge
Click to Enlarge

Specs

  • OS Version: OS Windows 10 (Trial Version) and Android 5.1
  • CPU: Intel Quad Core Atom x5-Z8300
  • GPU: Intel HD Graphics
  • Processor Speed (turbo): 1.84 GHz, normal 1.44 GHz
  • RAM: 2GB
  • Internal Memory: 64GB
  • External Memory: Support up to 128GB
  • Supported Resolution: 1920×1080
  • Wi-Fi: 802.11 a/b/g/n (2.4G/5G)
  • Bluetooth 4.0
  • Built-in Intelligent Temperature Control Fan

When power is connected and after pushing the power button I was prompted with android logo and windows logo. I used a Logitech K400 to navigate and left right arrows are used to choose Android or Windows. It remembers what you booted last when you reboot.

Windows

I was most interested in Windows so booted to it first. I have already used a box based on z8300 so I had realistic expectation of performance. UI is acceptable and most tasks can be performed with just a little bit of waiting. I went to update and found that it was already up to date. I was expecting a couple hours of updates. I also found a WiFi access point still saved in wireless settings. I performed an update and only had to update virus definitions. (After factory restoring Windows I believe Chinavision updated the stick before shipping. I did have to do a big update and I received normal Windows first boot screens)

Click to Enlarge
Click to Enlarge

Then I installed the software below:

  • True Temp
  • Kodi
  • Emby
  • Plex
  • Netflix
  • HDHomerun App
  • VLC
  • Chrome with h.264 YouTube addon
  • Minecraft for Windows 10 beta
  • League of Legends
  • Microsoft Office 2016

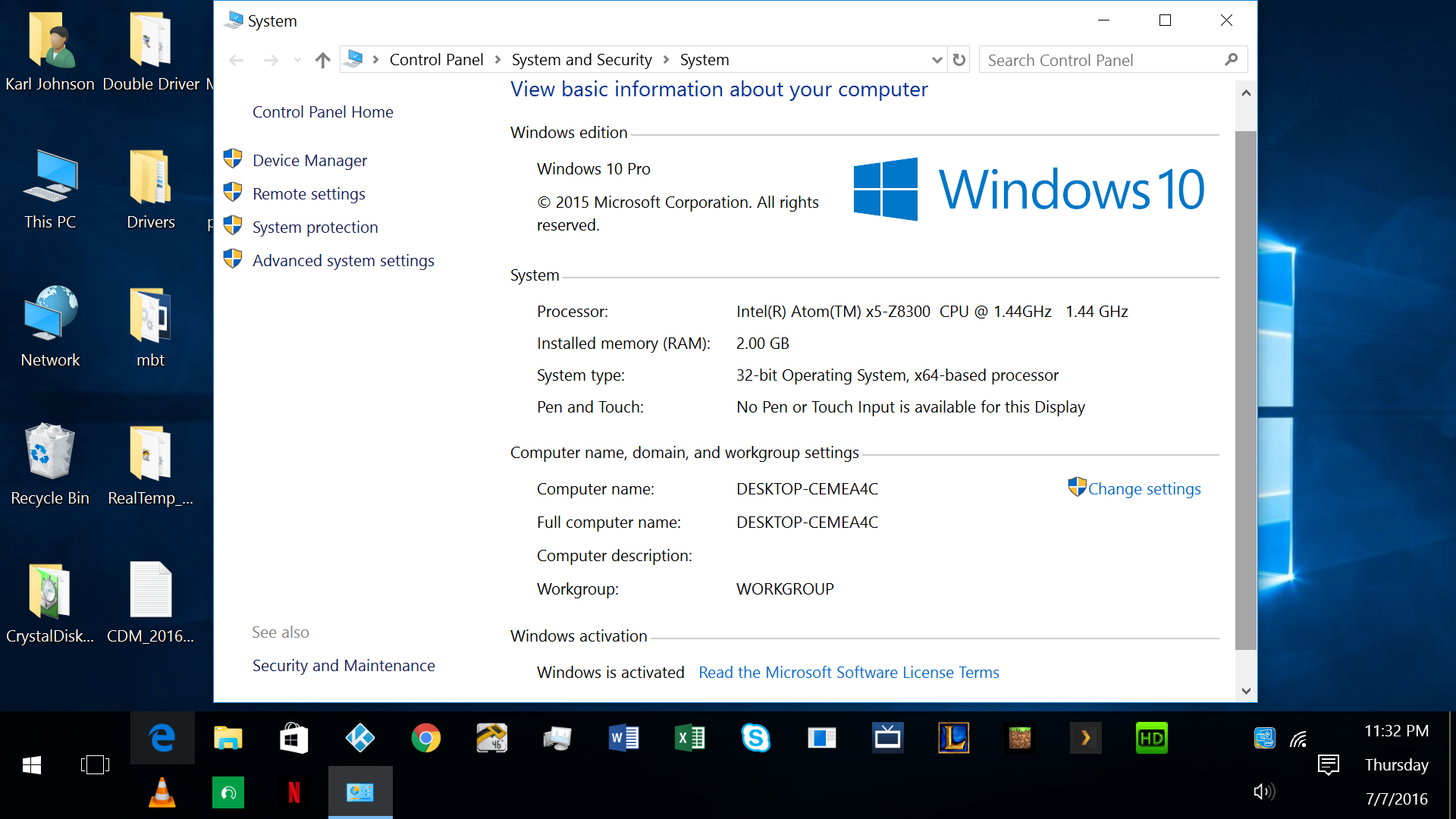

It didn’t come with Windows activated and I had a key for Win 7 pro available. I went to the Windows store and searched for Upgrade Windows Pro and I put in this generic key VK7JG-NPHTM-C97JM-9MPGT-3V66T that I found on the Microsoft website. This key installs Pro but does not activate it. I let the system upgrade then I went to activation and put in my key to properly activate it. So there are a couple options to activate Windows.

Click to Enlarge
Morefine M1+ Partitions – Click to Enlarge

I tried to do a fresh Windows 64 Pro install but the stick wouldn’t recognize my thumb drive. I contacted the manufacturer and asked for 64-bit drivers but they were not able to provide any. I didn’t want to brick the stick so did not experiment any more. I received links to restore img as I was completing this review so I did not have time to test. Here is the link, and instructions are the same as the original M1+. The process seems straightforward. I tried to do a restore and I think there is an issue with the Android restore provided by Morefine. Complains of being 64-bit when only 32-bit capable. I let Morefine know and I will update when I find out what the issue is…Maybe I can’t follow instructions…wouldn’t be the first time.

Thermal Design

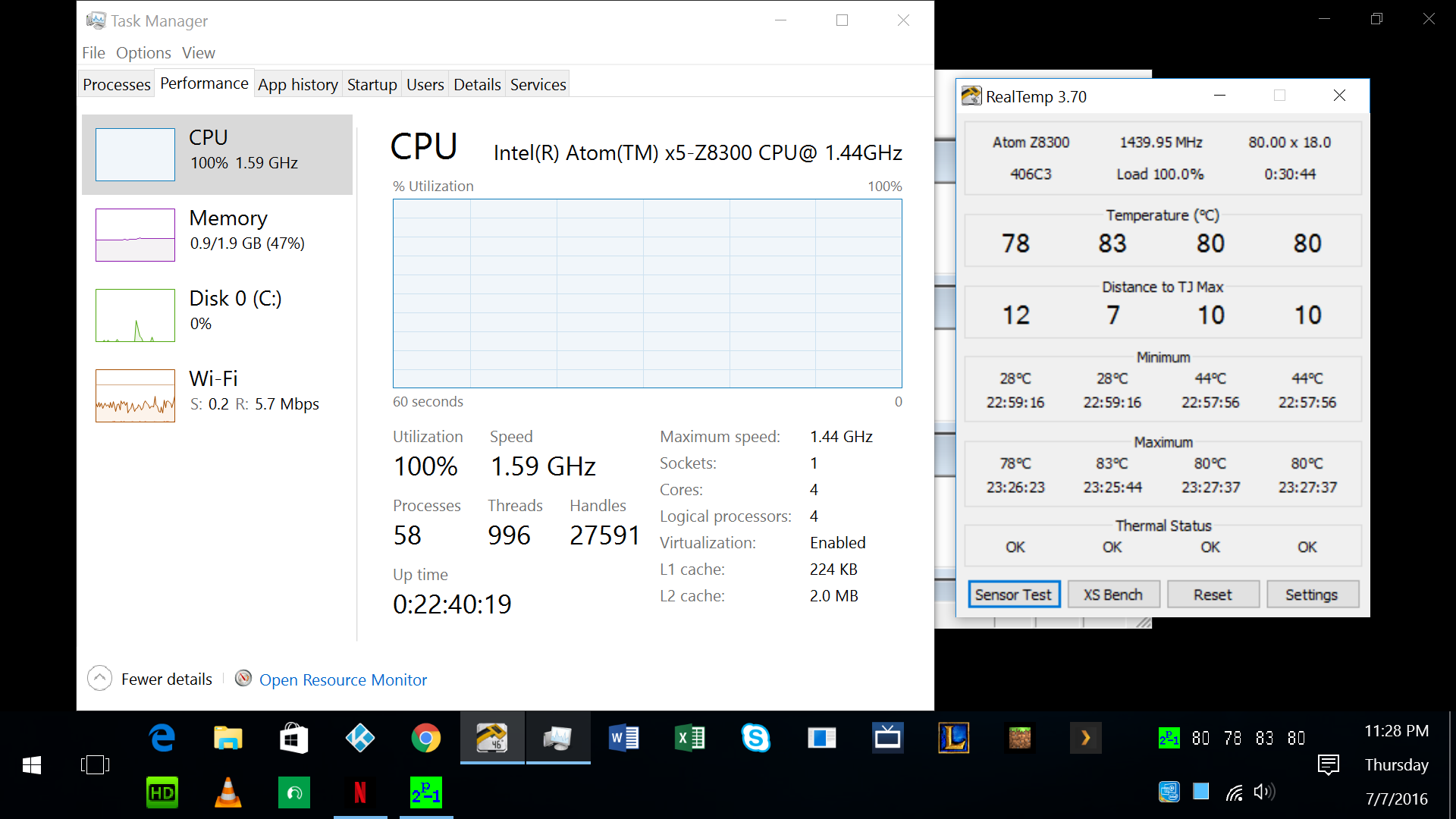

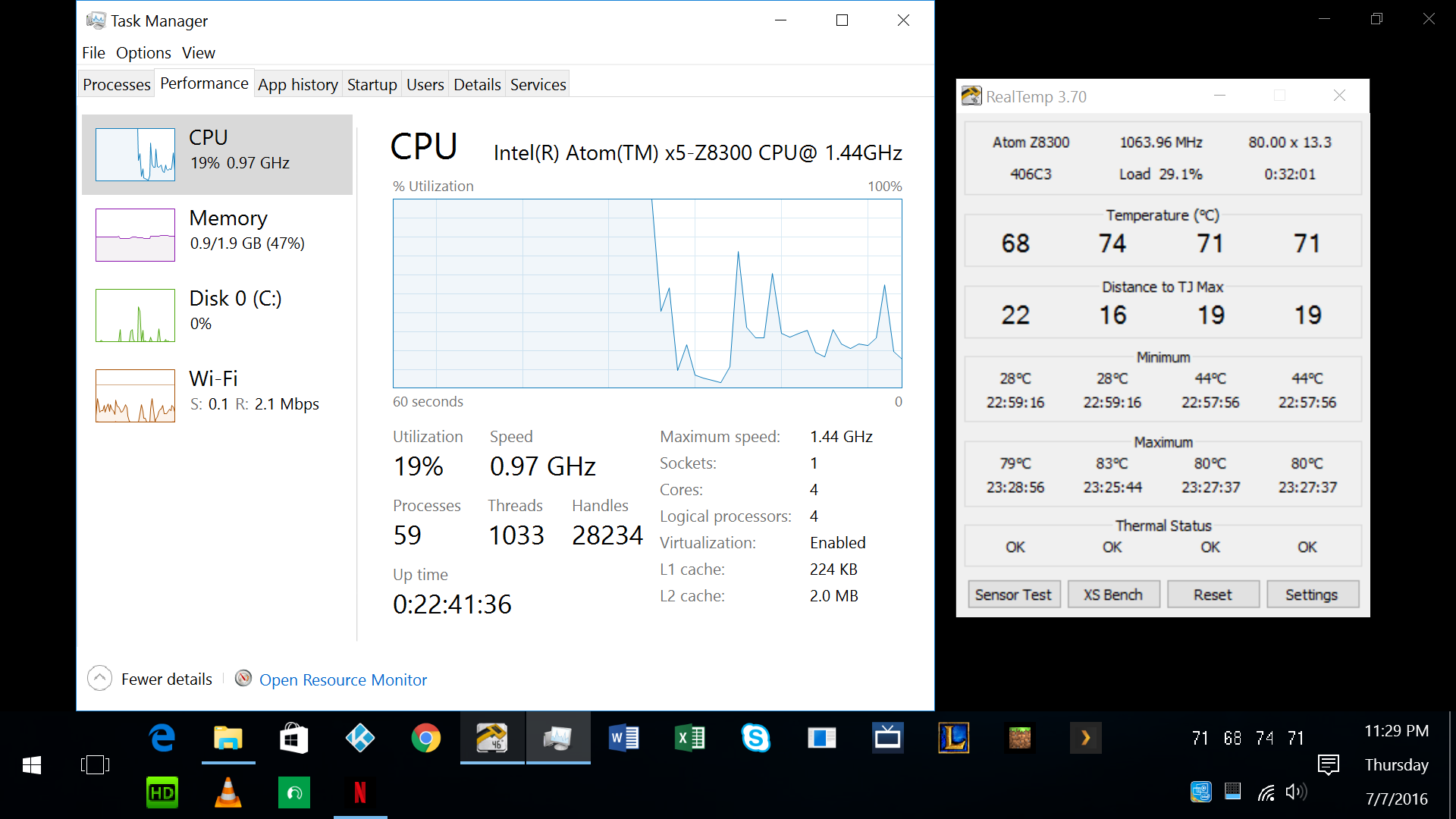

The thermal design for the stick is adequate. I kept True Temp running while reviewing and only saw it spike to 80 deg. Celsius once. It was during the installation of Microsoft Office while browsing with Chrome at the same time. Most of the time it ran between 50 and 60. The fan on the stick runs at different speeds depending on the temp and when only running light apps turns off completely. I didn’t find it annoying and barely audible. For a comparison the air coming out my vents for HVAC is substantially louder. I performed a 30 min stress test with prime95 while streaming Netflix and the fan only kicked into its highest speed once. 2 screenshots below show right at the end and the stick cooling off quickly.

Click to Enlarge
Click to Enlarge
Click to Enlarge
Click to Enlarge

Windows Gaming

I don’t play much games but I did play Minecraft from the Windows store and it ran really well. I did have some hiccups playing network games with Android tablets but it still is in beta and I don’t think it is attributed to the stick. The only other game I play occasionally is League of Legends. It is not a demanding game but I was impressed that it played well. League of Legends is a real time strategy / RPG game that any lag gets you killed and I didn’t feel like I was at a disadvantage using the stick.

HTPC

I feel like a home theater PC is the best way to utilize this stick. I tested out Kodi, Plex, Emby, and HD Homerun app. All of which played well. I was able to play some 4k content but only up to 8-bit HEVC. I could not get 10 bit to play in any player. All the 1080 content I tested played well.

Wifi

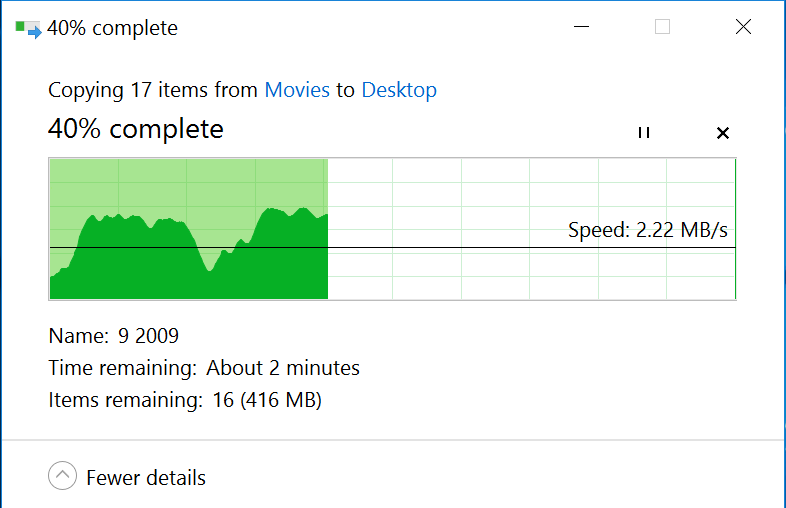

I found WiFi to be only mediocre. Windows was better than Android. It might be the fact that I had it so close to my TV. If I moved it to the right spot, it would copy about 4 MB/s. The access point has 3 walls to penetrate which includes a bathroom with copper pipes. You can see below where moving the stick made speeds fluctuate considerable up and down.

Morefine_M1+_WiFi_Performance

I tested a rtl8188etv USB adapter but there was some sort of driver conflict with built in WiFi and I had to restore the driver for the built in Wi-Fi from the double driver backup I made. I did use a ASIX USB 3.0 gig adapter and it worked really well. I also tested a ASIX 10/100 adapter and it worked well.

Android

I was a slightly disappointed on the Android side. I really like that it didn’t have any bloat but but this is extreme. No play store was included. I tried for several hours to install Google play store and Google play services kept getting constant app closings so I uninstalled them. Android is not rooted. ADB does not work. I installed aptoide and used it to install all my apps. I don’t like using it but it is better than side loading all the apps from the web. Kodi worked well.

As I was using Android I am really impressed by the UI. This is my first experience with Android on Intel. It is really fluid. I am not sure why Android on Intel didn’t take off. I guess my ignorance kept me from it and I imagine others as well. I had no issues with apps and they all seemed to work well. I was always worried that apps wouldn’t work well on Intel processors.

Misc

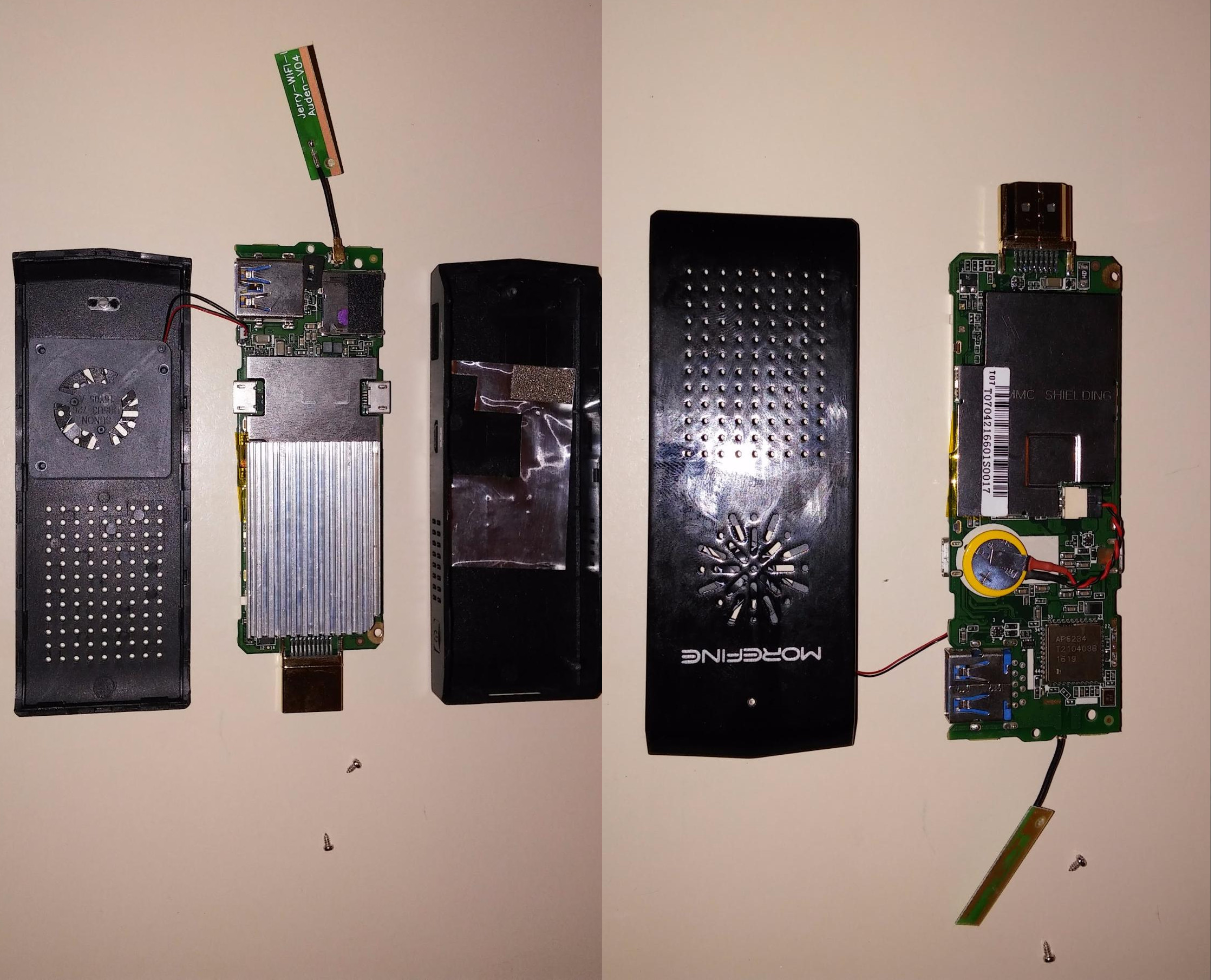

There is the issue with time when booting between Android and Windows. Time gets off. A little hack can be applied to Windows so that time doesn’t become off when switching OS’s. What is needed is to set windows to use universal time. Below are some pics of inside the stick and internal storage test.

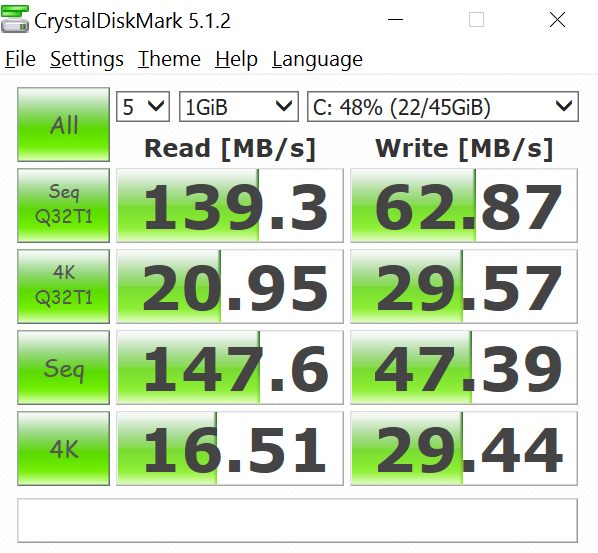

Morefine_M1_Plus_CrystalDiskMarkWiFi chip is AP6234 and notice that the antenna is not soldered on. It would be easy to mod and install an external antenna. I loath the sticky soldered antenna.

Click to Enlarge
Click to Enlarge

Bios

There are quite a few BIOS settings but the only one I changed was an option for the stick to turn on when power is applied. I prefer it to come on in case power is lost so it will reboot on its own. Its nice if you use as a micro server.

One final note

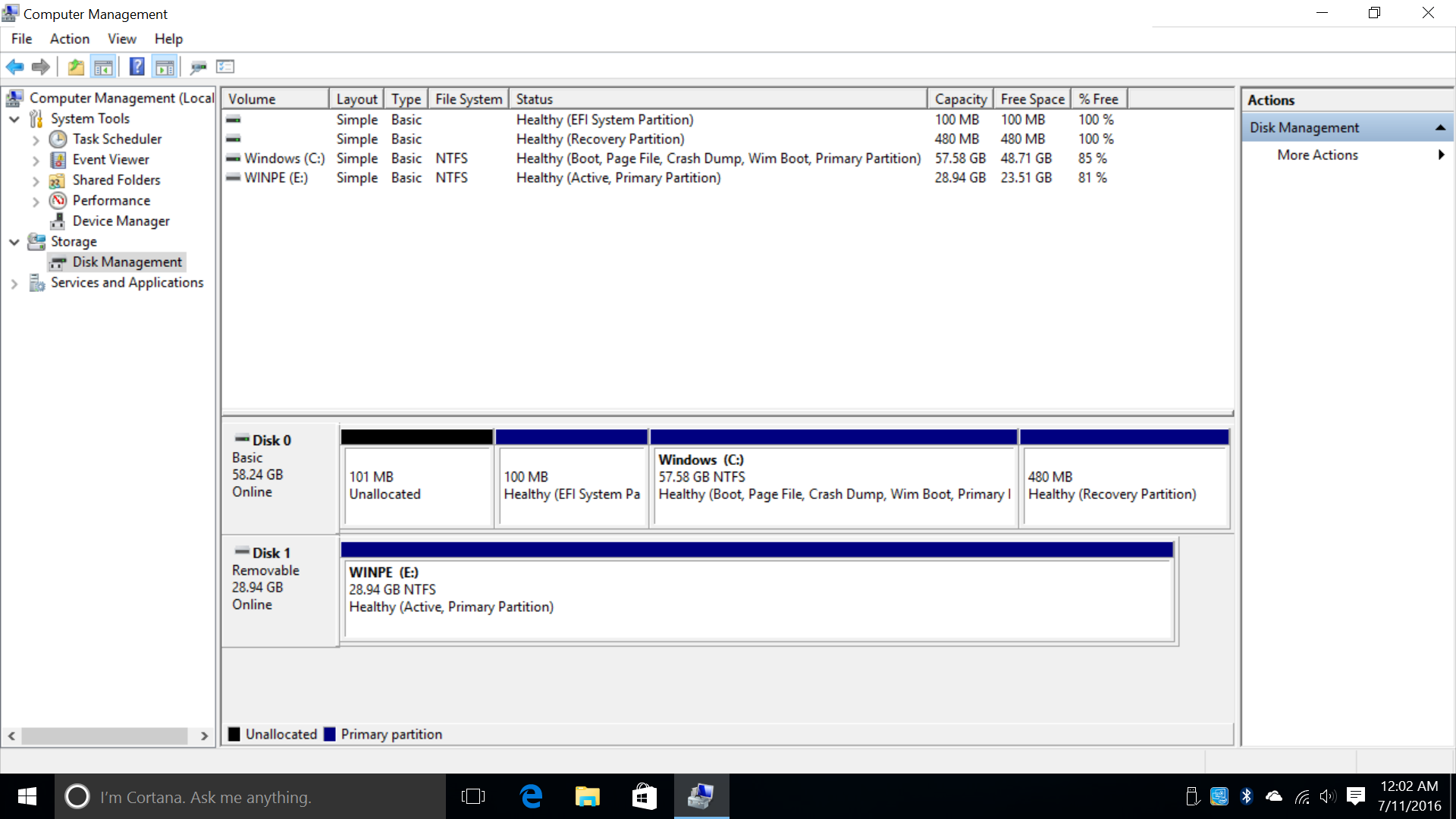

In the event you do not wish to use Android you can recover most of the space used by Android. I used the built in disk management under Computer management and deleted all the partitions and tried to extend the main Windows partition but it was greyed out. I then downloaded Minitool Partition Wizard and completed the final extend and this is what I ended up with. You still will get the initial choice of Windows and Android but Android bombs. Reboot and choose Windows….this might be able to be fixed and boot directly into Windows without a choice if a recovery USB is made and have it fix booting.

Click to Enlarge
Click to Enlarge

Conclusion

Overall, I was really pleased with this stick. The thermal design is well engineered. Easy to use. I have been playing with Android boxes for the home theater for several years now. I have to admit having a product that just works feels pretty good. I can plug in just about anything and Windows will find the drivers and install…or with just minimal searching find a suitable one. I don’t have to beg a dev to compile a kernel with necessary drivers. If you have any questions feel free to ask below in the comments.

I would like to thank Chinavision for sending the Morefine M1+ to review, and you can purchased on their website for $81.69. Alternative shopping options include Tinydeal and Banggood, with most other shops only selling the older Bay Trail version with Android 4.4 and 32GB storage.
