NVIDIA Introduces Jetson TX2 Embedded Artificial Intelligence Computer

Orange Pi Development Boards

NVIDIA has just announced an upgrade to to their Jetson TX1 module, with Jetson TX2 “Embedded AI Computer” with Tegra X2 Parker SoC that either doubles the performance of its predecessor, or runs at more than twice the power efficiency, while drawing less than 7.5 watts of power.

The company provided a comparison showing the differences between TX1 and TX2 modules.

Jetson TX2 Jetson TX1
GPU NVIDIA Pascal, 256 CUDA cores NVIDIA Maxwell, 256 CUDA cores
CPU HMP Dual Denver 2/2 MB L2 +
Quad ARM® A57/2 MB L2
Quad ARM® A57/2 MB L2
Video 4K x 2K 60 Hz Encode (HEVC)
4K x 2K 60 Hz Decode (12-Bit Support)
4K x 2K 30 Hz Encode (HEVC)
4K x 2K 60 Hz Decode (10-Bit Support)
Memory 8 GB 128 bit LPDDR4
58.3 GB/s
4 GB 64 bit LPDDR4
25.6 GB/s
Display 2x DSI, 2x DP 1.2 / HDMI 2.0 / eDP 1.4 2x DSI, 1x eDP 1.4 / DP 1.2 / HDMI
CSI Up to 6 Cameras (2 Lane)
CSI2 D-PHY 1.2 (2.5 Gbps/Lane)
Up to 6 Cameras (2 Lane)
CSI2 D-PHY 1.1 (1.5 Gbps/Lane)
PCIe Gen 2 | 1×4 + 1×1 OR 2×1 + 1×2 Gen 2 | 1×4 + 1×1
Data Storage 32 GB eMMC, SDIO, SATA 16 GB eMMC, SDIO, SATA
Other CAN, UART, SPI, I2C, I2S, GPIOs UART, SPI, I2C, I2S, GPIOs
USB USB 3.0 + USB 2.0
Connectivity 1x Gigabit Ethernet, 802.11ac WLAN, Bluetooth
Mechanical 50 mm x 87 mm (400-Pin Compatible Board-to-Board Connector)

The module still supports Linux for Tegra, as well as JetPack 3.0 SDK for AI computing with the following:

  • TensorRT 1.0  neural network inference engine for production deployment of deep learning applications
  • cuDNN 5.1, a GPU-accelerated library of primitives for deep neural networks
  • VisionWorks™ 1.6, a software development package for computer vision and image processing
  • The latest graphics drivers and APIs, including OpenGL 4.5, OpenGL ES 3.2, EGL 1.4 and Vulkan 1.0
  • CUDA 8, which turns the GPU into a general-purpose massively parallel processor, giving developers access to tremendous performance and power-efficiency

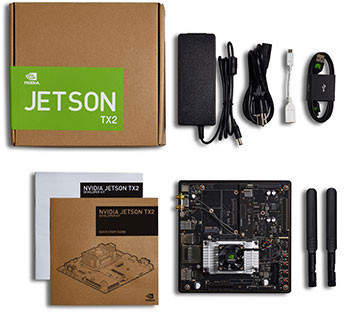

Just like with Jetson TX1 module, NVIDIA also provides Jetson TX2 Developer Kit, with a carrier board, Jetson TX2 module, and various accessories which can be preordered for $599 in the United States and Europe, and start shipping on March 14. The devkit will be launched in other regions in a few weeks. With the launch of the new TX2 devkit, NVIDIA also reduced the price of Jetson TX1 developer kit to $499.

You’ll find more details, and the pre-order link on NVIDIA’s Embedded Modules & Devkits page.
