$192 Nvidia Jetson TK1 Development Board with Tegra K1 Quad Core Cortex A15 SoC

Nvidia has just unveiled Jetson TK1 development kit powered by their 32-bit Tegra K1 quad core Cortex A15 processor with a 192-core Kepler GPU. This board targets computer-vision applications for robotics, medical, avionics, and automotive industries that can leverage the compute capabilities of the Kepler GPU.

Jetson TK1 Development Board
Jetson TK1 Development Board

Jetson TK1 devkit specifications:

  • SoC – Nvidia Tegra K1 SoC with 4-Plus-1 quad-core ARM Cortex A15 CPU, and Kepler GPU with 192 CUDA cores (Model T124)
  • System Memory – 2 GB x16 memory with 64 bit width
  • Storage – 16 GB 4.51 eMMC memory, SATA data + power ports, full size SD/MMC slot, and 4MB SPI boot flash.
  • Video Output – HDMI port
  • Audio – ALC5639 Realtek Audio codec with Mic in and Line out
  • Connectivity – RTL8111GS Realtek GigE LAN
  • USB – 1x USB 2.0 OTG port, micro AB, 1x USB 3.0 port, A
  • Debugging – RS232 serial port, JTAG
  • Expansion
    • 1x Half mini-PCIE slot
    • Expansion port with access to DP/LVDS, Touch SPI 1×4 + 1×1 CSI-2, GPIOs, UART, HSIC, I2c
  • Sensor – TMP451 temperature monitor
  • Misc – Power, reset and recovery buttons, power and network LEDs, fan header
  • Power – AMS AS3722 Power Management IC for power and sequencing.
  • Dimensions – 12.7×12.7 cm

The complete development kit includes Jetson TK1 development board (Model PM375), an AC adapter with power cord, a USB Micro-B to USB A adapter, and a Quick Start Guide.

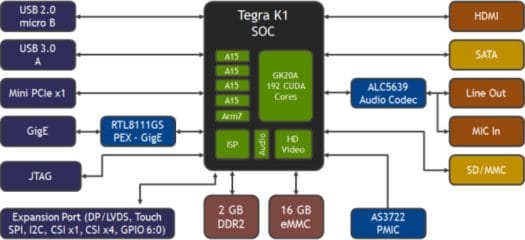

Nvidia Jetson TK1 Development Board Block Diagram
Nvidia Jetson TK1 Development Board Block Diagram

The company provides Linux for Tegra K1, CUDA Toolkit and Accelerated Libraries (CUDA 6.0 / OpenCV4Tegra), CUDA sample code, as well as the board specifications, schematics (PDF) and mechanical design files (STP). All of which can be accessed via the board support page. The Linux kernel version is 3.10.24, and comes with support for OpenGL ES 2.0, OpenGL ES 1.1, OpenGL ES path extensions, EGL 1.4 with EGLImage media APIs, and X11 Support. Nvidia also provides support for OpenGL 4.4.

The development kit is available for pre-order for $192 via Nvidia’s developer Jetson TK1 page. Shipping is scheduled for April. The downside is that it will only ship to the US, Canada, Puerto Rico, and the Virgin Islands. if you live in Europe, you can preorder from Avionic Design, SECO and Zotac, in Japan, you can go through Ryoyo Electro Corporation.

Via Google+ mini PC community and Sanders.
