$6.90 Wemos LoLin32 ESP32 Development Board Comes with 4MB Flash, Lithium Battery Support

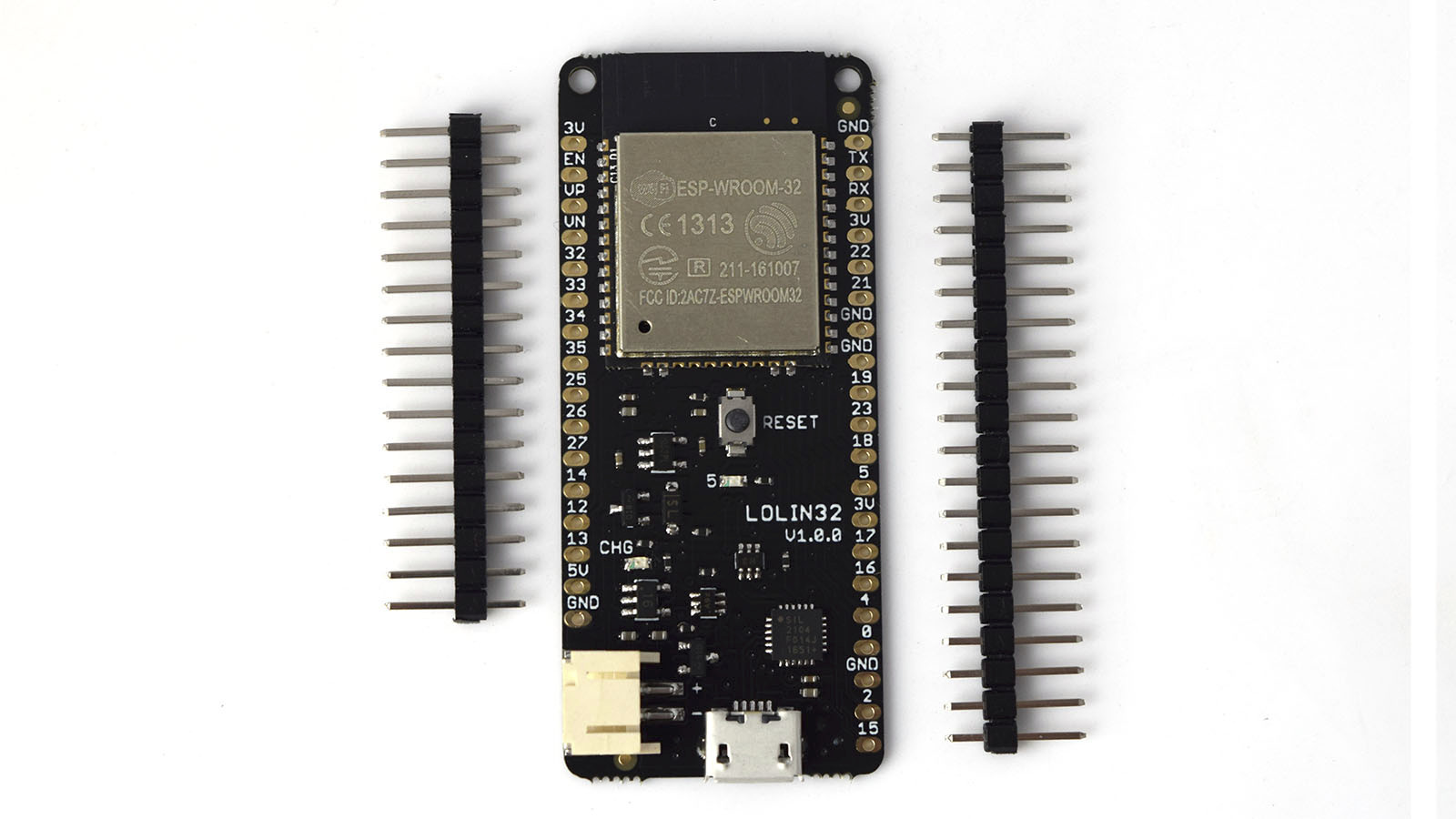

Wemos – the company behind the cool Wemos D1 mini ESP8266 board – has now launched its first Espressif ESP32 development board with LoLin32 equipped with ESP-WROOM-32 module with 4MB flash, a micro USB port, and a battery header.

Click to Enlarge

Wemos Lolin32 specifications:

  • Wireless Module – ESP-WROOM-32 based on Espressif ESP-32 dual core processor @ 240 MHz with 4MB flash
  • Connectivity – 802.11 b/g/n WiFi + Bluetooth LE
  • I/Os
    • 26x digital I/Os
    • 12x analog inputs
    • UART, I2C, SPI, VP/VN, DAC
    • 3.3V I/O voltage
    • Breadboard compatible
  • USB – 1x micro USB port for power and programming/debugging
  • Power – 5V via micro USB + battery header for Lithium battery (charging current: 500mA max)
  • Dimensions – 5.8 x 2.54 cm
  • Weight – 5.8 grams

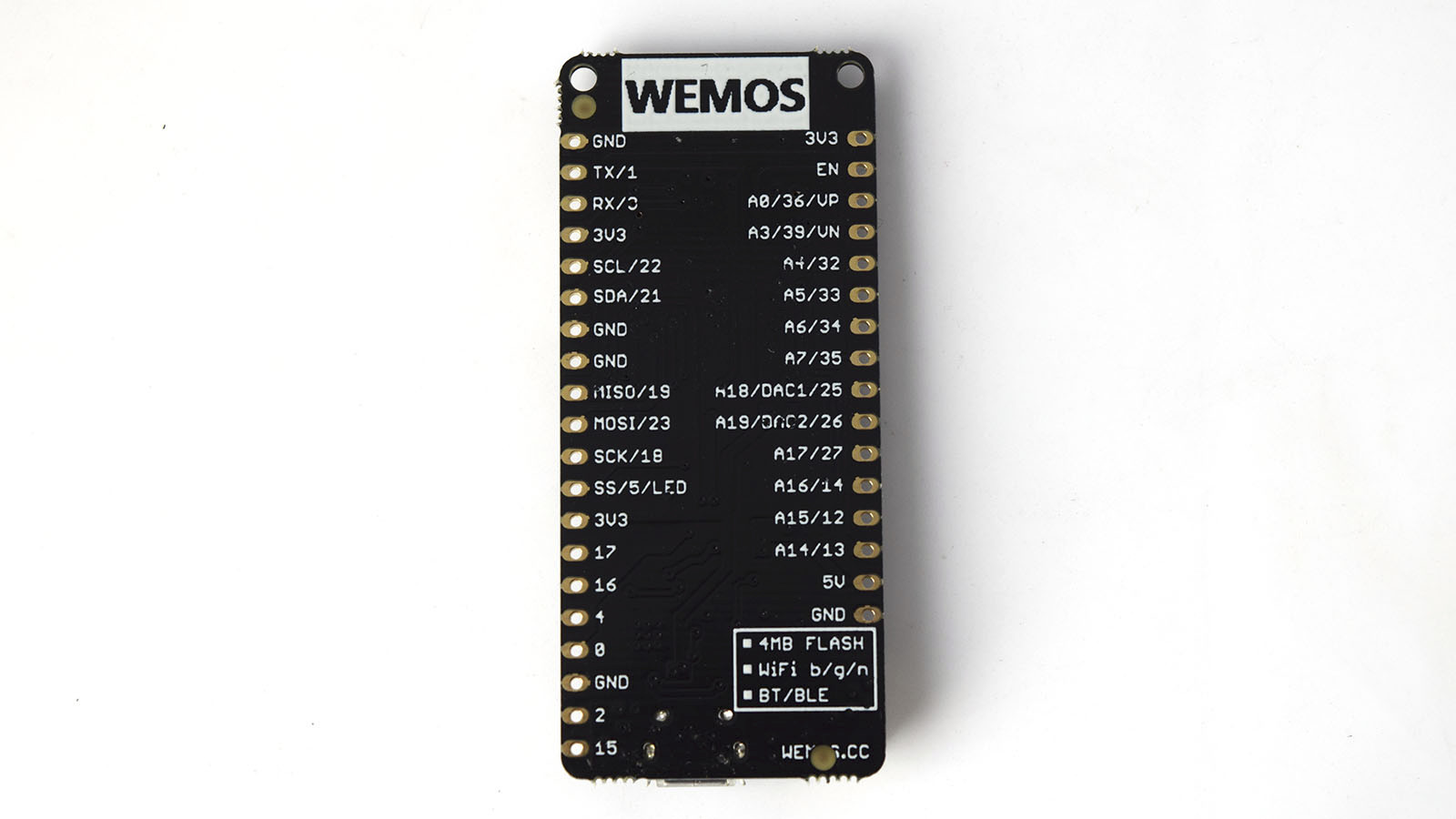

Click to Enlarge

The board is not compatible with Wemos D1 mini (34.2 x 25.6 mm) and shield, but offers a more powerful solution with Bluetooth LE, battery support, and more I/Os. The Wiki is still work-in-progres, and there’s no that much information on the page yet.

Wemos LoLin32 can be purchased for $6.90 + shipping ($8.66 in my case) on Aliexpress.

Via ESP32net twitter

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard

8 Replies to “$6.90 Wemos LoLin32 ESP32 Development Board Comes with 4MB Flash, Lithium Battery Support”

  1. @GunterO almost definitely version 0. Version 1 is barely starting production. At some point it will probably transparently shift to version 1 and be impossible to tell, so hopefully they aren’t making tons that will stay in inventory all year.

  2. Got mine today, trying to flash Blink something with the Arduino IDE… the board does not seem to have an onboard led…
