TV030 is a $10 DVB-T Tuner for your Android Smartphone or Tablet

Orange Pi Development Boards

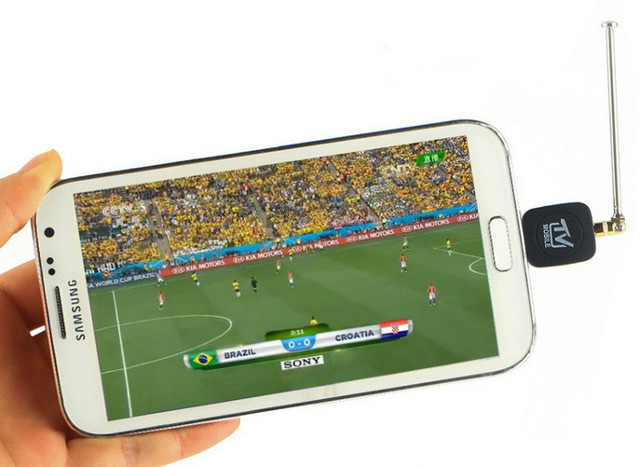

We’ve previously covered tuners or small boxes that allow you to watch free-to-air TV on your smartphone or tablet with products such as PT115m/PT115e or DTV Link box, but I’ve just noticed GeekBuying added TV030 DVB-T tuner that connects to the micro USB port of your smartphone, and sells for just $10.99 shipped.

TV030 TV mobile stick specifications:

  • Signal: 75 Ohm Digital TV Aerial Input
  • Punctured Codes: 1/2, 2/3, 3/4, 4/5, 5/6 and 7/8
  • Receive Frequency: DVB-T: 474 ~ 858 MHz (UHF)
  • Input: DVB-T
  • Bandwidth: 6/7/8 MHz
  • Dimensions – 27 x 18 x 7mm; antenna: 210mm long max
  • Weight – 14 grams

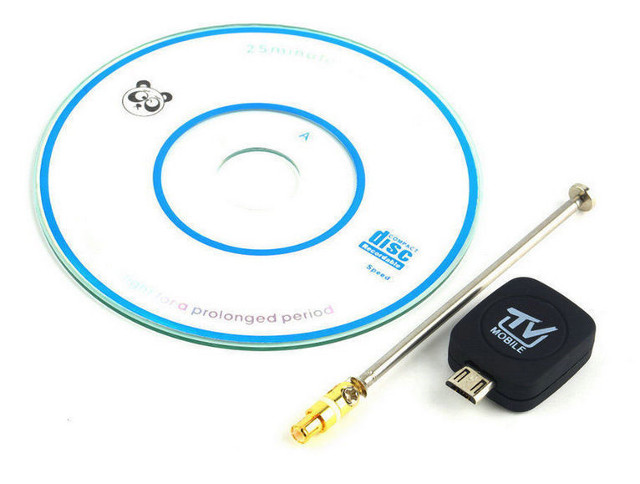

The stick sells with an antenna, and a CDROM apparently containing the Android apk for EZTV app. It requires Android 4.1-5.0 or greater with the following minimal requirements to watch:

  • SD TV – Cortex A8 @ 800 MHz with 512MB RAM, 20 MB flash, 800×480 display resolution
  • HD TV – Cortex A8 @ 1.2 GHz with 512MB RAM, 20 MB flash, 1024*600 display resolution

With this type of requirements, it’s clear the tuner is not a new product, and I could find it on Banggood too where they provided the content of the CD with padtv_v1.0.1_933(isdbt).apk. Make sure DVB-T is a supported standard in your country, as I regularly receive emails from people in the US asking me why they DVB-T2 TV box is not working… That’s possibly why there are several bad reviews on Amazon and eBay, where I also found the cheapest price ($9.99). TV030 only supports DVB-T, not DVB-T2, but Banggood points to MyGica PT360 if you want the latter. It’s out of stock in most places, but Aliexpress still has it for about $23. The review below (really starting at 1:00) shows Mygica PT360 in action. Note that TV030 and PT360 use different apps.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

5
Leave a Reply

avatar
5 Comment threads
0 Thread replies
5 Followers

Most reacted comment
Hottest comment thread
5 Comment authors
TCHarleyRoganDawesGabeAndrew Davies Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Andrew Davies
Guest
Andrew Davies

These sort of devices always make me laugh, unless you’re living underneath the broadcast antenna then that aerial isn’t going to pick up anything. If you are living underneath the antenna then you probably already get DVB-T fed straight into your brain anyway and there’s no need for this device.

If you want to get broadcast television on your mobile device, invest in a hardware backend of some description and run Kodi as a frontend on the device itself. Currently I am (was, I think the PSU died) running a Wetek Openelec box with a DVB-S2 adaptor and TVHeadend as the backend with Kodi running on any device I want live TV on.

Gabe
Guest
Gabe
RoganDawes
Guest
RoganDawes

I’d be interested to know if these devices are capable of doing SDR like the RTL-SDR DVB-T dongles. Anyone cracked one open to check the chipset inside?

Harley
Guest
Harley

Sweden switches most channels to DVB-T2 standard this year.

TC
Guest
TC

Germany recently shut off T1
