AWS DeepLens is a $249 Deep Learning Video Camera for Developers

Amazon Web Services (AWS) has launched Deeplens, the “world’s first deep learning enabled video camera for developers”. Powered by an Intel Atom X5 processor with 8GB, and featuring a 4MP (1080p) camera, the fully programmable system runs Ubuntu 16.04, and is designed expand deep learning skills of developers, with Amazon providing tutorials, code, and pre-trained models.

Click to Enlarge

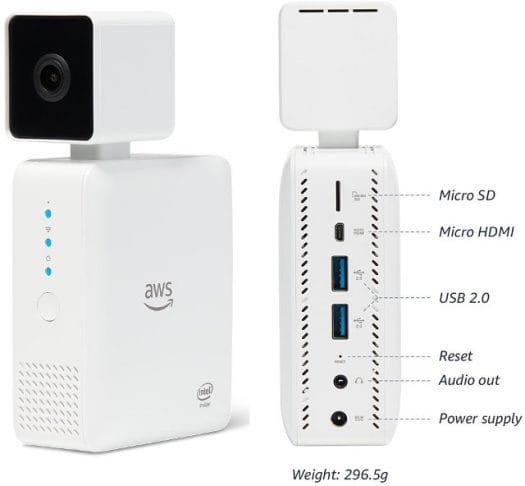

AWS Deeplens specifications:

  • Camera – 4MP (1080p) camera using MJPEG, H.264 encoding
  • Video Output – micro HDMI port
  • Audio – 3.5mm audio jack, and HDMI audio
  • Connectivity – Dual band WiFi
  • USB – 2x USB 2.0 ports
  • Misc – Power button; camera, WiFi and power status LEDs; reset pinhole
  • Power Supply – TBD
  • Dimensions – 168 x 94 x 47 mm
  • Weight – 296.5 grams

The camera can not only do inference, but also train deep learning models using Amazon infrastructure. Performance wise, the camera can infer 14 images/second on AlexNet, and 5 images/second on ResNet 50 for batch size of 1.

Six projects samples are currently available: object detection, hot dog not hot dog, cat and dog,  activity detection, and face detection. Read that blog post to see how to get started.

But if you want to make your own project, a typical workflow would be as follows:

  • Train a deep learning model using Amazon SageMaker
  • Optimize the trained model to run on the AWS DeepLens edge device
  • Develop an AWS Lambda function to load the model and use to run inference on the video stream
  • Deploy the AWS Lambda function to the AWS DeepLens device using AWS Greengrass
  • Wire the edge AWS Lambda function to the cloud to send commands and receive inference output

This steps are explained in details on Amazon blog.

Click to Enlarge

Intel also published a press release explaining how they are involved in the project:

DeepLens uses Intel-optimized deep learning software tools and libraries (including the Intel Compute Library for Deep Neural Networks, Intel clDNN) to run real-time computer vision models directly on the device for reduced cost and real-time responsiveness.

Developers can start designing and creating AI and machine learning products in a matter of minutes using the preconfigured frameworks already on the device. Apache MXNet is supported today, and Tensorflow and Caffe2 will be supported in 2018’s first quarter.

AWS DeepLens can be pre-ordered today for $249 by US customers only (or those using a forwarding service) with shipping expected on April 14, 2018. Visit the product page on AWS for more details.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
ASM
ASM
7 years ago

Atom + Gen9 at ~100+ GFLOPS leads me to deduce it’s an Apollo Lake N3350 SoC.

Jon Smirl
7 years ago

$249 seems a reasonable price for the hardware, but I also suspect it is a USB attached camera and any old Ubuntu based machine will be able to run the software. Plus I figure my desktop is going to be way faster than this hardware and I already own it.

Sentribot
7 years ago

Sentribot security camera that covers 360 degrees in ultra high definition, 1.5 GigaFlops GPU, ulta small and ultra low power using AI and IoT.
