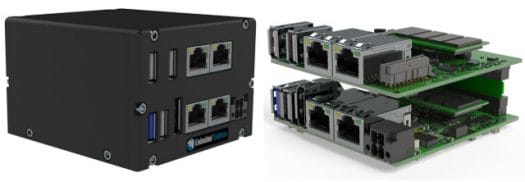

ADL Embedded Solutions ADLEPC-1520 Atom based Industrial Mini PC Supports Stackable I/O Expansion

ADL Embedded Solutions has recently announced ADLEPC-1520 embedded mini PC powered by a dual or quad core Intel Atom Bay Trail-I processor, supporting wide temperature range, and long term 15 years availability for industrial applications and environments.

The computer also includes an expansion header with PCIe, SATA, USB, SM-Bus and DisplayPort interfaces, that allows for standard or custom expansion board stackable on top of the main board.

Click to Enlarge

ADLEPC-1520 specifications for the main board (ADLE3800SEC):

  • SoC (one or the other)
    • Intel Atom E3845 quad core Bay Trail-I processor @ up to 1.91GHz, with 2MB cache, 10W TDP
    • Intel Atom E3827 dual core Bay Trail-I processor @ up to 1.75 GHz, with 1MB cache, 8W TDP
  • System Memory – Up to 4GB soldered down
  • Storage – 2x M.2 Key B 2242 SATA II SSD slots
  • Video Output – 1x DisplayPort
  • Connectivity – Dual Gigabit Ethernet
  • USB – 1x USB 2.0, 1x USB 3.0
  • Security – TPM 2.0 via Intel Chipset PTT and BIOS
  • BAseCon140 Expansion Connector – 1x DisplayPort/HDMI, 1x SATA, 2x USB 2.0, 2x PCIe
  • Power Supply – 20 to 30 VDC input; Options for 12 to 24VDC and 24 to 36 VDC; other options via expansion board
  • Operating Temperature – Standard – 0°C – 70°C; optional -40°C to 85°C screening (requires cooling plate)
  • Dimensions – 9.4 x 8.65 x 5.85 cm (with case and expansion board)
  • Weight – 680 grams

The company offers support for Windows and Linux including Ubuntu 16.04 and RHEL (Redhat Embedded Linux).

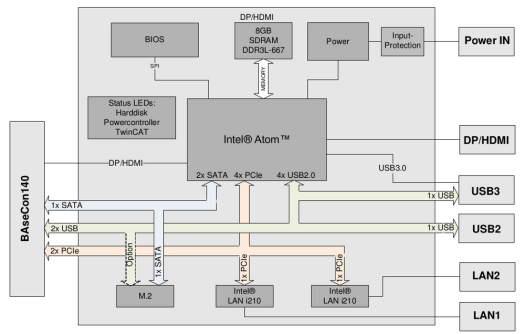

ADLE3800SEC Board Block Diagram – Click to Enlarge

As for expansion boards for top half of the mini PC, there are currently three choices:

  • ADLEPC-1520-A039 –  Adds 2x LAN, 2x USB 2.0, 1x M.2 SATA SSD w/ Front Panel
  • ADLEPC-1520-A039U – Adds 2x LAN, 2x USB 2.0, 1x UPS Module w/ Front Panel
  • ADLEPC-1520-CUSTOM – Customer-Specific I/O and Power Board Development Services.

ADL Embedded expects their fanless embedded PC to be used for Industrial IoT (IIoT) Network, cloud computing, unmanned or autonomous vehicle mission/payload computing, cyber security edge devices for ICS and SCADA threat security, traffic engineering, oil and gas IPC and more.

ADLEPC-1520 mini PC, expansion boards and other optional accessories all appear to be available now at an undisclosed price. Visit the product page for a few more details and/or request a quote.

Via LinuxGizmos
