DirtyJTAG Firmware Convert $2 STM32 “Bluepill” Boards or ST-Link V2 Clones into JTAG Adapters

DirtyJTAG is a JTAG adapter firmware for cheap STM32 boards like BluePill or equally inexpensive ST-Link V2 clones that was developed to create an  alternative to the cheap – but now obsolete – LPT Wiggler cables, and more expensive USB JTAG probes.

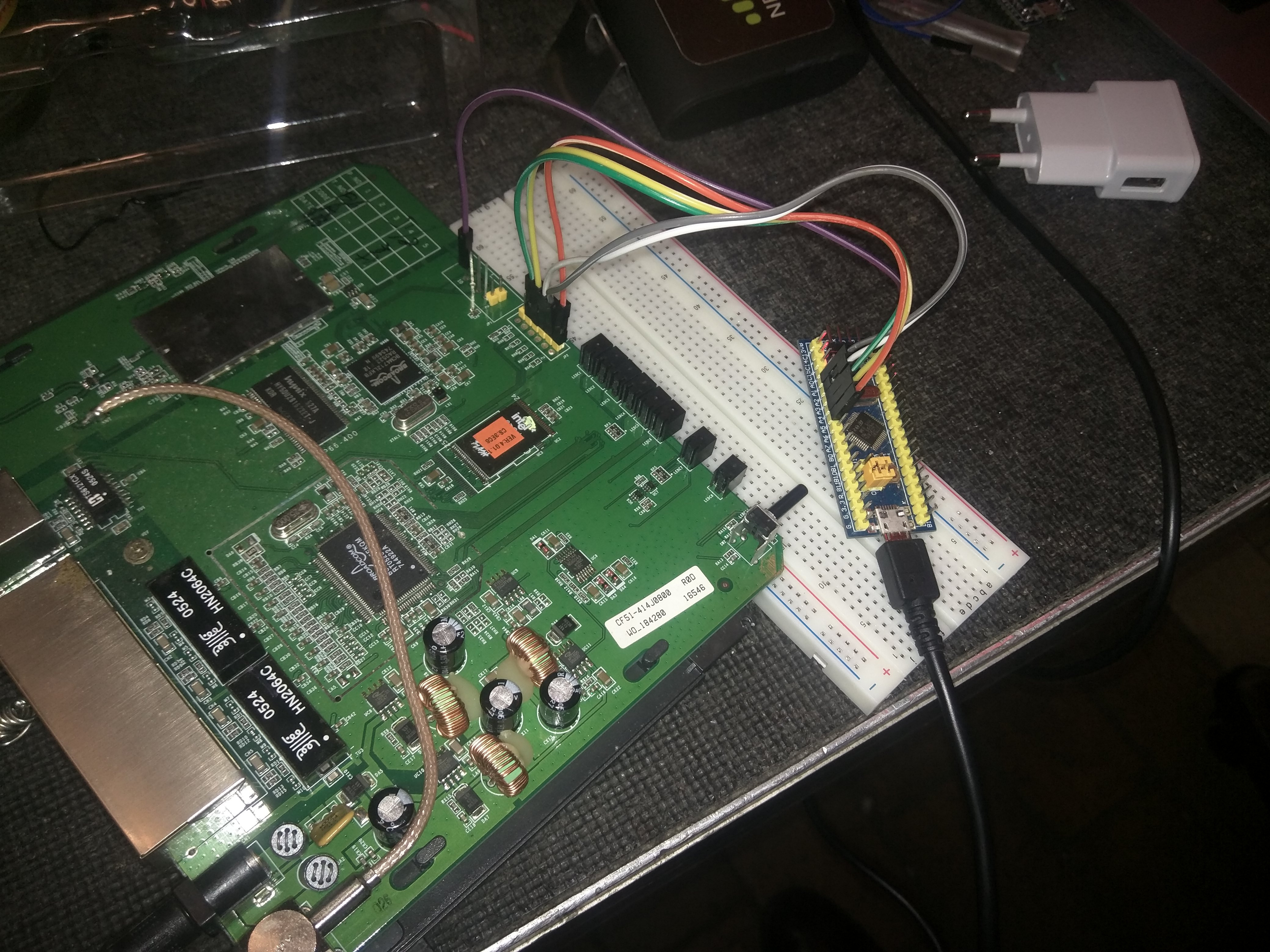

Bluepill Board Connected to Router as JTAG Adapter – Click to Enlarge

You’ll find the source, and documentation on Github. First, you’ll need to flash the firmware using the DFU method or an SWD programmer (for ST-Link) or USB to TLL debug board (for STM32 dev boards), before making the connection to the target board as shown below (for Bluepill).

STM32 JTAG
PA0 TDI
PA1 TDO
PA2 TCK
PA3 TMS
PA4 TRST
PA5 SRST

You can then use mainline UrJTAG for your newly flashed JTAG adapter. If you prefer OpenOCD, it might eventually be possible to use Versaloon firmware instead on STM32 Bluepill board.

Thanks to Zoobab for the tip.
