$10 Nordic Semi nRF52840 USB Dongle Supports Bluetooth 5, Thread, ZigBee, 802.15.4, ANT and 2.4GHz Proprietary

Several weeks ago, as I noticed the lack of Bluetooth 5 USB dongles, I found MakerSpot CC2640 Bluetooth 5 USB stick based on Texas Instrument CC2640R2F Arm Cortex-M3 WiSoC. It’s not exactly a consumer products, and instead it’s more like a development kit, but it can still be inserted into the USB port of your computer or development board.

Today, I found out Nordic Semi also made their own Bluetooth 5  – or is it Bluetooth 5.0 now, I’m really confused at this point – USB dongle for evaluation & development based on nRF52840 WiSoC. It’s not only for Bluetooth 5 though, as the multi-protocol SoC also supports Bluetooth Low Energy, Bluetooth Mesh, Thread, Zigbee, 802.15.4, ANT(+), and 2.4 GHz proprietary solutions.

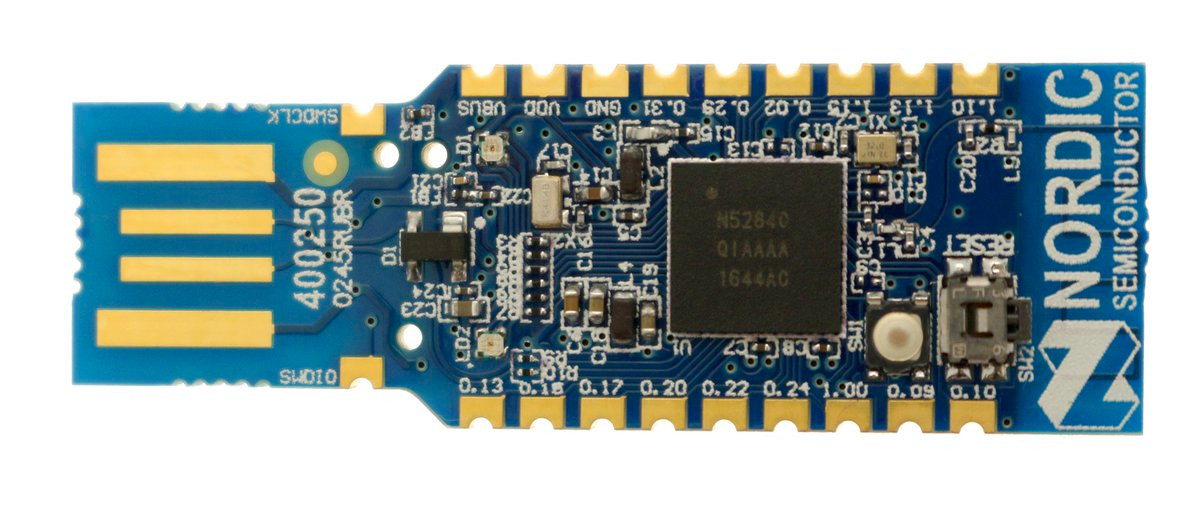

nRF52840 USB Dongle

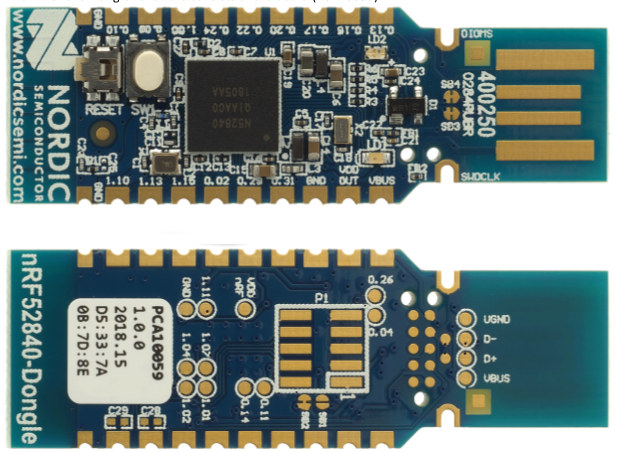

nRF52840 USB dongle (PCA10059) key features:

  • Wireless Connectivity – Bluetooth 5, Bluetooth Low Energy, Thread, Zigbee, 802.15.4, ANT/ANT+, and 2.4GHz
  • USB – USB 2.0 ports
  • Expansion – 15x GPIO and interfaces available on castellated edge
  • Misc – 1x User RGB LED, 1x user LED (green), 1x button

The dongle is upgradeable through USB DFU, and for development purpose, the company provides nRF Connect for Desktop available for macOS, Linux, or Windows 7 or later, as well as nRF5 SDK with precompiled application firmware examples, and the hardware design files comprised of schematics, layout, bill of materials, and Gerbers. The complete documentation can be found on Nordic Semi’s infocenter. nRF Connect program also has it own repository on Github.

The dongle won’t break the bank, as it is sold for just $10 on Mouser and other distributors. The product page may have a little more information.

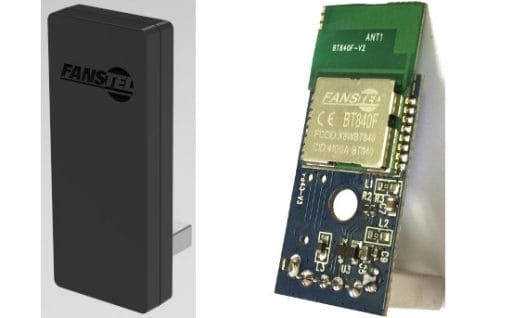

FANSTEL USB840T
Alternative nRF52840 USB Dongle: FANSTEL USB840T

If you’d rather get something that you can purchase in quantities, with all certifications, and/or an enclosure, Fanstel is offering their USB840T Bluetooth 5 USB stick – based on the company’s nRF52840 module – for $15. That’s only the PCBA version for now, and the enclosure will become available in August 2018.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
14 Comments
oldest
newest
Jeroen
6 years ago

Whats does 2.4 GHz proprietary actually include?, can it then also do 2.4GHz wifi, of just pear to pear between nordic devices?

TLS
TLS
6 years ago

Proprietary in this sense means any low power 2.4GHz protocol that isn’t a standard. Think wireless keyboard/mice, some kind of RF remote control, a proprietary IoT mesh solution etc. In other words, if you want to make a 2.4GHz protocol for some silly reason, you could do it using this. Me, I prefer standards and think all these silly proprietary things are just stupid, but then again, I’m not a financial guy, I just like products that are interoperable.

Rogan Dawes
Rogan Dawes
6 years ago

Proprietary probably mean Enhanced ShockBurst, as used by the NRF24L01, et al.

itchy n scratchy
itchy n scratchy
6 years ago

That’s pretty much what Nordic usually means by proprietary in their datasheets

Jon Smirl
6 years ago

This is a good deal for $10. You can use all of the Nordic dev tools with it.

sander
sander
6 years ago

Mouser: 10 USD for the device, … plus 20 Euro shipping … 🙁
nordicsemi.com … that site takes minutes to load.

No link to ebay / dx / aliexpress with free shipping?

Jon Smirl
6 years ago

Get it from an EU distributor, Mouser is in the US.

Jorge
Jorge
6 years ago

I cannot find it available from any EU distributor :/

Sander
Sander
6 years ago

Even from the NL Mouse website (https://nl.mouser.com/Cart/), shipping is 20 EUR.

T-C
T-C
6 years ago
itchy n scratchy
itchy n scratchy
6 years ago

LOL 29$ but hey, free shipping!

Sander
Sander
6 years ago

Certainly … plus 20 Euro shipping …
