tinyWiFi-5G is a NanoPi NEO Air Clone with 5 GHz WiFi

NanoPi NEO Air is a tiny Allwinner H3 board with 802.11 b/g/n WiFi connectivity that launched in 2016 for $17.99 and is now available as NanoPi NEO Air-LTS (Long Term Support) for $28 and up.

A company – or group of software developers – called tinyDebian decided to create a clone based on NanoPi NEO Air design, but replacing the 2.4 GHz Ampak AP6212 802.11n WiFi + Bluetooth 4.0 LE module by a dual-band Realtek RTL8821CS module that supports 802.11 b/g/n/ac and Bluetooth 4.2 LE. Meet tinyWiFi-5G.


NanoPi NEO Air comes with two different storage configuration (8GB or 32GB flash), but tinyDebian did not provide the full specifications of the board, so tinyWiFi-5G board specifications below are preliminary:

  • SoC – Allwinner H3 quad-core Cortex A7 @ 1.2 GHz with an ARM Mali-400MP2 GPU
  • System Memory – 512 MB DDR3
  • Storage – 8GB eMMC Flash + micro SD card slot
  • Connectivity – Dual-band 802.11b/g/n/ac WiFi 5 and Bluetooth 4.2 LE via Realtek RTL8821CS module, IPEX antenna connector
  • USB – 1x micro USB OTG port, 2x USB via headers
  • Camera – 1x DVP camera interface
  • Expansion headers
    • 24-pin header with I2C, 2x UART, SPI, PWM, and power signals
    • 12-pin header with 2x USB, IR pin, SPDIF, and I2S
  • Debugging – 4-pin header for serial console
  • Misc – Power and status LEDs
  • Power Supply – 5V/2A via micro USB port or VDD pin on the serial header
  • Dimensions – 40 x 40 mm
  • Weight – TBD, but less than 10 grams

The company points to FriendlyArm Wiki for documentation, so the board – including WiFi – must be working out of the box with the original NanoPi Neo Air Ubuntu 16.04 firmware image. If not, you may have to install a specific driver for RTL8821CS.

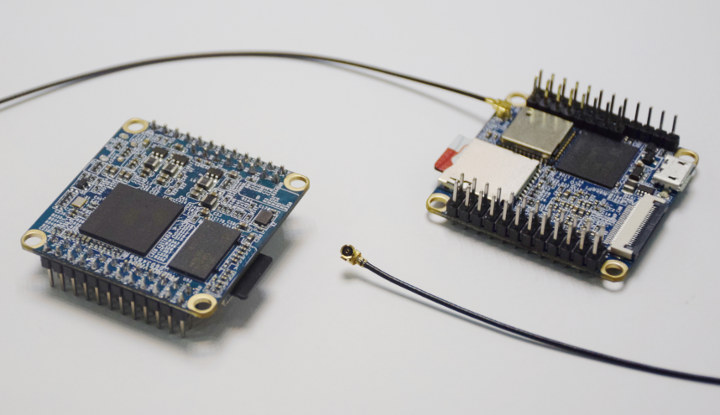

Getting 5GHz will cost you however, as provided they only use an 8GB eMMC flash, tinyWiFi-5G board is sold for $59 on Tindie, meaning you pay over $30 extra for the new wireless module, and that does not take into account the $19 asked for DHL shipping. Furthermore, If you take a close look at the photos on Tindie website, you’ll find out they did not even bother to take photos of their own board, and instead, are using NanoPi NEO Air photos with an AP6212 module. Hopefully, the price will come down, as they aren’t that many compact low-cost boards with 5GHz WiFi.

Thanks to Theguyuk for the tip.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

21 Replies to “tinyWiFi-5G is a NanoPi NEO Air Clone with 5 GHz WiFi”

  1. “tinyWiFi-5G” … to me, “5G” means 5th generation mobile communication. The successor of 3G and 4G
    So confusing or even misleading it’s used for plain 5 GHz WiFi. Oh … wait, is this the consequence of the new Wifi naming scheme, like “802.11ac technology will now be referred to as Wi-Fi 5”?

    1. 5G is 5Ghz wifi and it has been in common use for a decade.

      It is easy to tell apart, the 5G cellular stuff has two more zeros at the end of its price tag.

  2. AP6212 is about $2. AP6255 (5Ghz 11AC) is $4.

    NanoPi NEO no wifi $10
    NanoPi NEO 2.4Ghz $20
    NanoPI NEO 5GHz $30

    If you plan ahead you can make a single PCB that allows all three configurations via population options during production.

    1. Hi, thanks for your comments. I am the developer. This board is for quick prototyping purpose. I priced this board thinking I can NOT sell much. I did put in some efforts making WiFi driver work and make this board easy to use. One example, because its tiny form factor, there is no Ethernet, our software provides USB Ethernet, so you can ssh into the board via USB Ethernet.

  3. For me it’s a perfect validation of the opensource hardware model : someone has an idea, and can push it to production by reusing someone else’s work, without causing negative competition since the limited industrialization abilities keep the price tag much higher. I just think they should have talked to F.E. to see if there was any option to upgrade the initial design at a lower price (maybe they tried).

    With that said, I wouldn’t put $80 into a cortex-A7 based design nowadays.

    1. I wonder whether they are not purchasing existing NanoPi Neo boards, and reworking them to add the 5GHz radio instead of the existing 2.4GHz one? Would possibly explain the high cost (and how they could do this without the board layout files).

      1. I wonder what this whole blog post is about?

        Some entity calling themselves software developers sells some hardware on Tindie they can neither show a photo of nor provide any documentation for. This entity according to Tindie sold 1 item already: https://www.tindie.com/stores/tinydebian/ — there’s zero indication that something to be called ‘a product’ exists or works.

      2. I think that is what they are duing right now!
        I have found that the Wireless module have a “standard” pinout. So they are simply swapping things.

        1. > I think that is what they are duing right now!

          It’s clearly described at their Tindie page: ‘It is based on NanoPi Neo Air, and we replace WiFi chip to be RTL8821CS to make it 5GHz capable’.

          Now only a use case, firmware BLOBs and a driver are needed… and a lot of trust into a seller not being able to show a picture of the mod he made…

          1. I am the developer. Thanks for all your comments. Indeed replacing the 5GHz WiFi chip is simple, but integrating device driver (SDIO based) to work is more difficult. I am the first one who came up with this idea, I took some risks that I may not be able to get it working, either soldering or software driver problems or for some other strange reasons.

            This is for quick prototyping purpose.

  4. My home print server NanoPi Neo $16 (with heatsink) and Edimax EW-7811UTC AC600 ($17)
    TOTAL: $35-38 with shipping

    1. > Edimax EW-7811UTC AC600 ($17)

      RTL8812AU based USB dongles that are 2×2 MIMO capable and ship with 2 real antennas should cost less these days 🙂

        1. > Do you want to put USB dongle on a drone to transmit video?

          Nope, on a drone I use a Raspberry Pi 3 A+ 😉 (using CYW43455 802.11ac Wi-Fi which is also at AP6255’s heart — I still wonder why you didn’t choose this other Ampak chip).
