ClearFog ITX Workstation May be the Ultimate Arm Developer Platform

Most people are still doing Arm development work on x86 platforms, because there aren’t really any viable equivalent in the Arm world. Current options include Edge Server SynQuacer E-Series (aka Linaro Developer Box), a $1,250 Arm PC shipping with a 24-core Arm Cortex-A53 processor, 4GB RAM (by default), a 1TB hard drive, and Geforce GT710 graphics cards, as well as the much more powerful GIGABYTE ThunderXStation workstation with up to two Cavium ThunderX 32-core Armv8 processors,  32GB to 128GB RAM configuration, NVMe storage, and more.

The former was a good place to get started, but the Arm Cortex-A53 cores clicked at 1GHz provided limited performance, and the GIGAGYTE workstation costs over $12,000, so it’s only suitable for projects with specific needs and/or a high expected return on investment. That’s why there will be a discussion about Designing a next generation ARM Developer Platform at Linaro Connect 2019 next week in Bangkok, Thailand.

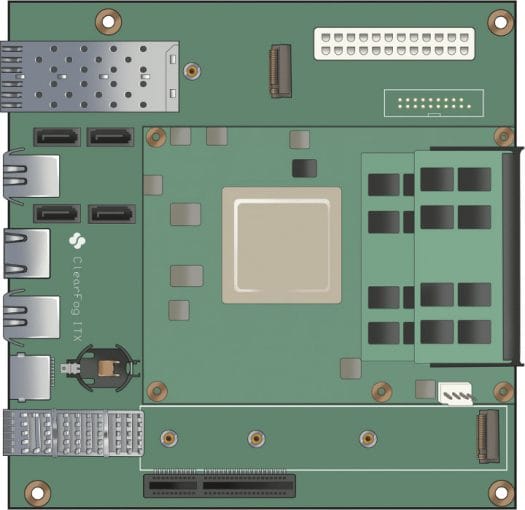

ClearFog-ITX-Motherboard
Click to Enlarge

But courtesy of SolidRun, there may already be a board in the work that would make an excellent base for an Arm development platform providing better performance than the Developer Box, at a price point that should be more acceptable. Meet ClearFog ITX motherboard.

Specifications:

  • COM Module – CEx7 LX2160A COM Express module with NXP LX2160A 16-core Arm Cortex A72 processor @ 2.2 GHz
  • System Memory – Up to 64GB DDR4 dual channel memory via SO-DIMM sockets on COM module
  • Storage
    • M.2 2240/2280/22110 SSD support
    • MicroSD slot
    • eMMC flash
    • 4 x SATA 3.0 ports
  • Networking
    • 1x QSFP28 100Gbps cage (100Gbps/4x25Gbps/4x10Gbps)
    • 4x SFP+ ports (2×2)
    • 1x 1GbE copper (RJ45)
    • M.2 2230 with SIM card
  • USB – 3x USB 3.0, 4x USB 2.0
  • Expansion – 1x PCIe x8 Gen 4.0 socket
  • Debugging – MicroUSB for debug (UART over USB)
  • Misc – USB to STM32 for remote management
  • Power Supply – ATX standard
  • Dimensions – 170 x 170mm (Mini ITX Form Factor)

The board will support Linux Kernel 4.14x, as well as mainline Linux. Some people are asking for an SBSA compliant Arm developer platform, and SolidRun CEx7 LX2160A COM Express module might fit the bill as the press release mentions SBSA in the list of features.

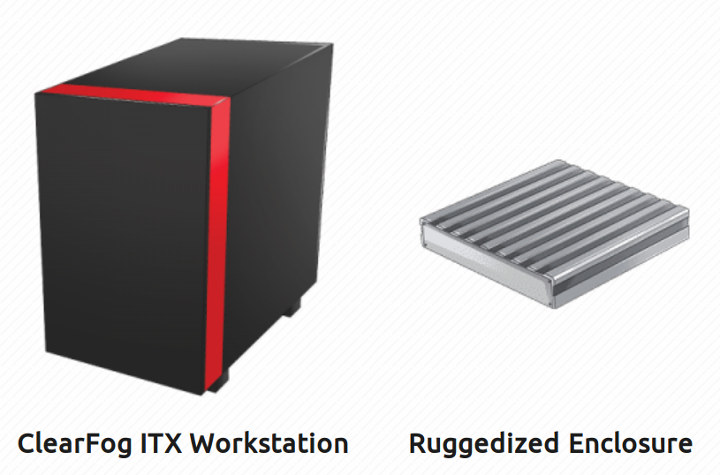

ClearFog ITX WorkstationSince ClearFog ITX motherboard follows mini-ITX standard, you should be able to use any mini-ITX chassis, add a PCIe x8 graphics card, memory module, storage and you should be good to go. However to make things easier, the company will also offer a fanned ruggedized metal enclosure, and a complete ClearFog ITX workstation based on the mini-ITX board. The more compact metal enclosure could not be used as a standalone Arm development platform due to the lack of video output, but it could be used as a shared development server, where developers login from their main machine to run builds or other tasks.

The product page about the ClearFog ITX board does not provide pricing and availability information, and only features renders of the board and enclosures, so it may take a little while until the solution becomes available. A complete Arm machine with the board, case, graphics, memory, and storage, would hopefully only cost a few thousand dollars. For reference, NXP’s own QorIQ LX2160A Reference Design Board sells for around $4,000, but hopefully SolidRun solution will be available for a bit less. [Update: Pricing for the board is expected to be around $500. see comments section for more details about pricing]

Thanks to Blu for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
85 Comments
oldest
newest
blu
blu
4 years ago

Solid-run used to have another carrier as well, plus an A8040 CEx7 SOM, but both seem discontinued now. I was told by Solid-run that the old carrier was compatible with the upcoming LX2160A (it’d better be — I ordered one of the old carriers not long ago). Anyhow, since I’ve attended the webinar that disclosed the mITX carrier — the expected princes will be nowhere near $4K, but since it’s Solid-run’s duty to properly announce their own prices, I’ll remain silent ;p

Jon Nettleton
4 years ago

Jon from SolidRun here. I had made an all-encompassing post that got stuck in moderation, so I will try and answer questions in smaller posts. We will be having an initial 6-month developer preview sale of $499 for the barebones carrier (Currently the price is $550 but we working hard to get it to sub $500), after that the price will be $750

blu
blu
4 years ago

Thank you for stepping in, Jon. I didn’t feel comfortable disclosing Solid-run pricing info ; )

willy
willy
4 years ago

The problem with workstations is that it’s always all or nothing. Either you get a ridiculous raspi that’s dog slow and totally unusable for anything realistic except for a few fanboys, or you immediately get 16 cores at an extreme price that too few people will be interested in, resulting in prices never going down. I think that many people would be fine with a quad-to-octa A7x running above 2 GHz placed in a modular enough enclosure to add SATA storage, possibly a graphics card and more importantly having support for regular DDR4 sticks (ideally with ECC). The macchiatobin is… Read more »

blu
blu
4 years ago

> Either you get a ridiculous raspi that’s dog slow and totally unusable for anything realistic except for a few fanboys, or you immediately get 16 cores at an extreme price that too few people will be interested in, resulting in prices never going down. I’d agree here if it wasn’t for devices like N2 and Jetson nano, which cover quite a few desktop use cases, at a very right ™ price. Workstation-wise*, though, I’d take a 8-16-core CA72, thank you : ) Apropos, there will be 8-core CEx7 as well. But yes, those will still do multiple 10GbE, and… Read more »

TLS
TLS
4 years ago

You got a CPU in mind? As that’s the hard part, finding a suitable CPU, as so few of them meets the requirements you specced up. It seems like almost every single ARM processor outside the mobile space have too many compromises to make the kind of device you want, just as you point out. However, smartphone chips are getting PCIe these days, as both UFS and Wi-Fi is being connected over PCIe these days. However, it’s still limited to a couple of lanes per device and you most likely want to use the UFS one for what it’s intended… Read more »

blu
blu
4 years ago

> You got a CPU in mind?

LX2080 was said to be expected in solid-run’s lineup, IIRC.

TLS
TLS
4 years ago

Well, it has no graphics/video capabilities still, which to me doesn’t make it suitable for a lot of applications.

blu
blu
4 years ago

True, but in a workstation you normally bring your own GPU. Definitely out of the question for a low-price desktop.

Jon Nettleton
4 years ago

We are working hard to make this a true developer workstation board. Single core will always be limited by Mhz, but real world multi-core benchmarking puts this close to the Xeon Silver 8-core 16-thread range. Of course that isn’t across the board put it is very close. We are doing linux kernel builds in 2-2.5 minutes on non-NVME storage. The 10-100G ports are no extra cost. It is available on the SOC and brought out on the COM Express pins so we wanted it available for those that could use it. Additionally these are raw SERDES lanes so in theory… Read more »

Laurent
Laurent
4 years ago

That definitely is a step in the right direction though A72 is a disappointment. Depending on the price that might be interesting, but I’ll likely wait for A76/N1/whatever products.

Arnd Bergmann
Arnd Bergmann
4 years ago

So far, nobody has made any non-mobile chips with a core newer than A72. I don’t expect many A73/A75 ones either, and the N1 will likely take a long time to make it into comparable products.

We are clearly not at the point of replacing all x86 boxes with this, but I think for the first time we have something that a normal developer can use as a primary workstation and not look completely silly. Everything later will be gradual improvements.

theguyuk
theguyuk
4 years ago

Amlogic s922x is not a mobile chip .

TLS
TLS
4 years ago

I’m just curious, how do you connect a display to this so called workstation?

blu
blu
4 years ago

Via a so-called GPU.

TLS
TLS
4 years ago

Not in that slot, I’m sorry to say. There are no PCIe x8 graphics cards.

Robert
Robert
4 years ago

There are a few, but you shouldn’t expect too much performance:
https://geizhals.de/palit-geforce-gt-1030-nec103000646-1082f-a1859699.html?hloc=at&hloc=de

blu
blu
4 years ago

> There are no PCIe x8 graphics cards

о_О

TLS
TLS
4 years ago

And you won’t be able to put that in a mini-ITX case, unless you still use a low-profile card.
They should’ve used a x16 slot, or at least used an open-ended x8 slot, so you could put a x16 card in it.
Silly mistake imho.

blu
blu
4 years ago

How do you know the x8 slot is not open-ended?

Rabeeh Khoury
Rabeeh Khoury
4 years ago

It is open ended. Or so called open slot

TLS
TLS
4 years ago

Well, I guess we’ll se, the drawing doesn’t show an open ended slot so that’s what I base my assumption on, as I don’t have any inside knowledge about this product.

Rabeeh Khoury
Rabeeh Khoury
4 years ago

It’s open slot x8. Meaning you can install x16 in it.

willy
willy
4 years ago
Jon Nettleton
4 years ago

As Rabeeh pointed out we will install an open slotted connector, so a normal x16 card will slot in. From most the performance benchmarks I have read you will only be looking at a minimal drop in performance. We will be doing our testing on Radeon RX560’s most likely. We will also test some nVidia cards but since this is ARM and not x86 you are limited to fully OSS graphics stack and AMD is doing a much better job there.

TLS
TLS
4 years ago

Thanks for clarifying.

Sander
Sander
4 years ago

Jon, do you mean AMD provides a ARM-binary-driver for Radeon RX560?

Jon Nettleton
4 years ago

No but they contribute to the OSS driver.

Jon Nettleton
4 years ago

I have one on my desk. However I wouldn’t bother. This is a true workstation platform. The minimal card I would recommend putting in it is an RX550 which is only slightly more expensive and far more functional. We are even hoping to run Windows 10 ARM in a KVM virtual machine soon. Microsoft just pushed some patches that allow this functionality.

James Hodgkinson
4 years ago

Why do they have to include a 100gbit SFP cage? This’ll blow the price out if nothing else… there’s always some hyper-scale feature on these things that makes no sense at all.

blu
blu
4 years ago

It’s a dataplane chip. There are no ‘workstation arm chips’ as of today. Well, unless one counts lowest-entries sever chips, and those are already big and ‘hyperscale’ in core-counts and price, if nothing else.

Jon Nettleton
4 years ago

See my other comment. The 100Gbit cage adds very little to the cost. It is available on the COM XPress 7 card so we brought it out to the board for customers that wanted to use it, for development or testing.

theguyuk
theguyuk
4 years ago
theguyuk
theguyuk
4 years ago

@CNX cheers

4 years ago

Jon, The Chief Systems Architect from SolidRun here. I will try and answer as many questions as possible. Initial price for developers at launch for the barebones COM Express 7 and mini-itx carrier will be $500. We will carry that price for at least 6-months. The official price will be $750. This is without memory, drives etc. We are working hard to keep the price down to get these boards into the hands of developers. The PCIe slot is x8, but we will have an open backed slot so it will allow a PCIe x16 to plug in with a… Read more »

blu
blu
4 years ago

Compatibility question: I ordered the old carrier (non-ITX) last month, prior to the new mITX announcement, and that old carrier was said to be compatible with the new LX2K SOM — is that still the case?

Jon Nettleton
4 years ago

Yes, the old carrier will work with the new COM. That is what we are running for bring-up right now, there are some functionality limitations. Contact our sales if you want to adjust your order.

Hawski
Hawski
4 years ago

Just to make it clear, because I’m confused by previous comment:

Carrier board + module for $500? Barbones as in only those two boards without RAM and storage?

Pardon my lack of knowledge, but is cooling somehow standardized on those boards?

How much for shipment to Europe or Germany to be specific?

Jon Nettleton
4 years ago

Yes that is correct just the carrier and COM without RAM or storage will be around $500. This is just an introductory price to get the units in the hands of developers. It will come with a heatsink a PWM controlled fan, and a case backplate insert.

Paul M
Paul M
4 years ago

Hi,
the A72 has been around for some time now, is there a reason why you’re not using a newer core?

thanks,
Paul

Jon Nettleton
4 years ago

Just to be clear we don’t make the SOC that is an NXP product, we just partner with them to incorporate it into our products. This is an enterprise-grade dataplane SOC, that will carry an embedded lifecycle which is a minimum of 7 years. It takes time to design in 100Gbps networking, PCIe Gen4, and validate that to guaranty the uptime and longevity of a product. NXP approached us to build a platform based on the SOC and when I started doing the initial benchmarking of what the chip could do I was very impressed. My first thought was this… Read more »

Guille
Guille
4 years ago

> SolidRun CEx7 LX2160A COM Express module might fit the bill as the press release mentions SBSA in the list of features.

Will this be SBSA compliant, for real? (Meaning that I’ll be able to install any Linux distro supporting ARM off-the-shelf)

I had to ask since some people pointed that The MACCHIATObin was also advertised as SBSA compliant but in practice it is not: https://twitter.com/PCzanik/status/1111651521039646720

Jon Nettleton
4 years ago

Having learned from the Macchiatobin this hardware is designed to be SBSA compliant. I would like to note that at this point in time there is only 1 thing that is keeping the MCBin from being SBSA compliant and that is of all things the UART. There is some talk that there may be a point release to the SBSA spec which would include this variant of UART which would then finally get us to SBSA compliance on that platform. That being said, there is still more software work to be done to bring the ClearFog ITX and the LX2160… Read more »

Sander
Sander
4 years ago

Jon, “Linaro, Fedora/RedHat, and OpenSuse” … can you also talk with Canonical/Ubuntu devs?

Jon Nettleton
4 years ago

In general we focus on the mainline distribution support, so will work on the needed pieces for Debian which would then trickle over to Ubuntu. Linaro tends to work with Ubuntu so I am sure they will have ample documentation needed for everything to work.

Diego
Diego
4 years ago

That sfp to pcie cage sounds very interesting. Could you please point me to some more specific information? Especially I’d be interested in knowing how many lanes it supports and how they can be grouped.

Jon Nettleton
4 years ago

You can find the information here on the NXPs site. https://www.nxp.com/docs/en/fact-sheet/LX2160AFS.pdf Note the PCIe configuration down at the bottom of the diagram. Now all those lanes will not be available since we have 1 x 8X brought to the PCIe slot, and a 1 x 4X on the carrier for m.2 NVME. Once the first run of pre-production mini-ITX carriers are ready for testing we will be doing compatibility testing with hardware and will post updates regarding this functionality.

Diego
Diego
4 years ago

Thanks that’s great,so you have 24 serdes lanes and you can freely configure them as you like, i suppose via DTS. For me the perfect board would have a second m.2 m slot instead of 4x SATA 😉 but I guess that could be done via the 4x serdes of the 100G SFP 🙂

Jon Nettleton
4 years ago

There are limitations as to the configuration options. That is available in the NXP docs that I believe are publicly available already, if not they will be shortly. The configuration is also limited to the carrier, since you need the correct interfaces at the other end. We thought that bringing out the 100Gbps interface would allow some flexibility with expansion for those that wanted it, without increasing the size of the board itself.

Piotr
Piotr
4 years ago

You might want to talk to Jon Masters from Red Hat, he just volunteered to help with the SBSA support: https://twitter.com/jonmasters/status/1111895001368326144

Jon Nettleton
4 years ago

Of course, we will take all the help we can get.

Greg
4 years ago

Linaro? I thought the EDK2 for the MCbin was maintained by Semihalf 🙂

Anyway, 16 cores and dual-channel RAM for $500 is a lot more interesting than 4 cores and single-channel for $269. A few questions:

Will the EDK2 tree be fully open source? There was that one blob on the MCbin…

Will the core be overclockable?

Hawski
Hawski
4 years ago

It’s not as important, I’m just curious: how’s LX2160A regarding to spectre and meltdown? Were it affected at all? If it was mitigations are probably already in place. A bit crazy question: how good is the x86 emulation on this CPU? I understand that it will be slower, but with lower TDP it could potentially emulate slower processors with maybe a bit lower TDP then them? More important is just how good could the experience be of for example Android Studio (as it is not available for ARM AFAIK)? At least there is potential for Android emulator to have an… Read more »

Jon Nettleton
4 years ago

There is nothing in the silicon to regarding the spectre and meltdown vulnerabilities. The BSP will have the mainline fixes to mitigate the attacks. I have not tested the qemu x86 emulation on this SOC yet. My guess is the performance would probably not be enough for anything more than the most basic usage, but I will add it to my list for testing. It should make a fun blog post regardless. One of our driving factors for wanting to build this system out is to get a platform that will have developers working directly on the platform. Having capable… Read more »

blu
blu
4 years ago

> At least that is the current theory. And that theory works in practice. An example of what happens when a vendor picks a reasonable (for the given use case) hw and then focusеs on pushing the sw to its limits are chormebooks — the current crop of arm chromebooks are excellent notebooks for their price range. IMO you’ve got good hw perf/feature-wise and a good price range ($550 is nice, if you can achieve that in the long run — great!) The remaining (and dare I say — key) component is the sw platform — polish that to a… Read more »

Jon Nettleton
4 years ago

That is why we are really pushing for SBSA and Mainline support. We know developers want to use the distro they are comfortable with, and Network Admins are worse. We took our lumps with the Macchiatobin and have learned from them.

Jon Nettleton
4 years ago

Just for a real world reference, here is a bit of a teaser for the multi-processing capabilities. This is our non-optimized bringup unit, running at 1.9Ghz and with DDR2600. It is a screen shot of the Openbenchmarking c-ray benchmark.

https://photos.app.goo.gl/D6XY3vTzStn5Mxns6

Our performance is not even being compared to other ARM chips, but 8-core 16-thread x86_64 cpus. Remember our TDP for the SOC is 32W. Those other CPUs have a TDP of 2.5-6X more.

tkaiser
tkaiser
4 years ago

> Just for a real world reference

Seriously… calling this unreliable Phoronix mess a ‘real world reference’ is funny or scary based on perspective.

C-ray is an extremely simple ray-tracer which is not representative of any real world raytracing application. In fact, it is essentially a floating point benchmark that runs out the L1-cache.

Jon Nettleton
4 years ago

It is a number that has been run on other systems you can use for comparison. I did not call it a real world workload.

tkaiser
tkaiser
4 years ago

> It is a number that has been run on other systems you can use for comparison

Yes, I know. C-Ray is used as a rather popular kitchen-sink benchmark generating numbers in ‘fire and forget’ mode. Still not sure why you mentioned ‘real world reference’ before and then showing synthetic benchmark numbers?

Don’t get me wrong please: benchmarks are important when chosen wisely and I have no doubt that LX2160A’s multi-threaded CPU performance is fine for many use cases. Only the mentioning of ‘real world’ is distracting…

Jon Nettleton
4 years ago

Sorry about the confusion. I meant “real world” as actually running on the device, in our labs. Not a reference platform or some ubiquitous number pulled from the air. I will run some more benchmarks and start posting preliminary results. The purpose is that we know this is a bigger investment than a normal SBC and we want developers to know what they are getting for their money.

tkaiser
tkaiser
4 years ago

Thanks for clarifying. 🙂

In case you run with a current Debian or Ubuntu userland and once you’re ready with a setup that is not too preliminary any more I would love to see sbc-bench numbers for the device (fully aware that the ClearFog ITX is not comparable to any SBC out there since playing in a different league).

Jon Nettleton
4 years ago

Sure would be happy to. Just from the initial comparison benchmarks we ran here are some similar benchmark numbers. It will be interesting to see how they compare to sbc-bench.

https://photos.app.goo.gl/hqmmA96npjCFrmrcA

And from our quick benchmark on OpenSSL this was posted in our internal board discussion.

openssl speed -evp aes-256-cbc
type 16 bytes 64 bytes 256 bytes 1024 bytes 8192 bytes 16384 bytes
aes-256-cbc 353218.89k 714151.89k 960243.71k 1042285.08k 1075615.06k 1080382.81k

at 1.9Ghz they are almost on par with our ThreadRipper 2. We expect it will surpass it at 2.2Ghz

Jon Nettleton
4 years ago
Jon Nettleton
4 years ago
tkaiser
tkaiser
4 years ago

> Here you go. sbc-bench numbers Thank you! The new insights are thermal behavior (going up from 41°C to just 53°C with the demanding cpuminer benchmark is an indication that your cooling approach is sufficient even for the highest loads imaginable) and 7-zip scores which we use as an indicator of ‘server workload performance in general’. The ClearFog achieves 27600 7-zip MIPS at only 1.9 GHz which is comparable to a Xeon Silver 41xx at 3GHz with HT enabled and Spectre/Meltdown mitigations in place (just tested with a 4110 in a fully updated Ubuntu 18.4 and got 28800). So with… Read more »

Jon Nettleton
4 years ago

CONFIG_HZ=250

Jon Nettleton
4 years ago

Well we are having some fun and got the board up and running at 2.4Ghz with DDR at 3200Mtps. Been stable all weekend. Here are some new SBC numbers to think about.

https://photos.app.goo.gl/d8yd7o17jGcrR195A

blu
blu
4 years ago

BTW, DDR4 @ 3200 MT/s is perfectly within the specs of the chip, right?

blu
blu
4 years ago

> https://photos.app.goo.gl/D6XY3vTzStn5Mxns6

That’s my kind of workstation : )

theguyuk
theguyuk
4 years ago

Just for reference there is a $2000 ThunderX desktop workstation solution, ThunderX ARM Desktop Super-Quiet ATX Tower ChassisCavium® ThunderX CN8890_CP 1.8GHz 32 core ARM SoC ( note it is ThunderX, not ThunderX2 ) it will also use more electric.

theguyuk
theguyuk
4 years ago

Yes, allow for vat + p&p

Greg
4 years ago

Yeah. ThunderX(1) is really a networking focused platform though. It gives you a lot of cores and an awesome SR-IOV NIC on-die. But each core is just so SLOOOOOW. Closer to Cortex-A53 than A72 🙁 Which is perfectly fine for hosting a thousand websites or providing low end VPS / “cloud” servers as Scaleway does (if anyone from Scaleway is reading this, FIX LOCAL BOOT ALREADY DAMN IT, WHY DID YOU EVEN BREAK IT). But it sucks for, say, development work. As soon as you have a non-parallel bottleneck in a build process, it’s like you’re compiling on a Raspberry… Read more »

blu
blu
4 years ago

Indeed. That’s why a many-core CA7x is the best middle ground for a workstation these days — good ST performance, good TDP (at sub-28nm nodes), good price.

theguyuk
theguyuk
4 years ago

Ampere EMAG from same company is cheaper, than the ThunderX2

NXP
NXP
4 years ago

This is the organizer for the webinar from NXP Semiconductors. We sincerely appreciate all the discussions and interests. If you are interested in hearing what we presented, please sign-up using the link below.
https://attendee.gotowebinar.com/register/5804973190693710083?source=CNXSoftware
Thank you!

Rabeeh Khoury
Rabeeh Khoury
4 years ago

The machine can be pre-ordered now –

https://www.solid-run.com/nxp-lx2160a-family/honeycomb-workstation/

The board’s name is HoneyComb LX2K.

Rabeeh Khoury
Rabeeh Khoury
4 years ago

Oh; forgot to mention that since it’s lower pricing we are offering a single machine per order for early access.
Shipments should in August time frame.

Hawski
Hawski
4 years ago

How long will it be available at a lower price? Is this limited by supply or time?

I see that the preproduction version supported OS is Linux 4.14.x, but without the word Mainline before it. How will support possibly look for this board in the future? Is it caution, as it is in fact a preproduction version, so you can’t promise anything?

Jon Nettleton
4 years ago

Those versions are supported at launch. There will be no software differentiation between the boards as time progresses.

Jon Nettleton
4 years ago

The branding change is due to their target audience. The HoneyComb LX2K is the workstation focused board, which will be made available sooner. The ClearFog CX LX2K is the networking targeted board. There is no difference between the COM E7 modules. The carrier boards offer different functionality where some networking features have been stripped from the HoneyComb in order to keep the price as low as possible. HoneyComb may get future revisions with different functionality after we receive feedback from the development community about what works what doesn’t etc. The ClearFog CX LX2K will be a more stable network oriented… Read more »
