Arm Introduces Cortex-A77 CPU and Mali-G77 GPU

Orange Pi Development Boards

Arm unveiled its Cortex-A76 CPU and Mali-G76 GPU right before Computex 2018, so it should come as no surprise that the company decided to make announcements for the upgrades before Computex 2019 with the just introduced Arm Cortex-A77 processor, and Mali-G77 GPU.

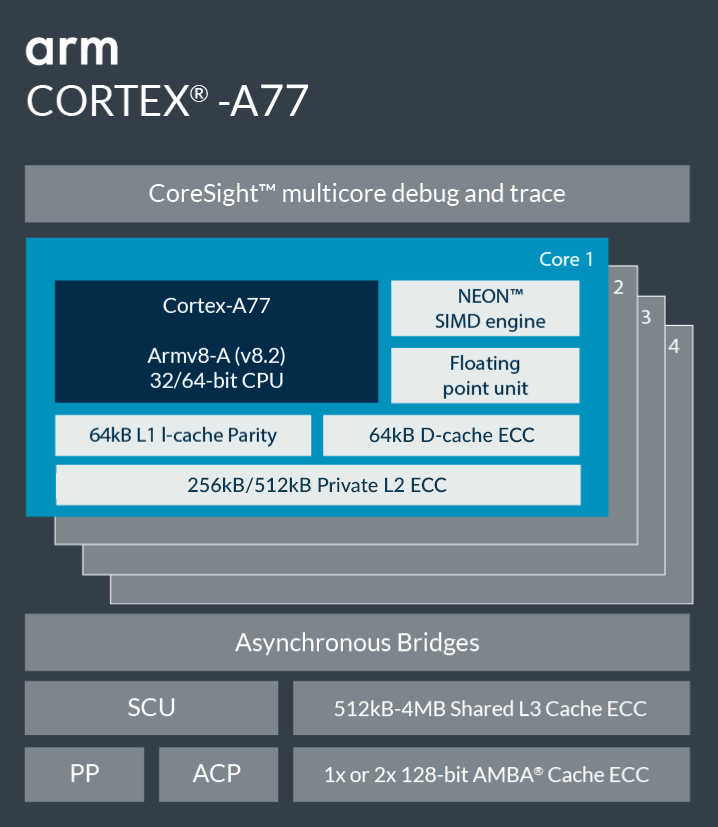

Arm Cortex-A77

Arm Cortex A77

Processor highlights:

  • 64-bit Armv8 CPU with support for Armv8.1 and Armv8.2 extensions, as well as Armv8.3 with LDAPR instructions only
  • Up to 4 processors per cluster
  • Cache – 64KB L1 I-Cache / D-Cache, 256KB to 512KB L2 Cache, optional L3 Cache between  512KB and 4MB
  • Improved performance for mobile and laptop devices enabling AAA-gaming, faster web-browsing and application launch time.
  • Brings always-on, always-connected feature set of mobile to laptop devices
  • Compatible with the newly announced Mali-G77 and machine learning (ML) processor.

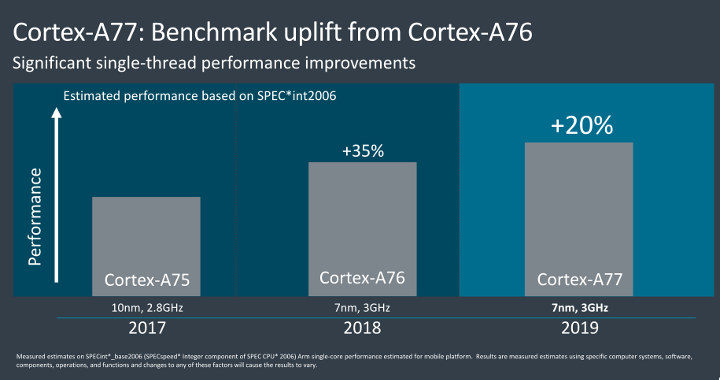

Cortex-A77 vs Cortex-A76 Single Thread Benchmark

Compared to Cortex-A76, Cortex-A77 yields up to 20% improved IPC performance with similar efficiency. The new IP core is basically an upgrade over A76 with the same key features but better performance, as you can find in the comparison in the developer page.

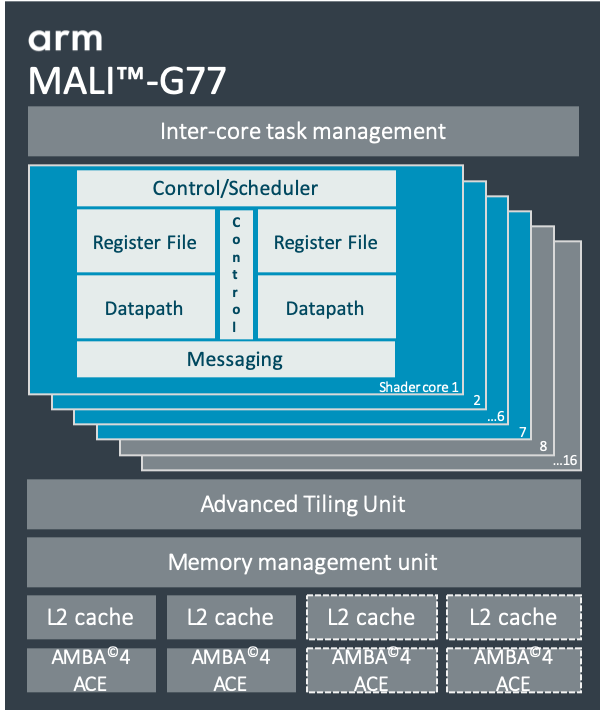

Arm Mali-G77

Mali-G77 GPU

The Arm Mali-G77 GPU is the first GPU based on the Valhall architecture and is said to provide 30% performance density uplift and 30% improvement on energy efficiency compared to Mali-G76 GPU. Arm also reports a 60% improvement in machine learning applications.

Mali-G77 is scalable from 7 to 16 cores, and support the usual recent API including OpenGL ES 1.1, 2.0, 3.1, 3.2, Vulkan 1.1, and OpenCL 1.1, 1.2, 2.0 Full Profile. More details can be found on the developer’s page.

12
Leave a Reply

avatar
4 Comment threads
8 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
8 Comment authors
DiegoDavid Willmorewillytkaiser Recent comment authors
  Subscribe
newest oldest most voted
Notify of
blu
Guest
blu

First cortex with uop cache, AFAIK.

David Willmore
Guest
David Willmore

Where did you read that? (I don’t see it in this article)

blu
Guest
blu

Anand’s article by Andrei.

zoobab
Guest

Still no open source drivers?

tkaiser
Guest
tkaiser

How many years ago ARM aquired Falanx and how many years takes it for patents to expire?

theguyuk
Guest
theguyuk

They never do a Nvidia, AMD and release drivers for the main OS?

willy
Guest
willy

Great, a faster core, with a bit of luck A76 will not be considered premium anymore and we can hope to see it land on SBCs next year.

blu
Guest
blu

As much as I’d love to see that — 7nm on SBCs next year is a bit of a stretch.

Member

A76s will be in next year’s Rockchip which will be 8nm. Good enough for me.

blu
Guest
blu

Ah, yes, I had forgotten about that one. Perhaps we will get it in SBCs after all..

theguyuk
Guest
theguyuk

It depends how the SoC is built, I have not tracked down the final truth, but have heard claims one SoC is 12nm Core, 16 nm GPU.
Time will tell.

Diego
Guest
Diego

Unless someone adds the rest of Chinese manufacturers to the ban and the brits follow their idol…
