Ugoos X2 Cube Android 9.0 TV Box also Serves as a SAMBA Server

Orange Pi Development Boards

Ugoos X2 Cube is a tiny Android 9.0 TV box powered by the latest Amlogic S905X2 processor coupled with 2GB RAM and 16GB flash storage. The new Amlogic processor happens to have a USB 3.0 port which provides good storage performance, and the box is also equipped with a Gigabit Ethernet port, which should make the device especially suitable for network storage beside the usual 4K HDR video playback or streaming offered by any typical Amlogic S905X2 TV box.

However in most cases, the firmware provided for such TV boxes does not offer an option to easily configure a SAMBA server (aka Windows network share), so you’d need to either mess up with the firmware configuration yourself, or install a paid app. Ugoos is different since they long have had the option to enable NFS & SAMBA client and/or server in the settings, and Ugoos X2 Cube is no different.

Ugoos X2 CubeUgoos X2 Cube specifications:

  • SoC – Amlogic S905X2 quad core Arm Cortex-A53 with Mali-G31 MP2  GPU
  • System Memory – 2GB LPDDR4 RAM
  • Storage – 16GB eMMC flash, microSD card slot up to 32GB, HDD via USB 3.0 port
  • Video Output – HDMI 2.1 output up to 4K @ 75 Hz with HDR, 3.5mm AV port (composite)
  • Video Codecs –  VP9 Profile-2 up to 4K 60fps, 10-bit H.265 up to 4K 60fps,   AVS2-P2 up to 4K 60fps,  H.264/AVC  up to 4K 30fps,  H.264 MVC up to 1080p60,  MPEG-4 ASP up to 1080p60 (ISO-14496), etc..
  • Audio – Analog stereo audio via AV port, digital audio via HDMI, and optical S/PDIF
  • Connectivity – Gigabit Ethernet, dual band 802.11 b/g/n/ac WiFi 5, Bluetooth
  • USB – 1x USB 3.0 port, 1x USB 2.0 OTG port
  • Misc – IR expansion port, reset pinhole
  • Power Supply – 5V via micro USB port
  • Dimensions – 11 x 6.2 x 2.2 cm
  • Weight – 89 grams

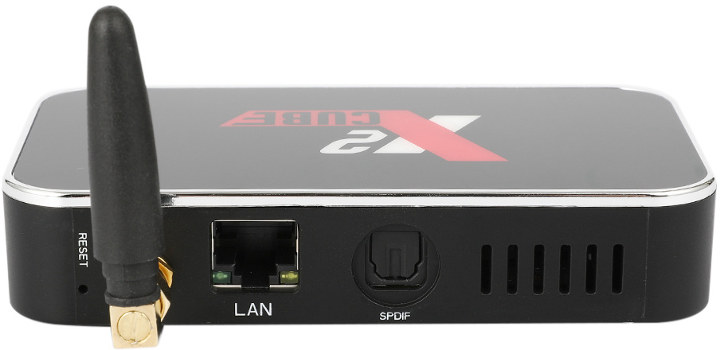

S905X2 TV Box SAMBA Server

Ugoos X2 Cube ships with a power adapter, HDMI and USB cables, a remote control, and IR receiver extension, a WiFi antenna, and a user manual.

I discovered the new TV box / stick on GeekBuying where it is currently sold for $67.99 including free shipping. I could not find it on other websites, including Ugoos’ own website at the time of writing. [Update: X2 Cube is now listed on GearBest for $54.99]
