Intel Denverton based Fanless Network Appliance Comes with 6x Ethernet Ports, 2x SFP Cages

Intel Atom C3000 “Denverton” processors were introduced in 2016 for low power servers and network appliances with four to sixteen cores, and in the following years, many products based on the SoC were launched including GIGABYTE MA10-ST0 server motherboard, AAEON FWS-2360 desktop network appliance, and Supermicro A2SDi-2C-HLN4F Mini-ITX motherboard among others.

New Denverton platforms did not get much coverage on CNX Software in the last couple of years, and an article on LinuxGizmos reminded me those still existed, as US-based WIN Enterprises recently launched LP-82000 fanless network appliance powered by Intel Denverton C3338, C3558, or C3758 processor and featuring six Gigabit Ethernet ports, as well as two SFP cages.

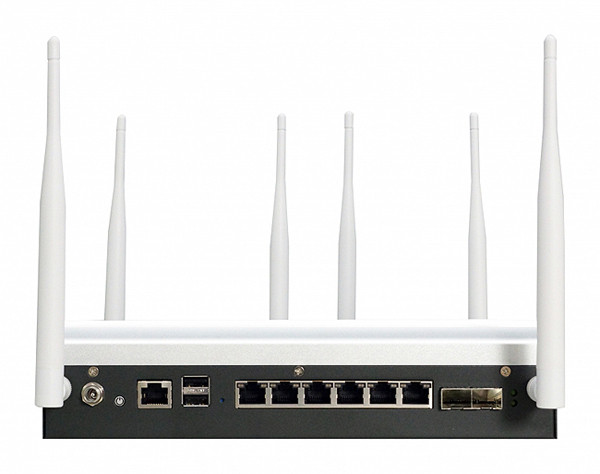

PL-82000 Denverton Fanless Network Appliance LP-82000 specifications:

  • SoC (one or the other)
    • Intel Denverton C3338 dual-core processor @ 1.50 GHz / 2.20 GHz (Turbo); 4 MB cache; TDP: 8.5 W
    • Intel Denverton C3558 quad-core processor @ 2.20 GHz; 8 MB cache; TDP: 16 W
    • Intel Denverton C3758 octa-core processor @ 2.20 GHz; 8 MB cache; TDP: 25 W
  • System Memory – 8GB or 16GB ECC/Non-ECC DDR4 RAM via 2x SO-DIMM sockets upgradeable to to 32GB max
  • Storage – mSATA interface; optional 8GB eMMC (up to 64GB)
  • Connectivity
    • 6x Gigabit Ethernet ports (RJ45) including one pair bypass
    • 2x SFP cages
    • Option 4G/5G cellular and/or WiFi cards via M.2 sockets
    • 6x antennas
    • Intel QAT (Quick Assist Technology) to enhance security and compression performance
  • USB – 2x USB 2.0 ports, 2x internal USB 2.0 interfaces via header
  • Serial – 2x (internal?) serial ports, 1x RJ45 console port
  • Expansion
    • 2x M.2 B/E key sockets for LTE/5G/WiFi module with 3 x SIM cards
    • 1x mPCIe slot
  • Security – optional TPM
  • Misc – Power button, network status LEDs
  • Power Supply – 12V/3A to 12V/5A power adapter
  • Dimensions & Weight – TBD
  • Temperature Range – Operating: 0 ~ 40°C; storage: -20 ~75°C
  • Humidity – 10 ~ 85% relative humidity, non-operating, non-condensing
  • Certifications – CE/FCC

WIN Enterprises PL-82000The company explains LP-82000 fanless network appliance is ideal for small call centers that demand quiet, but high performance. Typical applications include gateways, routers, firewalls, and edge network applications.

WIN Enterprises did not list any operating systems, but previous Denverton hardware platforms were compatible with Windows Server, Red Hat Enterprise Linux Server, SuSE Linux Enterprise Server, Ubuntu LTS, Fedora, and CentOS, so I’d expect the same for their new product.

LP-82000 appears to be available now at an undisclosed price, and you may find more details and/or ask for a quote on the product page.
