Beelink Gemini M is a Thin Mini PC Powered by Intel Celeron J4125 Gemini Lake Refresh SoC

The first Intel Gemini Lake Refresh (GLK-R) processors were announced last November, but we haven’t seen that many devices with the new processors, and so far we only covered some FUJITSU thin clients, as well as ODROID-H2+  and ODYSSEY-X86J4105 SBC’s with the “refreshed” processors.

Beelink is about to launch a rather thin mini PC – Beelink Gemini M – powered by a 10W Intel Celeron J4125 Gemini Lake Refresh SoC coupled with 8GB RAM, and offering two independent 4K video outputs.

Beelink Gemini M

Beelink Gemini M specifications:

  • SoC – Intel Celeron J4125 quad-core Gemini Lake Refresh processor @ 2.00 GHz / 2.7 GHz (Turbo) with Intel UHD Graphics 600; 10W TDP
  • System Memory – 8GB RAM
  • Storage – 64GB eMMC flash, M.2 2242 SATA socket, SD card reader
  • Video Output – 2x HDMI 1.4 ports up to 4K @ 30 Hz
  • Audio – 3.5mm headphone+mic jack, digital audio output via HDMI
  • Connectivity – Gigabit Ethernet port, dual-band 802.11b/g/n/ac WiFi 5 and  Bluetooth 4.0 via Intel 3165 wireless card.
  • USB – 4x USB 3.0 ports
  • Misc – Power Button, “clear CMOS” button
  • Power Supply – Via power barrel jack
  • Dimensions – 119 x 119 x 17.7mm
  • Weight – 340 grams

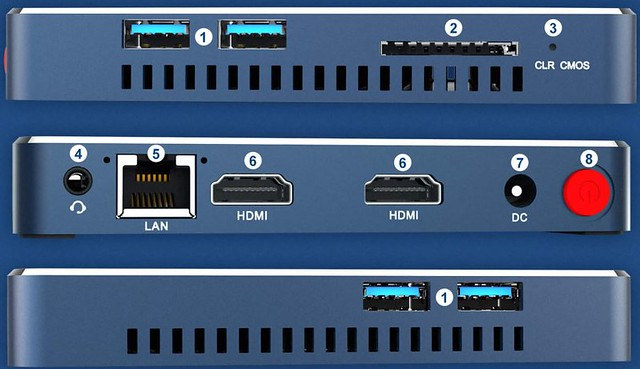

Beelink Gemini M Ports

Beelink Gemini M mini PC will likely ship with Windows 10 Home 64-bit, and support for Linux is sometimes hit-or-miss on Beelink mini PC’s, so it would have to be tested. The company will provide a VESA mount with the mini PC as well. The teaser video below reveals the design is not fanless, and instead the system is cooled by a small fan fitted to a heatsink.

Price is not known at this point, and it’s unclear when Beelink will launch the mini PC. But based on the price for other Gemini Lake mini PC with 8GB RAM, Beelink Gemini M should cost a little over $200 if it ships without M.2 SATA SSD.

Via Liliputing and MiniMachines

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Notify of
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
3 years ago

Does Intel exist in parallel universe? HDMI 1.4 can deliver only 4K@30Hz though the processor itself can do 4K@60Hz.

3 years ago

Did Raspberry Pi smack the industry when they provided 2x HDMI 2.0 at $35 (albeit microHDMI, which led to plenty of complaints, and only 1x 4Kp60 output without overclocking)? There have been multiple SBCs and mini PCs since that went with HDMI 1.4 despite apparently being capable of 4Kp60 output.

3 years ago

If the price is right I want it. No need for 4K for me at all, neither for any video game capability.
