ECS LIVA M300-W industrial mini PC is powered by Rockchip RK3399K SoC

Elitegroup Computer Systems (ECS) is mostly known for its x86 motherboards and mini PCs, but earlier with year, ECS LIVA Q1A Arm mini PC was introduced with either Rockchip RK3288 or RK3399 SoC, and support for Linux and Android operating systems.

But the Taiwanese company has now unveiled a new Arm-based industrial-grade mini PC with LIVA M300-W powered by Rockchip RK3399K processor that allows for either higher 2.0 GHz frequency at commercial temperature range, or the usual 1.8 GHz frequency in a wider (-20°C to +85°C) temperature range.

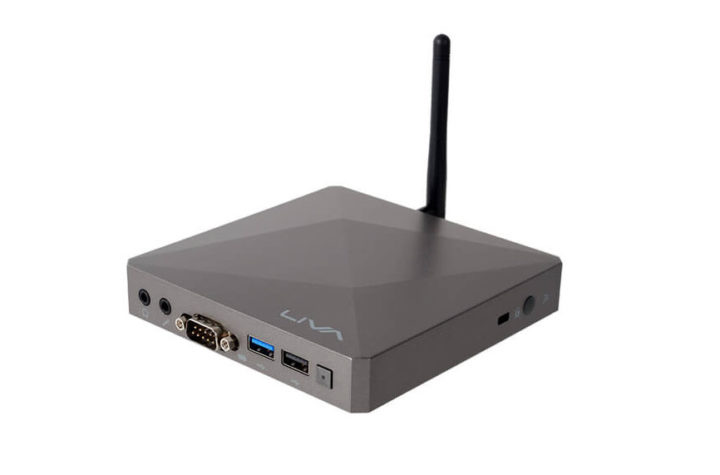

ECS LIVA M300-W industrial mini PCECS LIVA M300-W specifications:

  • SoC – Rockchip RK3399K hexa-core processor with two Cortex-A72 up to 1.8GHz/2.0GHz, four Cortex-A53 up to 1.4GHz, Arm Mali-T860MP4 GPU
  • System Memory – 2GB/4GB DDR3L
  • Storage – 32GB or 64 GB eMMC flash, internal Micro SD slot
  • Video Output
    • 1x HDMI 2.0 port up to 4Kp60, CEC support
    • 1x DisplayPort 1.2 port up to 4Kp60
  • Audio – 1x Microphone input, 1x Line Out
  • Networking
    • Gigabit Ethernet RJ45 port
    • 802.11 b/g/n WiFI 4 & Bluetooth 5.2 with external antenna
    • Cellular connectivity via Micro SIM card socket, two extra antenna holes, and one M.2 socket for optional 4G/5G module
  • USB – 1x USB 3.2 Gen 1 port, 3x USB 2.0 ports
  • Serial –  1x DB9 COM port (RS-232/RS-422/RS-485)
  • Expansion – M.2 B-Key 3042 socket for 4G/5G module
  • Misc – Power button, Kensington lock
  • Power Supply – 12V/4.17A (50W) via DC jack or header
  • Dimensions – 128 x 128 x 26 mm
  • Temperature Range – Operating: -10°C to 60°C; storage : -20°C to + 80°C
  • Humidity – 10% to 95%

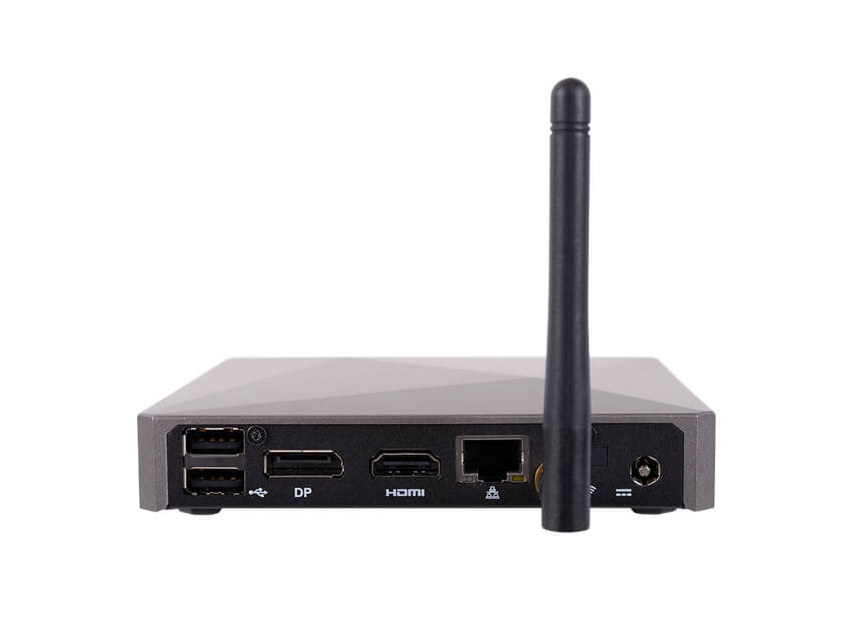

RK3399K mini PCECS fanless industrial RK3399K mini PC supports Android 8.1 (without GMS) and Lubuntu 18.04, with the company saying the device is ideal for extreme environments such as construction sites, factories, and warehouses for applications such as surveillance, terminal, POS, digital signage, and thermal-sensing.

You may own a device with the standard Rockchip RK3399 that runs just fine at 2.0 GHz, but that’s probably at room temperature (20-25°C) and not all of RK3399 chips may support it, while RK3399K is qualified to run at that frequency, or a wider temperature range. ECS mini PC is not certified to run at -20 to +85°C, but only between -10 and +60°C because of other considering such as other components and the fanless design.

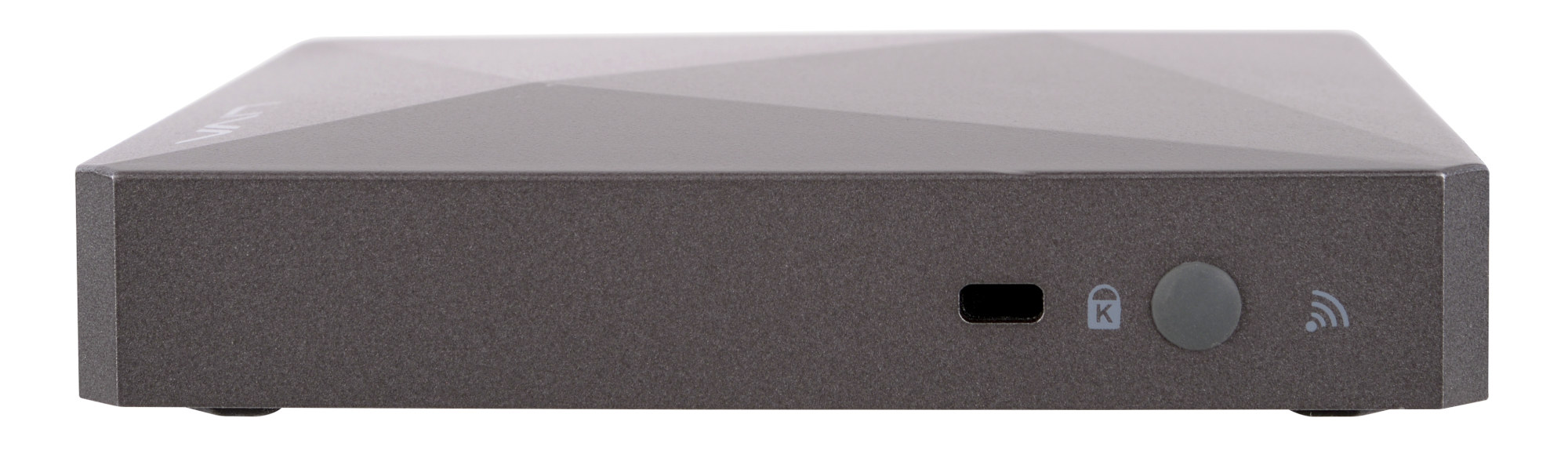

Arm mini PC Kensington security Lock
Kensington security slot and unused antenna hole

Availability and pricing information were not disclosed. More details can be found on the product page.



Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
1 Comment
oldest
newest
bernstein
bernstein
7 months ago

real shame we still have these ancient cortex-a72 cores in everything except phones. they are now at cortex-a78. that’s 6 generations newer… not to mention the wider cortex-x1.
the performance uplift as you can imagine is quite vast. plus, phones usually run them in a quad core configuration.

given the psu and size of this mini-pc it should easily handle a quad cortex-x1 configuration at fairly high clocks.
