Banana Pi BPI-M2S Amlogic A311D SBC comes with dual GbE, HDMI & MIPI interfaces

There’s at least one more Amlogic A311D SBC coming our way with Banana Pi BPI-M2S equipped with 4GB RAM, 16GB eMMC flash, as well as two Gigabit Ethernet ports, combines with video interfaces that include HDMI, MIPI DSI & CSI, as well as two USB ports.

This news comes just a few after we wrote about Geniatech DB10 AI development board based on Amlogic A311D hexa-core Cortex-A73/A53 processor and noted there were few platforms based on the SoC, apart from Khadas VIM3 SBC, and a few others.

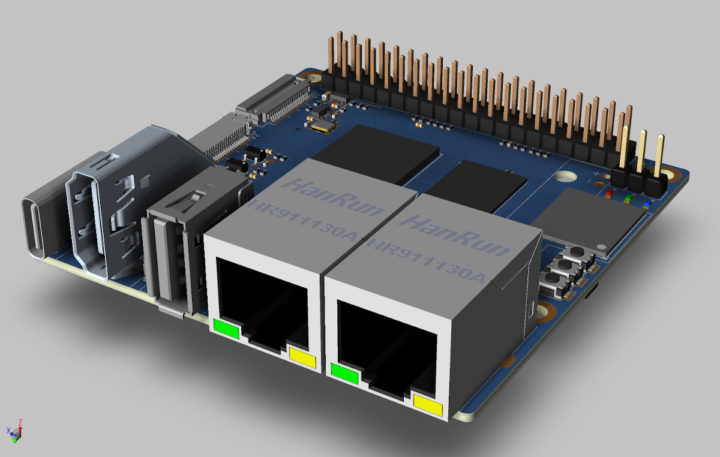

Banana Pi BPI-M2S

Banana Pi BPI-M2S SBC specifications:

  • SoC – Amlogic A311D hexa-core processor with 4x Arm Cortex-A73 cores, 2x Arm Cortex-A53 cores, Arm Mali-G52 MP4 (6EE) GPU with OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support, 5 TOPS NPU
  • System Memory – 4GB LPDDR4
  • Storage – 16GB eMMC flash (option up to 128GB), MicroSD card slot
  • Video interfaces
    • HDMI 2.1 output up to 4Kp60
    • MIPI DSI connector for display
    • MIPI CSI connector for camera
  • Networking – 2x Gigabit Ethernet ports one via RTL8211F GbE transceiver, the other through RTL8111H PCIe to Gigabit Ethernet transceiver
  • USB – 1x USB 2.0 Type-A port, 1x USB Type-C port
  • Expansion – 40-pin GPIO header
  • Debugging – 3-pin header for serial console
  • Misc – 3x buttons
  • Power Supply – Via USB-C port or pin header
  • Dimensions – 65 x 65mm

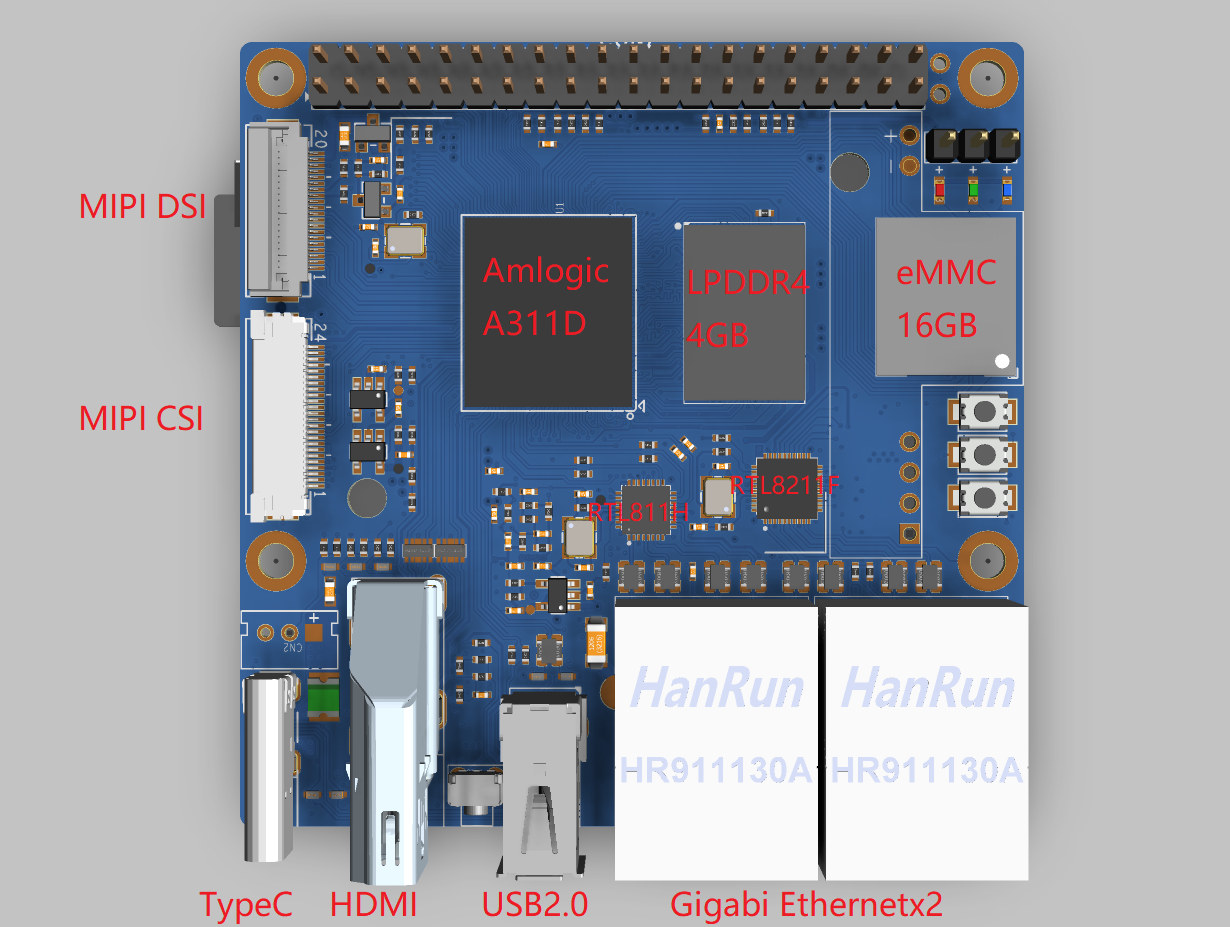

Amlogic A311D SBC

Banana Pi BPI-M2S has the same size as the earlier Banana Pi BPI-M2+ and Banana Pi BPI M2 Pro, but the arrangement of the ports is much different. The Amlogic A311D is also much more powerful than the Allwinner H2 and Amlogic S905X3 found in the two other boards.

The company says the board will support Android and Linux, but there’s very little information on the Wiki at this point in time. The two Gigabit Ethernet ports make the system suitable for router and networking applications, but the board can also be used for AI applications notably computer vision applications, through the display interfaces, camera interface, as well as the 5 TOPS AI accelerator embedded into the Amlogic A311D processor.  I’m not sure there are that many applications that can make full use of the board’s networking, multimedia, and AI functions.

SinoVoIP will often show samples before starting selling the board on Aliexpress six months or so later, but they’ve got a step further by showing 3D renders first.  The company says there are about to manufacture samples, but whether those will be working samples may be another story… So I’d expect Banana Pi BPI-M2S board to become available sometime in 2022.

Via Liliputing

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
8 Comments
oldest
newest
Salvador
Salvador
2 months ago

Interesting board.

Anonymous
Anonymous
2 months ago

…if it wouldn’t be a banana pi

Theguyuk
Theguyuk
2 months ago

Let’s hope ? there are no hardware and driver issues that slow the Khadas etc A311D experienced software programmers, from using their knowledge to program for this board.

Rogan Dawes
Rogan Dawes
2 months ago

Very interesting board. Would be good to find out the pinout of the expansion connectors (although I guess it is likely Pi compatible)

Also, if the USB C port can do OTG.

willy
willy
2 months ago

It might succeed if there are no thermal issues and there is an enclosure.
Jean-Luc, please s/A55/A53/ in the first description 🙂

JIV
JIV
2 months ago

Is there good linux support for amlogic? I heard not so much.

Dan
Dan
2 months ago

Depends on your use case. I have an ODroid-N2 which is essentially the same chip. Anything other than graphics has been pretty solid on mainline since 5.6. Graphics has gotten better (Wayland only) in the 5.9-5.10 range but I use mine as a headless server so I haven’t played around much, only read forum posts. I’d guess the Linux they ship with this is the same that ODroid provides which is running a 4.9 kernel or something else pretty ancient.

clort72
clort72
1 month ago

Khadas Vim3 with A311D is my main linux desktop now for over a year. Does everything I need to do. Opengl/OpenGL-ES (up to ~3.1) with open-source panfrost drivers are mostly working now. Vulkan is a distant maybe. A handful of apps have rendering errors. (Some ppsspp games, Doom3 in some circumstances, terminology). It can do 3D scenes in openMW about as fast as my 2001 PC graphics card. Anything shader-heavy will punch it in the gut and take its milk money. If you want an open-source, mainline-linux Arm SBC, those using Amlogic’s S922X and A311D lead the pack. Nothing against… Read more »
