USB board emulates CR2032 or CR2016 coin cell battery

You can now develop CR2032 or CR2016 powered devices without having to use an actual coin cell thanks to Peter Misenko’s (Bobricius) “coin cell battery emulator CR2016/CR2032”.

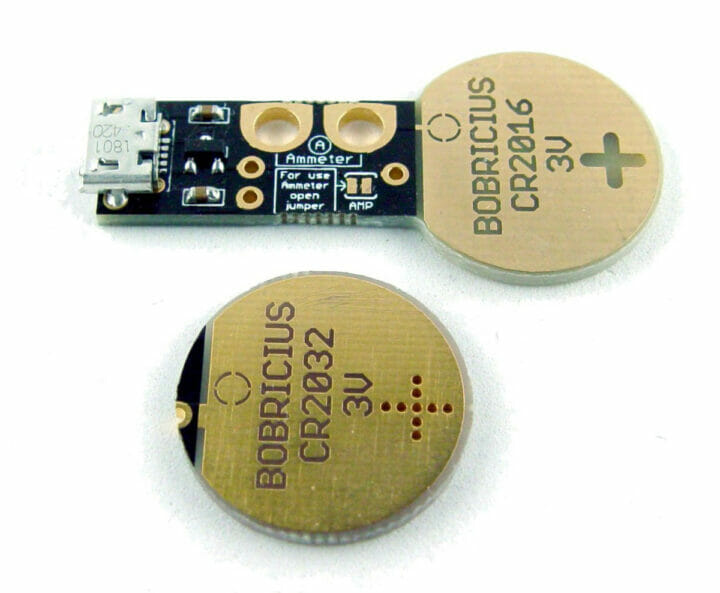

The USB board contains a rounded part that is compatible with CR2016 or CR2032 coin cell batteries and allows you to power your target board via USB. The board also includes holes for alligator clips to measure the current, and by extension the power consumption.

CR2032 battery emulatorCoincell battery emulator CR2016/CR2032 specifications:

  • Power Supply
    • 5V via Micro USB port
    • 3V regulator
    • 3V + GND pins for incompatible holders
  • Power measurement – 2x alligator clip holes for Amperemeter mode  (the onboard solder jumper must be open)
  • Dimensions – Designed for a CR2016 battery (1.6 mm thick), but an adapter can be soldered for a CR2032 battery (3.2mm thick)

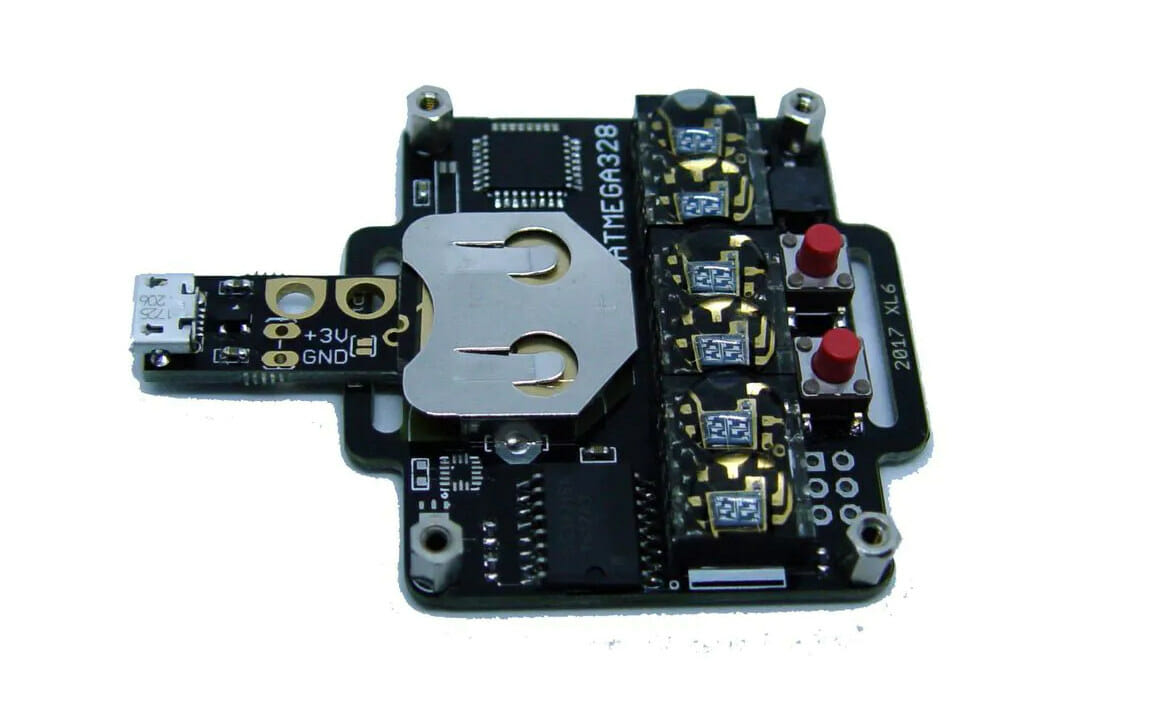

USB board emulates CR2032 batteryIt’s not a size fit all solution since it will only work with a specific type of battery holder, but it can also serve as a 3V power adapter thanks to the 3V and GND pins on the board.  The board ships in one piece with both CR2016 and CR2032 ending, and you’ll need to clip/cut the CR2032 part before using it as a CR2016 battery, or solder the CR2032 part on top to use the thicker type of coin cell battery. You’ll understand better after watching the short video below.

The board is sold on Tindie for $19.99, but it’s currently out of stock.

Via Hackster.io
