Meet Dot – A stamp sized 2-wheel robot powered by a Raspberry Pi RP2040 board

Kaisar (aka Roboticbits) has developed a tiny robot based on Pironomi Tiny 2040 Raspberry Pi RP2040 development board, which he/she claims is the smallest in the world, but it might not be depending on how one measures it.

Nevertheless, the Dot is a cool project with two wheels with a 3V DC motor attached to the 22.9 x 18.2 mm board, and a 70mA battery to power the mini robot. Here’s what it looks like in action.

Eventually, the robot should be documented on Github, but at this time we have limited information with a photo accompanying the video demo above.

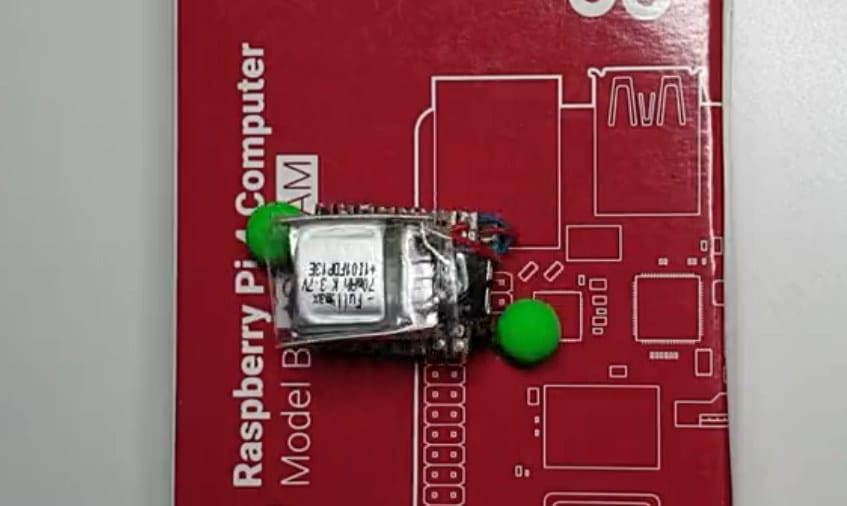

Tiny 2040 Robot
Tiny 2040 board barebone (left) and fitted with batteries, DC motor, and wheels on the back side (right)

Tom’s Hardware got more details about the software as well, with Kaisar saying the firmware was developed with CircuitPython, but future code will be using C++ (or is that C?). The DC motors are apparently directly connected to the GPIOs of the board which could potentially lead to damages. One of Kaisar’s previous projects used a larger, but cut out, Raspberry Pi Pico with three motors controlled through TI DRV8833 motor driver. There may not have had enough space, or Kaisar thought it might not be necessary with the Tiny 2040 design.

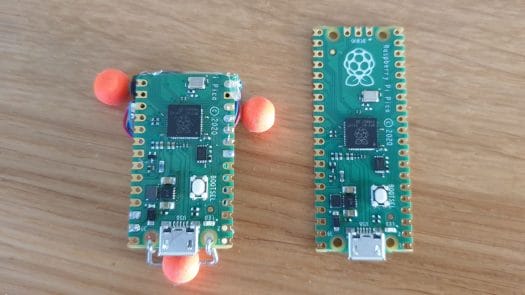

Three wheeled raspberry pi pico robot
Three-wheeled raspberry pi pico robot
Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
2 Comments
oldest
newest
Theguyuk
Theguyuk
17 days ago
willy
willy
17 days ago

This is cool, but really limited as a robot in that the MCU used there barely does more than deciding whether to drive forward or backward, which is quite similar to the capacities of various hexbugs and similar devices that are powered on LR44 batteries.

Here there is some potential for interacting with the environment (e.g. detecting light, obstacles etc) making this smarter, but for now this doesn’t seem exploited and it will inevitably come with a few more components.

Great and fun work anyway!
