x86 system-on-module features 1GHz DM&P Vortex86DX3 processor

DM&P Vortex86DX3 is an x86 embedded processor launched in 2015 that we’ve previously found in single board computers and mini PCs, but I’ve just noticed ICOP was offering the SOM304D3 system-on-module based on the single and dual-core versions of the Vortex86DX3 SoC.

The SOM304D3 is available with 1 or 2GB DDR3 RAM, works in a wide temperature range (up to -40°C to +85°C), and is designed for space-constrained industrial applications, especially those requiring legacy interfaces like ISA, IDE, and/or a parallel port (aka printer port).

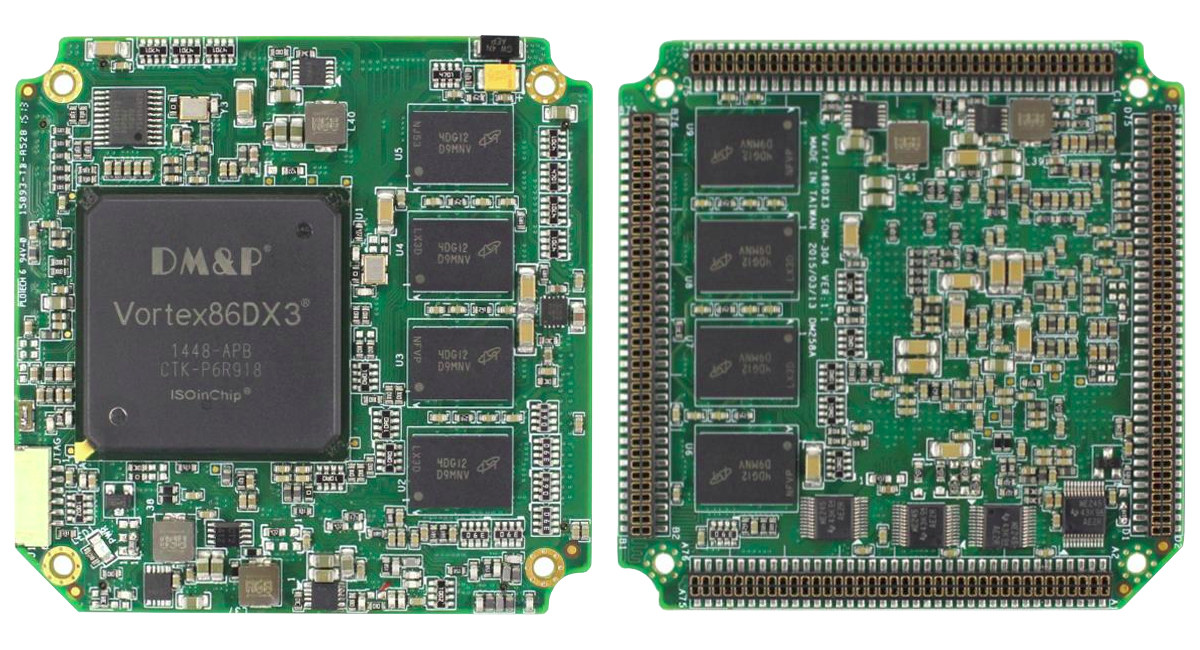

Vortex86DX3 x86 system-on-module

SOM304D3 specifications:

  • SoC – DM&P Vortex86DX3 single or dual-core x86 processor @ 1 GHz, 2D GPU
  • System Memory – 1GB or 2GB DDR3
  • Storage – Optional 4GB eMMC flash; SPI flash for AMI BIOS
  • 4x 76-pin board-to-board connectors:
    • Storage – SATA 1.0, IDE, SD
    • Display
      • VGA up to 1920 x 1080 @ 60Hz
      • TFT LCD up to 1024 x 768 @ 60Hz
    • Audio – 1x HD audio
    • Networking – 2x 10/100M Ethernet
    • USB – 4x USB 2.0
    • Up to 80 GPIO or up to 9 UART, SPI, I2C, PWM, LTP (Parallel Port), up to 3 PWM
    • Up to 8x ADC
    • Expansion – 2x PCIe 1.1, 1x 16-bit ISA
    • Misc – PS/2 keyboard and mouse interfaces, plus “4S/4U”, but I have no idea what this is…
  • Power Supply – +5V DC @ 1,300mA (Typical)
  • Dimensions – 70 x 70 x 10.5 mm (without cover)
  • Weight – 25 grams
  • Temperature Range – -20°C to +70°C or -40°C to +85°C (option)

As an x86 platform, the module supports plenty of – usually older – operating systems: FreeDOS, DOS 6.22, PCDOS 7.1, DR-DOS, x-DOS, OS/2, Windows 7, Windows Embedded Standard/Compact 7, Windows Embedded CE 6.0, Windows XP Professional/Embedded, POS Ready (WePOS), embedded Linux, QNX, VxWorks, FreeBSD.

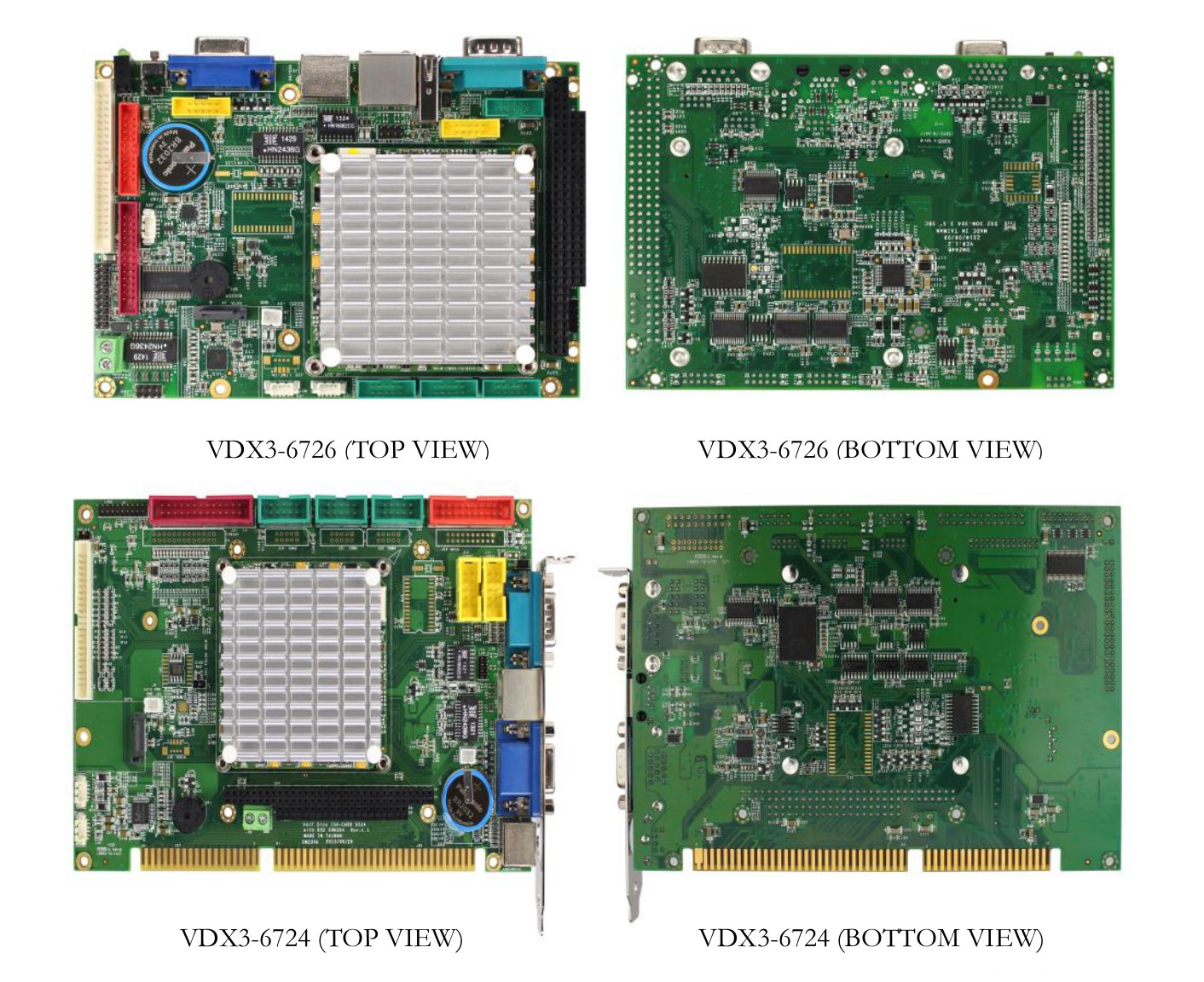

SOM304D3 carrier boardsICOP also offers at least two carrier boards for evaluation: the VDX3-6726 SBC and the VDC3-6724 board with an ISA interface.

I found out about the board in a January 2022 press release, but the module is a bit older than that since the product page provides documents and drivers dated from 2018. The SOM304D3 system-on-module sells for $260 with 1GB RAM on ICOP online store, while the a complete kit with VDX3-6726 and cables goes for $372.
