Jasper Lake Mini-ITX motherboard comes with 6 SATA 3.0 connectors, 2 M.2 NVMe sockets

Topton “N5105/N6005 NAS board” is a mini-ITX motherboard powered by an Intel Celeron N5105 or N6005 Jasper Lake processor, equipped with six SATA 3.0 ports, two M.2 NVMe sockets, and four Intel i226-V 2.5GbE controllers.

The board also comes with two SO-DIMM DDR4 slots for up to 64GB RAM, HDMI 2.0 and DisplayPort video outputs, and several USB 3.0/2.0 interfaces. As its name implies, it is designed for network access storage (NAS), but I could also see it used as a networked video recorder (NVR), a network appliance, or a multi-purpose machine.

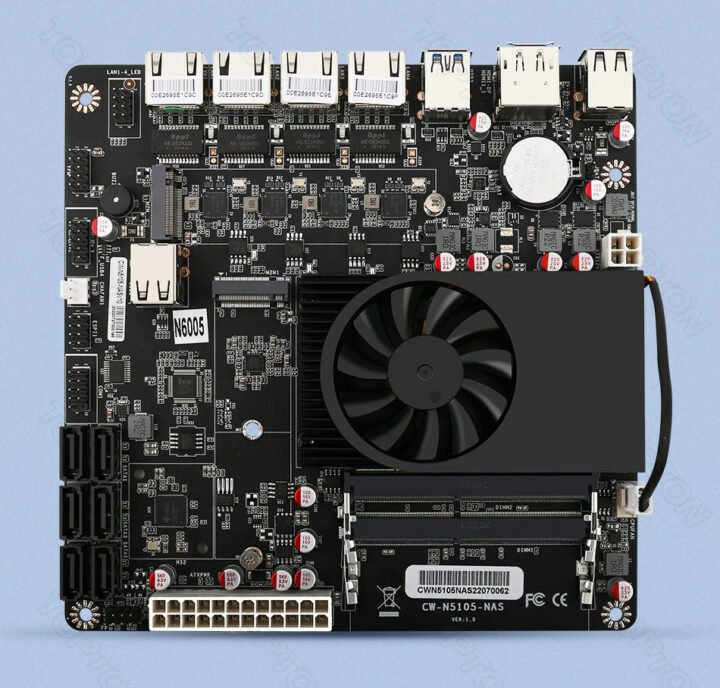

Jasper Lake mini-ITX NAS

Topton “N5105/N6005 NAS board” specifications:

  • SoC (One or the other)
    • Intel Celeron N5105 quad-core Jasper Lake processor @ 2.0GHz / 2.9GHz (Turbo) with 24EU Intel UHD graphics @ 450 / 800 MHz (Turbo); 10W TDP
    • Intel Pentium N6005 quad-core Jasper Lake processor @ 2.0GHz / 3.3GHz (Turbo) with 32EU Intel UHD graphics @ 450 /  900 MHz (Turbo); 10W TDP
  • System Memory – 2x DDR4 SO-DIMM slots for up to 64GB 2933 MHz (2x 32GB) non-ECC memory
  • Storage
    • 2x M.2 NVMe PCIe 3.0 socket (2280)
    • 6x SATA 3.0 connectors, 5x of which are implemented through a Jmicroon JMB585 PCIe Gen3 x2 to x5 SATA 3.0 bridge
  • Video Output
    • HDMI 2.0 up to 4Kp60
    • DisplayPort 1.4a up to 4Kp60
  • Audio –
  • Networking – 4x 2.5GbE RJ45 ports via Intel i226-V controllers
  • USB – 2x USB 3.0 Type-A ports, 2x USB 2.0 Type-A ports, 2x internal USB 2.0 Type-A host ports, USB 2.0 interface(s) via header
  • Misc
    • UEFI BIOS with support for auto power on, WoL, PXE
    • System and case fan connectors
    • Buzzer
    • TPM connector
    • “ESPi” (probably eSPI?) digital card debugging header
    • Front panel header
  • Power Supply – 24-pin + 4-pin ATX connectors
  • Dimensions – 17 x 17 cm (Mini-ITX motherboard)

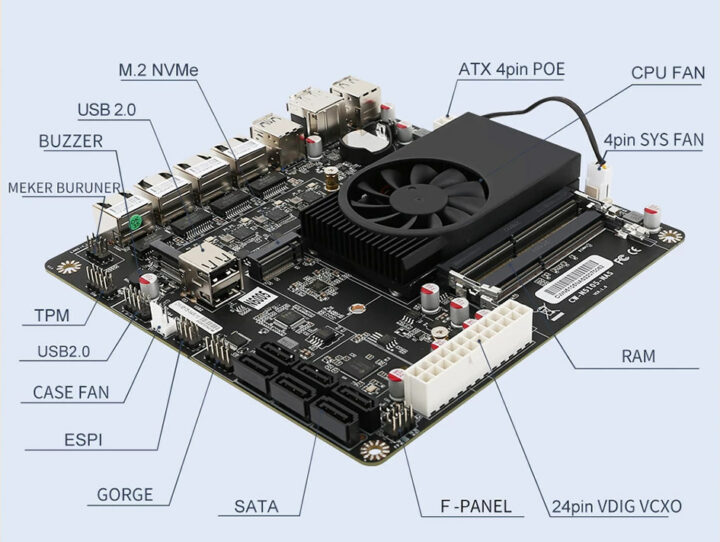

NAS Motherboard N5105 N6005 Jasper Lake

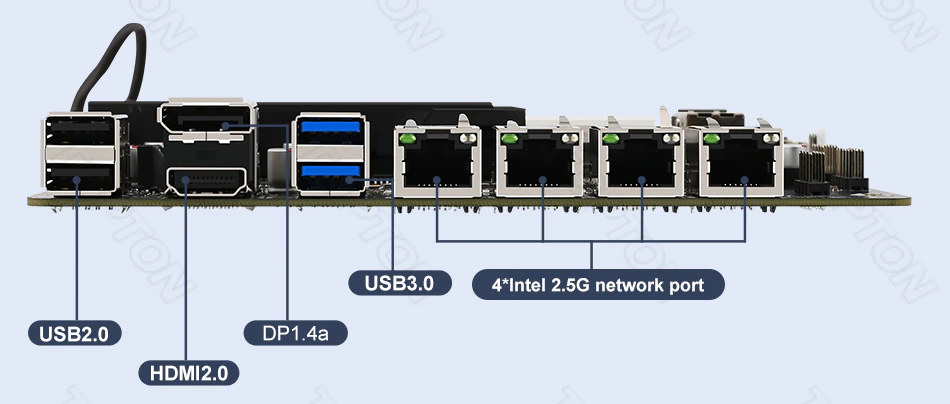

Topcon mini-ITX motherboard ports

The company will install Windows 10 Pro by default when ordered with storage and memory, but users can also request Windows 11 Pro. A system ordered with less than 32GB RAM will only come with one memory stick, so no dual-channel memory.

Topton also highlights that Intel i226-V is a new network controller and operating systems like pfSense may not include a compatible driver yet, and they ask users not to open a dispute in case of such (operating) system issue.

Topton “N5105/N6005 NAS” Jasper Lake mini-ITX motherboard is sold for $195.76 to $472.18 depending on the selected processor, and memory & storage capacities.

Via Liliputing
