LattePanda 3 Delta SBC combines Celeron N5105 SoC with Arduino (Crowdfunding)

LattePanda 3 Delta is the new version of the x86 + Arduino board introduced in 2015 with an Intel Atom x5-Z8300 processor, and followed by LattePanda Alpha/Delta in 2017 with respectively Kaby Lake and Gemini Lake processors.

The new LattePanda 3 Delta brings some serious performance boost with an Intel Celeron N5105 quad-core Jasper Lake processor that doubles the CPU performance, triples the GPU speed, and enables smooth 4K HDR video playback. Plus no vaccine is required that for that delta variant! 😉

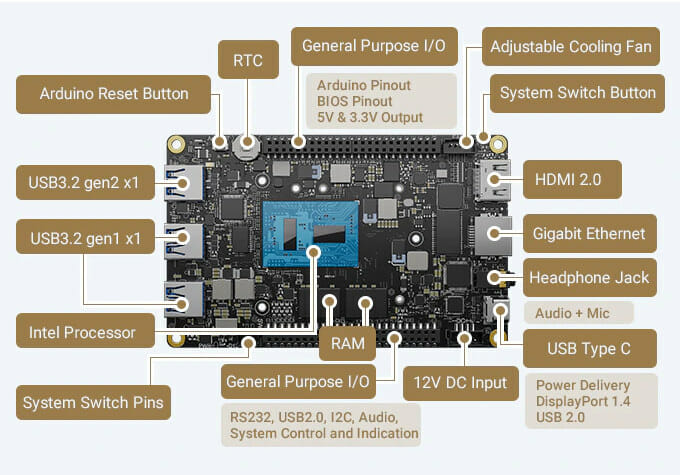

LattePanda 3 DeltaLattePanda 3 Delta specifications:

  • SoC – Intel Celeron N5105 quad-core Jasper Lake processor @ 2.0GHz / 2.9GHz (Turbo) with Intel UHD graphics 605; 10W TDP
  • System Memory – 8GB LPDDR4 @ 2933 MHz
  • Storage
    • 64GB eMMC flash
    • M.2 M Key socket for NVMe SSD
    • M.2 B Key socket for SATA SSD
    • MicroSD card socket
  • MCU – Arduino Leonardo compatible
  • Video Output
    • HDMI 2.0
    • DisplayPort via USB Type-C port
    • eDP connector + touch panel connector
  • Audio – 3.5mm heaphone+mic jack, pin header with 2W audio amplifier
  • Connectivity
    • Gigabit Ethernet port
    • WiFi 6 up to 2400 Mbps and Bluetooth 5.2
    • Optional 4G or 5G modem via M.2 socket + SIM card slot
  • USB – 2x USB 3.2 Gen 1 (5Gbps) , 1x USB 3.2 Gen 2 x1 (10 Gbps), 1x USB Type-C port for power, data (480 Mbps) and DisplayPort Alt Mode, 1x USB 2.0 header
  • Expansion
    • 50-pin GPIO header with RS232, USB 2.0, I2C, audio, system control and “indication”
    • 50-pin GPIO header for Arduino MCU, BIOS, and 5V, 3.3V
  • Misc – RTC, Arduino reset button,
  • Power Supply – 12V DC input
  • Dimensions – 125 x 76 x 16 mm

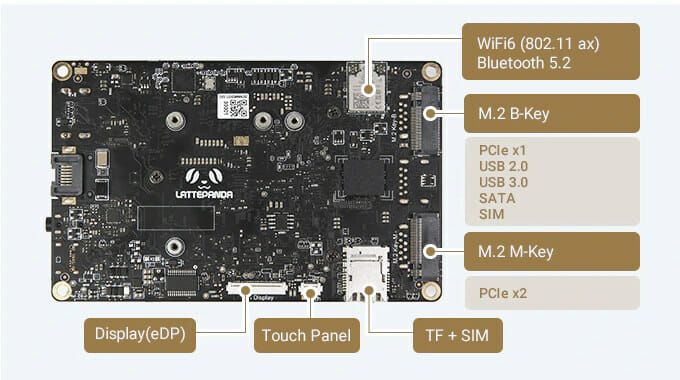

Jasper Lake SBC WiFi 6

The board can support Windows 10, Windows 11, and Linux distributions. Our recent review of Beelink U59 Jasper Lake mini PC did show a CPU performance boost of around 50% and 3D graphics benchmarks delivered 2 to 2.4 times more performance compared to a system based on Celeron N4100, so not quite the numbers provided for the LattePanda 3 Delta board, but still in the same direction. (YouTube) video playback was not smooth in Windows 11 and Ubuntu 20.04 in the mini PC we tested, but maybe it’s just a question of software support as the processor family is so new.

Some of the features not shown in the specs above are a hardware watchdog and auto power on features, selectable in the BIOS, to make sure the board can work reliably and unattended, even if the OS hangs. Just like the previous LattePanda Delta board, the new LattePanda 3 Delta is cooled with a fan, but with a 50% larger cooling area.

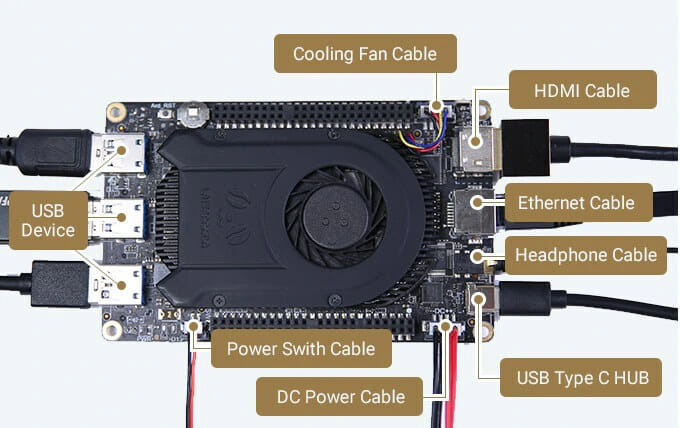

LattePanda 3 Delta cooling fan

The PandaLatte 3 Delta is now available via a Kickstarter crowdfunding campaign. Rewards start at $229 US for the single board computer alone, with various other rewards adding Windows 10 Pro, a UPS Hat, or offering a bundle with a display (7-inch or 12.5-inch). Shipping adds about $16 US, and rewards are expected to start shipping in March 2022.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
2 Comments
oldest
newest
wboz88
wboz88
28 days ago

Kickstarter only charges you if they meet their goal, but it feels like they set the goal low to ensure to hit it (and maybe even “self-pledge” so they can charge anyone else who backs).

I don’t doubt the LattePanda team as this is their third or fourth very nicely done SBC. That’s not my concern. This is good deal for pretty high end SBC. My concern is general industry problem, suddenly unable to get chips they expected … I really want this but am sitting on the fence because this issue. :/

Freekiedecakie
Freekiedecakie
28 days ago

Interesting. GPU has 24EU and higher boost clock than the N5095.

N5095 only has 16EU.
