GOLE 1 R mini PC offers Rockchip RK3588 CPU, 5.5-inch touchscreen display

HIGOLE introduced the GOLE1 mini PC with a touchscreen display in 2015 mostly to get a free and legal Windows 10 license, but over the years the company launched more Intel models inspired by the original design. However, their latest model, the GOLE 1 R, is based on Rockchip RK3588 octa-core Arm Cortex-A76/A55 SoC instead and running Android 12 by default.

The GOLE 1 R is equipped with 8GB RAM, 128GB eMMC flash, a 5.5-inch touchscreen display, Gigabit Ethernet and WiFi connectivity, a microphone, speaker, a gravity sensor, and a 2,500 mAh battery. The company also sells the GOLE 1 RN mini PC without a display, a microphone, a speaker, or a battery for power.

GOLE 1 R RK3588 mini PC touchscreen

GOLE 1 R/RN specifications:

  • SoC – Rockchip RK3588 octa-core processor with four Cortex-A76 cores @ 2.4 GHz, four Cortex-A55 cores @ 1.8 GHz, an Arm Mali-G610 MP4 GPU, a 6TOPS NPU, 8K 10-bit decoder, 8K encoder
  • System Memory – 8GB LPDDR4
  • Storage – 128GB eMMC flash, MicroSD card slot
  • Display – 5.5-inch display with 5-point multitouch screen (GOLE 1 R only)
  • Video Output – HDMI 2.1 output up to 8K resolutions
  • Video Input – HDMI 1.4 input
  • Audio
    • 3.5mm audio jack
    • GOLE 1 R only: built-in microphone, support for speaker
  • Connectivity
    • Gigabit Ethernet RJ45 port
    • WiFi 6 and Bluetooth 5.2 module
  • USB – 4x USB 3.0 ports, 1x USB Type-C for power, DisplayPort Alt. mode, and data
  • Expansion – M.2 socket for expansion (GOLE 1 RN only)
  • Misc – Power switch, IR receiver
  • Power Supply – USB PD via USB-C port
  • Battery (GOLE 1 R only) – 2,500 mAh/7.6V good for about 3 hours
  • Weight
    • GOLE 1 R – 500 grams
    • GOLE 1 RN – 300 grams

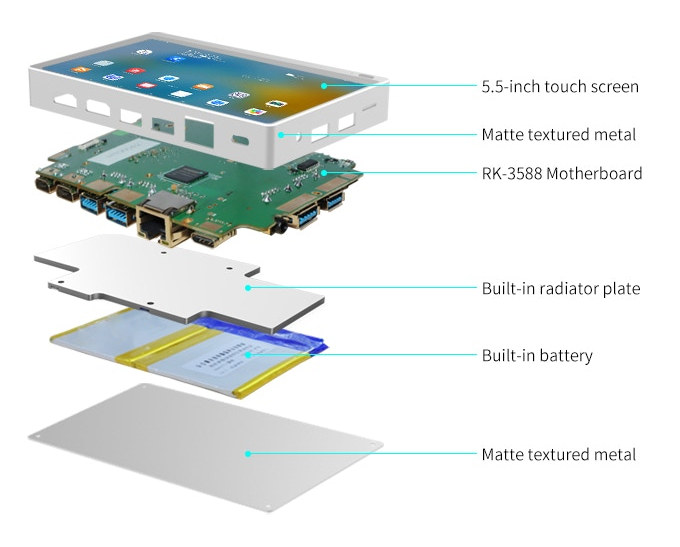

GOLE 1 R specifications

The fanless mini PC/thick tablet ships with Android 12 by default without Google Play support, but the company claims Ubuntu and RTLinux are also supported. An SDK will allegedly be offered alongside hardware schematics and drivers for the device.

The devices have launched on Kickstarter with the GOLE 1 RN mini PC going for around $300 US, and the GOLE 1 R mini PC with integrated display selling for $353. Those prices will be hard to swallow, especially for the mini PC since it does not really differentiate itself from other Rockchip RK3588 mini PCs, but the GOLE 1 R is more of a unique product and it may have domr takers. On the positive side, shipping is included in the prizes, and deliveries are expected to start in December right after the crowdfunding campaign is over.

Via Liliputing and Notebookcheck

Share this:

Support CNX Software! Donate via cryptocurrencies or become a Patron on Patreon

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
11 Comments
oldest
newest
BinShuf
BinShuf
10 days ago

Well it’s cute, might have usable passive heat-sinking. And as to the price…
Nearly everything has doubled in price where I live. A bare 8gB Radxa Rock5 sells for 309€ on amazon here. The Firefly ROC-RK3588S-PC bare board sells for 500+€.The Jeton Nano which I paid a ‘ripoff’ 130€ for, three years ago now sells for 349€
Turns out The Great Reset was code word for “inflation”.

FreekieDeCakie
FreekieDeCakie
10 days ago

I’ll say it again.

For those prices it’s not competitive with Jasper Lake Intel systems if they’re seeking a desktop replacement with their 3588…

In fact at €300 onwards it’s competing with much stronger (but still small) systems.

https://store.chuwi.com/products/corebox-4th

Pete
Pete
9 days ago

The RK3566 is positioned as Rockchip’s ‘affordable’ SBC chip. But it only has A55 cores. With the RK3588, they’re trying to enter new markets as a low-end Mac Mini.

But yes, the price isn’t compelling. HDMI-in could be a killer feature but reviews haven’t been glowing about software support.

Laughable 3 hour battery life when handheld ARM64 devices typically last for days shows the limitations of shoehorning in a desktop CPU. If that isn’t Rockchip’s focus, I would expect Pine64’s next smartphone to be RISC-V based.

tkaiser
tkaiser
8 days ago

Asides not being convinced anyone at Rockchip wasting a though on SBCs or things like a ‘low-end Mac Mini’ your comment about the battery life being related to a ‘desktop CPU’ completely misses the use case: that’s actually using this thing with a display on battery so the majority of juice is sucked up by the display’s backlight as with every other such device regardless of CPU/SoC type.

Chris
Chris
10 days ago

Single RAM chip, so half bandwith… So it’s a stupid design. Why using such high preformance ARM core and killing it by not using full bits wide RAM capability ?

tkaiser
tkaiser
9 days ago

‘Single RAM chip, so half bandwith’ is nonsense regardless of the CPU’s ISA.

On x86 Jasper Lake thingies the performance difference between single-channel and dual-channel is negligible while an ARM Phytium D2000 box (octa-core A57) shows halfed memset scores but other than that same performance. In general even if there is a somewhat significant difference in memory bandwidth only a few use cases – mostly video/framebuffer related – are affected, see Hardkernel’s observations for example.

Tim
Tim
9 days ago

I was about to comment on this.

tkaiser
tkaiser
8 days ago

> 3D graphics are also impacted

At least benchmarks like glmark2-es2 that are expected to measure 3D graphics performance (but measure something different in reality) show higher scores with higher memory bandwidth…

Chris
Chris
5 days ago

On shared memories, it always happen.
