Zidoo M6 Arm mini PC review – Part 1: Unboxing and Teardown

I’ve just received my first Rockchip RK3566 platform with Zidoo M6 Arm mini PC that supports Ubuntu 18.04, Android 11, and Station OS.

I was sent the standard version with 4GB RAM and 32GB eMMC flash that will be suitable for most applications. I’ll start Zidoo M6 review with an unboxing and a teardown to check the hardware design and “hidden” features before reviewing with the device with Android 11 and/or Ubuntu 18.04.

Zidoo M6 Unboxing

Zidoo M6 mini PC

There’s nothing special about the package (and that’s a good thing in order to go more easily through customs), so let’s check out the package content.

Zidoo M6 Unboxing

Beside the box, it’s there’s an HDMI cable, a 5V/2A power adapter with a removable US plug, an IR remote control, and a user manual.

IR Remote control learning function

The remote control comes with an IR learning function to record some of your TV keys like volume, power, and source selection without having to rely on HDMI CEC, although it might be supported. You’ll need two AAA batteries to power the remote.

Zidoo M6 Review

The device itself has a metal look, but it’s quite light and the enclosure made of plastic. The front panel comes with a power button, a 3.5mm audio jack, with on the side a MicroSD card slot, a USB 2.0 port, and a reset pinhole.

RK3566 mini PC rear panel

The rear panel includes Gigabit Ethernet, USB 2.0, optical S/PDIF, a Micro USB OTG port, HDMI 2.0a video output up to 4Kp60, an RS232 DB9 serial port, and the DC jack. Sadly, there’s no external USB 3.0 port exposed despite the processor supporting it, because the board has some internal features, such as a mini PCIe socket for a 5G/4G modem, that make use of the USB 3.0 interfaces for other purposes.

Zidoo M6 Teardown

As we noted during the announcement, Zidoo will offer M6 either as a fully assembled mini PC or a standalone SBC. So let’s open the enclosure.

Mini PC warranty void sticker

First, you’ll notice the “warranty void” sticker on the bottom right, despite having a mini PCIe socket, Zidoo M6 mini PC is not designed to be opened. This is confirmed once I try to open it. You’ll need to remove the two rubber bands at the top to loosen two screws, and then use a tool or old credit card to take out the bottom cover.

Zidoo M6 Teardown

There’s not much to see on the bottom of the board apart from the SIM card slot. The chip at the bottom is not soldered, maybe because it’s used for the LED connector that can’t be used with the mini PC. We can remove two more screws to take the board out.

MINI_RK3566 SBC

We can see plenty of internal connectors that can be used for commercial and industrial applications like LVDS, MIPI DSI and CSI connectors, an I2C header, a VFD display header, mic array header, RTC battery, etc… The processor, memory, and storage and all cover by a soldered-on shield plus a heatsink.

RK3566 eMMC flash Memory

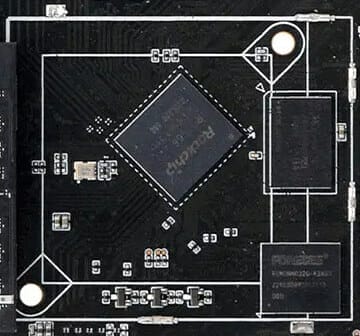

RK3566, FORESEE flash and RAM – Photo from Zidoo, as I have not attempted to remove the heatsink

Gigabit Ethernet relies on the usual RTL8211F transceiver, while WiFi 5 & Bluetooth 4.2 connectivity is enabled through a less common Fn-Link 6222B-SRB module based on Realtek RTL8822BS chip which means the mini PC/board does not support 802.11ax WiFi 6 by default as listed in the preliminary specs.

Rockchip RK817 & Fn-Link 6222B-SRB

Two internal antennas are connected to the wireless module and stuck to the plastic case. The board also features Rockhip RK817 PMIC that doubles as an audio codec.

Zidoo M6 does not appear to be for sale right now, or at least not directly to consumers, but businesses should be able to enquire Zidoo for the board or the mini PC on the company’s website.

Continue reading “Zidoo M6 preview with Android 11“.
