Nordic Semi nRF7002 DK low-power dual-band WiFi 6 IoT development kit launched for $56 and up

Nordic Semi nRF7002 DK is an IoT development kit based on the nRF5340 dual-core Cortex-M33 multi-protocol wireless SoC and nRF7002 companion chip adding low-power dual-band (2.4GHz and 5.0 GHz) WiFi 6 connectivity.

When Nordic Semi introduced the nRF7200 dual-band WiFi 6 companion chip for nRF52840 and nRF5340 wireless SoCs and nRF9160 cellular IoT SiP last summer, the “nRF7002-PDK” development kit was only mentioned in passing with a 3D render and not much else. The company has now announced the availability of the nRF7002 DK to help developers create low-power Wi-Fi 6 IoT applications.

nRF7002 DK development kit

nRF7002 DK specifications:

  • Wireless MCU – Nordic Semi nRF5340 dual-core Arm Cortex-M33 microcontroller @ 128/64 MHz with 1 MB Flash + 512 KB RAM for the application core and 256 KB Flash + 64 KB RAM for the network core, Bluetooth 5.1 LE with direction-finding support, Bluetooth mesh, NFC, Thread, Zigbee, 802.15.4, ANT, and 2.4 GHz proprietary
  • WiFi chip – Nordic nRF7002 802.11b/g/n/ac/ax Wi-Fi 6 dual-band (2.4/5.0 GHz) companion IC with support for Target Wait Time (TWT), STA mode
  • Antennas – On-board 2.4 and 5.0 GHz antennas, NFC antenna connector
  • Expansion
    • Arduino headers
    • Other I/O headers
  • Debugging
    • Micro USB port connected to SEGGER debugger
    • Micro USB port connected to nRF5340
    • 2x debug ports for either an external debugger or use the SEGGER debugger with another board
    • 2x current measurement headers
  • Misc – Power on/off switch, 2x user buttons, Reset button, user LEDs
  • Power Supply
    • 5V via micro USB port
    • Two types of LiPo battery connectors

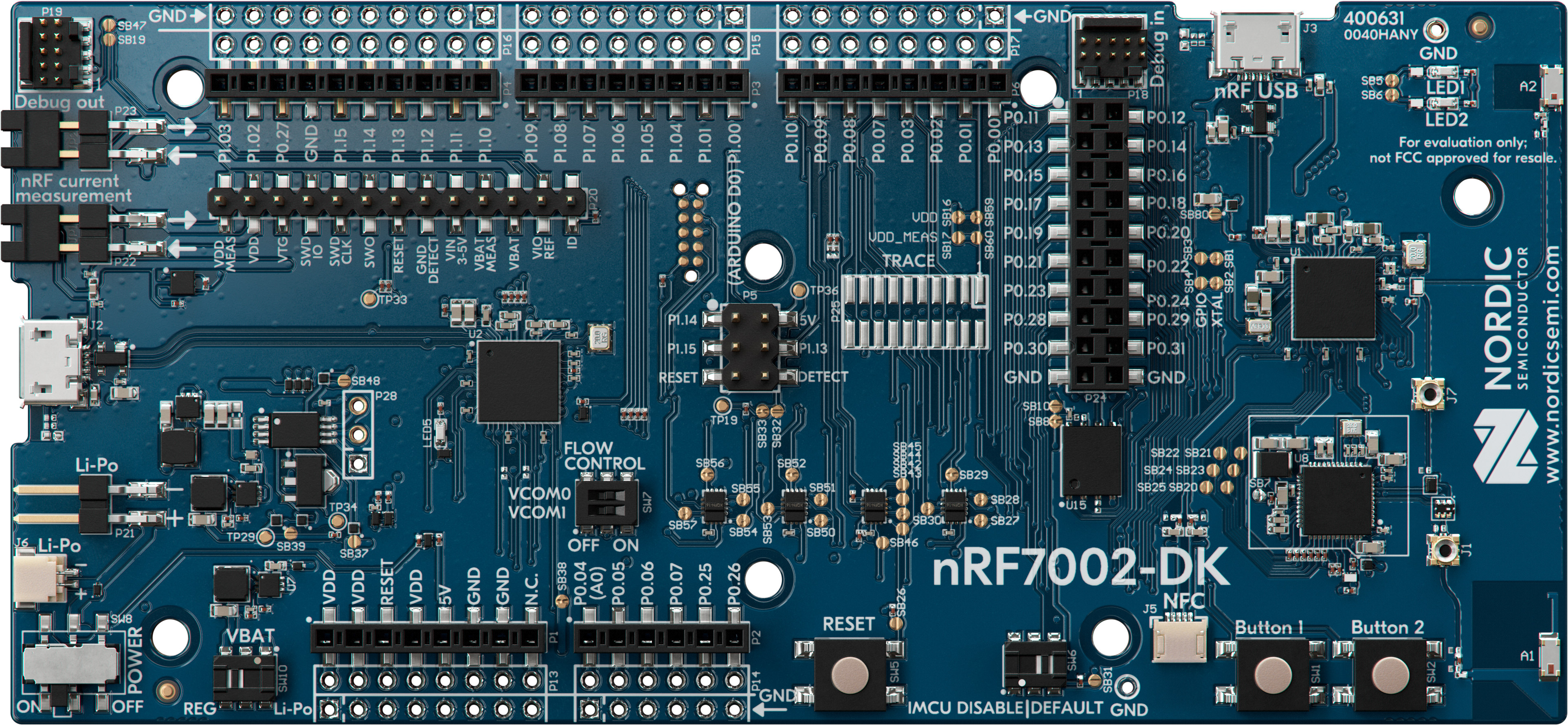

Nordic Semi nRF7002 low power WiFi 6 IoT development board

The nRF7002-DK is supported by the nRF Connect SDK, and the company says it’s Matter compatible with Thread and Wi-Fi for data transport and Bluetooth LE for commissioning. You’ll also find hardware design files, the nRF Wi-Fi Provisioner mobile app, and a precompiled Wi-Fi Provisioning Service sample in the Download section of the product page.

The development kit can serve as a base to develop battery-operated Wi-Fi products, Smart City & Smart Agriculture applications, Smart Home appliances, industrial sensors, wearables, medical devices, and asset trackers. The nRF7002 DK can be purchased on various distributions such as Mouser ($56.25) or Rutronik24 (58.58 Euros).

Via Hackster.io
