Raspberry Pi CM4-powered outdoor gateway supports GbE, WiFi 5, Bluetooth 5.0, 4G LTE, LoRaWAN, and GPS connectivity

EDATEC ED-GWL2110 is an IP24-rated outdoor gateway based on Raspberry Pi CM4 and supporting Gigabit Ethernet, WiFi 5, Bluetooth 5.0, 4G LTE cellular, LoRaWAN, and GPS connectivity, as well as Power over Ethernet (PoE).

The weatherproof gateway also comes with two microSD cards for the OS (CM4 Lite) and data, an HDMI 2.0 output port, a serial console, and features such as an RTC with backup battery, a watchdog, an ATECC608 secure element, and a user-programmable RGB LED.

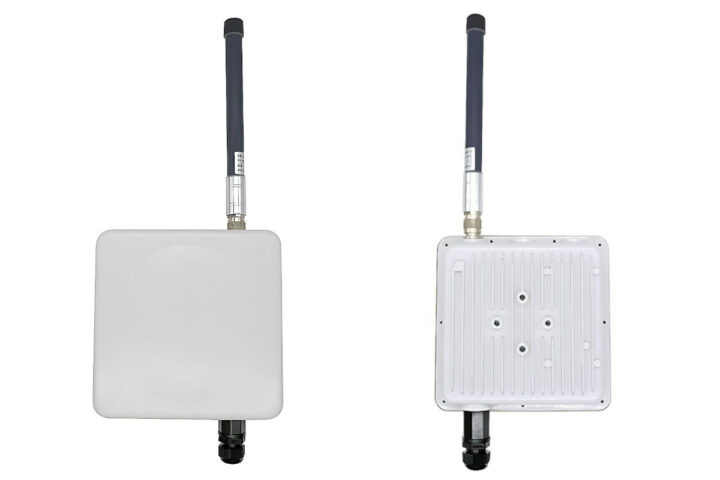

EDATEC ED-GWL2110 outdoor gateway

EDATEC ED-GWL2110 specifications:

  • SoM – Raspberry Pi Compute Module 4
    • SoC – Broadcom BCM2711 quad-core Arm Cortex-A72 processor @ up to 1.5GHz with VideoCore VI GPU
    • System Memory – 1GB, 2GB, 4GB, or 8GB RAM
    • Storage – Optional 8GB, 16GB, or 32GB eMMC flash
    • Wireless – Optional WiFi 5 and Bluetooth 5.0
  • Storage – Dual micro SD card slot for OS (Raspberry Pi CM4 Lite) and data
  • Video Output – 1x HDMI 2.0 port
  • Connectivity
    • Gigabit Ethernet RJ45 port
    • Optional Wireless module on SoM
    • Optional 4G LTE mini PCIe module
    • Optional LoRa mini PCIe module with 868MHz (EU868,RU864), 915MHz (US915,AS923-1/2/3,AU915), or 470MHz(CN470) frequency bands
    • GNSS – GPS, BeiDou, GLONASS with L76K module soldered on carrier board
    • Antenna – Up to 3x external antennas for WiFi/Bluetooth, 4G LTE, and GNSS
  • Serial – 1x Serial (TTL) for serial console
  • Misc
    • Real-Time Clock with CR1220 button cell
    • 1x User button
    • 1x RGB LED
    • Watchdog
    • On-board ATECC608 encryption chip
  • Power Supply – 40V to 57V DC via PoE
  • Dimensions – 195 x 195 x 65 mm (aluminum enclosure)
  • Temperature Range – -25 to 60°C
  • IP Rating – IP24 (water spray from any direction)

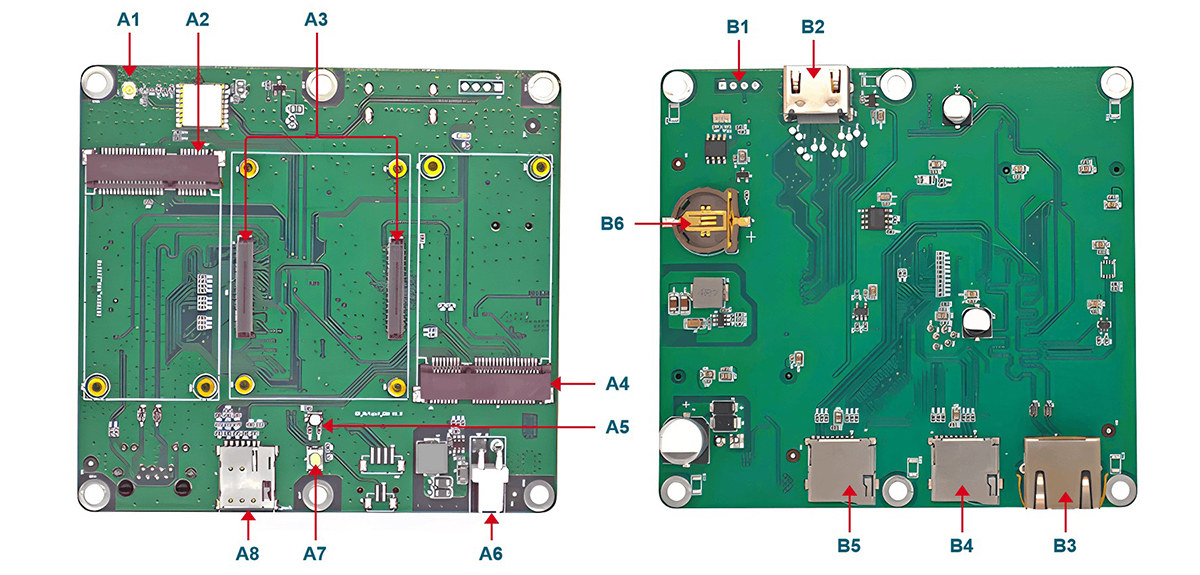

Outdoor gateway Raspberry Pi CM4 EDATEC ED GWL2110 carrier boardThere’s no information about the operating system, but other Raspberry Pi CM4-based products from EDATEC such as the CM4 Industrial rely on Raspberry Pi OS plus some extra scripts installed from apt using the “https://apt.edatec.cn/raspbian/” repository. There’s nothing for the ED-GWL2110 gateway at the time of writing, but something should eventually show up there.

EDATEC expected the outdoor gateway to be leveraged for Smart Manufacturing (Industry 4.0), Smart City, and Smart Transportation applications, as well as used as a smart LoRaWAN gateway. We don’t have pricing information yet for the Raspberry Pi CM4-based outdoor gateway, but some samples should eventually be sold on the company’s Aliexpress store. More details may also be found on the product page.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

One Reply to “Raspberry Pi CM4-powered outdoor gateway supports GbE, WiFi 5, Bluetooth 5.0, 4G LTE, LoRaWAN, and GPS connectivity”

  1. I guess it probably runs openwrt which would be most suitable for networking devices as it has all the support for managing network, firewalling, vlans ,4g, wifi and can still have more specific things like zabbix monitoring, mqtt etc.
