EDATEC ED-HMI2020-101C – A 10.1-inch Raspberry Pi CM4-based industrial panel PC

EDATEC has launched yet another Raspberry Pi CM4-based platform for industrial applications with the ED-HMI2020-101C 10.1-inch panel PC with 1280×800 resolution, 9V to 28V wide power input, and support for an optional “extended display” via an HDMI FPC cable that also carries USB/I2C signal for the touchscreen.

The system comes with up to 8GB RAM, 32GB eMMC flash, Gigabit Ethernet, optional WiFi 5 and Bluetooth 5.0, built-in stereo speakers, several other audio interfaces, as well as a 40-pin GPIO header for expansion.

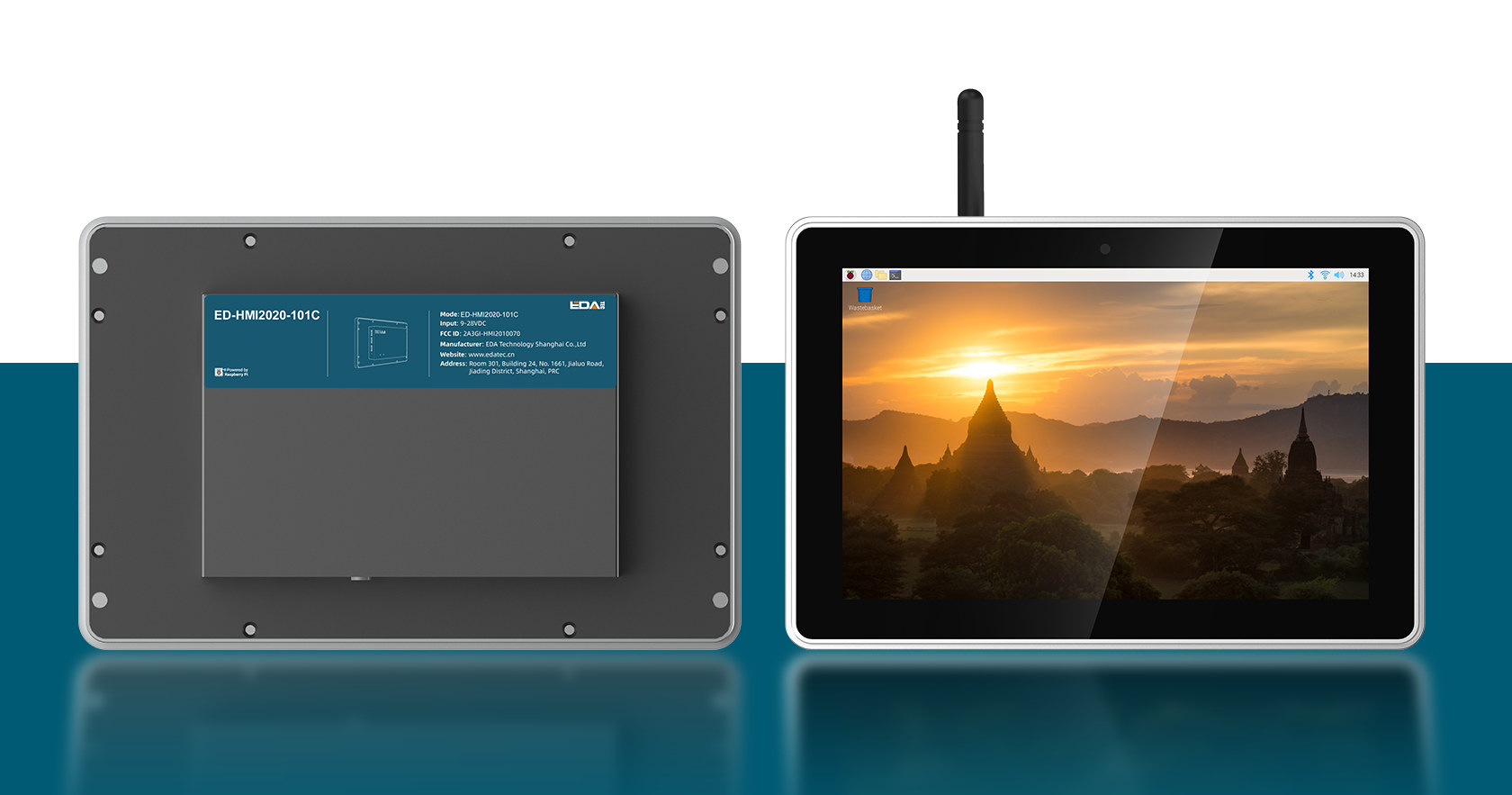

10.1-inch Raspberry Pi CM4 industrial panel PC

EDATEC ED-HMI2020-101C specifications:

  • System-on-Module (SoM) – Raspberry Pi CM4
    • SoC – Broadcom BCM2711
      • CPU – Quad-core Cortex-A72 processor @ 1.5GHz
      • GPU – VideoCore VI conformant with OpenGL ES 3.1 & Vulkan 1.2
      • VPU
        • 4Kp60 H.265 video decoder
        • 1080p60 H.264 video decoder
        • 1080p30 H.264 video encoder
    • System Memory – 1GB, 2GB, 4GB, 8GB LPDDR4-3200 SDRAM
    • Storage – 8GB, 16GB, 32GB eMMC flash
    • Wireless – Optional WiFi 5 and Bluetooth 5.0 module
  • Storage – MicroSD card slot, 4KB EEPROM
  • Display
    • 10.1″ WSVGA TFT LCD display with 1280×800 resolution, 16.7M colors
    • Active Area – 135.36 mm(H) x 216.576 mm(V)
    • Backlight – LED
    • MTBF – > 30,000h
    • Pixel Pitch – 0.169 x 0.169mm
    • Luminance – 350cd/m^2
    • Contrast Ratio – 1000:1
    • Response Time – 30ms
    • Viewing Angle (H/V) – 80°/80°
    • 10-point capacitive touch screen with >=85% transmittance, I2C controller
    • Surface Hardness – 6H
  • Video Output
    • HDMI 2.0 port up to 4Kp60
    • 40-pin FPC HDMI connector for “extended LCD” with support for USB/I2C touch screen and backlight adjustment.
  • Camera – Built-in 8MP front-facing camera
  • Audio
    • 4Ω/5W stereo speakers
    • 1x Audio In/Stereo out
    • 3.5mm audio jack with MIC IN and LNE OUT.
    • Note: When a headphone is connected, the audio output switches to the headphone, when no headphone is connected, the audio output switches to the speaker
  • Networking
    • Gigabit Ethernet RJ45 port with optional PoE
    • Optional WiFi and Bluetooth on SoM plus SMA port for antenna
  • USB
    • 2x USB 3.0 Type-A ports
    • 5-pin USB 2.0 FPC connector
  • Expansion – 40-pin GPIO header for Raspberry Pi CM4 I/Os, compatible with expansion modules
  • H/W Security – Unnamed hardware authentication chip
  • Misc
    • Reset and Rpiboot (eMMC flash) buttons
    • Power LED (Red), status “ACT” LED (Green)
    • RTC + CR1220 battery installed during production
    • Buzzer
  • Power Supply
    • 9V to 28V DC input via power barrel jack with over-current, over-voltage, reverse connection and surge protection
    • 2-pin 12V DC/1A output for “extended LCD”
    • Power consumption – 20 Watts
  • Dimensions – 263 x 177 x 40 (not including the antenna)
  • Weight – 1.1 Kg
  • Temperature Range – Operating: 0°C to 50°C; storage: -10°C to 60°C
  • Humidity – 20% to 90% non-condensing
  • Certifications
    • FCC – FCC 47 CFR Part 15 Subpart B
    • CE
      • EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3
      • EN 55032/EN 55035/
      • EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52
      • EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2

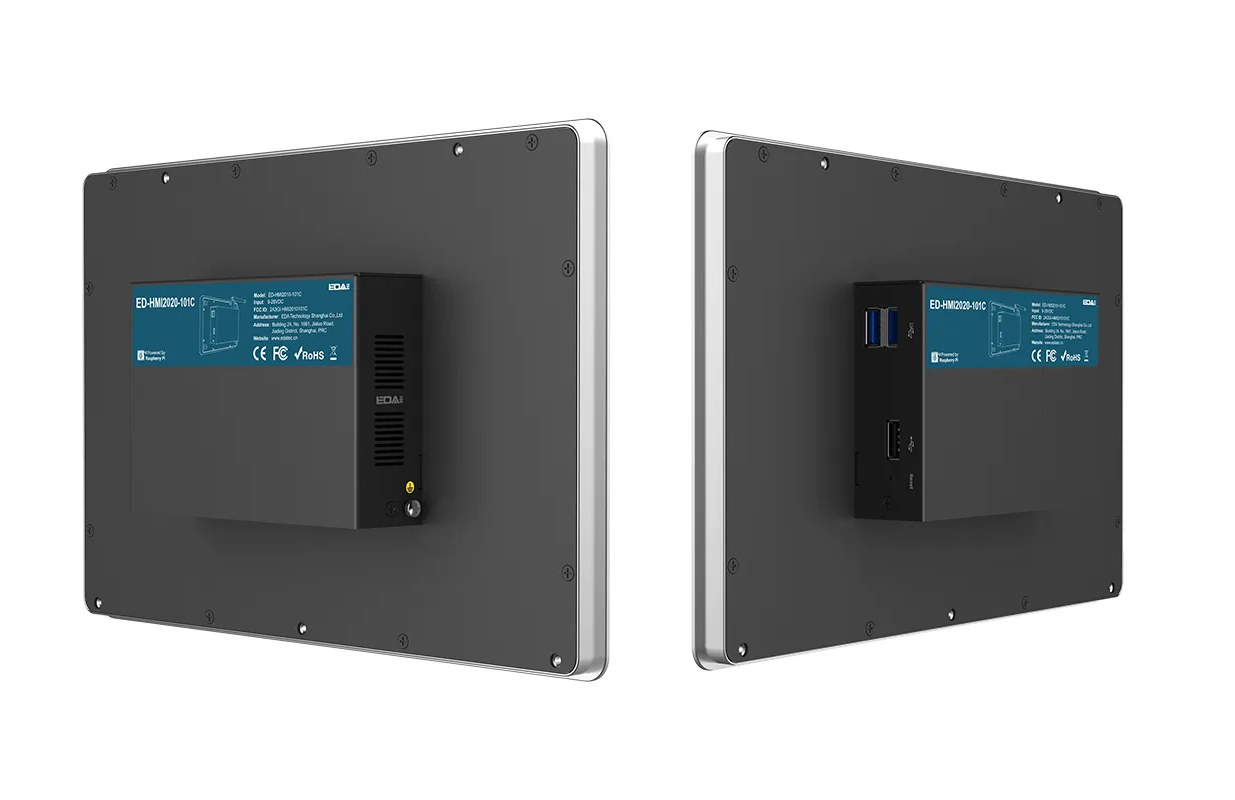

EDATEC ED-HMI2020-101C

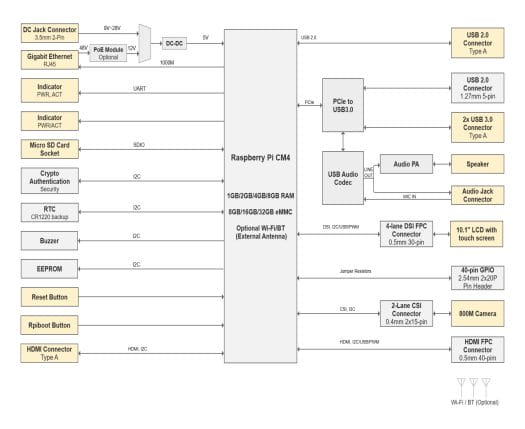

EDATEC CM4 Panel PC block Diagram
Block diagram

EDATEC says the industrial Panel PC supports Raspberry Pi OS (Desktop) 32-bit or 64-bit or Raspberry Pi OS (Lite) 32-bit or 64-bit, but the latter obviously does not make a lot of sense for a panel PC… I find it a little odd there’s no ingress protection (IP) rating for this type of hardware, as other Raspberry Pi CM4-based panel PCs such as ComfilePi CPi-C070WR4C or WIN Enterprises PL-50300 are rated IP67 (at the front).

EDATEC ED-HMI2020-101C 10.1-inch RaspberryPi CM4-based industrial panel PC is available now and you can purchase samples of the “ED-HMI2020-101C-1108-10” model with 1GB RAM, 8GB eMMC flash, WiFi & Bluetooth for $199 on Aliexpress. Further information may also be found on the product page.
