Amlogic S905X5 Armv9 TV Box SoC supports AV1, H.266, Ai-SR

The Amlogic S905X5 may be first the Armv9 processor designed for set-top boxes (STB) and TV boxes, supports the latest AV1 and H.266 video codecs, and also comes with a 4 TOPS AI accelerator.

We don’t have the full details yet, and the news comes from a tease from SEI Robotics which is about to unveil an Amlogic S905X5 AI-SR (AI Super Resolution) Android TV box at IBC 2023.

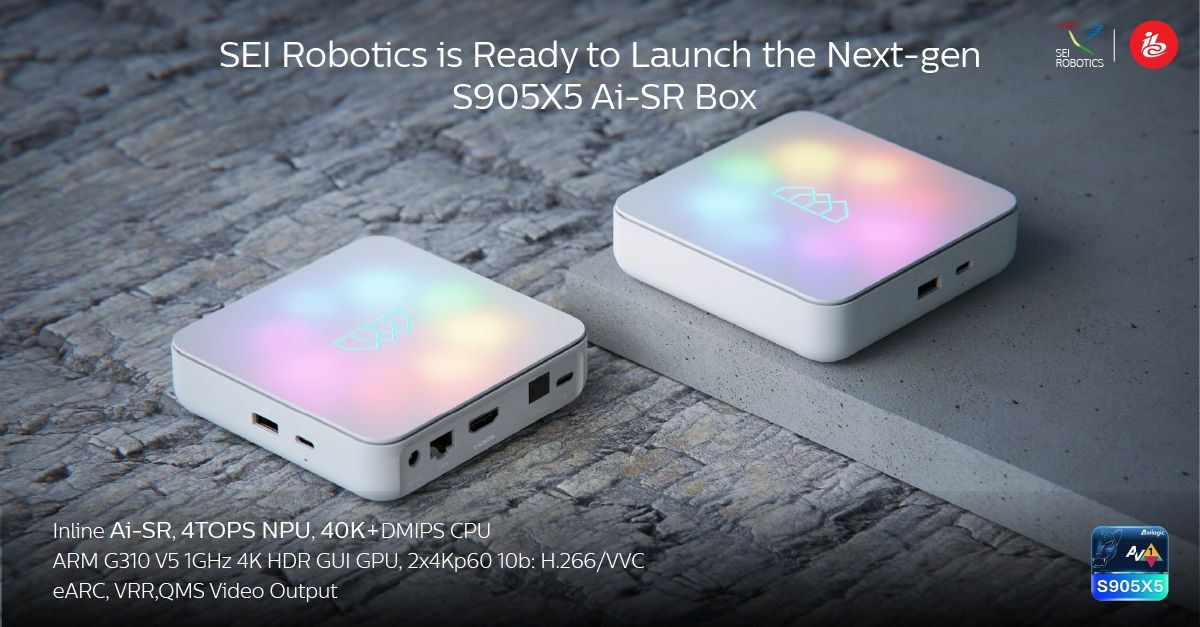

Amlogic S905X5 TV Box

Preliminary specifications for S905X5 SoC and SEI Robotics TV box:

  • SoC – Amlogic S905X5
    • CPU – Quad-core Armv9 CPU (likely Cortex-A510 cores) delivering 40K+ DMIPS
    • GPU – Arm Mali-G310 V5 entry-level GPU clocked at 1 GHz for 4K HDR user interfaces
    • VPU – Up to 2x 4Kp60 10-bit H.266/VCC and AV1 video codecs, and the usual VP9, AVS3, H.265/HEVC, H.264
    • AI accelerator – 4 TOPS NPU enabling AI-SR
    • Process – “Second generation” 6 nm process
  • System Memory & Storage – TBD
  • Video Output – HDMI 2.1 up to 4Kp60 with eARC (enhanced audio return channel), VRR (Variable Refresh Rate), QMS (Quick Media Switching)
  • Audio – Support for Dolby, Dolby Atmos
  • Networking – Ethernet port, likely WiFi and Bluetooth
  • USB – 2x USB Type-A ports, 1x USB Type-C port

AI-SR (AI super-resolution) is just an upscaling method that leverages artificial intelligence to deliver a better image quality. For example, you can stream a 1080p60 video stream on a 4K TV close to the quality of a 4K video streaming providing the AI-SR upscaling works as expected.

It’s nice to see one of the first entry-level Armv9 processors soon come to market and it boasts some relatively uncommon features such as H.266 and Ai-SR. SEI Robotics did not say when the new Amlogic S905X5 “Ai-SR” Android TV box will come to market but I suspect that will be a 2024 story.

Via AndroidTVBox.eu

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
20 Comments
oldest
newest
FreekiedeCakie
1 year ago

Sure it’s the Cortex A510 since it “40K+ DMIPS”?

The Amlogic S905X4 claimed 22K. I don’t think the A510 would be that great of an upgrade.

But maybe the better process (6nm vs 12nm) + arch improvement + clocking the shit out of it can do that?

dave
dave
1 year ago

could be cortex a520 instead of a510.

FreekieDeCakie
1 year ago

ARM only advertised 8% performance (at iso power) compared to the A510, so would still need to clock at +-2.5 ghz for 40k DMIPS with 4 cores. Maybe 2.4 ghz with a more liberal estimate.

Also weird to see a new ARM core appear that quickly in a cheap TV-box.

Perhaps a 1Big+3little configuration.

Stuart Naylor
1 year ago

Might be 1+3 as the higher clock ArmV9 big core might be the brawn with the NPU for super resolution as a “Ai-SR” settop box is impressive. Would you jump to Arm9 just to employ little cores with likely lower cost IP avail on alternative big cores? Interesting to see a ArmV9 Soc though as guess this means others will also be in the pipeline. The NPU is interesting as “Ai-SR” is going to rquire some grunt whilst many say the RK3588 NPU ‘6tops’ is really 3 cores of 2 tops that don’t seem to scale all that well. Even… Read more »

tkaiser
tkaiser
1 year ago

> could be cortex a520 instead of a510.

Could be -O3 instead of -O2 (Dhrystone is mostly a compiler benchmark 😉 )

Pinok
Pinok
1 year ago

And all this power is useless because it cannot play Netflix even in 720p…

Erik
Erik
1 year ago

You ARE aware the the “Chromecast with Google TV (4K)” uses an Amlogic SX S905X3, right? Never mind that there’s still plenty of people using these things to watch stuff streamed from their Plex or whatnot.

Anthony
Anthony
1 year ago

Does it support Dolby Vision?

ezio comi
1 year ago

I want s928x not another release of s905

tkaiser
tkaiser
1 year ago

Why? S928X is advertised by Amlogic as ’36K+ DMIPS’ but this thing here gets the ’40K+ DMIPS’ label!

(needless to mention that Dhrystone MIPS are pure and utter BS for decades now, especially in this weird way Amlogic is doing it adding theoretical single-threaded DMIPS of individual cores to a ‘multi-threaded DMIPS’ BS number)

Ezio comi
1 year ago

My bad..I was thinking that s905x5 was another version of old chip

But seems to be more powerful than s928x

So I was expecting more horse power cause I like Kodi and Cpu is important for large library scan etc

Anonymous
Anonymous
1 year ago

Is there any reason other than SoC segmentation to have that VPU not be capable of decoding 8K?

I just looked and found that 6th gen Intel can decode 8K H.265, and 7th gen can decode 8K VP9 (both 8-bit 4:2:0). By 11th gen, the iGPU is technically capable of decoding 16K H.265/VP9/AV1.

TLS
TLS
1 year ago

Licensing cost for the video decoder engine.

nobitakun
nobitakun
5 months ago

Usefulness of media resolution and number of interested people would be the true reason lol.

nobitakun
nobitakun
1 year ago

This is very very interesting news for the emulation world.

Cortex A510 is capable of emulating Gamecube and Wii without much trouble. If this SoC is intended for low cost android TV boxes, it can be the substitute of a Raspberry Pi 4 if the CPU clock is 2Ghz+.

With the addition of creating some low cost handheld retro consoles for 60-80€ that can emulate a console like a Wii, Saturn or N64 without any hiccups.

Today is a happy day for emulation 🙂

Bill
Bill
1 year ago

Not too bad. The pricing will determine it’s success though, so if entry level, needs an entry level pricing structure.

John Smith
John Smith
1 year ago

Would an android TV box be able to handle a powered hub with about half a dozen portable HDDs?
