T-Display-S3-Long board features ESP32-S3 WiSoC, a wide touchscreen display

LILYGO has designed plenty of ESP32 boards with an integrated display, but the new T-Display-S3-Long may be suitable for different applications since the ESP32-S3 board comes with a wide 3.4-inch touchscreen display with 640×180 resolution.

The WiFi and Bluetooth wireless display board is powered by an ESP32-S3R8 WiSoC with 8MB PSRAM, and comes with a 16MB SPI flash, two Qwiic connectors and a 30-pin header for expansion, a USB Type-C port for power, charging, and programming, and a 2-pin connector for an optional LiPo battery.

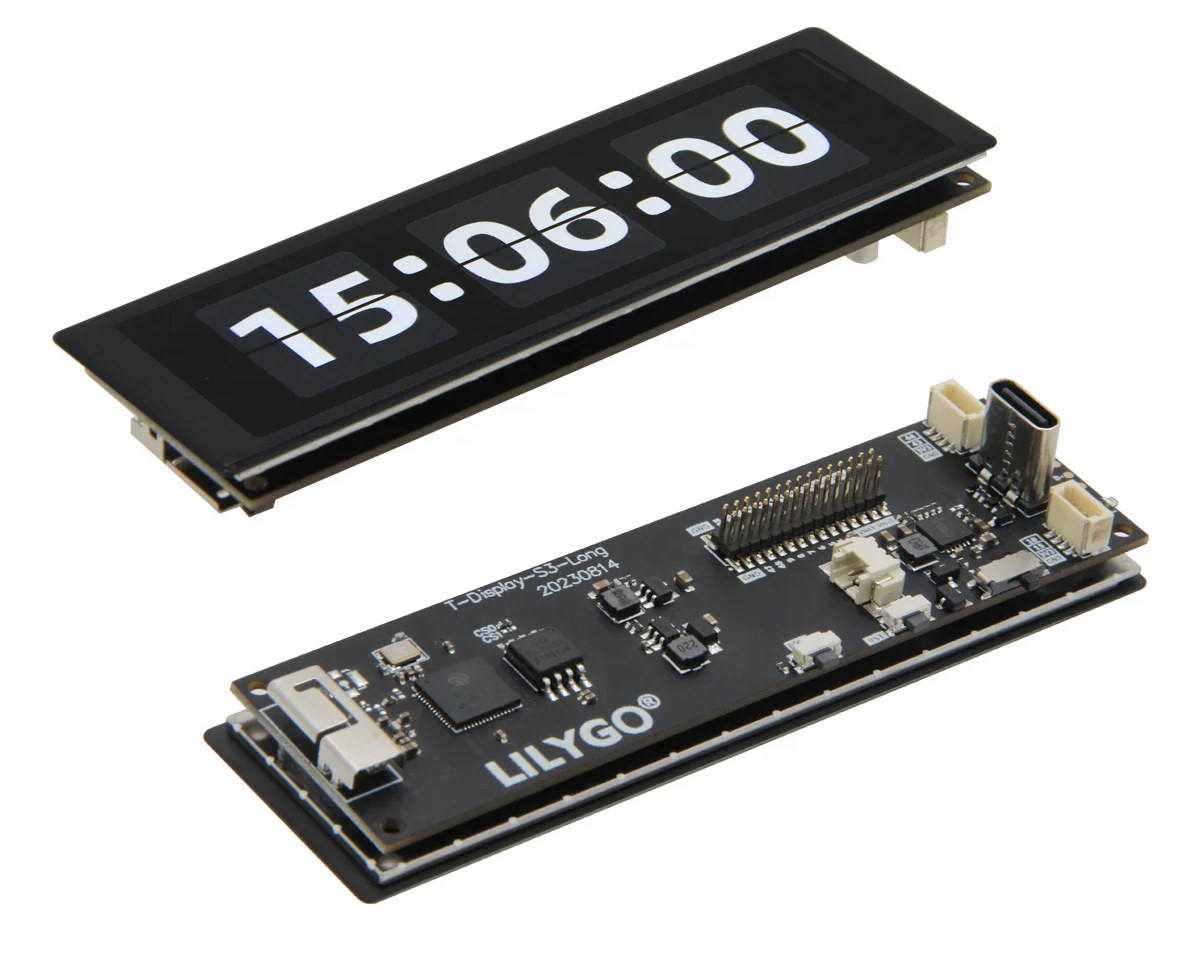

T-Display-S3-Long

T-Display-S3-Long specifications:

  • Wireless MCU – Espressif Systems ESP32-S3R8 dual-core Tensilica LX7 @ up to 240 MHz with vector instructions for AI acceleration, 512KB RAM, 8MB PSRAM, wireless connectivity
  • Storage – 16MB flash (W25Q128)
  • Connectivity via ESP32-S3
    • 2.4 GHz 802.11 b/g/n Wi-Fi 4 with 40 MHz bandwidth support
    • Bluetooth Low Energy (BLE) 5.0 connectivity with long-range support, up to 2Mbps data rate.
    • Bluetooth Mesh
    • 3D antenna for WiFi and Bluetooth
  • Display – 3.4-inch 640×180 color (RGB565 and RGB666 supported) TFT LCD with capacitive touchscreen via unnamed QSPI controller
  • USB – 1x USB Type-C OTG port for power, charging, and programming implemented via SY6970 OTG chip
  • Expansion
    • 2x Qwiic I2C connectors
    • 30-pin header with 1.27mm pitch
  • Misc – Boot and Reset buttons, battery/USB power selection switch
  • Power Supply
    • 5V via USB Type-C port
    • 2-pin JST connector for LiPo battery; battery voltage detection pin (IO8); charging should be implemented through the SY6970 chip
    • PT4103 step-up DC/DC converter; SY8089AAAC regulator
  • Dimensions – 92 x 28 x 16 mm

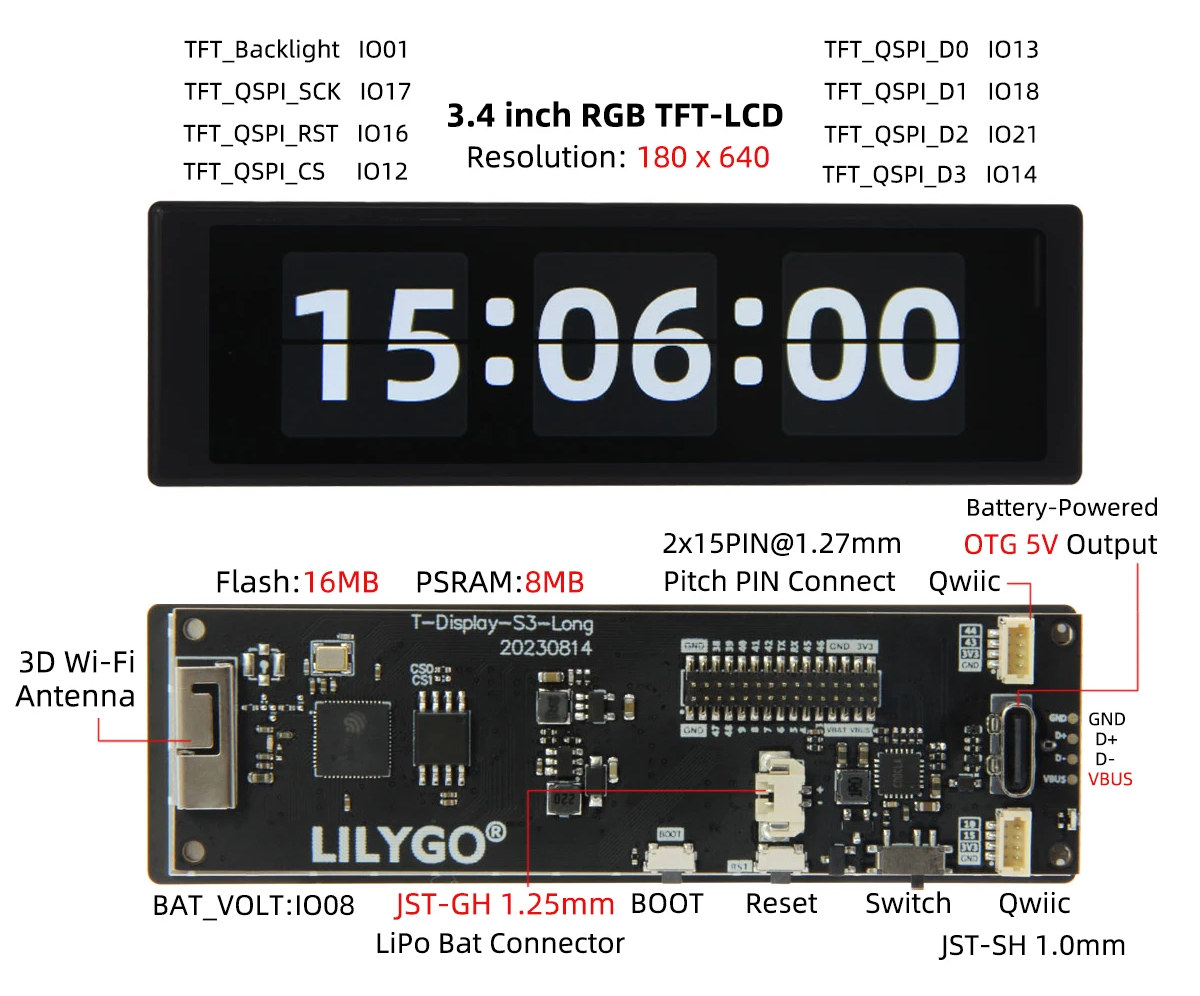

ESP32-S3 board wide touchscreen displayLILYGO provides PlatformIO/Arduino firmware and samples (factory test code, TFT sample, touchscreen sample, and LVGL demo), PDF schematics, datasheets, and basic documentation on GitHub. Since documentation is limited, and there aren’t any full-functioning projects, the T-Display-S3-Long is mostly suitable for people with Arduino/PlatformIO programming experience and most beginners will probably struggle with the board…

LILYGO is taking pre-orders for the T-Display-S3-Long ESP32-S3 wide display board on Aliexpress for $33.98 including shipping with deliveries scheduled to start by mid-December. Since Aliexpress’ Black Friday sales are not quite over yet, you should be able to use codes such as USAFF6 (US only) or CNXALI6 (most of the world with some exceptions) to get a $6 discount for orders over $45.

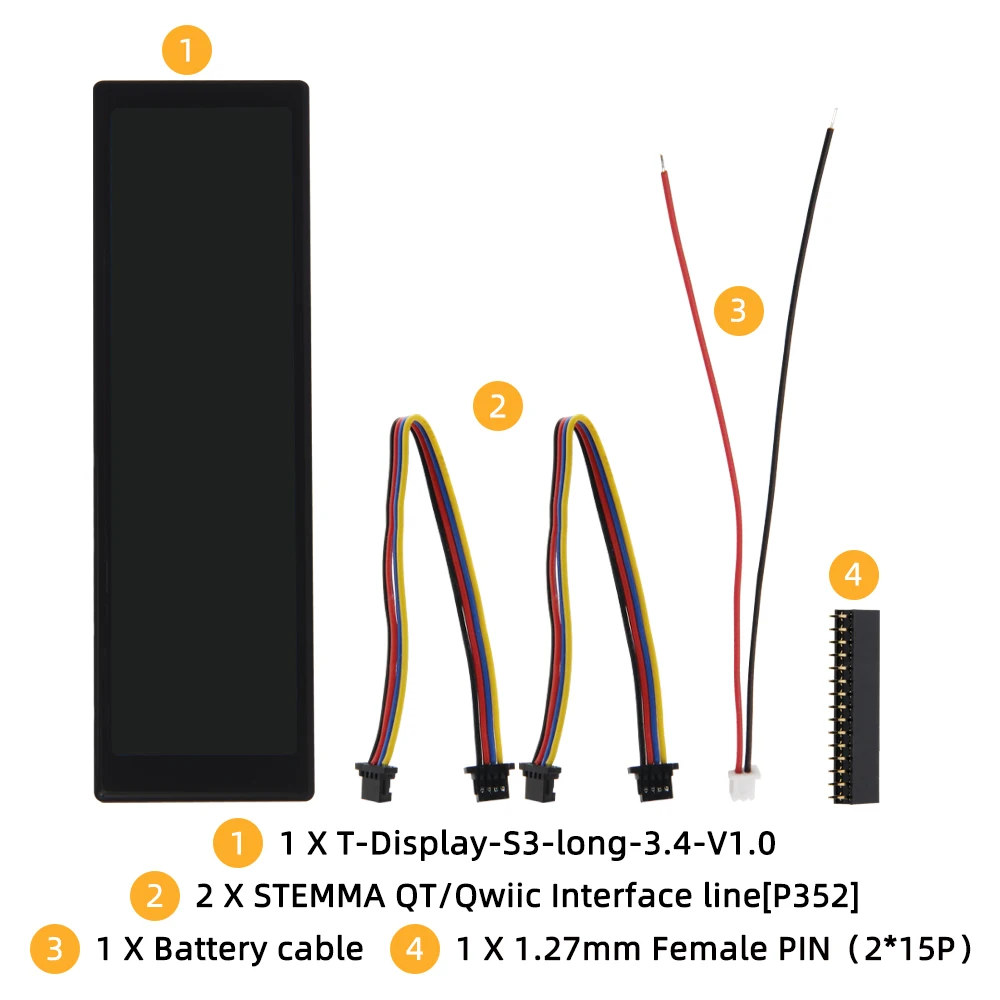

ESP32-S3 wide display board and accessories
