SAPPHIRE EDGE IPC-FP6 mini-ITX motherboard supports 10GbE networking

SAPPHIRE EDGE IPC-FP6 is a mini-ITX motherboard powered by an AMD Ryzen Embedded V2000 SoC with support for 10GbE networking and designed for gaming machines, medical imaging equipment, digital signage, thin clients, or POS terminals.

The motherboard also comes with four 4K-capable DisplayPort video outputs, M.2 sockets for storage and wireless, two SATA ports for mass storage, up to eight USB interfaces, a PCIe x8 slot for expansion,  and a combo audio jack.

SAPPHIRE IPC-FP6 mini ITX motherboard 10GbE
With large cooler (98x81x36.5mm) for V2748/V2546

SAPPHIRE EDGE IPC-FP6 specifications:

  • SoC – AMD Ryzen Embedded V2000
    • AMD Ryzen Embedded V2516 hexa-core/12-thread processor @ 2.1 GHz / 3.95 GHz (Turbo) with 3MB L2 cache, 6 CUs Radeon RX Vega 6 GPU @ 1.5 GHz; TDP: 10-25W TDP (15W default)
    • AMD Ryzen Embedded V2546 hexa-core/12-thread processor @ 3.0 GHz / 3.95 GHz (turbo) with 3 MB L2 cache, 6 CUs Radeon RX Vega 6 GPU @ 1.5 GHz; TDP: 35-54W TDP (45W default)
    • AMD Ryzen Embedded V2718 octa-core/16-thread processor @ 1.7 GHz / 4.15 GHz (Turbo) with 4MB L2 cache, 7CUs Radeon RX Vega 7 GPU @ 1.6 GHz; TDP: 10-25 W TDP (15W default)
    • AMD Ryzen Embedded V2748 octa-core/16-thread processor @ 2.9 GHz / 4.15 GHz (Turbo) with 4MB L2 cache, 7CUs Radeon RX Vega 7 GPU @ 1.6 GHz; TDP: 35-54W TDP  (45W default)
  • System Memory – Up to 64GB DDR4-3200 (ECC/Non-ECC) via 2x SO-DIMM sockets
  • Storage
    • 2x SATA 3 (6.0 GB/s) and 1x SATA power
    • Support for NVMe SSD via M.2 socket (see Expansion section)
  • Video Output – 4x DP 1.4 + 1x eDP shared with 1x DP 1.4 up to 3840 x 2160 @ 60 Hz
  • Audio – 1x Line-In, 1x Line-Out, 1x Mic-In
  • Networking
    • 1x 10GbE RJ45 port via Marvell AQC107 controller
    • 1x Gigabit Ethernet RJ45 port via Realtek RTL8111H controller
    • Optional wireless module via N.2 socket (see Expansion section)
  • USB
    • 2x USB 3.1 Gen2 Type-A ports
    • 2x USB 2.0 Type-A ports
    • 4x USB 2.0 interfaces via header
  • Serial
    • 2x RS232/422/485 DB9 COM ports
    • 2x 10-pin RS232 headers
  • Expansion
    • 1x M.2 (Key M, 2242/2260/2280) socket with PCIe x4 for SSD
    • 1x M.2 (Key E, 2230) socket with PCIe x1 and USB 2.0 for wireless
    • PCIe x8 slot
  • Security – Infineon SLB9670 TPM 2.0 chip
  • Misc – 10-pin front-panel header, watchdog timer trigger signal
  • Power – 12-19V via DC power jack or 2-pin power header with protection diode
  • Dimensions – 170 x 170 mm (Mini-ITX form factor)
SAPPHIRE IPC-FP6 60mm cooler
With 60x60mm cooler for V2718/V2516
IPC-FP6 connectors

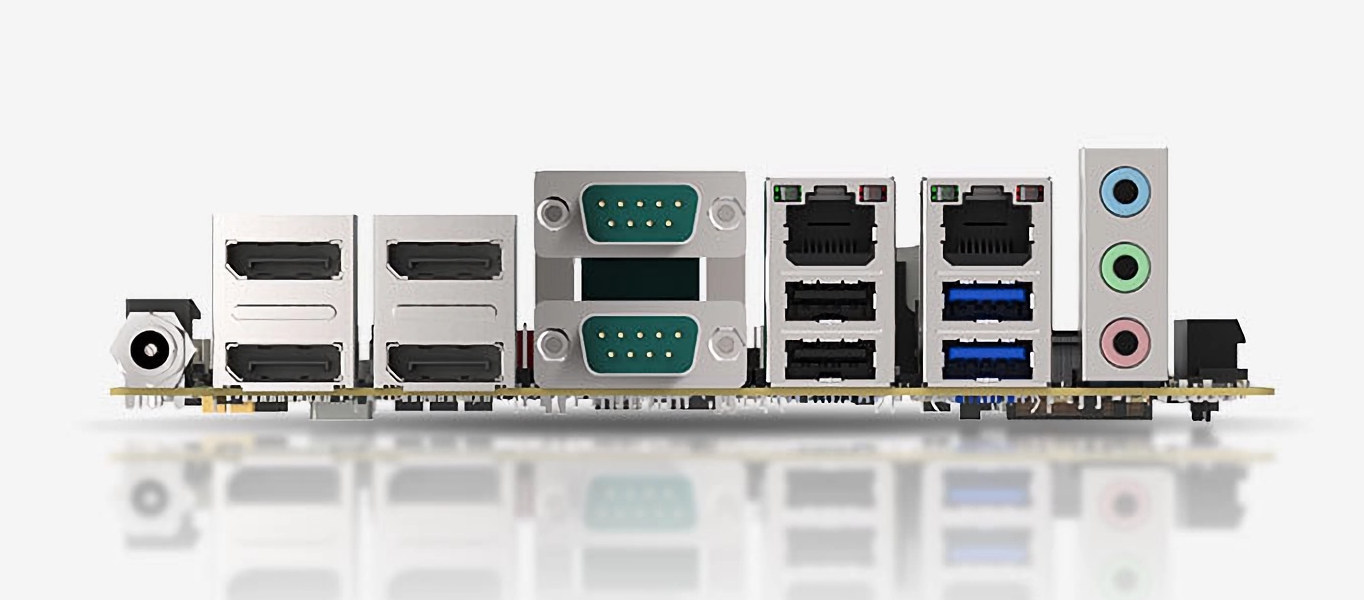

Rear panel connectors

As you can see from the photos above SAPPHIRE provides different cooling solutions depending on whether 15W or 45W Ryzen V2000 processors are fitted to the IPC-FP6 board. The documentation lists Windows 10 64-bit and Ubuntu 20.04.1 64-bit as supported operating systems.

That’s a bit old, but that’s because the IPC-FP6 Ryzen V2000 motherboard appears to have been introduced in 2021 or 2022 after the company launched the FS-FP6 mini-STX motherboard with similar features. But I was only made aware of the IPC-FP6 a few days ago and decided to write about it since there may not be that many mini-ITX motherboards with 10GbE (and gigabit Ethernet) ports around.

Since it’s been released a few years ago, you’d think it would be easy enough to find pricing information. But this mini-ITX motherboard is designed for commercial applications and won’t sell to consumers, so you’d have to contact SAPPHIRE or one of their distributors to purchase in quantities. Further details may be found on the product page.
