Smartcam T1205 – An IP65-rated AI camera with NVIDIA Jetson Orin Nano 40 TOPS system-on-module

SmartCow’s SmartCam T1025 is a powerful AI camera based on the NVIDIA Jetson Orin Nano 8GB system-on-module with 40 TOPS of AI performance. The camera features M12 connectors for gigabit Ethernet, power, and serial interface, and has been certified with an IP65 ingress protection rating for outdoor operation.

The camera also comes with 256GB NVMe SSD for the OS (Jetpack 6.0) and data storage and supports 4G LTE and GPS connectivity through an M.2 module. The company also introduced the SmartCam T1023 model compatible with NVIDIA Jetson Nano and Jetson TX2 NX for applications that do not require as much processing power and/or memory as provided by the Jetson Orin Nano AI camera.

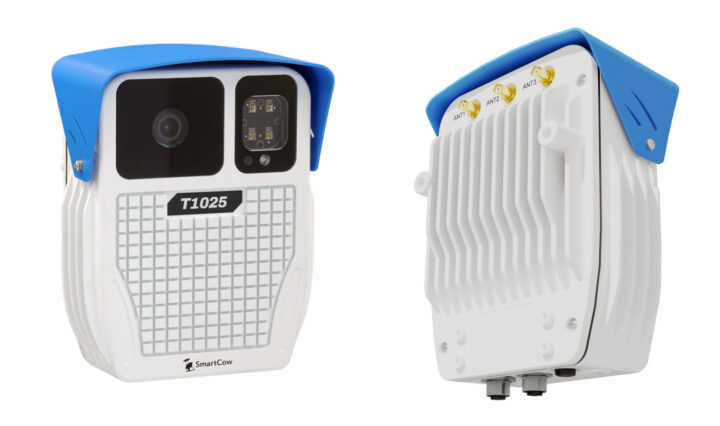

NVIDIA Jetson Orin Nano AI camera

SmartCam T1025 specifications:

  • System-on-module – NVIDIA Jetson Orin Nano 8GB
    • CPU – 6-core Arm Cortex-A78AE v8.2 64-bit CPU @ 1.5 GHz with 1.5 MB L2 + 4 MB L3
    • GPU – 1024-core NVIDIA Ampere GPU @ 625 MHz with 32 Tensor cores
    • AI performance – 40 Sparse TOPS | 20 Dense TOPS
    • System Memory – 8GB 128-bit LPDDR5 68 GB/s
  • Storage – 256GB NVMe SSD
  • Camera
    • Image Sensor – SONY IMX335 5MP sensor
    • Max. Image Resolution – 2560H x 1920W up to 30fps
    • HDR support
    • Built-in IR illumination with Day/Night/Auto modes
  • Lens
    • Focal Length – 3 mm
    • Field of View – 140.7°(D) x 107°(H) x 77.8°(W)
    • Focus Control – Fixed M12 Lens
    • Aperture – F2.0
    • Iris Control -Fixed
  • Connectivity
    • Gigabit Ethernet M12 port
    • 4G LTE and GPS using Quectel EM060K-EA or Quectel EM060K-NA M.2 B-Key 3042 module
    • 3x SMA antenna connectors: 2x for 4G LTE, 1x for GPS
  • Serial Port – Optional RS232 or UART (via M12 cable)
  • Power Input – 12V via DC jack (60W power adapter) connected through M12 cable along with reset button
  • Dimensions – 136.7 x 93.5 x 177.4mm
  • Weight – 1 kg
  • Temperature Range – -20 to +50°C
  • Humidity – 95% @ 40°C
  • IP Rating – IP65
  • Certifications – CE / FCC

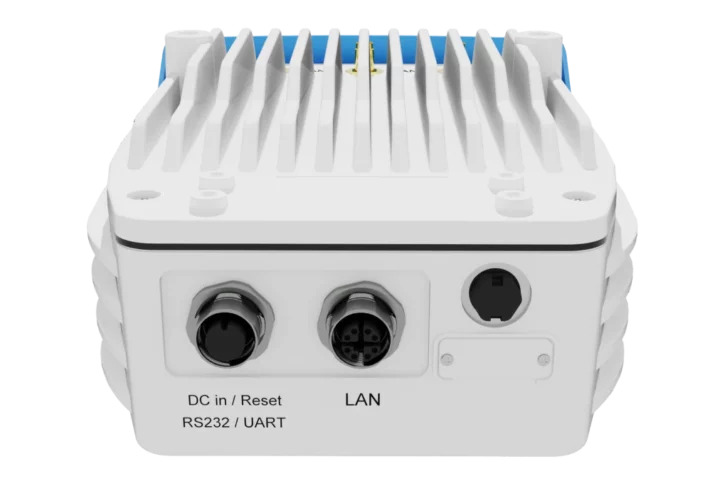

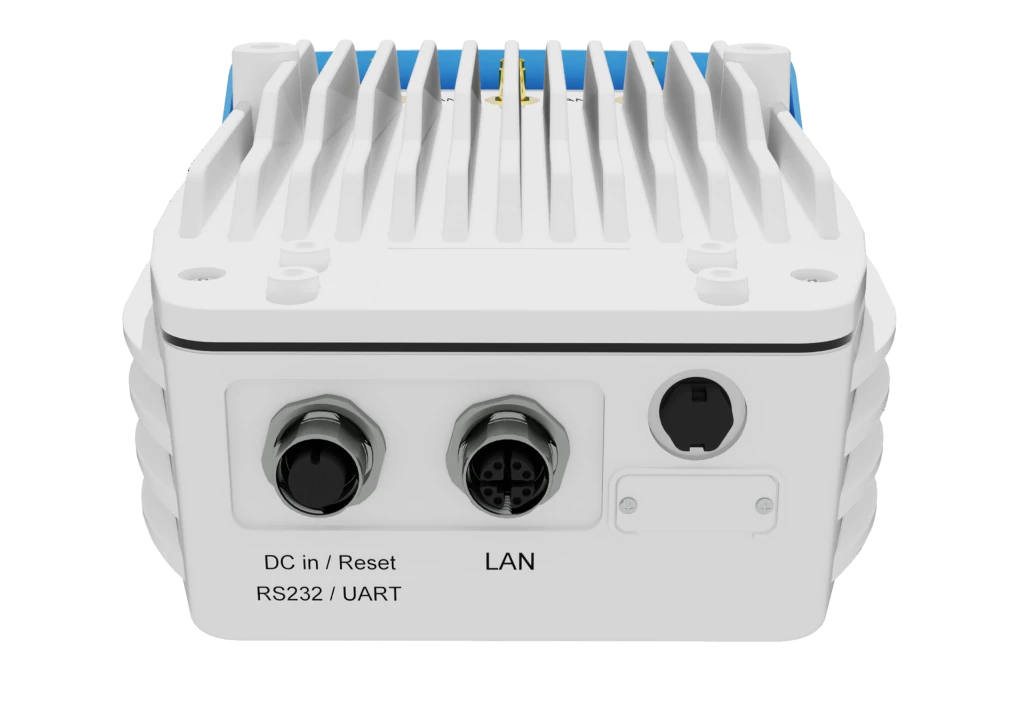

SmartCow T1025 Jetson Orin Nano Smart Camera ports

The SmartCam T1000 series (T1025 and T1023) includes software that enables operators to configure and optimize image sensor performance in real time and reference NVIDIA DeepStream SDK pipelines. The SmartCam T1023 and T1025 AI cameras also work with the company’s FleetTrackr AIoT edge management solution and are suitable for applications such as parking detection, face recognition, surveillance, and license plate reading for vehicles.

SmartCow introduced and showcased the SmartCam T1000 series at NVIDIA GTC 2024, but the AI cameras will only become available in July 2024, and no pricing has been announced. Further details may be found on the product page and in the press release.

Thanks to TLS for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
Jon Smirl
2 months ago

This is going to cost $500 or more.

1 month ago

That’s actually too optimistic:
$470-500 would be for Orin Nano itself.
Decent camera with SONY IMX335 sensor – $60 in the best case
Cheapest 256GB NVMe SSD – $20
Quectel EM060K-EA LTE-A Cat 6 module – $60
IP65 enclosure – $20-30
Labour, margin etc. – another $50

You are looking at $700 at the very least.

fenom
fenom
1 month ago

Still optimistic. Expect close to four digits

Shawn
Shawn
1 month ago

I think it’s $499 from the start for 8GB, the lack of hardware encoding of camera input kills it. there needs to be better inference-focused kit on the market including video encode/decode in hardware.

1 month ago

I also remembered 300, but alas – that’s yesterday’s news. Everywhere I tried, the lowest price was 470.

Shawn
Shawn
1 month ago

Jetson Orin nano has no hardware encoder for the camera, you have to use CPU to encode video from camera in 2024.

Jetson nano is stuck with Ubuntu 18.04? while the hardware is still in stock,the software is getting really old and Nvidia has said there is no plan to upgrade it.
