Radxa ROCK 5C (Lite) SBC features Rockchip RK3588S2 or RK3582 SoC, WiFi 6, Raspberry Pi PCIe FFC connector

First came the ROCK 5B pico-ITX SBC, then the Raspberry Pi 4-sized ROCK 5A board, and now Radxa has launched the Radxa ROCK 5C and 5C Lite single board computers powered by respectively Rockchip RK3588S2 octa-core and RK3582 hexa/octa-core “Lottery” processors.

The ROCK 5C (Lite) design is very similar to the ROCK 5A, but there are some notable differences. First, it replaces the two micro HDMI ports with a single HDMI port, then it removes the Key M socket for M.2 wireless modules to make place for a built-in WiFi 6 and Bluetooth 5.4 module plus a Raspberry Pi PCIe FFC connector, and finally, the ROCK 5C does not support an SPI flash module anymore.

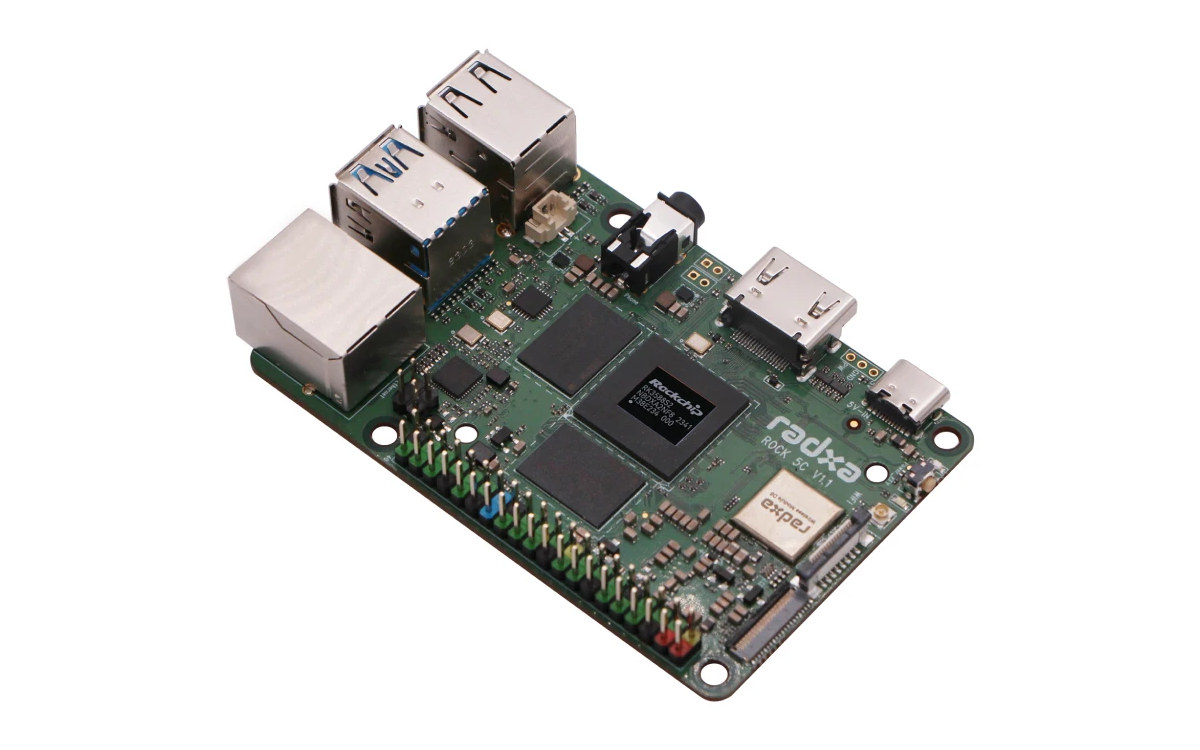

Radxa Rock 5C

The specifications of the ROCK 5C and ROCK 5 Lite SBC can be found in the table below.

Model
ROCK 5C
ROCK 5C Lite
SoC
Rockchip RK3588S2
Rockchip RK3582
CPU
Quad-core Cortex-A76 with up to 2.4 GHz
Quad-core Cortex-A55 at up to 1.8GHz
Dual-core Cortex-A76 with up to 2.4 GHz
Quad-core Cortex-A55 at up to 1.8GHz
GPU
Arm Mali‑G610MC4
N/A
NPU
6 TOPS NPU
5 TOPS NPU
RAM
2GB, 4GB, 8GB, 16GB, or 32GB 64-bit LPDDR4x
1GB, 2GB, 4GB, 8GB, or 16GB 64-bit LPDDR4x
Storage
eMMC module connector
microSD Card
No SPI flash
Video Output
HDMI 2.1 up to 8K
MIPI DSI up to 2K
Multimedia
H.265 and VP9 decoder up to 8Kp60
H.264 decoder up to 8Kp30
AV1 decoder up to 4Kp60
H.264 and H.265 encoder up to 8Kp30
H.264 and H.265 encoder up to 4Kp60
Camera
1x4 lane MIPI CSI
Ethernet
Gigabit Ethernet with optional PoE
Wireless
WiFi 6 and Bluetooth 5.4 with antenna connector
USB
2x USB 2.0 ports
1x USB 3.0 host port
1x USB 3.0 OTG port
Expansion
Raspberry Pi FFC PCIe 2.1 x1 connector
40-pin Raspberry Pi GPIO header
Power Supply
5V via USB-C port
Dimensions
86 x 56 mm

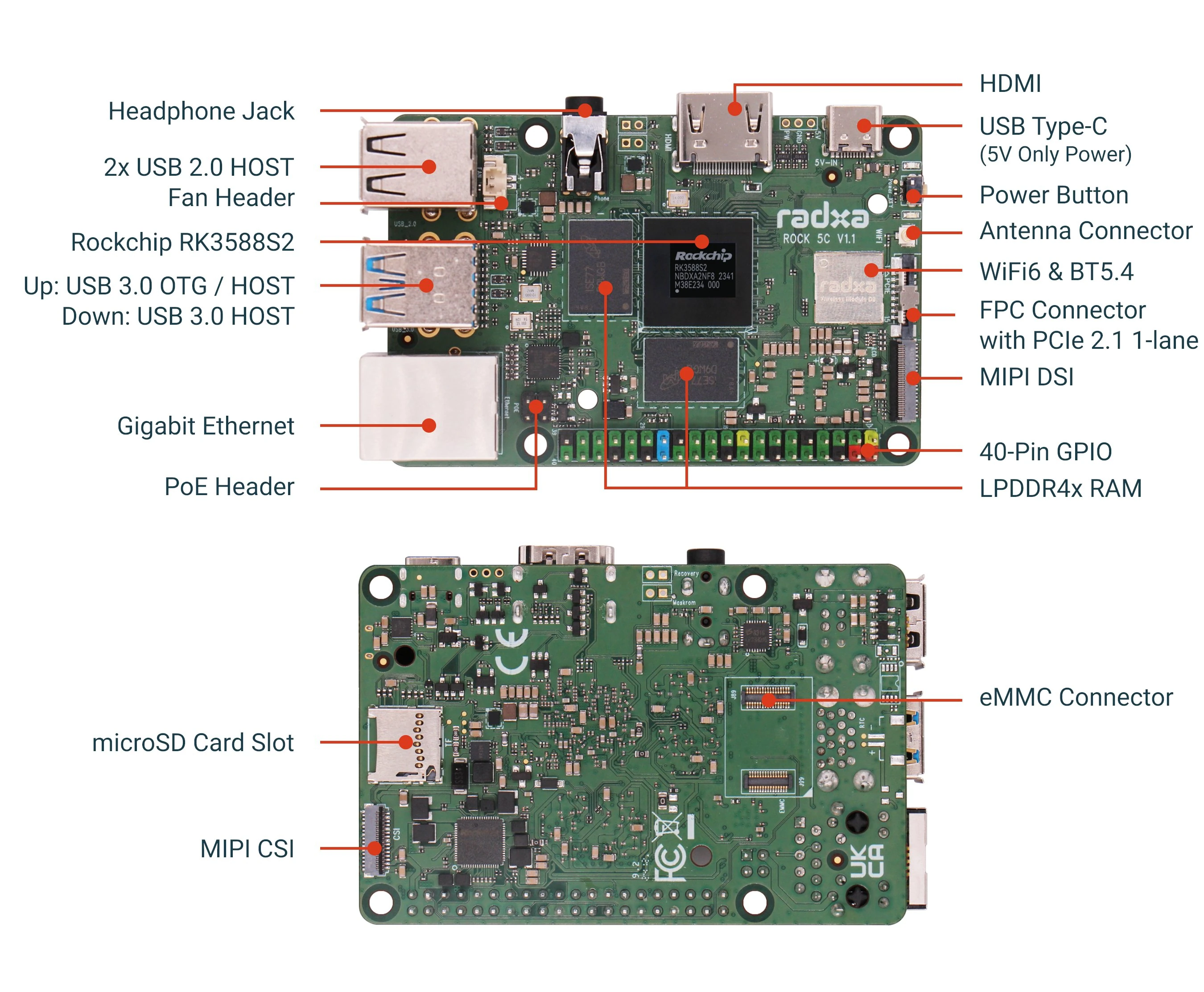

Radxa ROCK 5C with RK3588S2 SBC
Radxa ROCK 5C with RK3588S2 SBC

Both processors are new, so let’s have a look. First, how does RK3588S2 differ from RK3588S? They are basically the same except the RK3588S2 comes with an additional MIPI CSI interface which is not used in the ROCK 5C. The Rockchip RK3582 is also an RK3588S SoC but with some missing and cut-down features. Why do I call it a “lottery” processor? First, when chips are manufactured they have different capabilities on the wafer, and that’s why Intel has processors with the same die and features but different CPU and GPU frequencies. Some processors that mostly work but miss some features may be discarded impacting the yield. As I understand it that’s what Rockchip did with the RK3582, those are just RK3588S parts that would be previously discarded. That also explains why Radxa says that in some cases RK3582 may get four Cortex-A76 cores and/or a GPU. That’s the RK3582 lottery 🙂

Having said that, all advertised features of the RK3582 will work, and people will get at least a hexa-core Cortex-A76/A55 processor, no GPU, a 5 TOP NPU, and a 4K video encoder.  We previously received the Rockchip RK3582 datasheet and the 4K video decoders are listed there. Maybe it was a preliminary datasheet, and those are not guaranteed to work anymore on the RK3582.

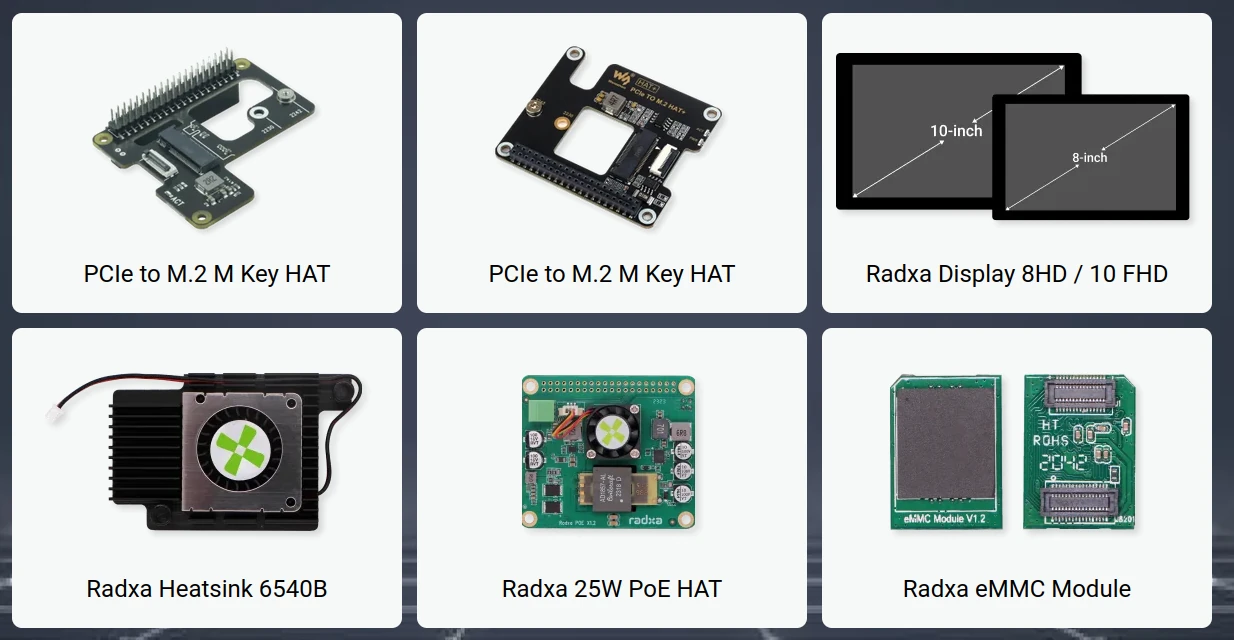

RK3582 SBC Raspberry Pi PCIe HAT
Radxa ROCK 5C accessories

The presence of a 40-pin Raspberry Pi header and Raspberry Pi PCIe FFC connector means the ROCK 5C/5C Lite will also work with Raspberry Pi HAT+ including the ones made for the Raspberry Pi 5 such as the Waveshare PCIe to M.2 HAT or the official Raspberry Pi M.2 HAT+. It’s the second non-Pi single board computer with the 16-pin PCIe connector we’ve seen after the Kaki Pi, but the ROCK 5C will offer better compatibility since the connector is in the same position as the Pi 5. Radxa also made its own accessories with the heatsink 6540B active cooler, a PoE HAT, a few eMMC modules, and 8-inch and 10-inch displays.

Software-wise, Radxa provides the Debian-based Radxa OS and detailed documentation to get started, for low-level development, and for application development. You can also directly access the build script for Radxa OS on GitHub. Android is also being worked on but not available just yet, and I’m sure community-supported images will also be released.

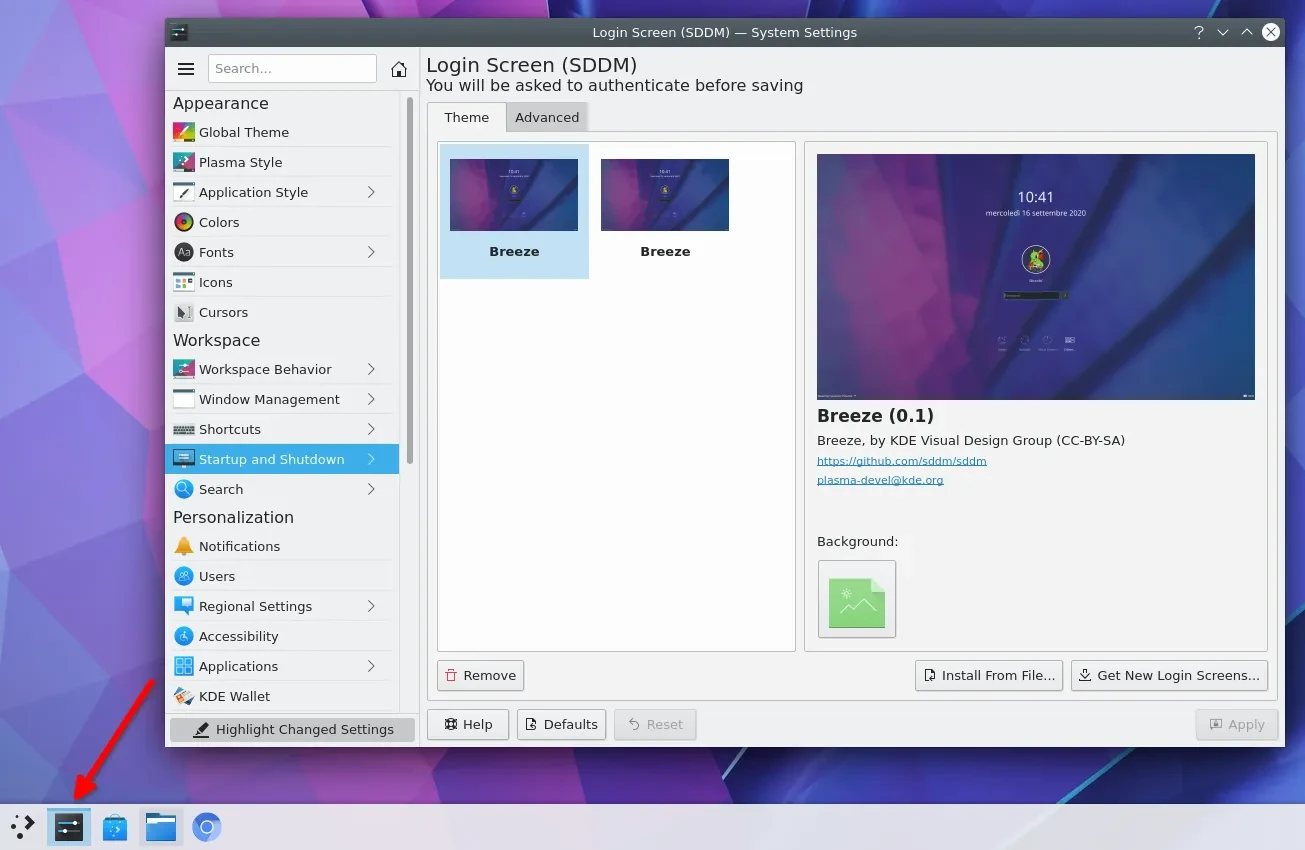

Radxa OS screenshot
Radxa OS

Radxa ROCK 5C Lite sells for $51.53 on Aliexpress with 4GB RAM(Note: the 1GB model would go for $34.35, but it’s out of stock), and the Raxa ROCK 5C starts at $57.11 (2GB) or $68.56 (4GB) on the same page, meaning variants with RK3582 are about $17 cheaper than the ones based on RK3588S. Accessories such as the heatsink, displays, and eMMC modules can also be purchased from the relevant section on the company’s Aliexpress store. Additional information may be found on the product page.
