Pironman 5 is a fancy tower PC case for the Raspberry Pi 5 with NVMe M.2 SSD, oversized fans, RGB LEDs

SunFounder Pironman 5 is an enclosure for the Raspberry Pi 5 SBC that looks like a small Tower PC equipped with two RGB LED fans and a tower cooler with a PWM fan for cooling, and support for an NVMe SSD drive through the company’s Pironman 5 NVMe PiP HAT+ expansion board.

The case also includes a small OLED information display, a power button for safe shutdown, two full-size HDMI ports, a spring-loaded microSD card socket for easy insertion and removal, an IR receiver for media center applications, and externally accessible 40-pin GPIO header so users can still play with GPIO while the Raspberry Pi 5 is inside the case.

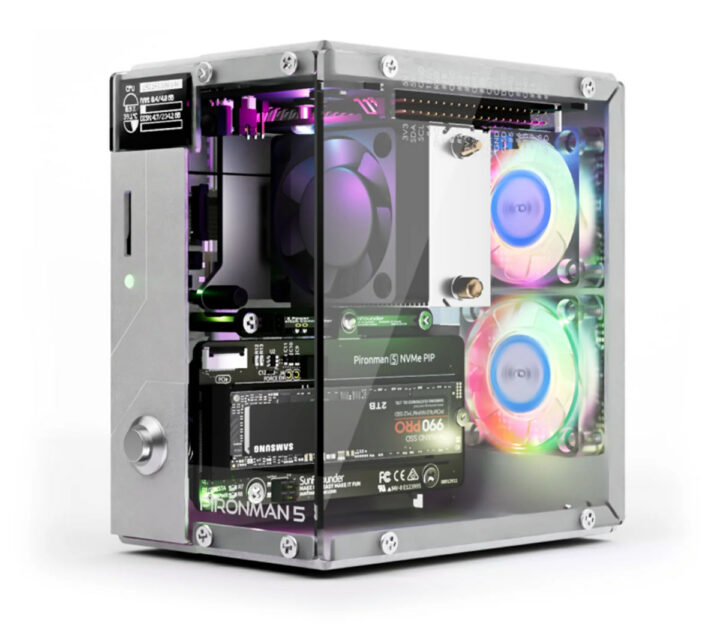

Pironman 5 Raspberry Pi 5 Tower PC

Pironman 5 key features and specifications:

  • Designed for the Raspberry Pi 5 SBC (a board like Radxa Rock 5C could be installed instead, but software for OLED display, RGB LEDs, fan control, etc… might be an issue)
  • Storage
    • Pironman 5 NVMe PiP HAT+ supporting M.2 2230, 2242, 2260, or 2280 NVMe SSD at up to PCIe 2.0/ PCIe 3.0 speeds due to Pi 5 limitations
    • MicroSD card card slot equipped with a spring-loaded socket for easy card removal
  • Video Output – 2x full-size HDMI ports
  • Display – 0.96-inch OLED Display showing Raspberry Pi’s CPU usage, temperature, disk usage, IP address, RAM usage, etc…
  • Networking – Access to the GbE RJ45 port from the Raspberry Pi 5, as well as WiFi 5 and Bluetooth 5
  • USB – Access to the USB 2.0 and USB 3.0 ports from the Raspberry Pi 5
  • Cooling
    • 2x RGB fans with GPIO control
    • Tower cooler with PWM fan controlled by the system
    • Tower cooler that can cool a Raspberry Pi 5 with 100% CPU load down to 39°C at 25°C room temperature
  • Expansion – External 40-pin GPIO extender with pin labels for easy access
  • Misc
    • 4x WS2812 Addressable RGB LED light up the whole case with light effects
    • IR Receiver for multi-media centers like Kodi or Volumio
    • Retro metal power button for safe shutdown
  • Power Supply – 5V DC/5A via USB-C power adapter
  • Aluminum main body with clear Acrylic side panel

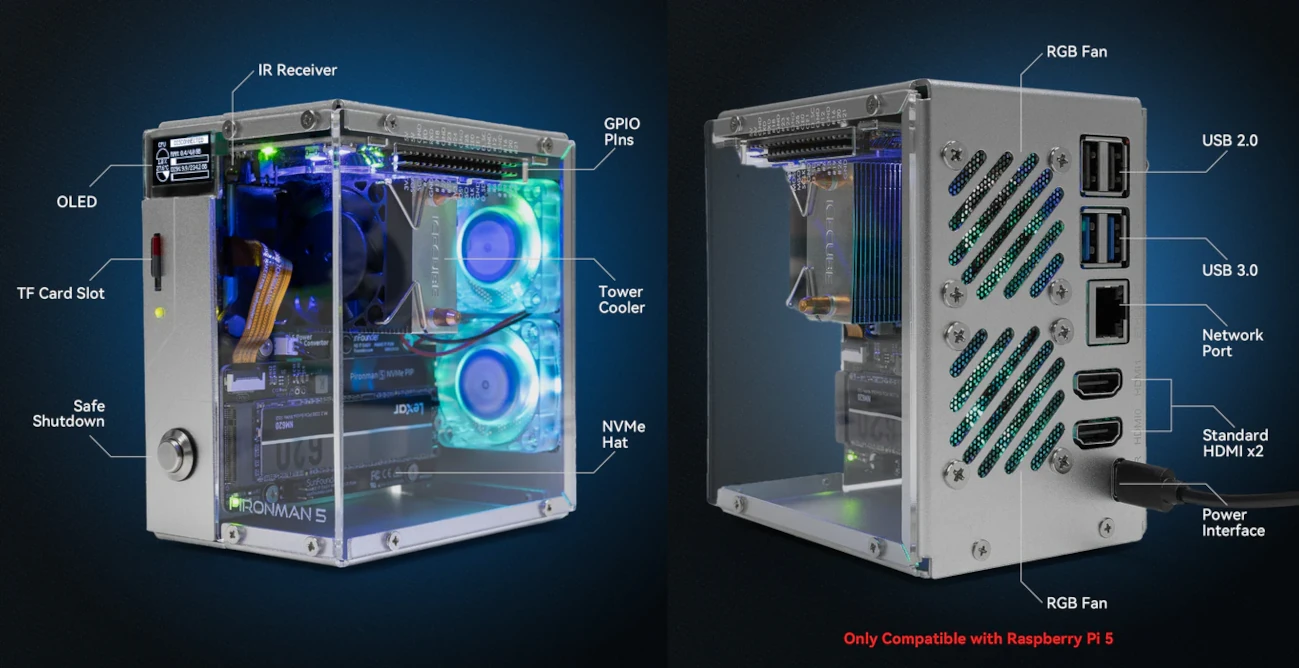

Pironman 5 Raspberry Pi 5 case description

The Pironman 5 is fully compatible with all versions of Raspberry Pi OS Desktop/Lite, and can also work with other operating systems but with some limitations:

  • Ubuntu Desktop 23.10 – No SPI required by the LEDs
  • Kali – No I2C required for OLED screen
  • Home Assistant – I2C and SPI interfaces are not supported (for now)

You’ll find instructions to assemble the Pironman case, configure the bootloader and Raspberry Pi OS, and install the Pironman 5 software module on the wiki. You may also be interested in checking out our review of Pironman case for the Raspberry Pi 4 with M.2 SATA storage last year, as while the design is a bit different, it can still give an idea of what to expect with the new model.

The main commands to install the Pironman5 module and dependencies are as follows:

This will start the pironman5.service which can be controlled with systemd, e.g.:

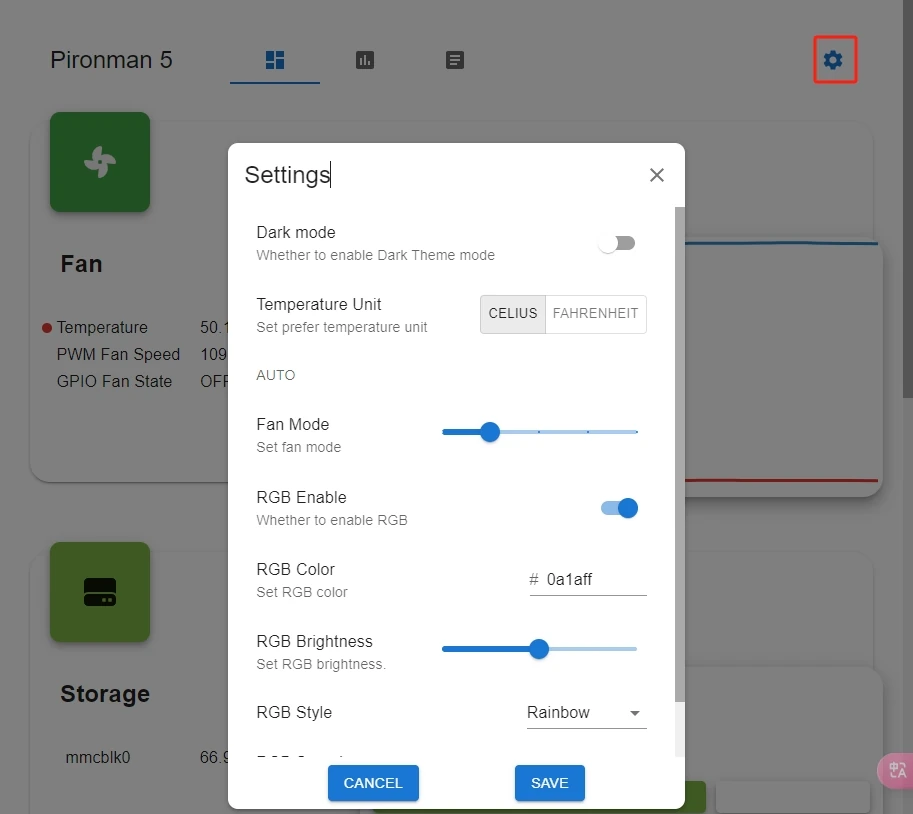

Pironman 5 dashboard
Pironman 5 dashboard

From there, users can access the Pironman 5 dashboard from their preferred web browser by going to http://<ip>:34001. It provides a convenient user interface to configure the fan behavior, set various RGB LED parameters, and more. It also serves as a monitoring solution similar to RPI-Monitor.

SunFounder has started taking orders for the Pironman 5 PC tower case for the Raspberry Pi on their online store for $79.99. The company also has an Aliepress store and an Amazon store, but the enclosure is yet to be listed on either at the time of writing.
