EDATEC ED-SBC2300 – A Raspberry Pi CM4-powered industrial Mini-ITX motherboard

The EDATEC ED-SBC2300 is an industrial mini-ITX motherboard built around the Raspberry Pi CM4. The motherboard offers various storage options including eMMC flash, microSD card, and mSATA SSD. It supports dual displays (HDMI + LVDS or HDMI + eDP with touchscreen), offers diverse connectivity with USB, GbE port, RS232, RS485, and GPIO, and boasts integrated security features like RTC, EEPROM, and crypto authentication. The board supports a wide 9V-36V DC power input and PoE is also an option through an add-on board. With its compact size, flexible I/O, and industrial-grade features, the ED-SBC2300 series suits applications like kiosks, digital signage, industrial automation, and IoT devices.

Previously we have written about similar products from EDATEC including the RPI CM4-based industrial computer, the EDATEC ED-HMI2320-156C fanless panel PC, and the EDATEC ED-HMI2120-101C, also an industrial panel PC with an 10.1-inch capacitive touchscreen. Feel free to check those out if you are interested in the topic. It also offers an alternative to other Arm/RISC-V motherboards such as Radxa ROCK 5 ITX and Shenzhen Milk-V Jupiter.

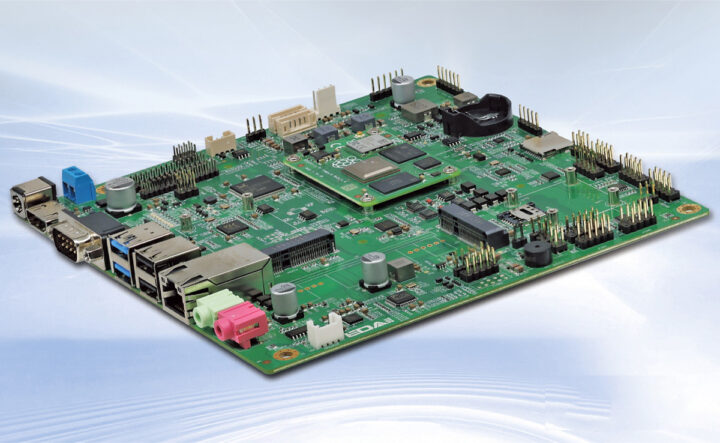

EDATEC ED SBC2300 Raspberry Pi CM4 powered Industrial Mini-ITX  Motherboard

EDATEC ED-SBC2300 Mini-ITX industrial motherboard specification

  • SKUs – EDATEC ED-SBC2300 series – ED-SBC2310, ED-SBC2311, ED-SBC2320, and ED-SBC2321
  • SoM – Raspberry Pi CM4
    • SoC – Broadcom BCM2711 quad-core Cortex-A72 processor @ 1.5GHz with VideoCore VI GPU
    • System Memory – 1GB, 2GB, 4GB, or 8GB LPDRR4-3200 RAM
    • Storage – 8GB, 16GB, or 32GB eMMC flash
  • Storage
    • mSATA SSD socket
    • MicroSD card slot (for user storage expansion)
    • 4KB EEPROM
  • Video Output
    • HDMI 2.1 port, Type-A connector that supports up to 4K resolution at 60Hz
    • LVDS or eDP (Optional, ED-SBC2320/2321 only)
      • Via 2×15-pin 2.54mm pitch header
      • Supports up to 1080p resolution at 60Hz refresh rate
      • LVDS or eDP interfaces are multiplexed
  • Audio (Audio features are available only on ED-SBC2320/ED-SBC2321)
    • Line Out – 3.5mm audio jack for stereo audio output.
    • MIC In – 3.5mm audio jack for microphone input
    • Speaker – 4-pin 2.0mm pitch WTB connector for dual-channel stereo audio output allowing the connection of 4Ω 3W stereo speakers.
  •  Networking
    • Gigabit Ethernet RJ45 port with optional PoE support
    • Optional WiFi 5 and Bluetooth 5 via Raspberry Pi CM4 module
    • Optional 4G LTE connectivity via mini PCIe module and Nano SIM card slot
  • USB
    • 2x USB 3.0 ports (Type-A connector, up to 5Gbps)
    • 2x Type-A USB 2.0 ports, only on ED-SBC2310/2320
    • 3x USB 2.0 headers on the motherboard for ED-SBC2310/2320
    • 5x USB 2.0 headers on the motherboard for ED-SBC2311/2321
  • Serial
    • RS232:
      • 1x port on Rear I/O (DB9 male connector)
      • 6x additional ports available via expansion headers on the motherboard
    • RS485:
      • 2x ports available via expansion headers on the motherboard
      • Includes a 120R jumper resistor option
  • GPIO – 1x 6-pin GPIO header
  • Misc
    • Crypto Authentication (integrated in the motherboard)
    • RTC with battery backup (integrated in the motherboard, CR2032 battery included by default in China)
    • Buzzer (integrated into the motherboard)
    • HDD LED, Power LED
    • Auto-boot – 1x 3-pin header for enabling/disabling
  • Power
    • 9V~36V DC input via DC jack with reverse polarity protection, overvoltage protection, and overcurrent protection
    • 9V~36V DC input via 2-pin 5mm pitch connector; Signal is defined as VIN+/GND.
    • Maximum Power Consumption: 60W (Max)
    • Optional PoE (IEEE 802.3b)
  • Dimensions – 170 x 170 mm (Mini-ITX form factor)
  • Weight – 100 grams
  • Temperature Range
    • Operating: -25°C to 50°C
    • Storage: -25°C to 60°C
  • Humidity – 5% to 95% (non-condensing)
  • Certifications – FCC/CE

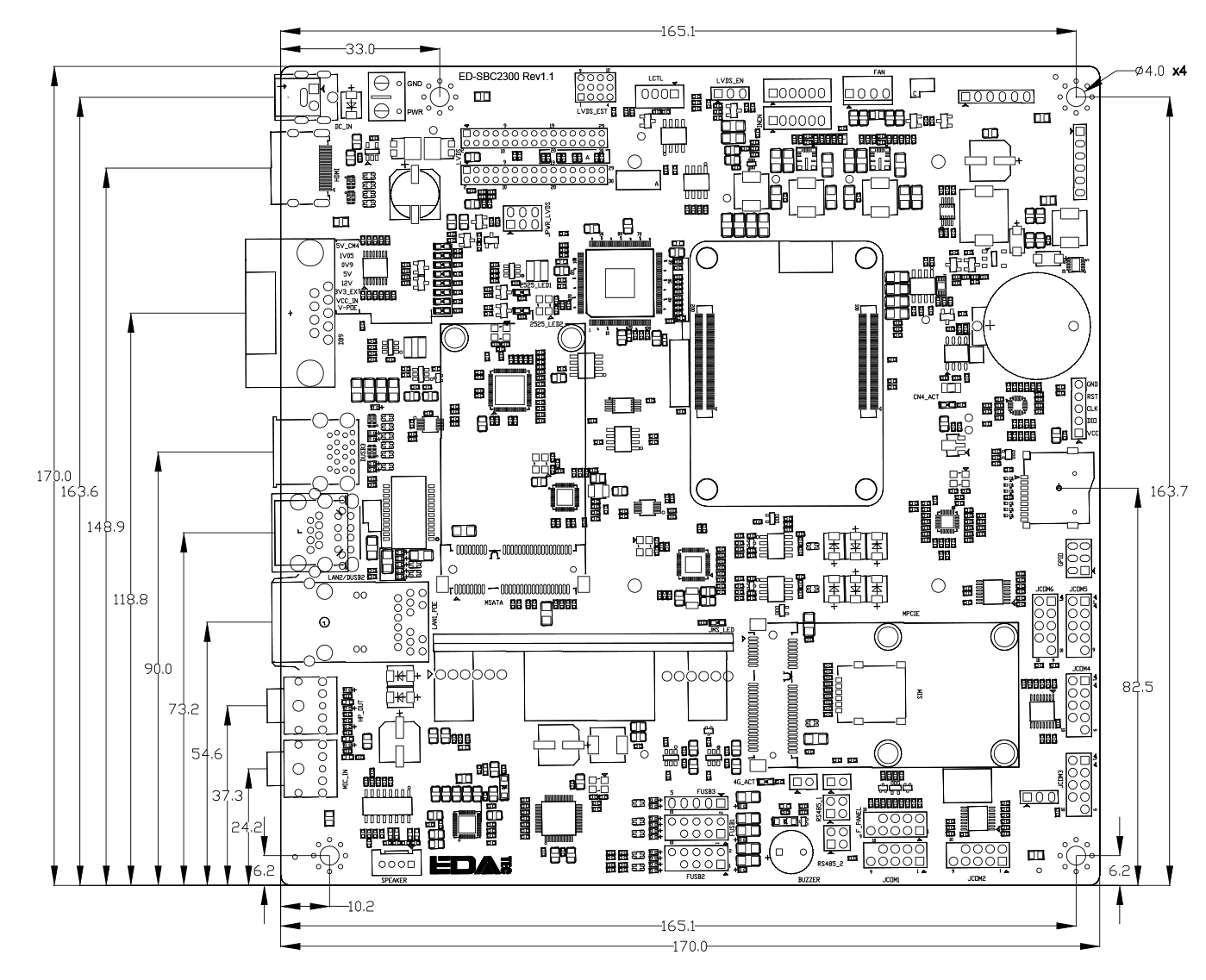

Raspberry Pi CM4 industrial mini-ITX motherboard

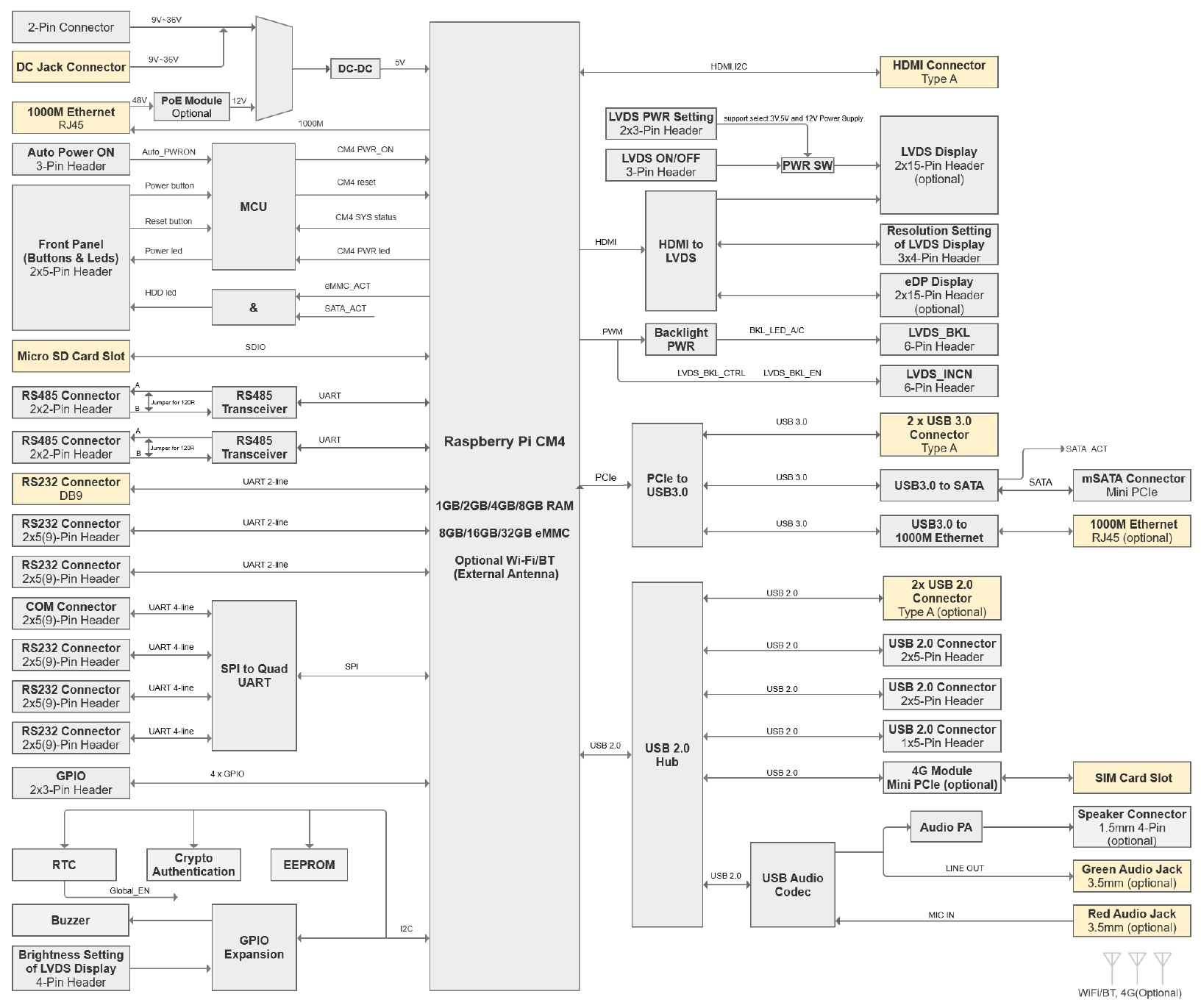

EDATEC ED-SBC2300 block diagram

As usual, the latest EDATEC industrial computer based on the Raspberry Pi CM4 runs Raspberry Pi OS Desktop/Lite 32-bit/64-bit with the required drivers to support all features. The listed specifications clearly indicate that the ED-SBC2310/2311 is designed for applications that don’t require onboard audio or extensive display options, whereas the ED-SBC2320/2321 are ideal for applications needing audio input/output and detailed control over LVDS/eDP displays, such as interactive kiosks or custom HMIs.

At the time of writing the company does not provide any pricing information about the product and to get an equation you need to contact the seller through their contact form. More information can be found on the product page where you’ll also find a datasheet with additional technical details..

ED-SBC2300
